Picture of discrete I/O module Modicon Momentum - 10I / 8O relay
SKU:

170ADM39030

discrete I/O module Modicon Momentum - 10I / 8O relay

$1,730.52 INC GST
Available for Shipping : 13-Jan-2026
discrete I/O module Modicon Momentum - 10I / 8O relay
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete relay I/O base DC module offers 1 group of 10 inputs and 2 groups of 4 outputs with positive discrete input logic. It is a module with discrete input voltage ranges from 20V AC to 115V AC and discrete output voltage ranges from 20V DC to 115V DC. There is an isolation between channels and bus at 500V AC. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.26kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Protective treatment TC
Discrete input number 10 conforming to IEC 1131-2 Type 1
Discrete input logic positive
Discrete output voltage 24...230 V AC, 20...115 V DC
Discrete input voltage 11...30 V DC
Range of product Modicon Momentum automation platform
Group of channels 2 groups of 4 outputs, 1 group of 10 inputs
Discrete output type relay normally open
Discrete output number 8
Product or component type discrete relay I/O base DC
Complementary
Protection type without protection
Mechanical durability 30000000 cycles
Voltage state 0 guaranteed -3...5 V
Associated fuse rating 375 mA fast blow operating voltage, 8 A slow-blow output voltage per group, 4 A fast blow input voltage
Input voltage limits - 3...30 V
Marking CE
Isolation between channels and bus 500 V AC
Electrical durability 100000 cycles inductive
Height 141.5 mm
[Us] rated supply voltage 24 V DC
Discrete output current >= 0.005 A 24 V, <= 2 mA 24 V resistive, <= 1 mA 24 V inductive, <= 0.5 mA 115 V resistive, <= 0.15 mA 115 V inductive
Depth 47.5 mm
Width 125 mm
Input resistance 4 kOhm
Voltage state 1 guaranteed 11...30 V
Maximum leakage current 1 mA at 230 V (output circuit)
Net weight 0.26 kg
Response time 3.3 ms from state 1 to state 0 on input, 2.2 ms from state 0 to state 1 on input, 10 ms 60 Hz from state 1 to state 0 on output, 10 ms 60 Hz from state 0 to state 1 on output
Current state 0 guaranteed <= 1.2 mA
Current state 1 guaranteed >= 2.5 mA
Current consumption 250 mA at 24 V DC
Terminals description PLC n°1 TB, (M-)PW_NEG, (5)IN_DIS#5, (10)IN_DIS#10, (L+)PW_POS, (4)IN_DIS#4, (7)IN_DIS#7, (2)IN_DIS#2, (6)IN_DIS#6, (8)IN_DIS#8, (1)IN_DIS#1, (9)IN_DIS#9, (3)IN_DIS#3, (1L+)PW_POS
Terminals description PLC n°2 (3)OUT_DIS#3, (1)OUT_DIS#1, (5)OUT_DIS#5, (4)OUT_DIS#4, (1L+)PW, (7)OUT_DIS#7, (8)OUT_DIS#8, TB_1, (2)OUT_DIS#2, (2L1)PW, (6)OUT_DIS#6
Power dissipation <= 8.5 W, 5.5 W
Network frequency 47...63 Hz
Environment
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 510.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.792 kg

Related products

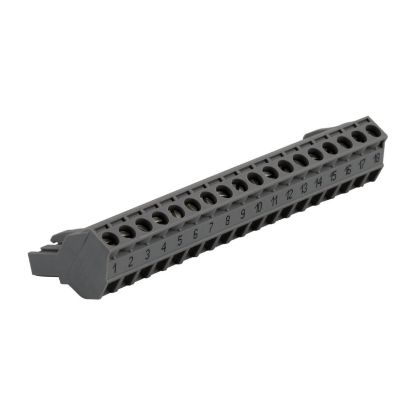

Picture of screw terminal block - Modicon Momentum, Modicon Quantum

screw terminal block - Modicon Momentum, Modicon Quantum

170XTS00100
$296.64 INC GST
View Detail

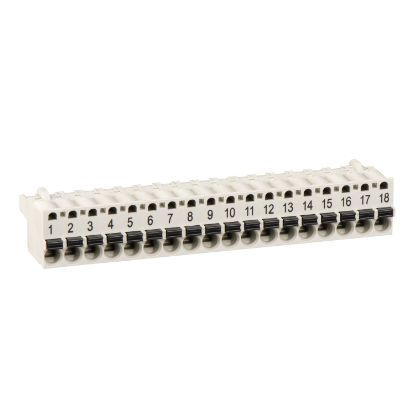

Picture of spring terminal block - Modicon Momentum, Modicon Quantum
