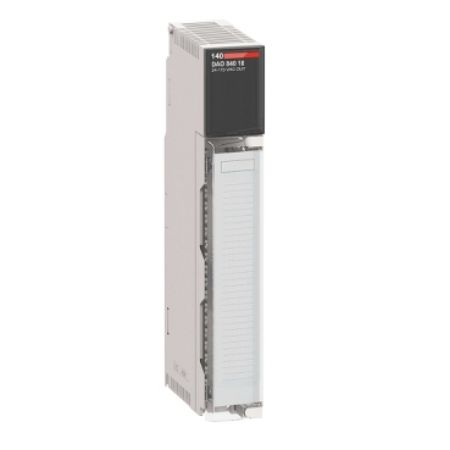

Picture of discrete output module Modicon Quantum - 16 O - 20..132 V AC
SKU:

140DAO84010

discrete output module Modicon Quantum - 16 O - 20..132 V AC

$3,896.00 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete output module Modicon Quantum - 16 O - 20..132 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
CAD
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 16
Product or component type AC discrete output modules
Range of product Modicon Quantum automation platform
Complementary
Supply frequency 47...63 Hz
Associated fuse rating 5 A
Module format standard
Protection type internal by RC filter
DV/dt 400 V/ms
Local signalling 16 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active)
Addressing requirement 1 output word
Bus current requirement 350 mA
Absolute maximum output 200 V during one cycle AC, 156 V for 10 s AC
Net weight 0.485 kg
Marking CE
Surge current 30 A during 3 cycles per point, 30 A during 1 cycle per point, 20 A during 2 cycles per point
Discrete output voltage 20...132 V AC
Response time <= 0.5 ms at state 1 to state 0, <= 0.5 ms at state 0 to state 1
Maximum voltage drop 1.5 V
Group of channels 16 groups of 1 channel
Maximum load current 4 A rms 20...132 V each point, 4 A rms sum of four points, continuous, 16 A rms per module, 2 mA rms 115 V off state leakage/points, 1 mA rms 48 V off state leakage/points, 1 mA rms 24 V off state leakage/points
Discrete output type isolated
Power dissipation 1.85 + (1.1 V x total module load current)
Environment
Operating altitude <= 5000 m
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2, electrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2
Standards CSA C22.2 No 142, UL 508
Ambient air temperature for operation 0-60 °C
Product certifications cUL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.3 cm
Package 1 Width 4.5 cm
Package 1 Length 31.2 cm
Package 1 Weight 620.0 g
