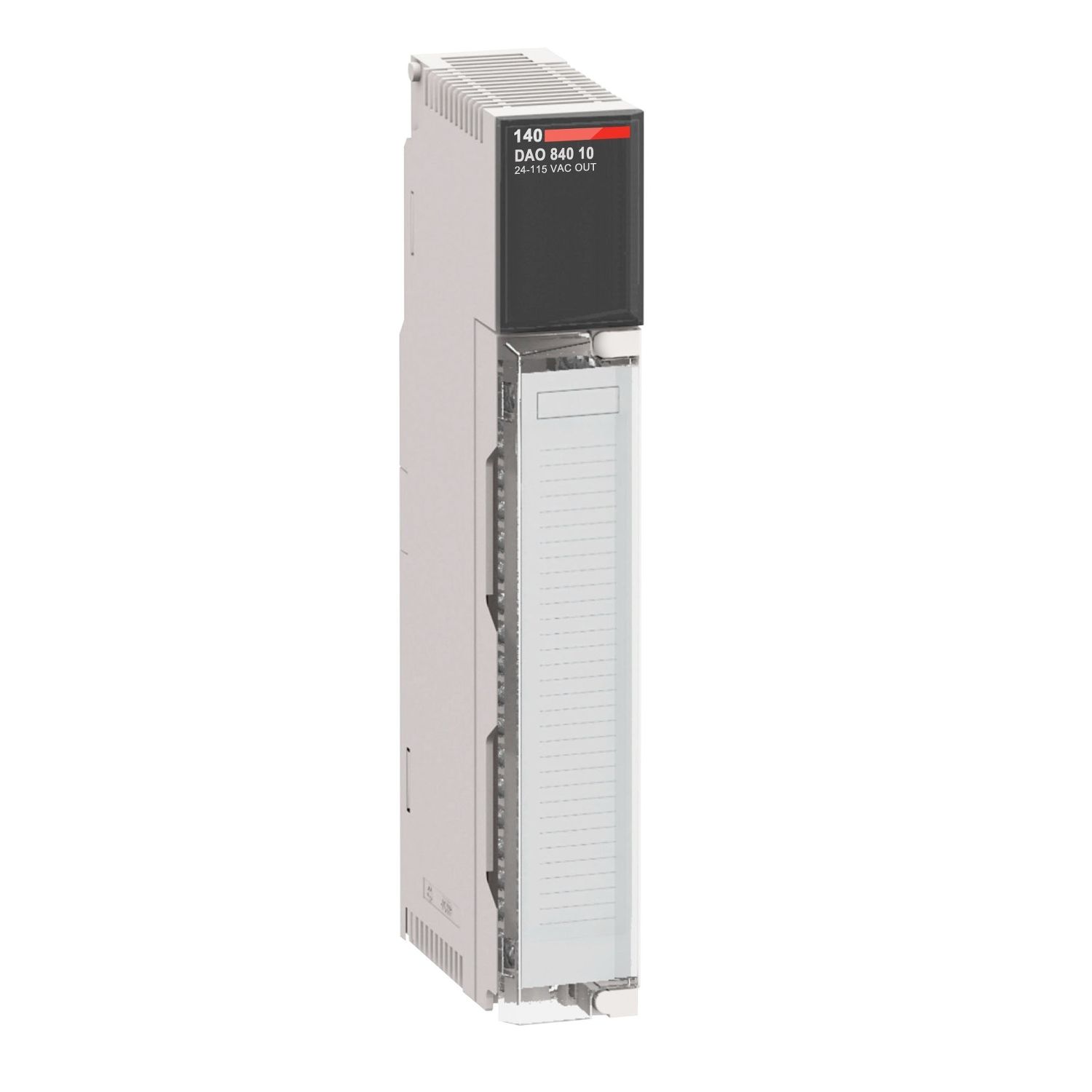

Picture of discrete output module Modicon Quantum - 16 O - 20..253 V AC
SKU:

140DAO84000

discrete output module Modicon Quantum - 16 O - 20..253 V AC

$3,558.72 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete output module Modicon Quantum - 16 O - 20..253 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Catalog
CAD
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 16
Product or component type AC discrete output modules
Range of product Modicon Quantum automation platform
Complementary
Supply frequency 47...63 Hz
Associated fuse rating 5 A
Module format standard
Protection type internal by RC filter
DV/dt 400 V/ms
Local signalling 16 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active)
Addressing requirement 1 output word
Bus current requirement 350 mA
Absolute maximum output 400 Vrms 1 cycle AC, 300 Vrms for 10 s AC
Net weight 0.485 kg
Marking CE
Surge current 30 A during 1 cycle per point, 20 A during 2 cycles per point, 10 A during 3 cycles per point
Discrete output voltage 20...253 V AC
Response time <= 0.5 ms at state 1 to state 0, <= 0.5 ms at state 0 to state 1
Maximum voltage drop 1.5 V
Group of channels 16 groups of 1 channel
Maximum load current 4 A rms sum of four points, continuous, 16 A rms per module, 4 A rms 24...115 V per output, 3 A rms 200...230 V per output, 2.5 mA rms 230 Vrms off state leakage per output, 2 mA rms 115 Vrms off state leakage per output, 1 mA rms 48 Vrms off state leakage per output, 1 mA rms 24 Vrms off state leakage per output
Discrete output type isolated
Power dissipation 1.85 + (1.1 V x total module load current)
Environment
Operating altitude <= 5000 m
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2, electrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2
Standards CSA C22.2 No 142, UL 508
Ambient air temperature for operation 0-60 °C
Product certifications FM Class 1 Division 2, cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.3 cm
Package 1 Width 4.5 cm
Package 1 Length 31.2 cm
Package 1 Weight 621.0 g
