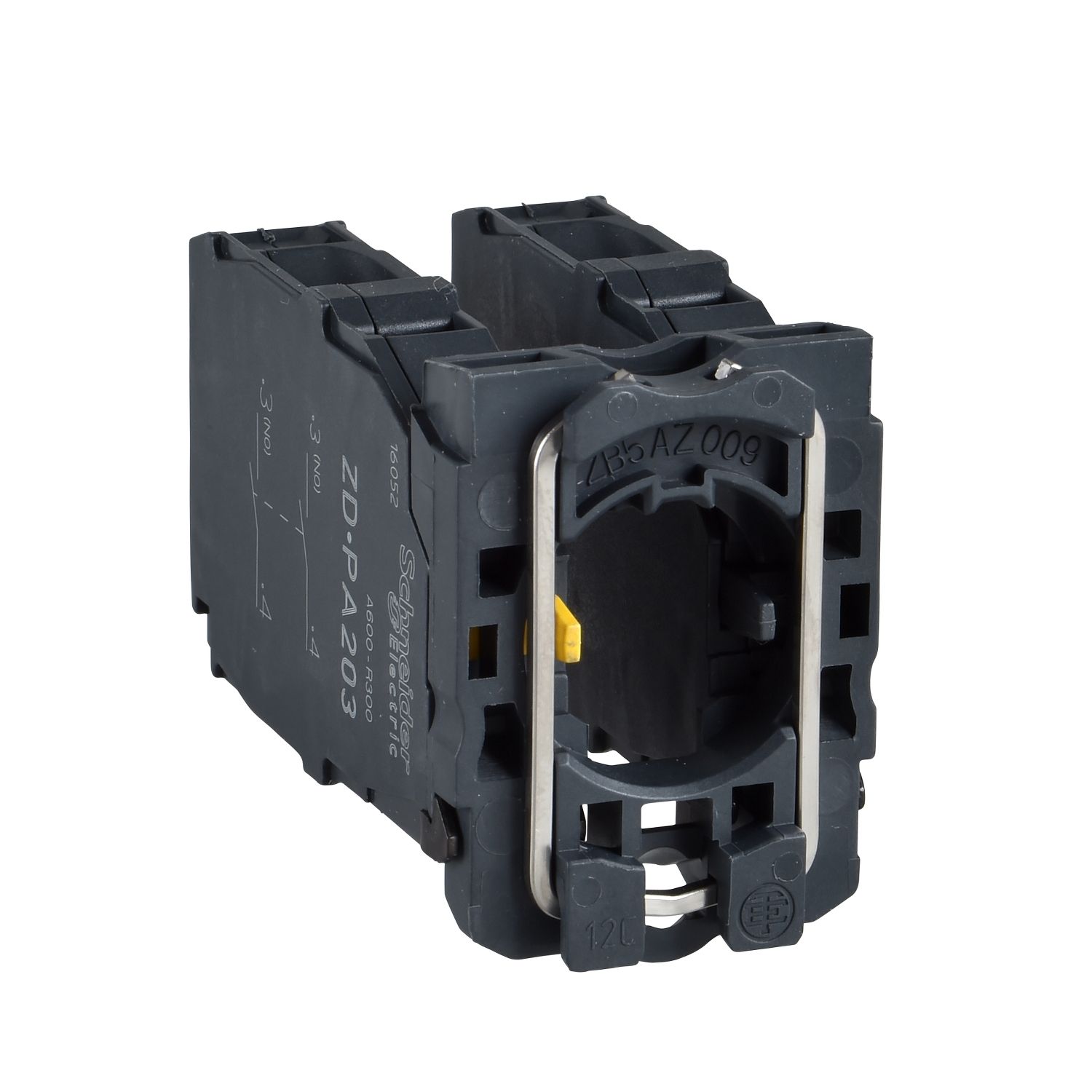

Picture of Complete body/contact assembly for joystick controller, Harmony XB5, XB4, contact block with body/fixing collar, 4NO
SKU:

ZD5PA203

Complete body/contact assembly for joystick controller, Harmony XB5, XB4, contact block with body/fixing collar, 4NO

Old price: $249.15 INC GST
$194.34 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Complete body/contact assembly for joystick controller, Harmony XB5, XB4, contact block with body/fixing collar, 4NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
This contact block is pre-mounted to a body fixing collar. It allows fast and easy replacement and configuration of your joystick controllers with 4-direction operation. It is easily installed and replaced on XB5 complete joystick controllers . It connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Products specifications

Attribute name Attribute value
Main
Device short name ZD5
Contact operation slow-break
Sale per indivisible quantity 1
Contacts type and composition 4 NO
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Fixing collar material plastic
Product or component type complete body/contact assembly for joystick controller
Range of product Harmony XB5
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
CAD overall depth 55 mm
CAD overall width 30 mm
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code ZD5
Mechanical durability 1000000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation basic element
CAD overall height 47 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Contacts material silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Contacts usage standard
Environment
Electrical shock protection class class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-4, UL 508
Ambient air temperature for operation -25-70 °C
Product certifications BV, LROS (Lloyds register of shipping), UL listed, DNV, GL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.300 cm
Package 1 Width 5.300 cm
Package 1 Length 8.900 cm
Package 1 Weight 48.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.855 kg
