SKU:

ZB5AW0G11

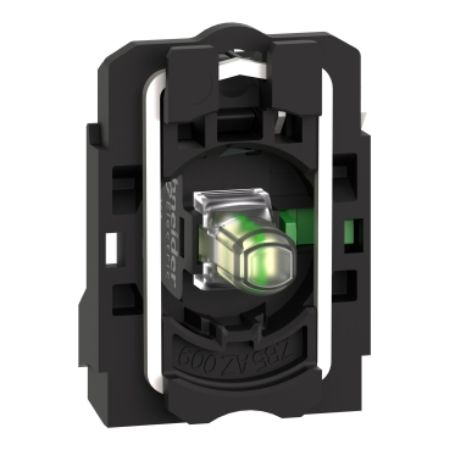

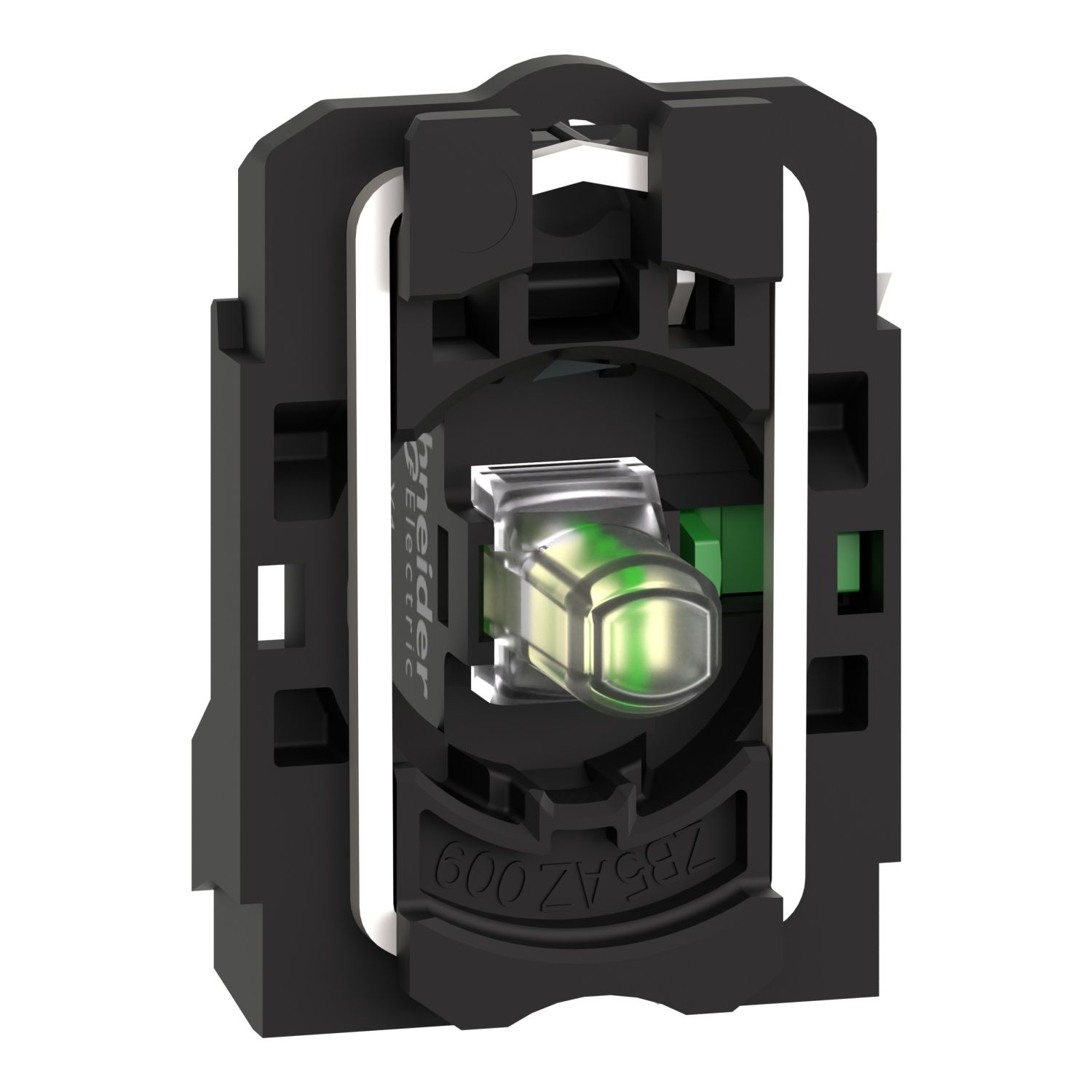

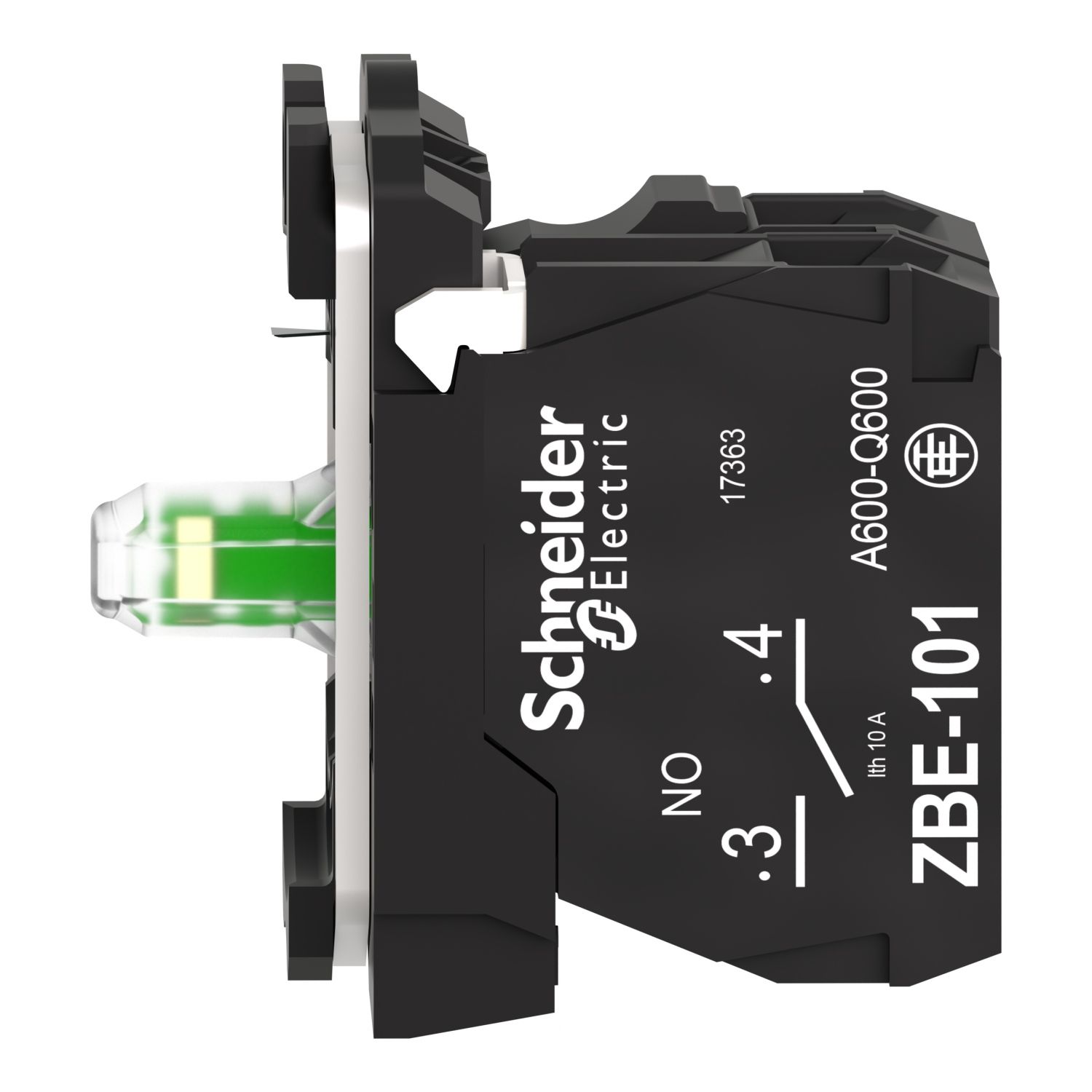

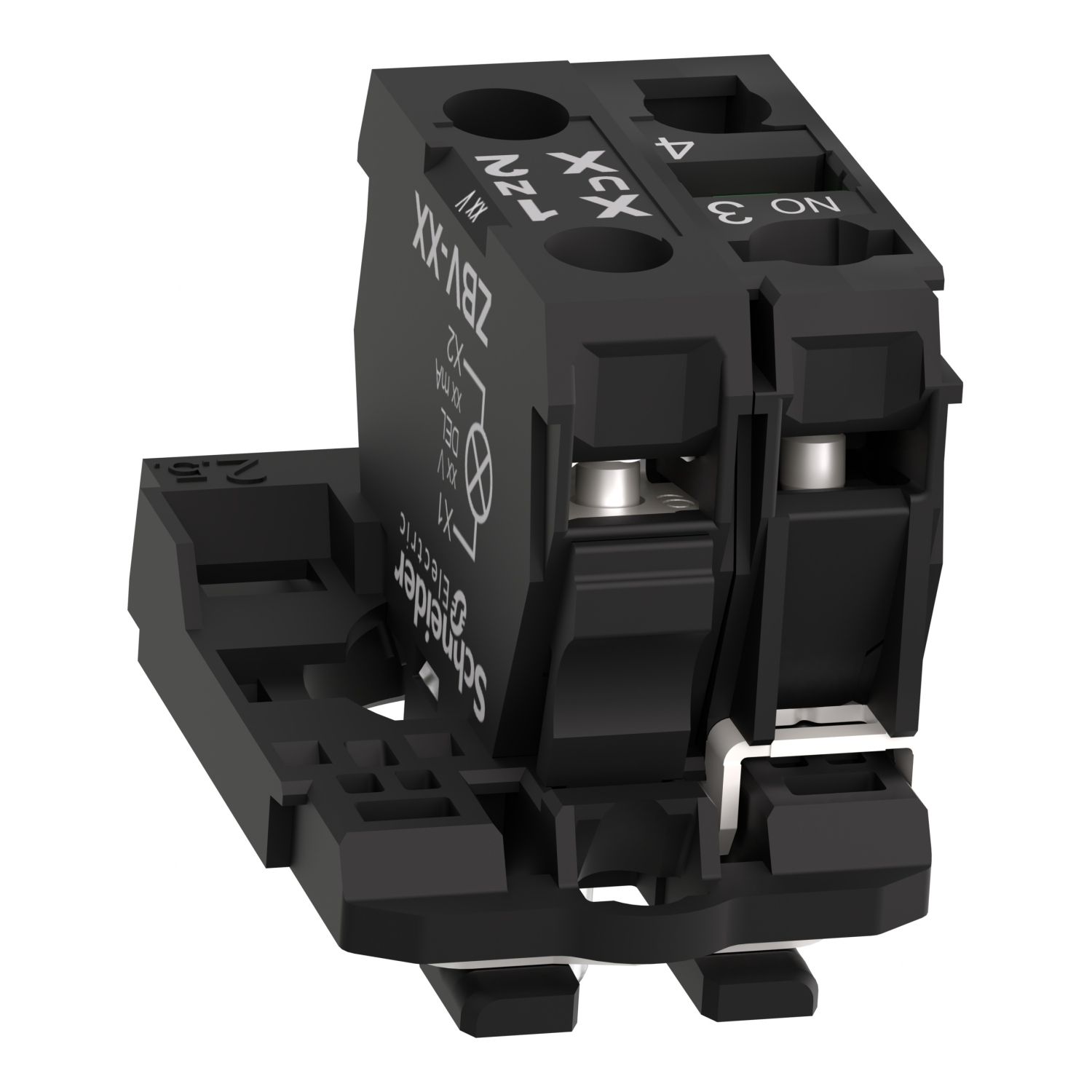

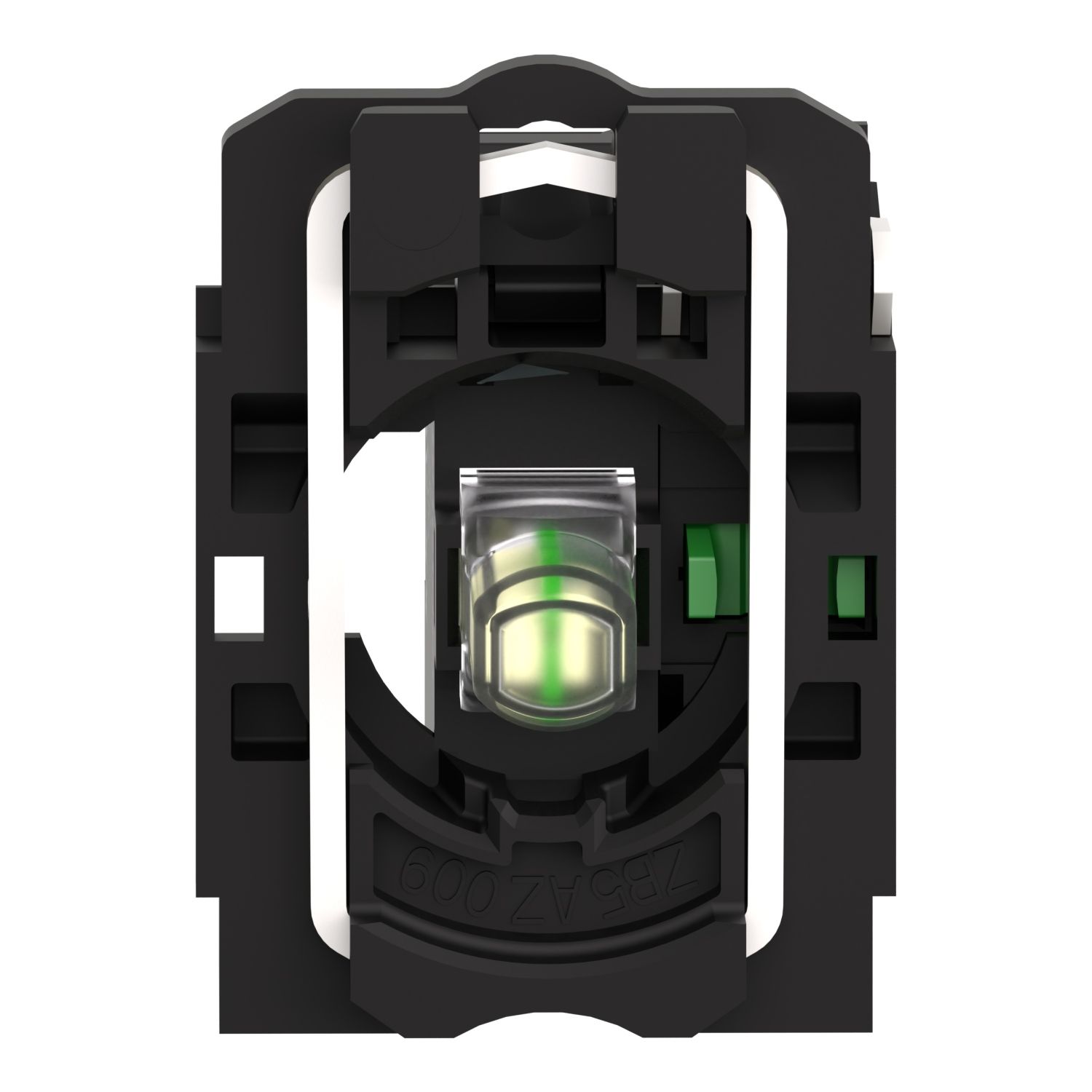

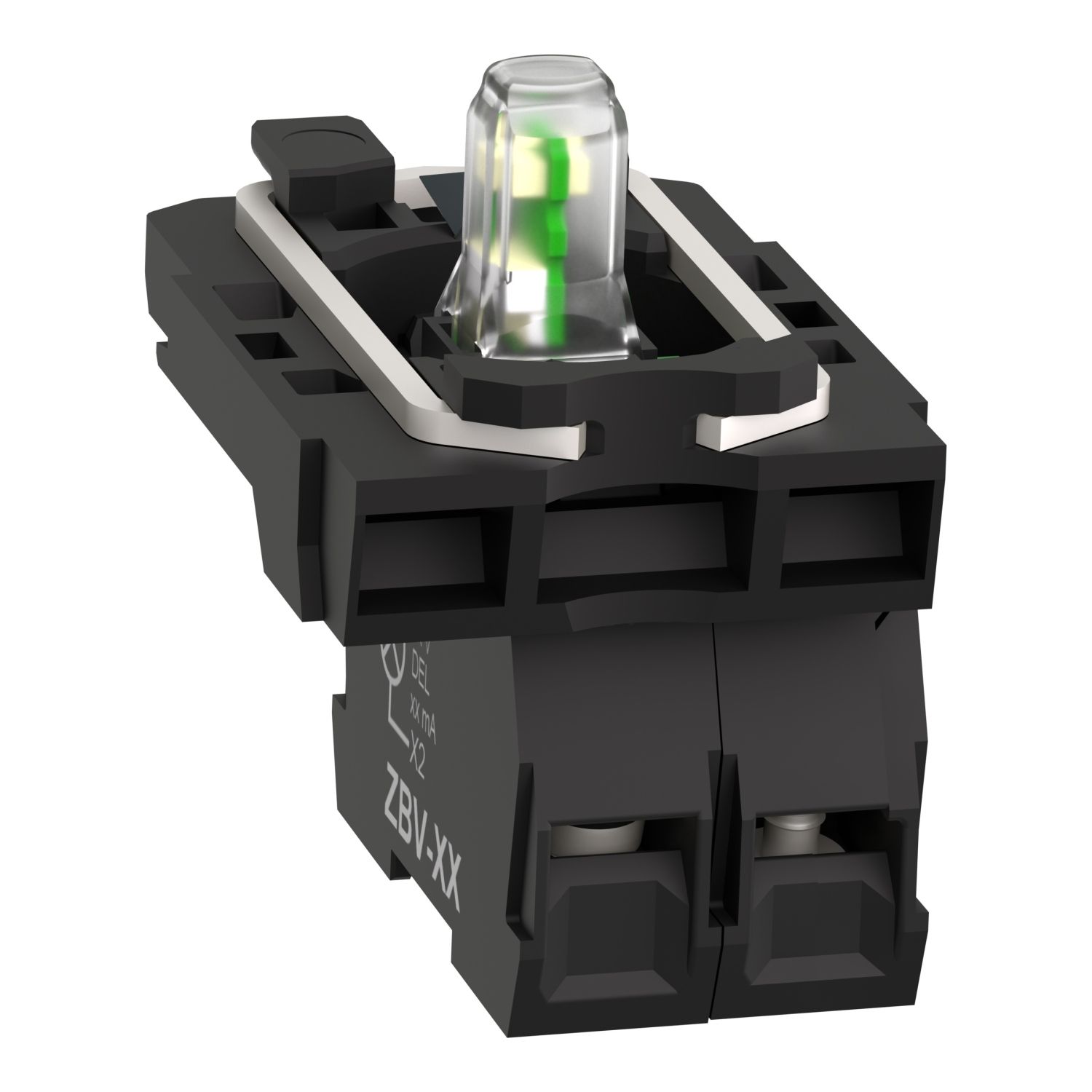

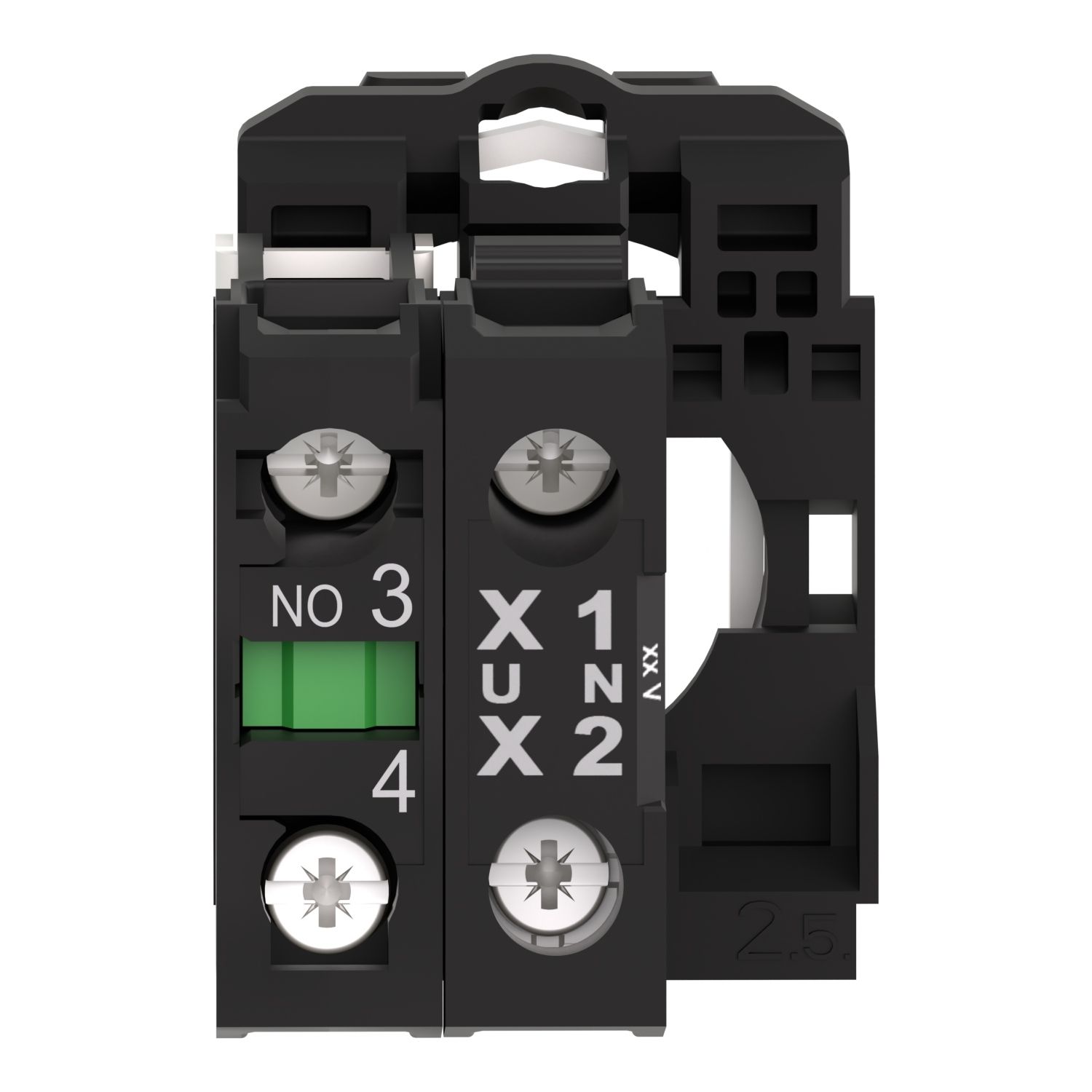

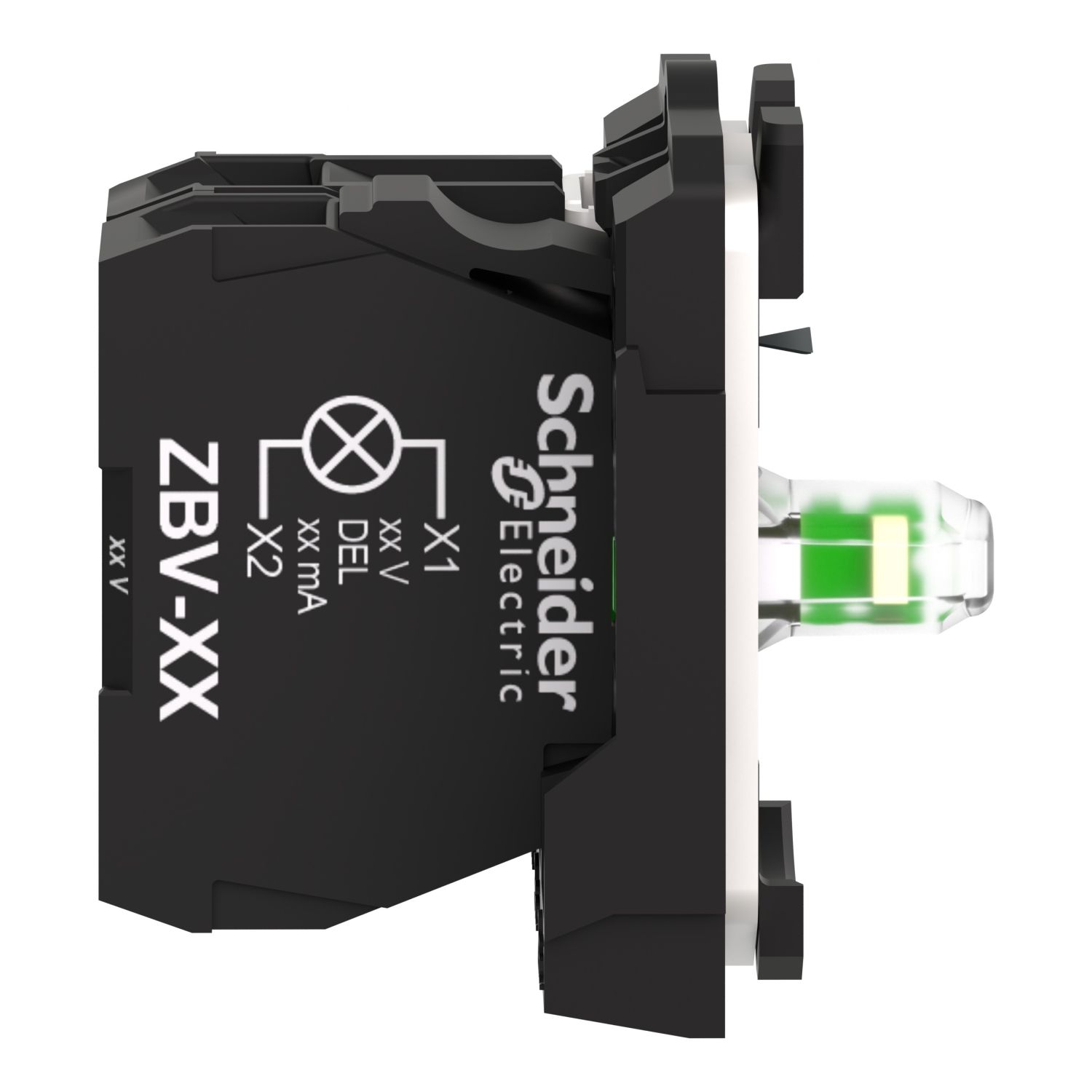

Complete body/contact assembly and light block, Harmony XB5, XB4, with body/fixing collar, universal LED, 110...120V, 1NO

Old price: $70.07 INC GST
$54.65 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Complete body/contact assembly and light block, Harmony XB5, XB4, with body/fixing collar, universal LED, 110...120V, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Instruction sheet
Image of product in real life situation
Image of product in real life situation
CAD
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Products specifications

Attribute name Attribute value
Main
Bulb base integral LED
Device short name ZB5
Light source colour white
Contact operation slow-break
Sale per indivisible quantity 1
Contacts type and composition 1 NO
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Head type standard
Fixing collar material plastic
Product or component type complete body/contact assembly and light block
Light block supply direct
Light source universal LED
Range of product Harmony XB5
Complementary
[Us] rated supply voltage 110...120 V AC at 50/60 Hz, 110...120 V
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
CAD overall depth 32 mm
CAD overall width 30 mm
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Customizable no, 0
Compatibility code ZB5
Mechanical durability 5000000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Operating torque 0.05 N.m NO changing electrical state
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Surge withstand 1 kV conforming to IEC 61000-4-5
Service life 100000 h at rated voltage and 25 °C
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation basic sub-assemblies
Current consumption 14 mA
CAD overall height 42 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.032 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Operating force 2.3 N NO changing electrical state
Terminals description ISO n°1 (13-14)NO
Contacts usage standard
Environment
Electromagnetic emission class B conforming to IEC 55011
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6, 6 kV on contact (on metal parts) conforming to IEC 61000-2-6
Ambient air temperature for storage -40-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, UL 508, CSA C22.2 No 14
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
Product certifications CSA, UL listed, BV, LROS (Lloyds register of shipping), GL, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.900 cm
Package 1 Width 7.400 cm
Package 1 Length 7.900 cm
Package 1 Weight 31.000 g
Unit Type of Package 2 2
Number of Units in Package 2 44
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.564 kg
Unit Type of Package 3 3
Number of Units in Package 3 1408
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 62.048 kg
