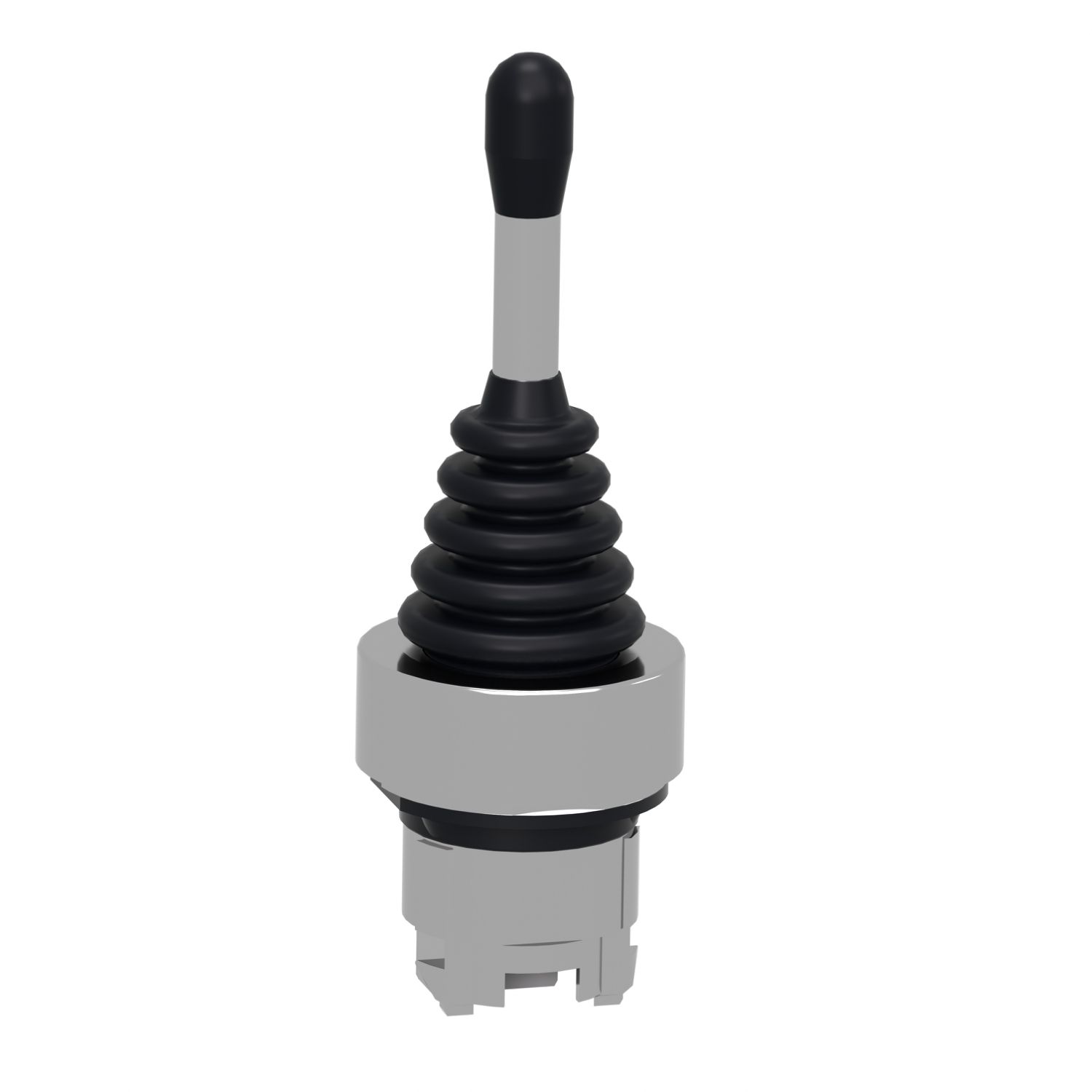

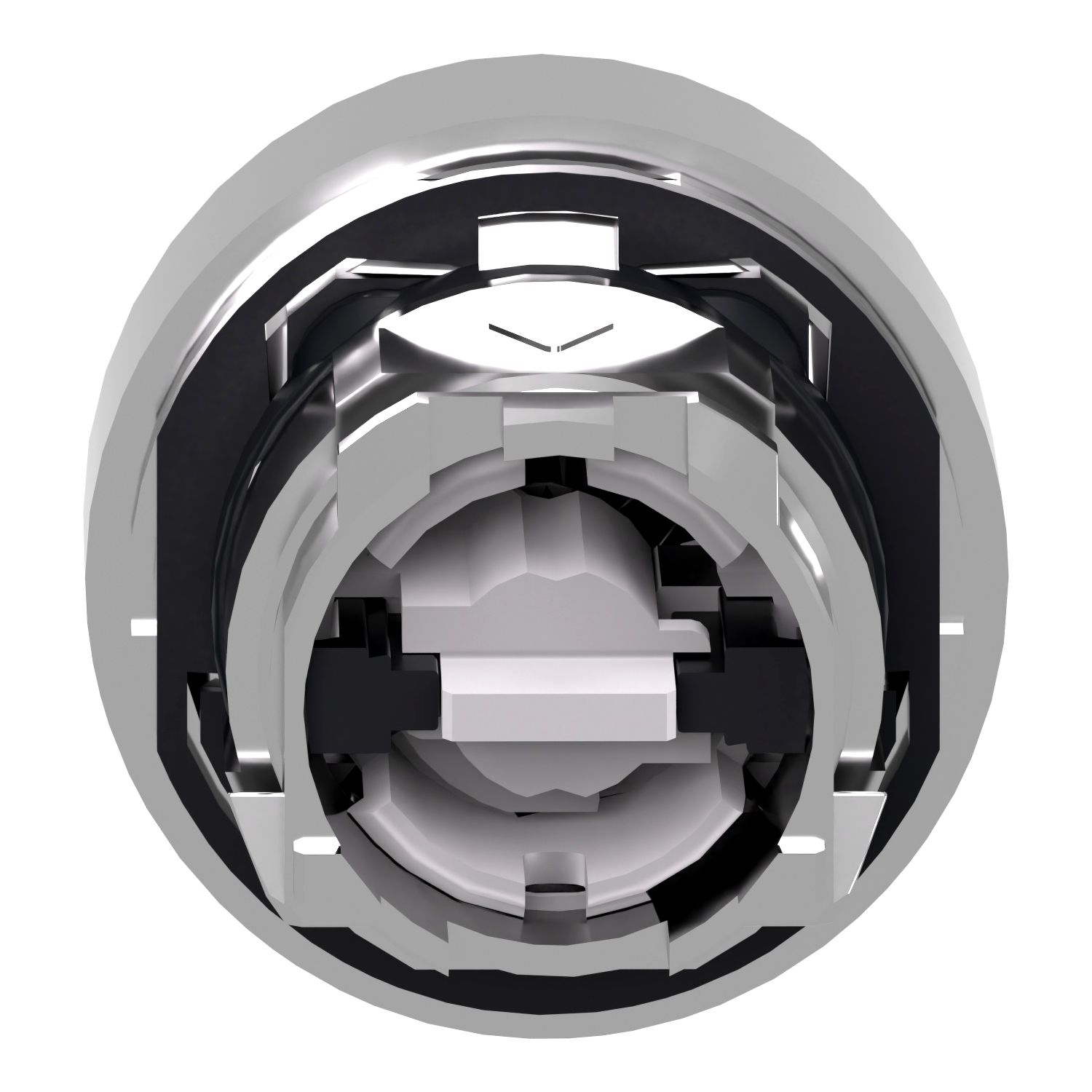

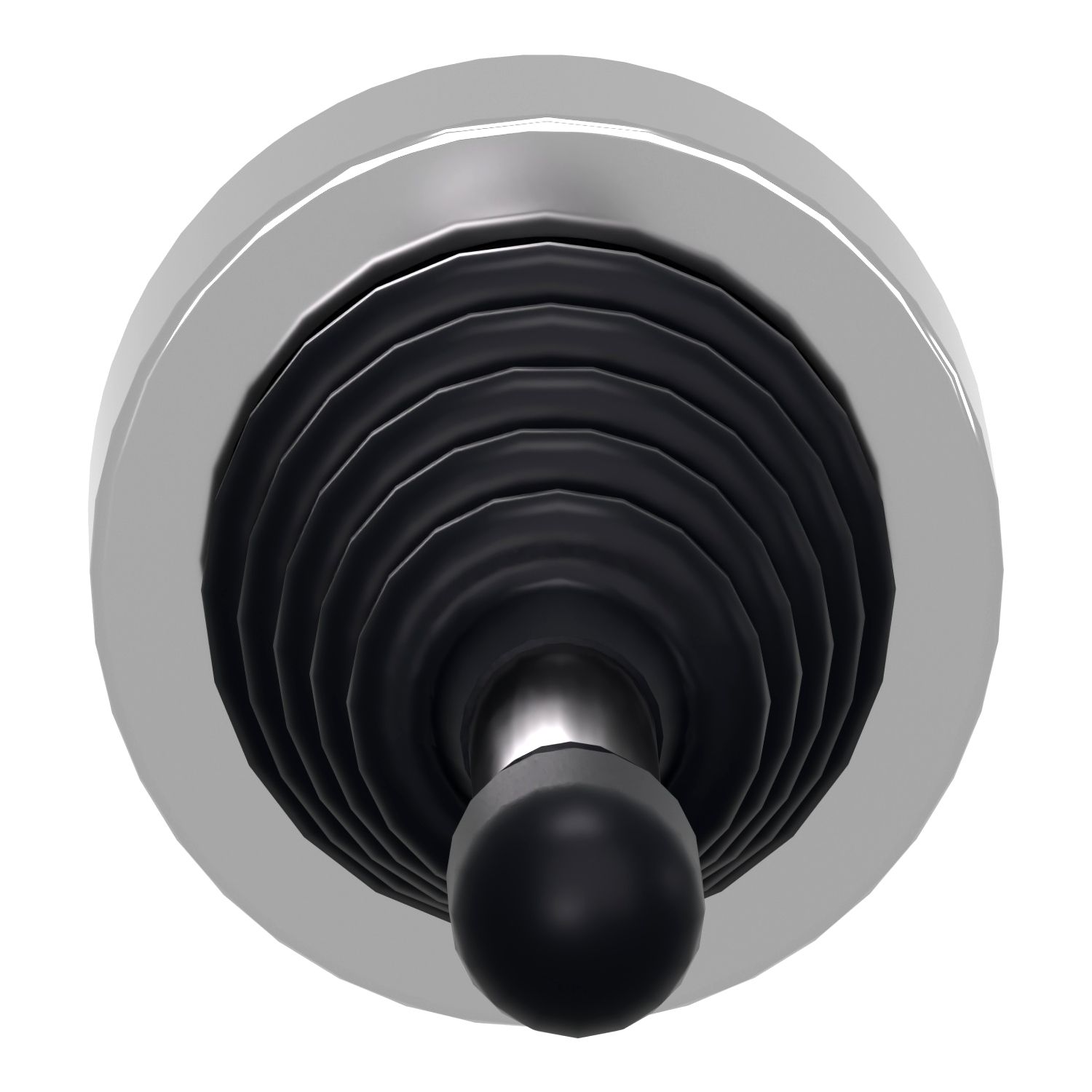

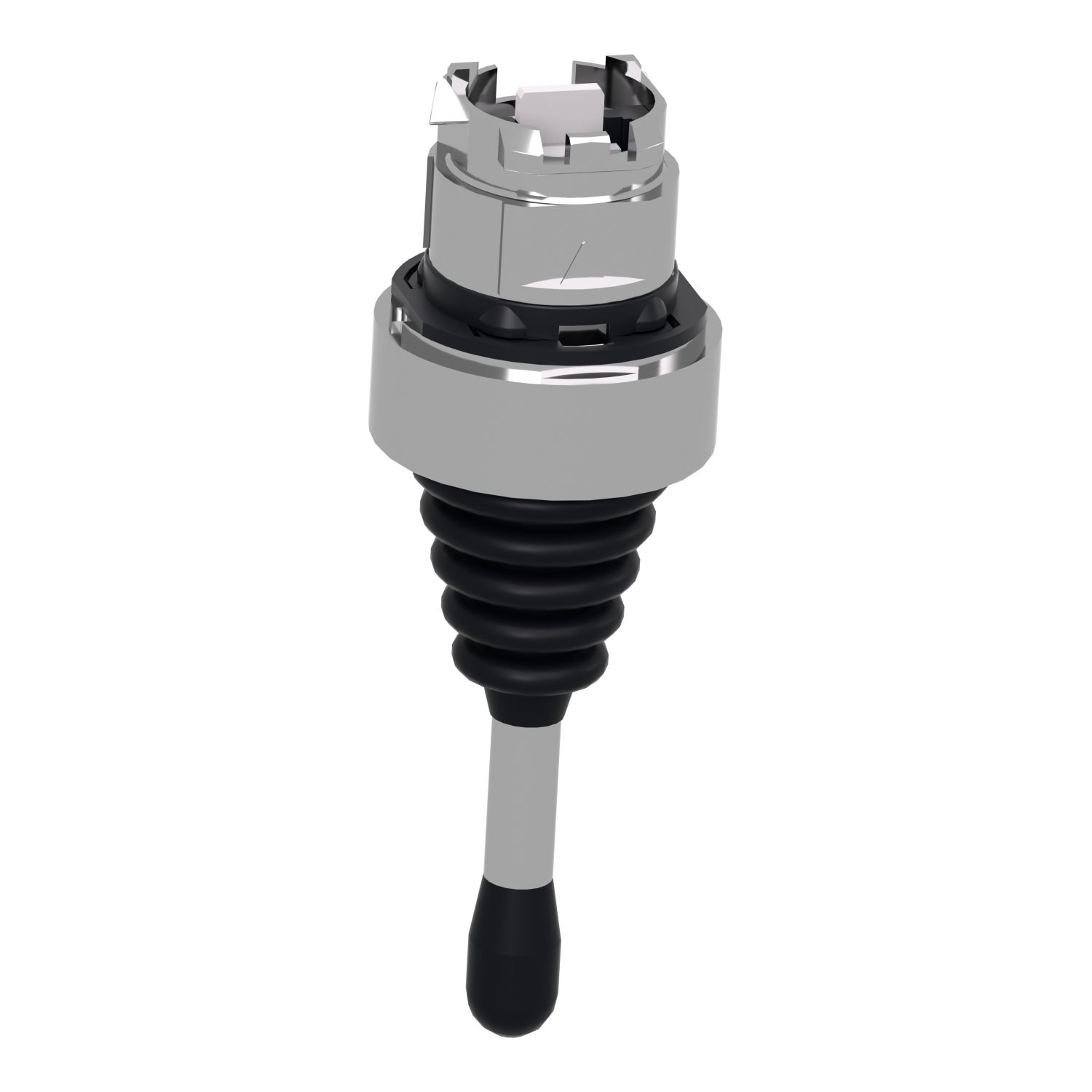

Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Picture of Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
SKU:

ZD4PA22

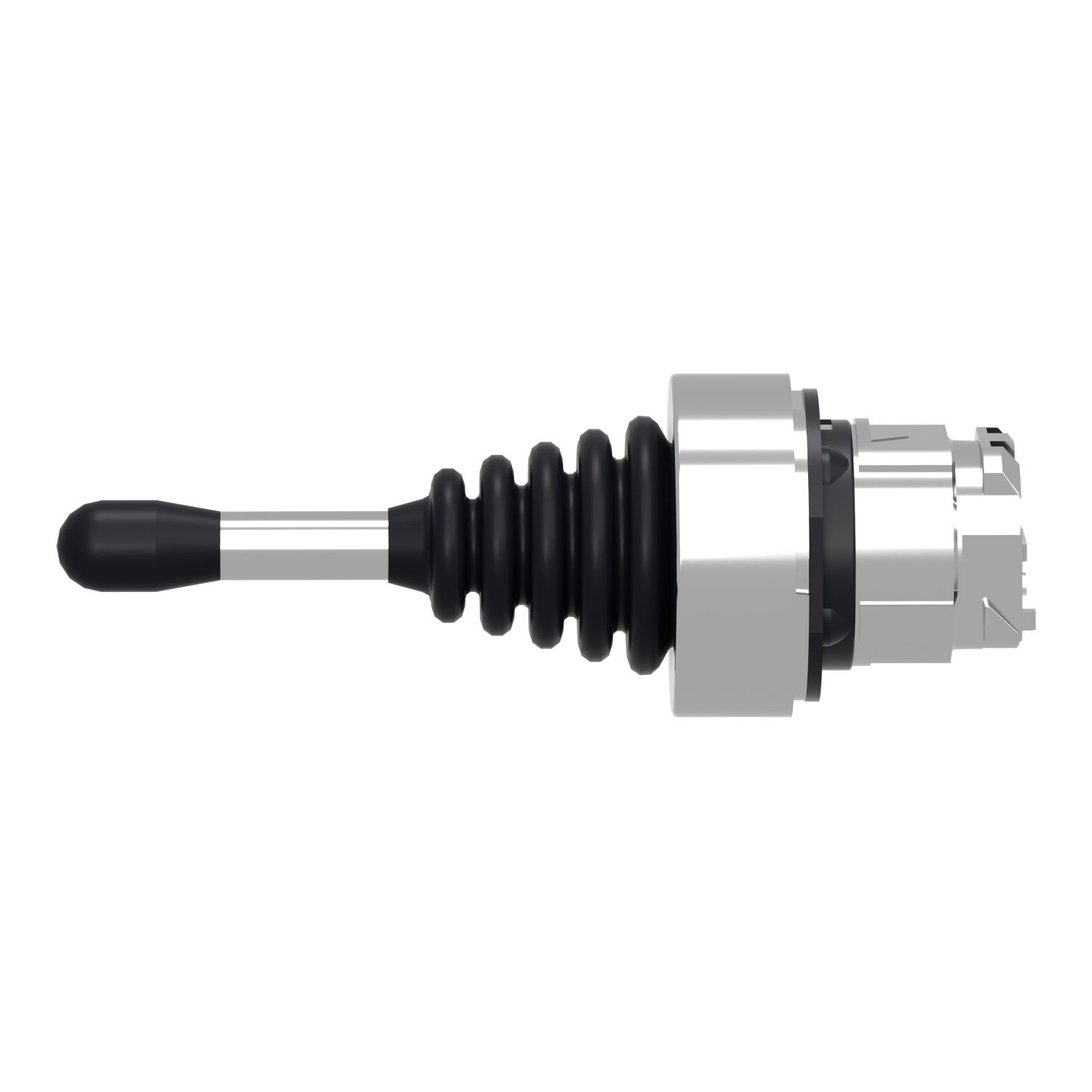

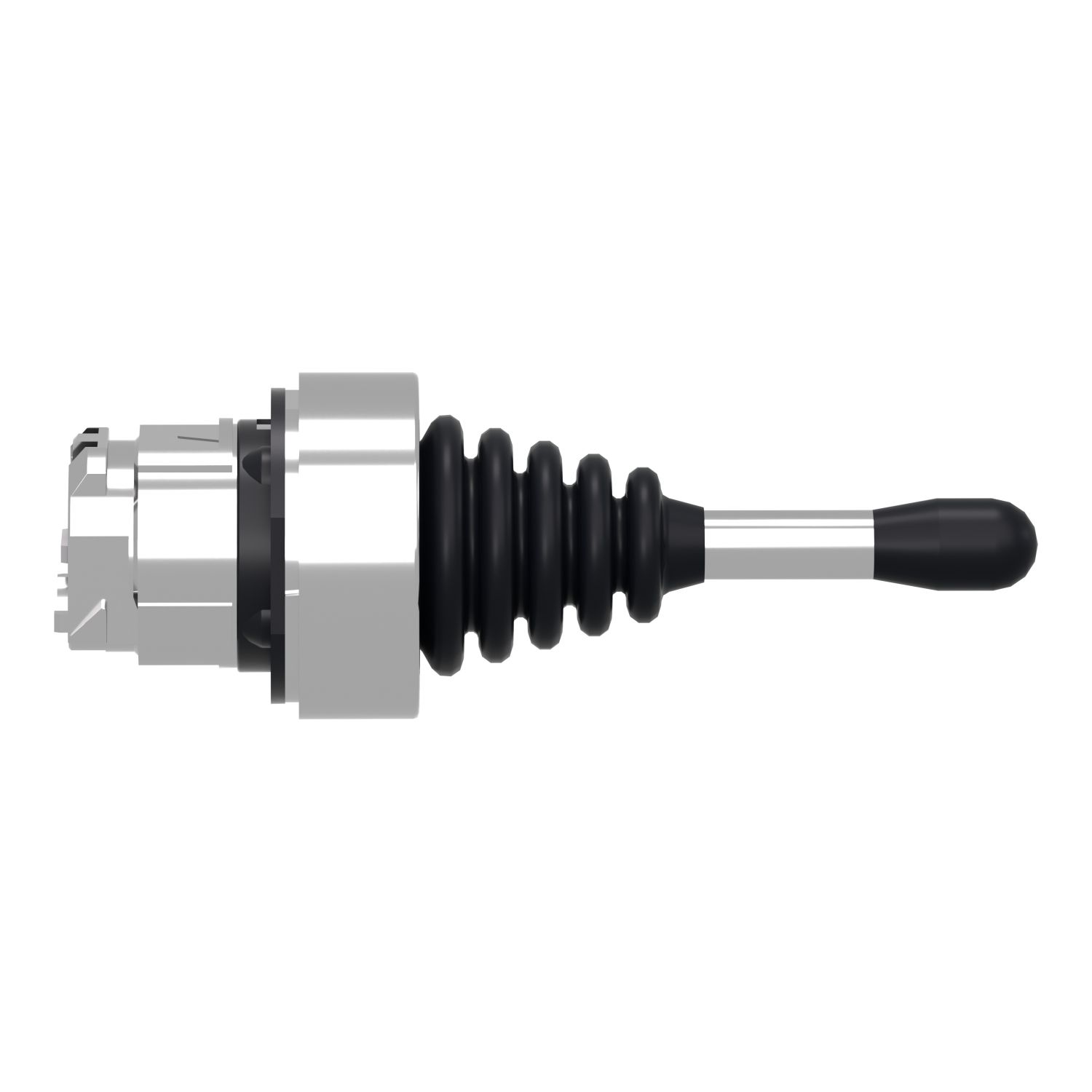

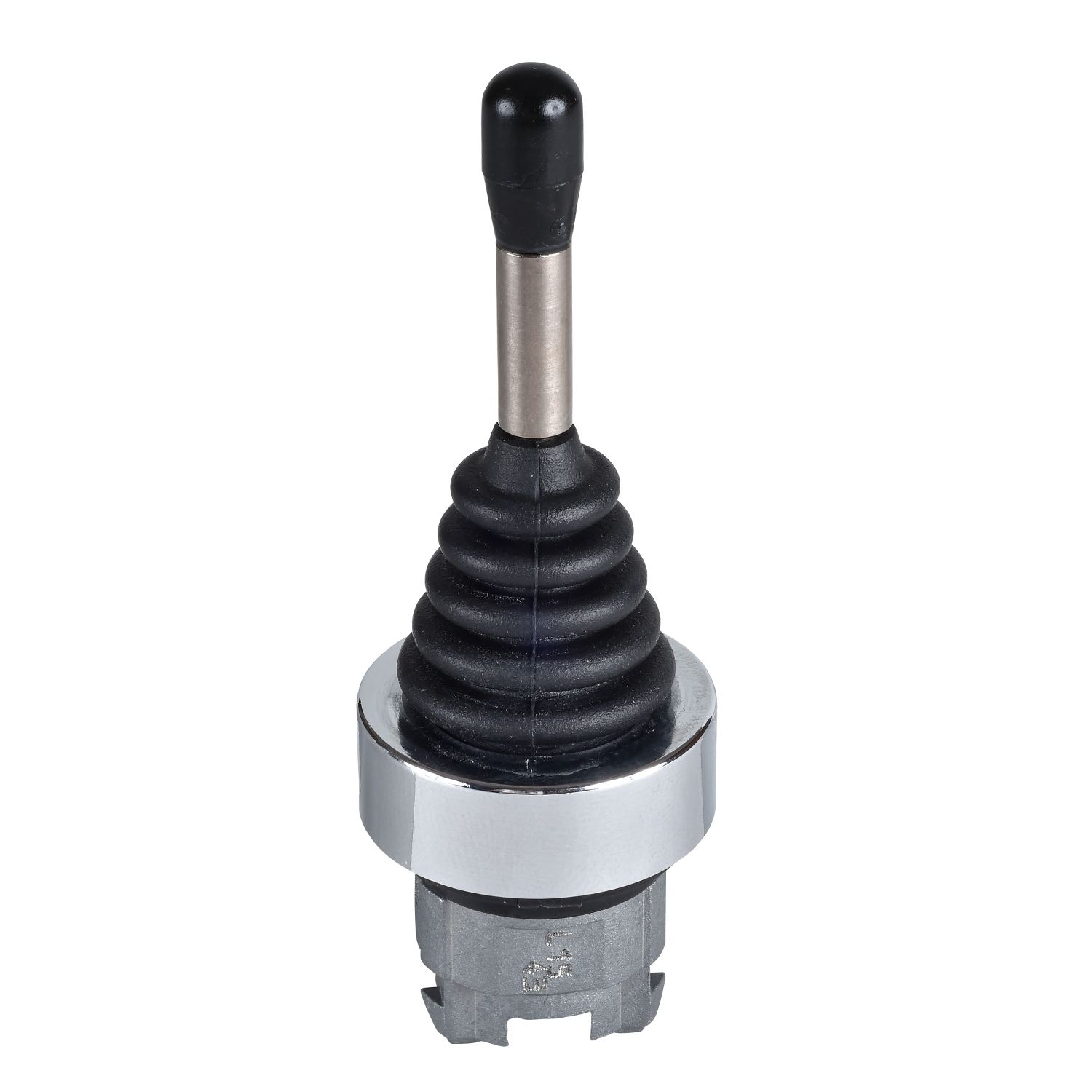

Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return

Old price: $165.88 INC GST
$129.39 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for joystick controller, Harmony XB4, plastic, 22mm, 2 directions, spring return
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026

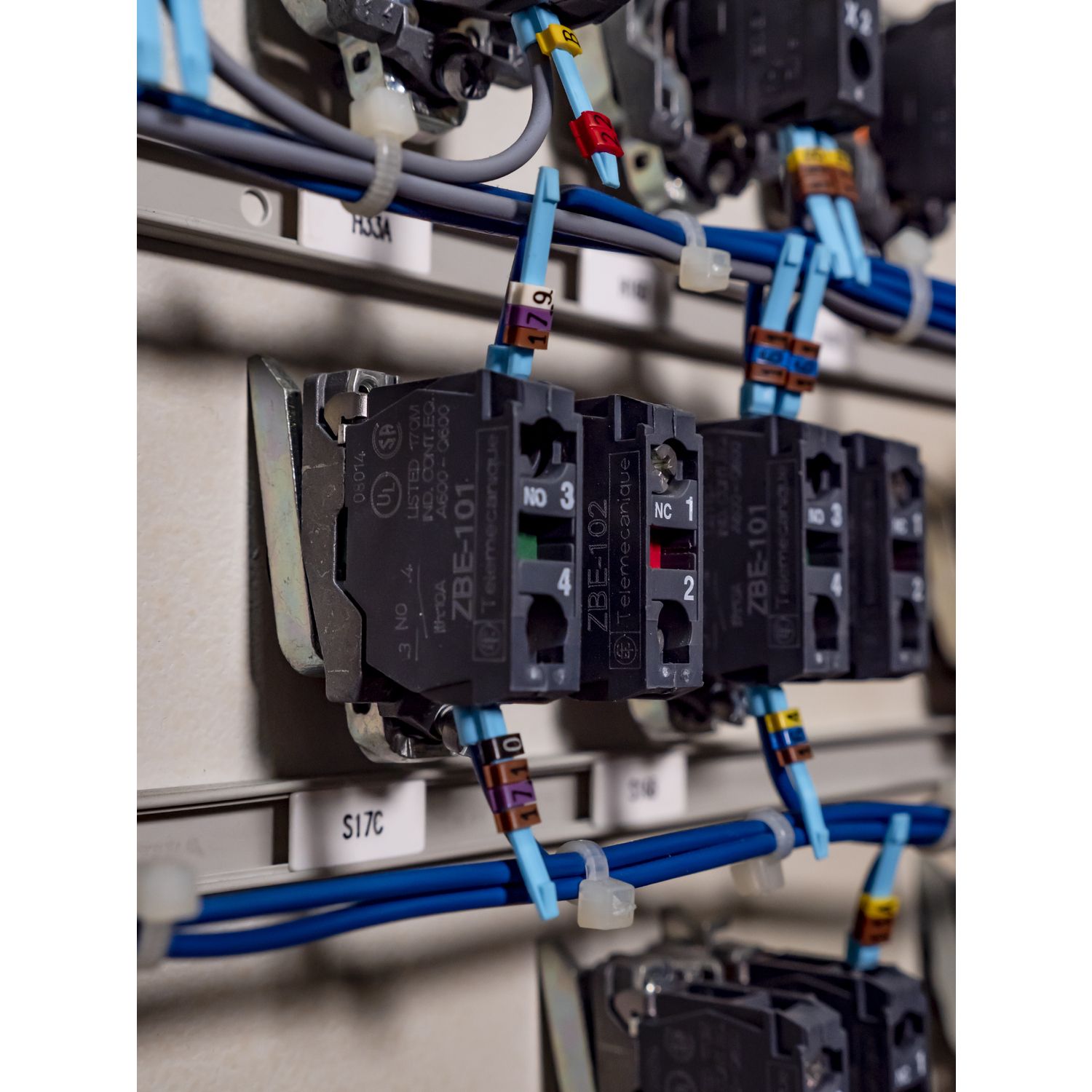

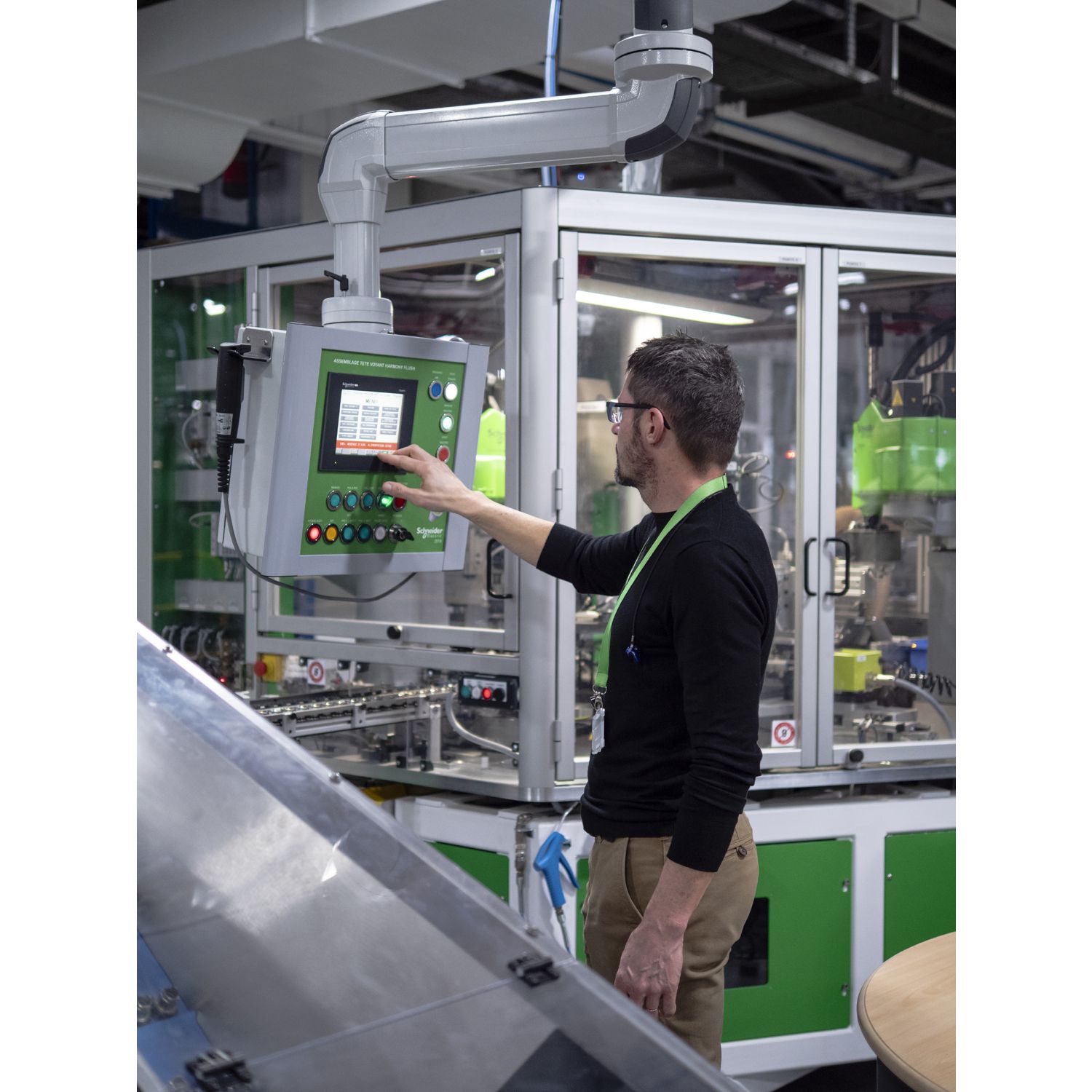

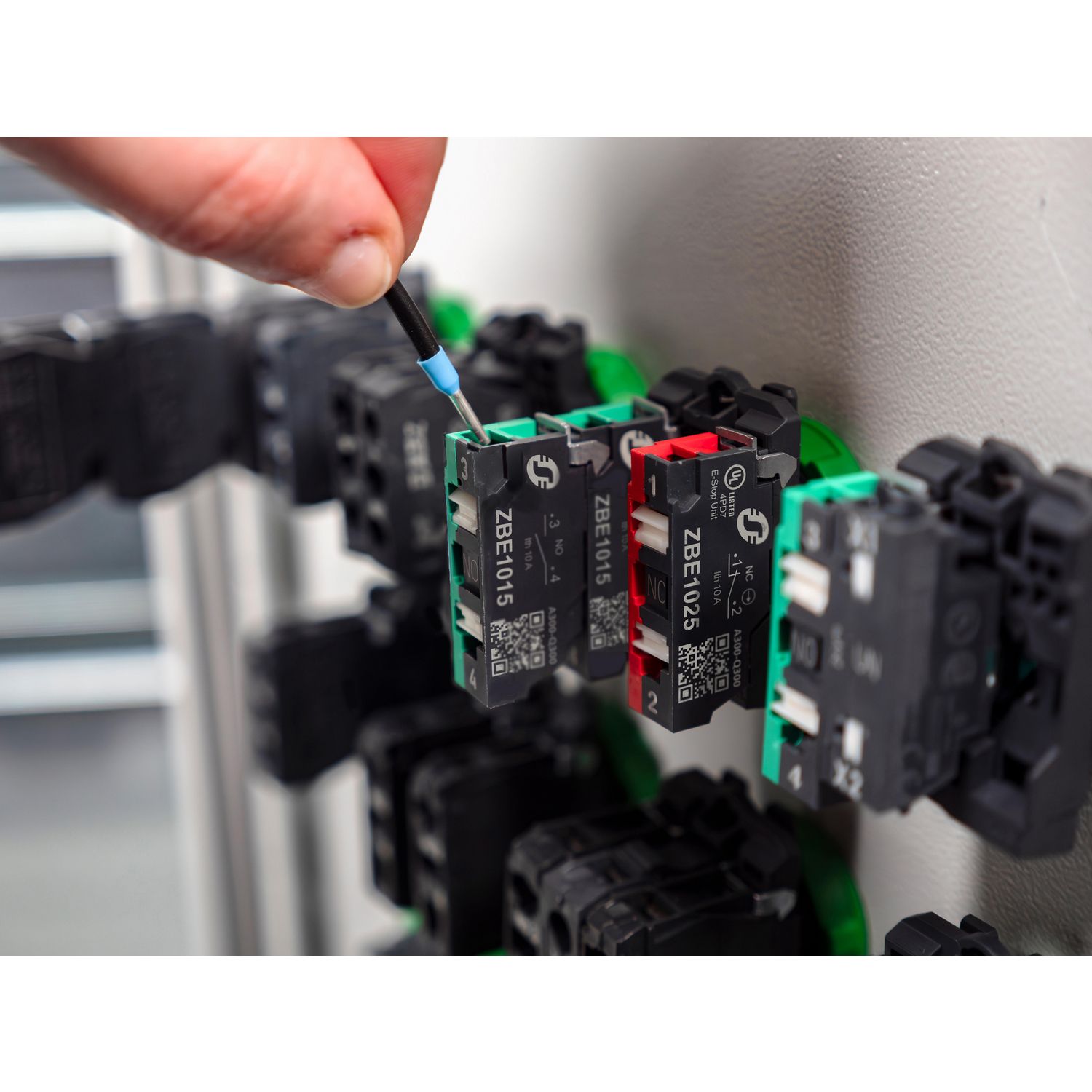

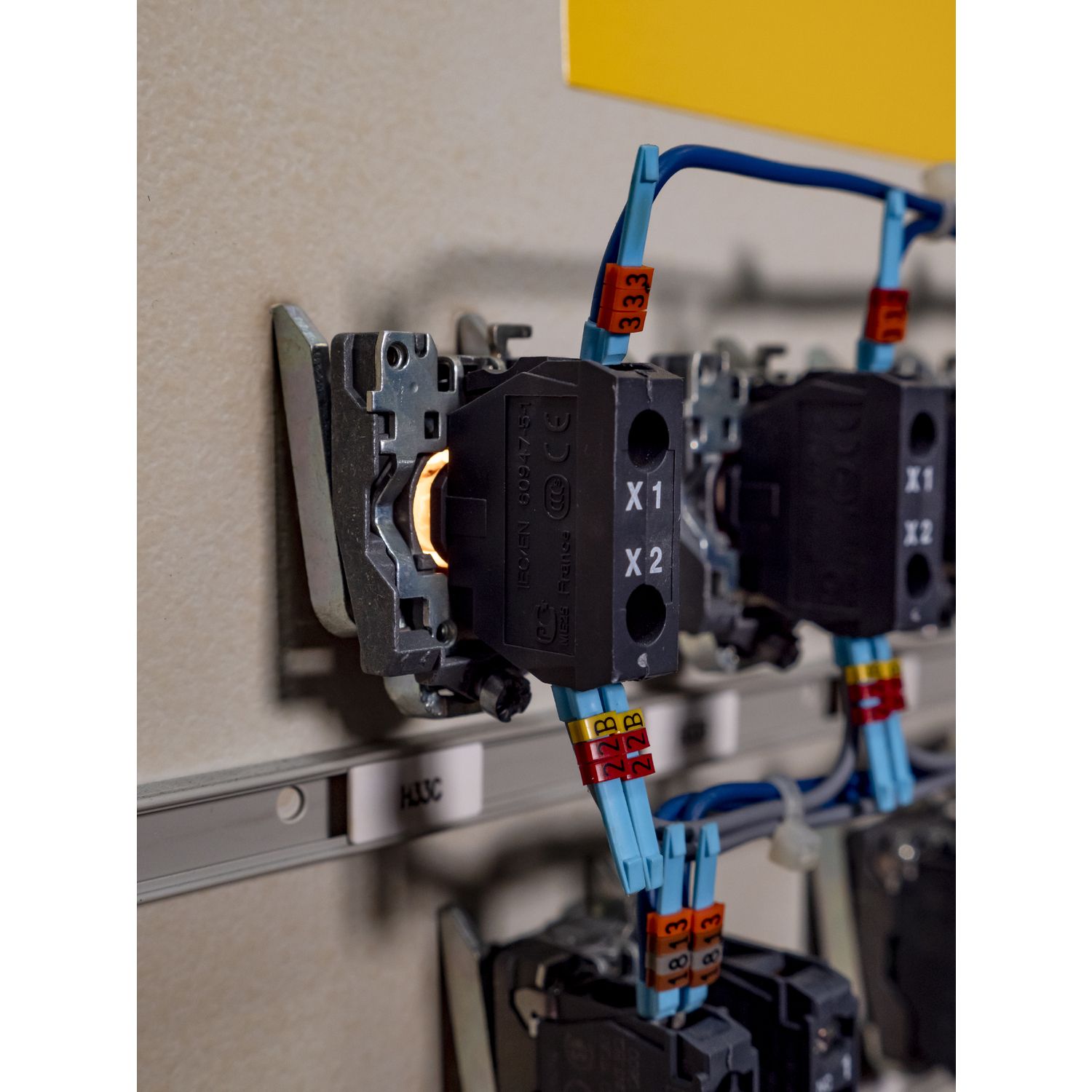

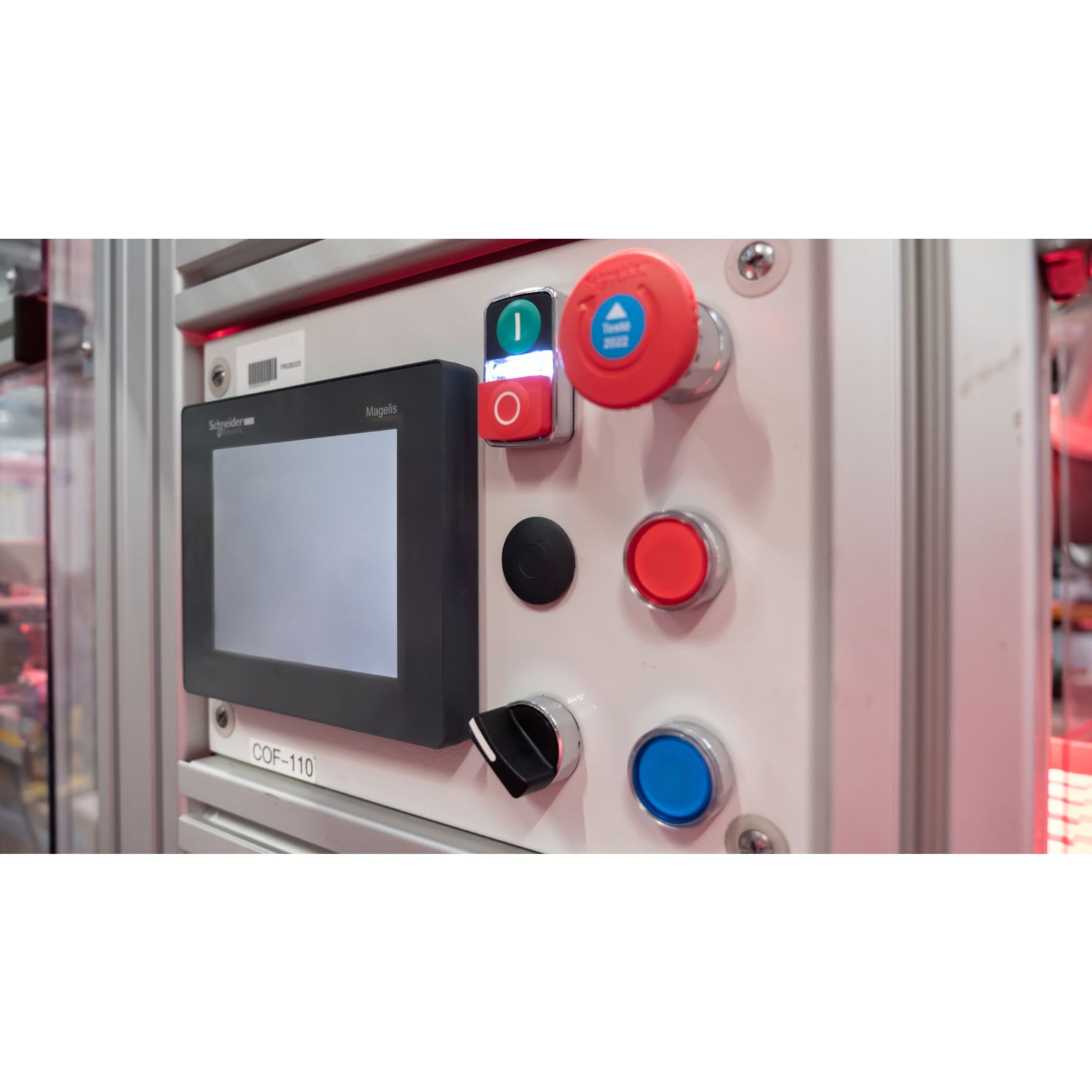

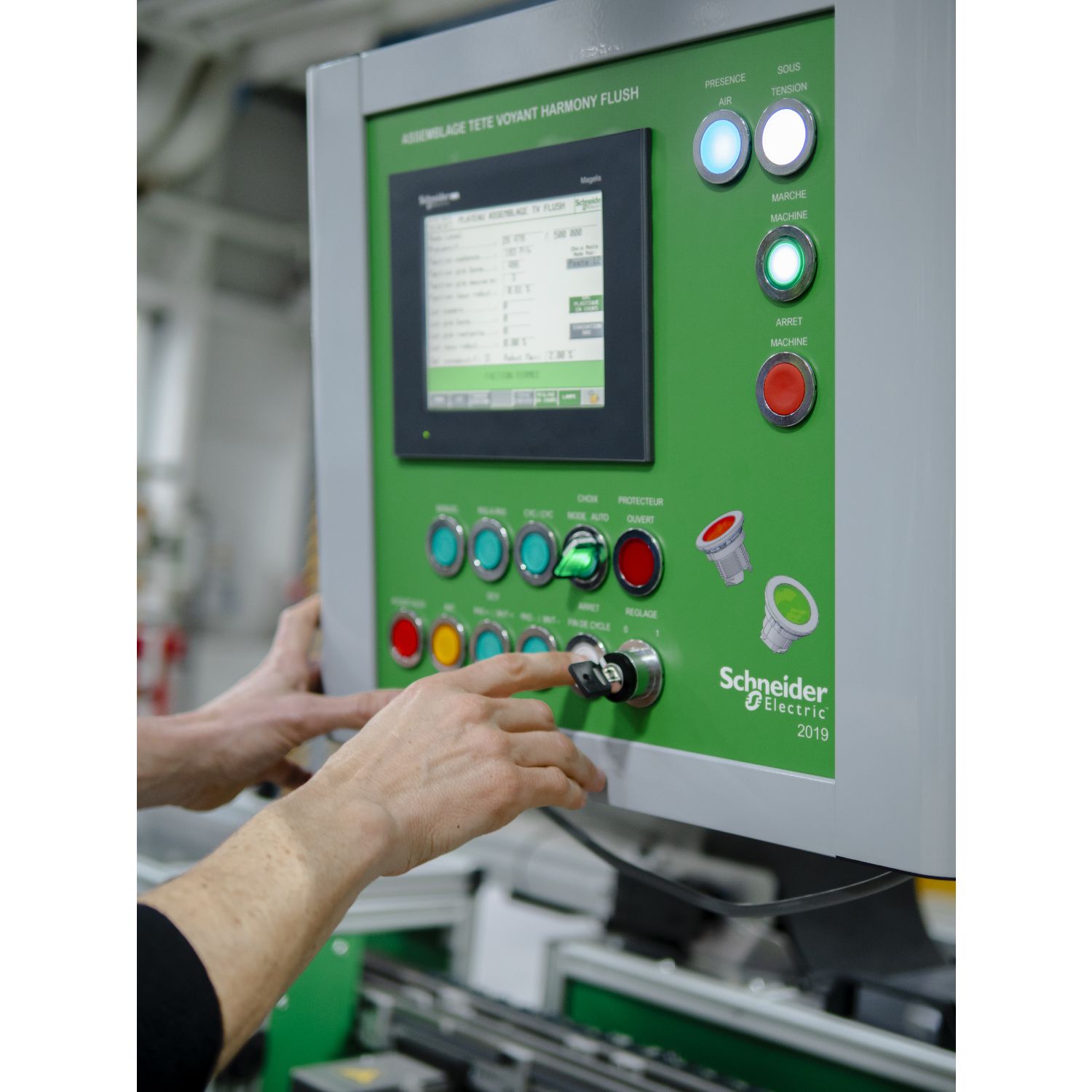

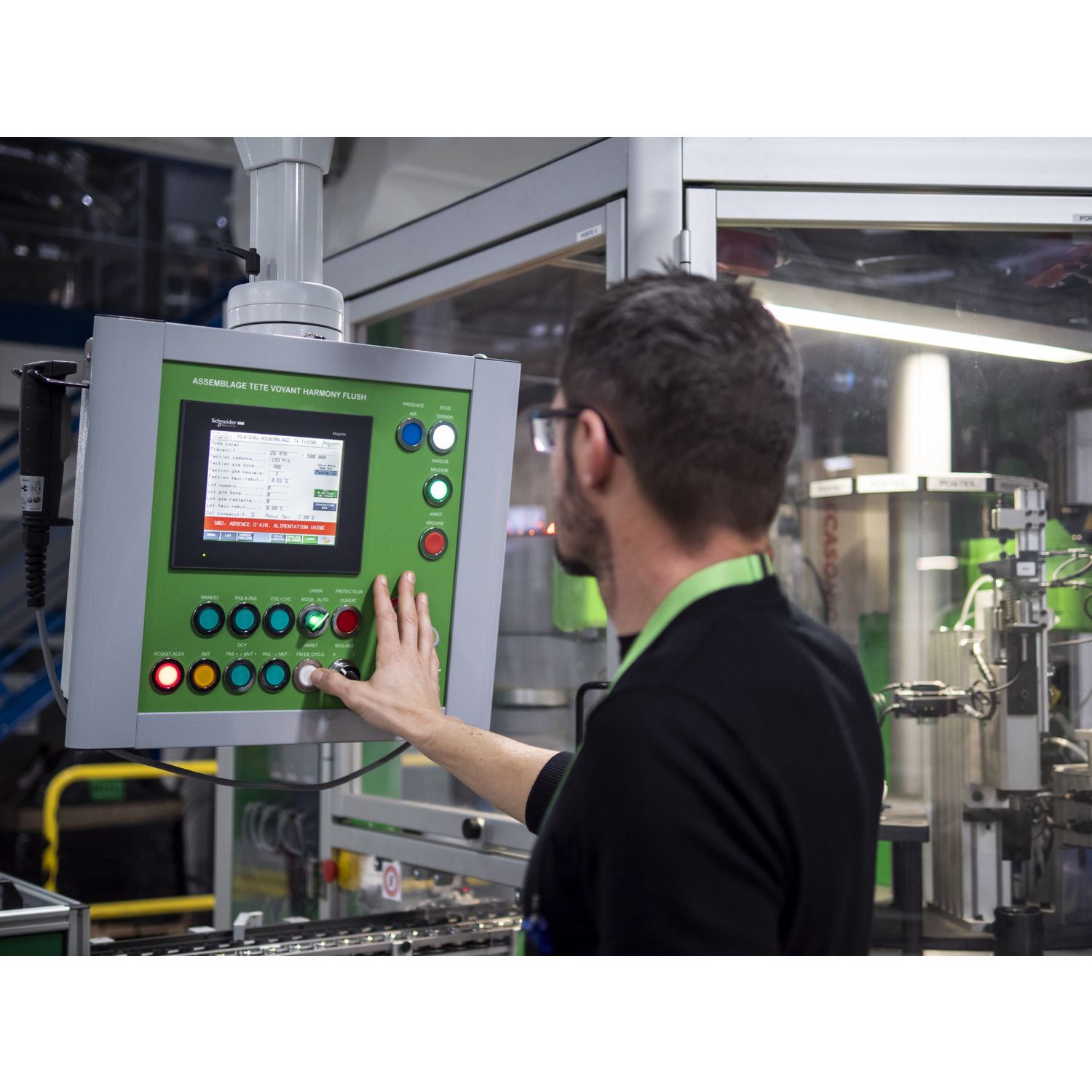

Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4 head for joystick controller operates with 2 direction spring-return-to-zero-position mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Operator profile 54 mm long operating shaft
Bezel material chromium plated metal
Sale per indivisible quantity 1
Operator direction information 2 directions
Shape of signaling unit head round
Product or component type head for joystick controller
Type of operator to zero position spring return
Mounting diameter 22 mm
Range of product Harmony XB4
Complementary
Compatibility code ZB4
Mechanical durability 1000000 cycles
Operator position information 3 positions
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation basic element
Net weight 0.022 kg
Environment
Protective treatment TH
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-5-1, UL 508, IEC 60947-1, IEC 60947-5-5
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications GL, CSA, LROS (Lloyds register of shipping), BV, UL listed, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.4 cm
Package 1 Width 3.6 cm
Package 1 Length 5.4 cm
Package 1 Weight 60.0 g
Unit Type of Package 2 2
Number of Units in Package 2 55
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.65 kg
