SKU:

ZBE302

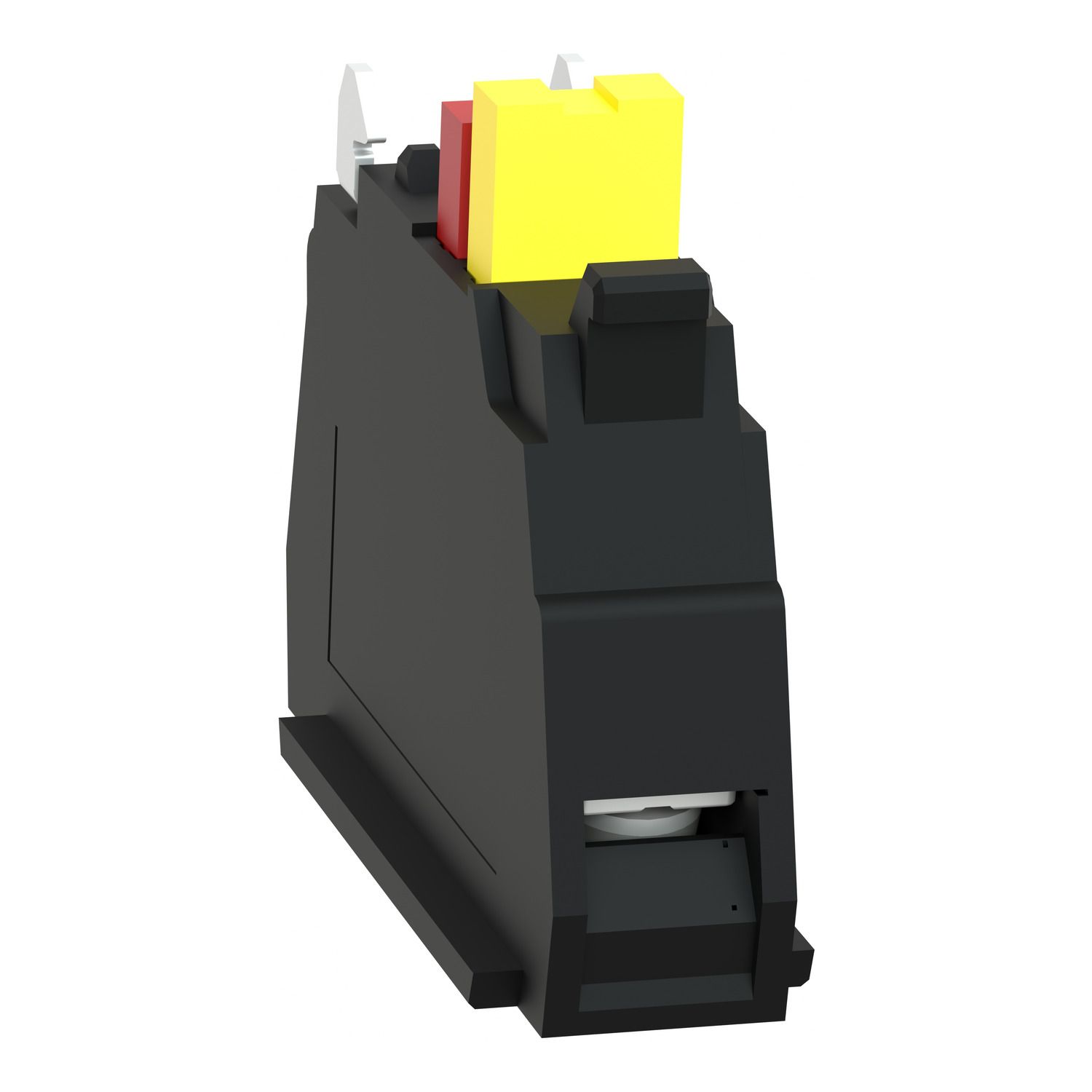

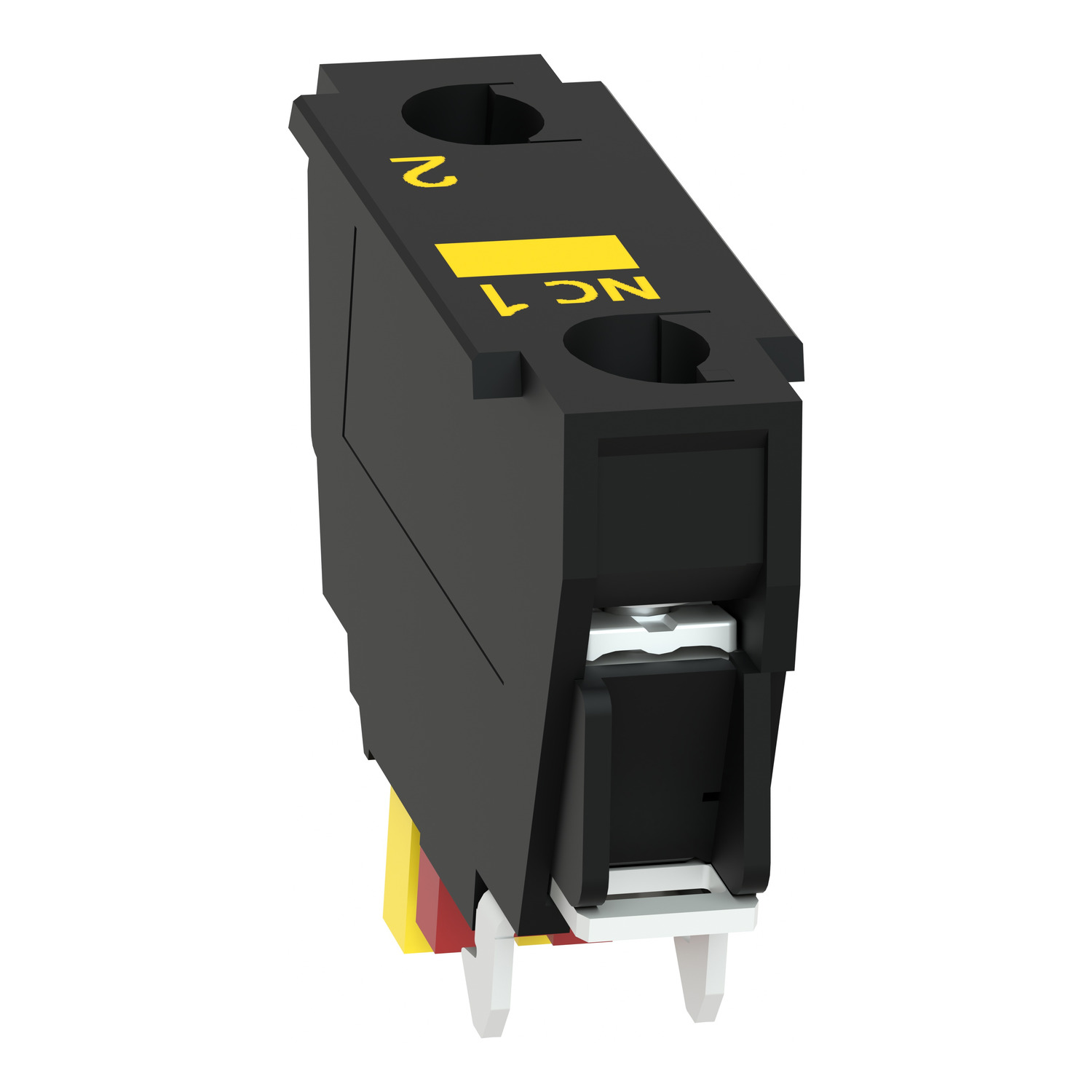

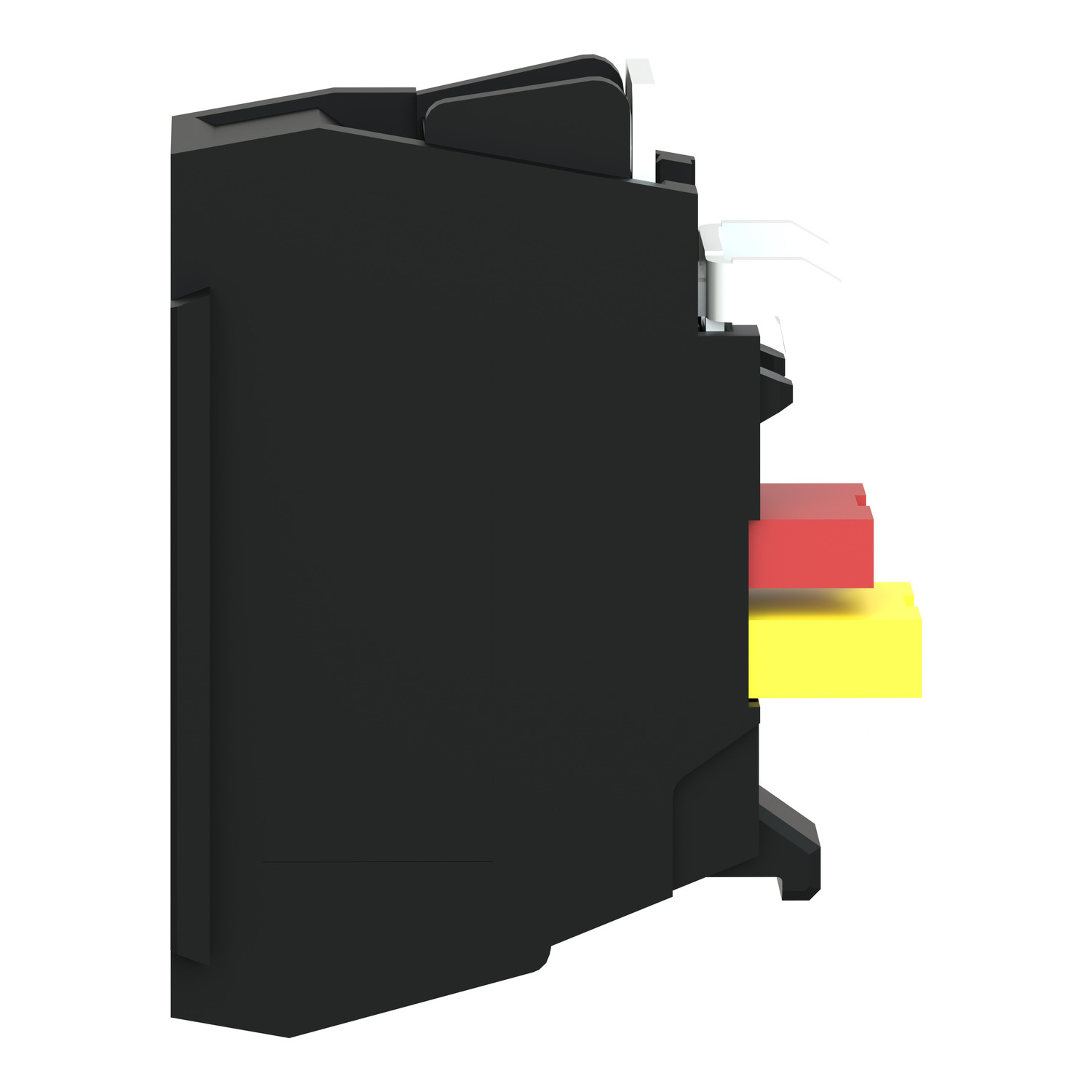

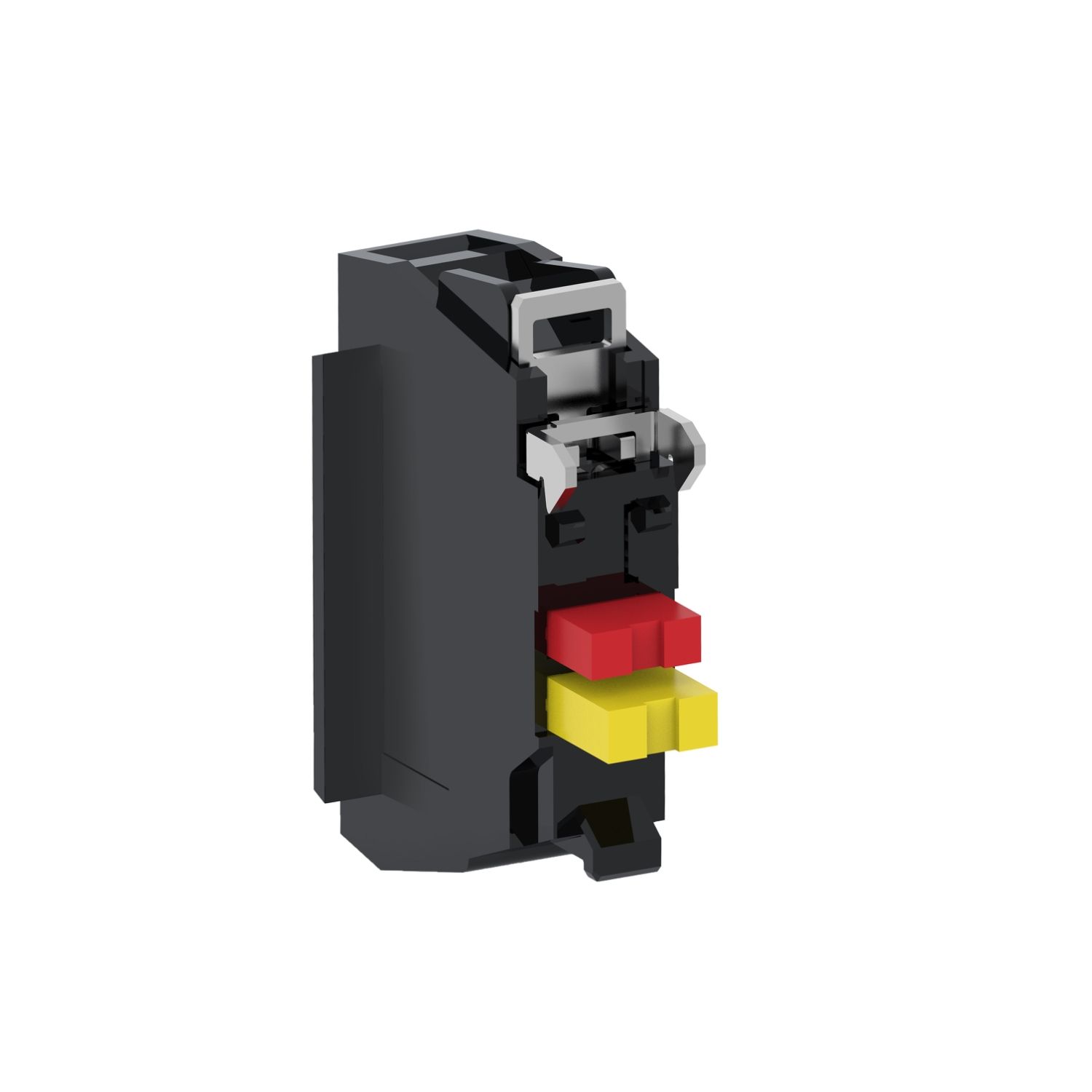

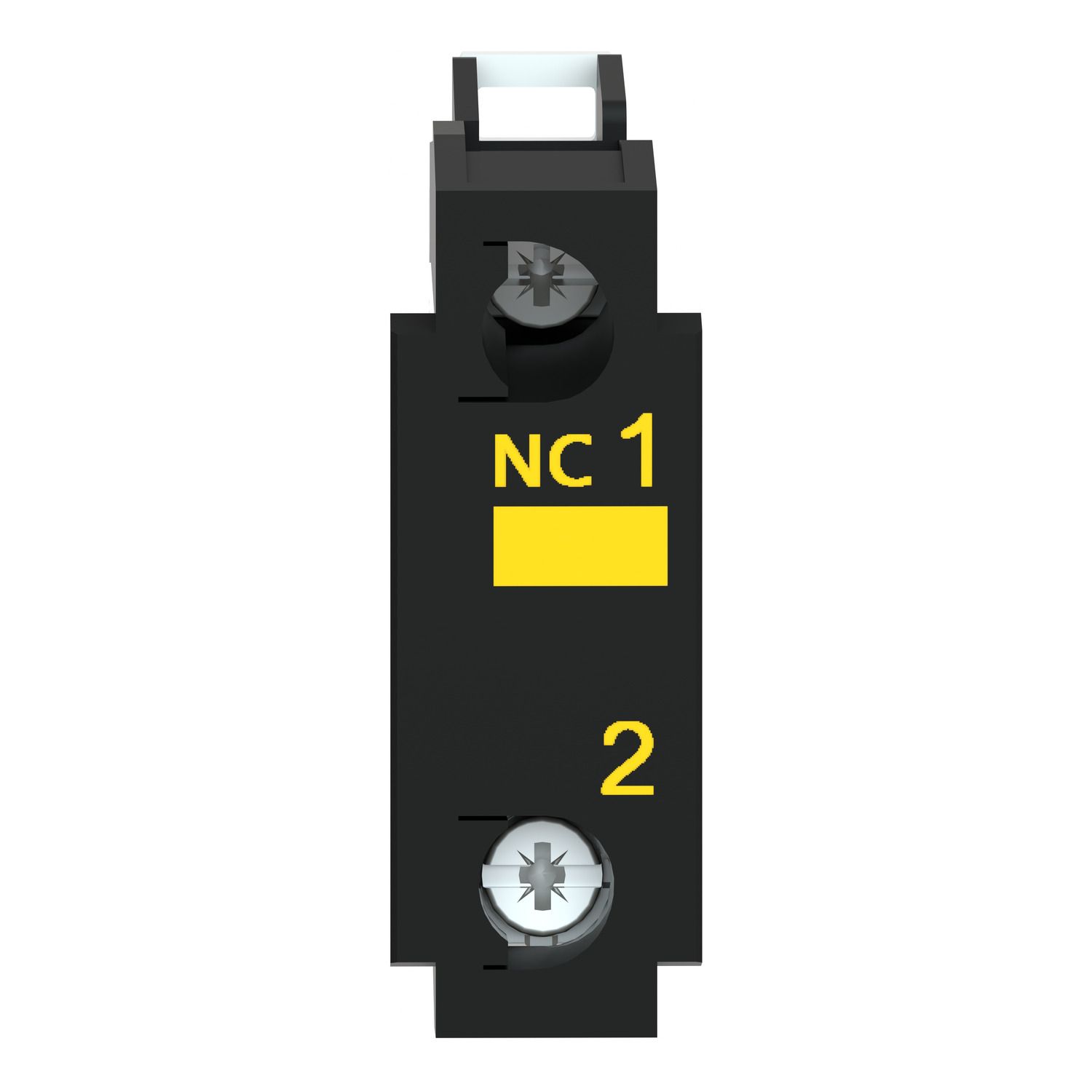

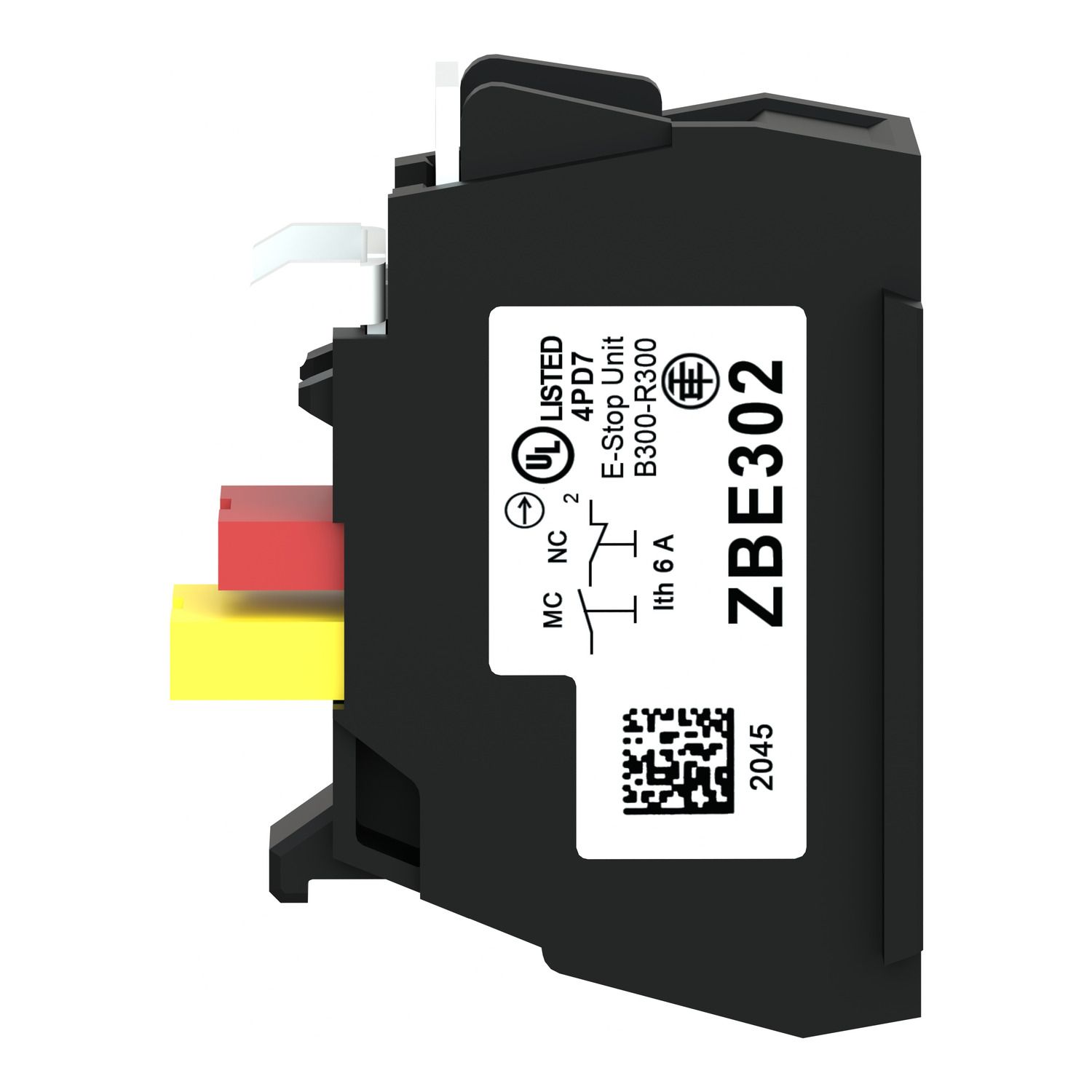

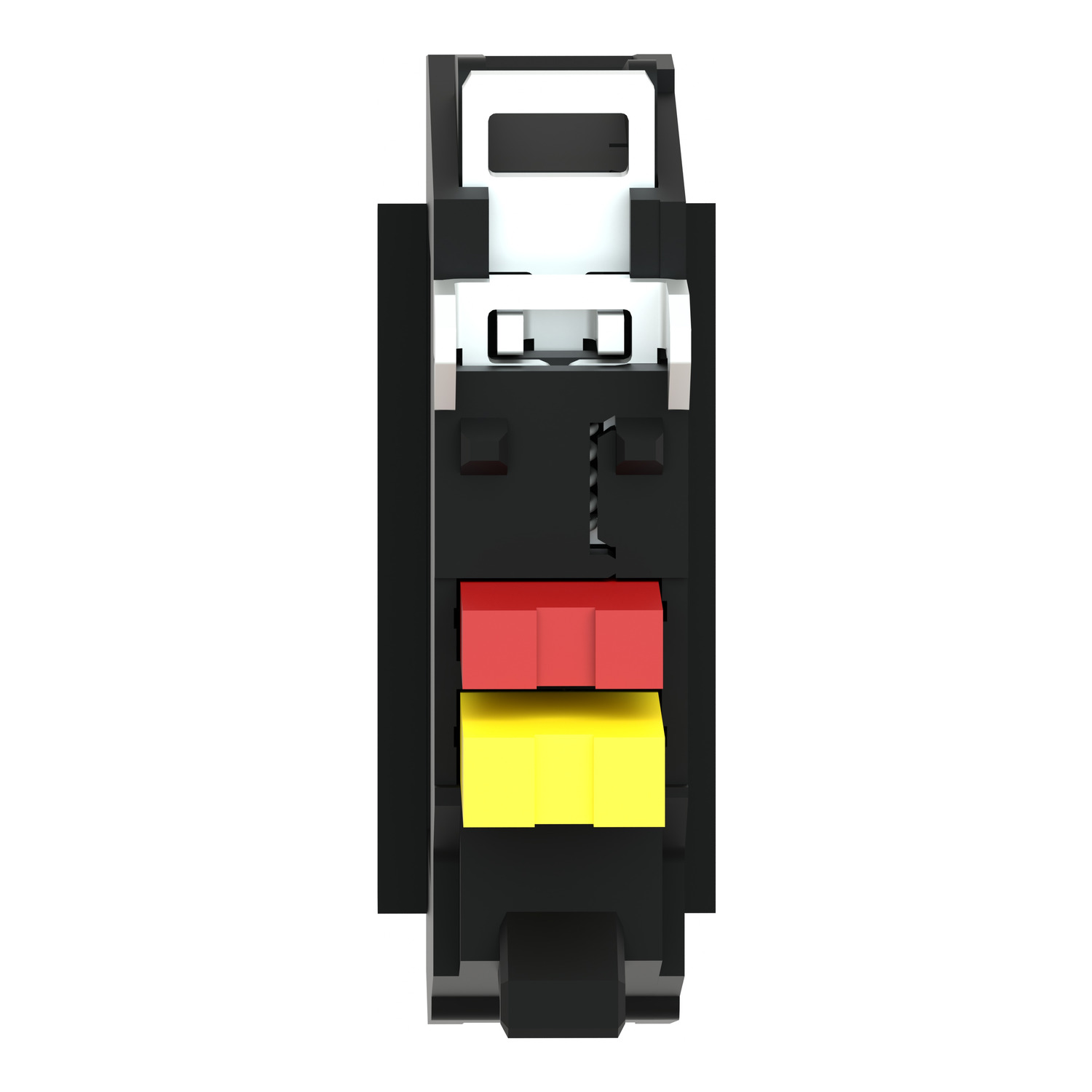

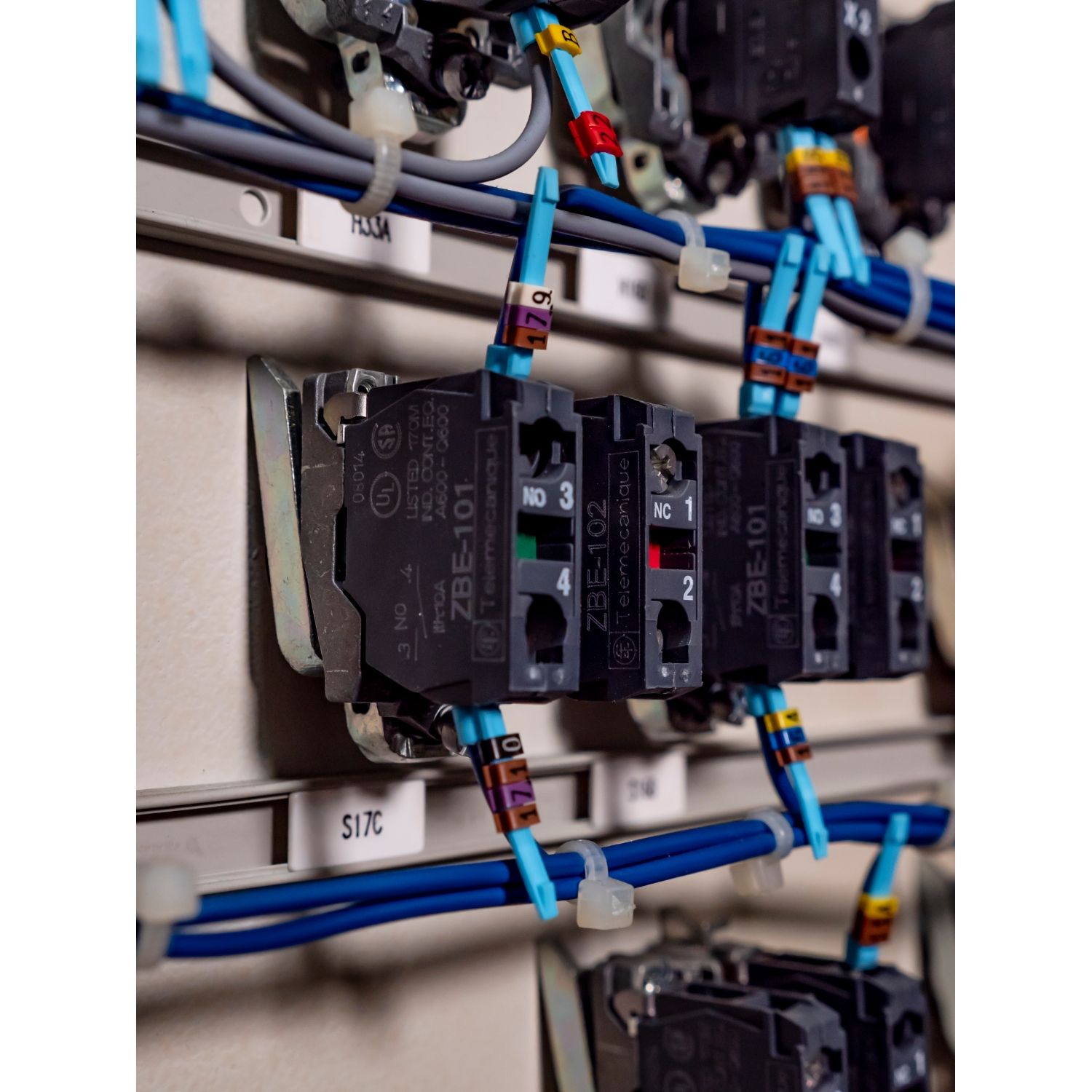

Contact block, Harmony XB4, Harmony XB5, single contact, silver alloy, screw clamp terminal, 1NC with monitoring

$18.29
Available for Shipping : 10-Oct-2024
Product Selector
Contact block, Harmony XB4, Harmony XB5, single contact, silver alloy, screw clamp terminal, 1NC with monitoring
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Technical illustration
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Harmony XB4 and XB5 range, an offer of Ø 22mm pushbuttons, switches and pilot lights. It is a single contact block with silver alloy contact. It is only used in combination with an emergency stop pushbutton and is not compatible with other pushbuttons. It comes with 1 NC monitoring contact with slow break operation. The NC contact is opened when the emergency stop is activated. The monitoring feature triggers emergency stop due to improper installation. It comes with CE, CCC, UKCA, EAC, UL and CSA certification. This monitoring contact is compatible for emergency stops in both the XB4 and XB5 range. It connects to control circuits with simple screw-clamp connections. The Harmony XB4 and XB5 range offers innovative features for simple and efficient use.

Products specifications

Attribute name Attribute value
Main
Device short name ZBE
Contact operation slow-break
Sale per indivisible quantity 5
IP degree of protection IP20 conforming to IEC 60529
Contact block type single
Range of product Harmony XB5, Harmony XB4
Connections - terminals screw clamp terminals, >= 1 x 0.34 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Product or component type contact block
Contacts usage monitoring contact
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 3.4 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-7) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code ZBE
Mechanical durability 300000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.11 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1
Electrical durability 300000 cycles, DC-13, 1 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation basic element
CAD overall height 41 mm
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 1.5 mm (NC changing electrical state)
Operating force 5 N NC changing electrical state
Contacts type and composition 1 NC monitoring contact
CAD overall depth 26 mm
CAD overall width 10 mm
[Ui] rated insulation voltage 300 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.013 kg
[Ith] conventional free air thermal current 6 A conforming to IEC 60947-5-1
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 6 A cartridge fuse type gG conforming to IEC 60947-5-1
Mounting of block front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
Vibration resistance 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards GOST IEC 60947-5-1, BS EN 60947-5-1, GB/T 14048.5, JIS C8201-5-1, JIS C8201-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, IEC 60947-5-4, IEC 60947-5-1, IEC 60947-1
Product certifications UKCA, CB Scheme, UL listed, CCC, LROS (Lloyds register of shipping), CE, DNV, BV, EAC, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.4 cm
Package 1 Width 3.3 cm
Package 1 Length 4.2 cm
Package 1 Weight 13 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.3 cm
Package 2 Width 5.3 cm
Package 2 Length 5.8 cm
Package 2 Weight 71 g
Unit Type of Package 3 3
Number of Units in Package 3 210
Package 3 Height 15 cm
Package 3 Width 15 cm
Package 3 Length 40 cm
Package 3 Weight 3.348 kg
