SKU:

ZB6Z3B

Complete body for push buttons or selector switches, Harmony XB6, single contact, with body fixing collar, faston connector, 2NO

Old price: $21.45 INC GST
$16.73 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Complete body for push buttons or selector switches, Harmony XB6, single contact, with body fixing collar, faston connector, 2NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026

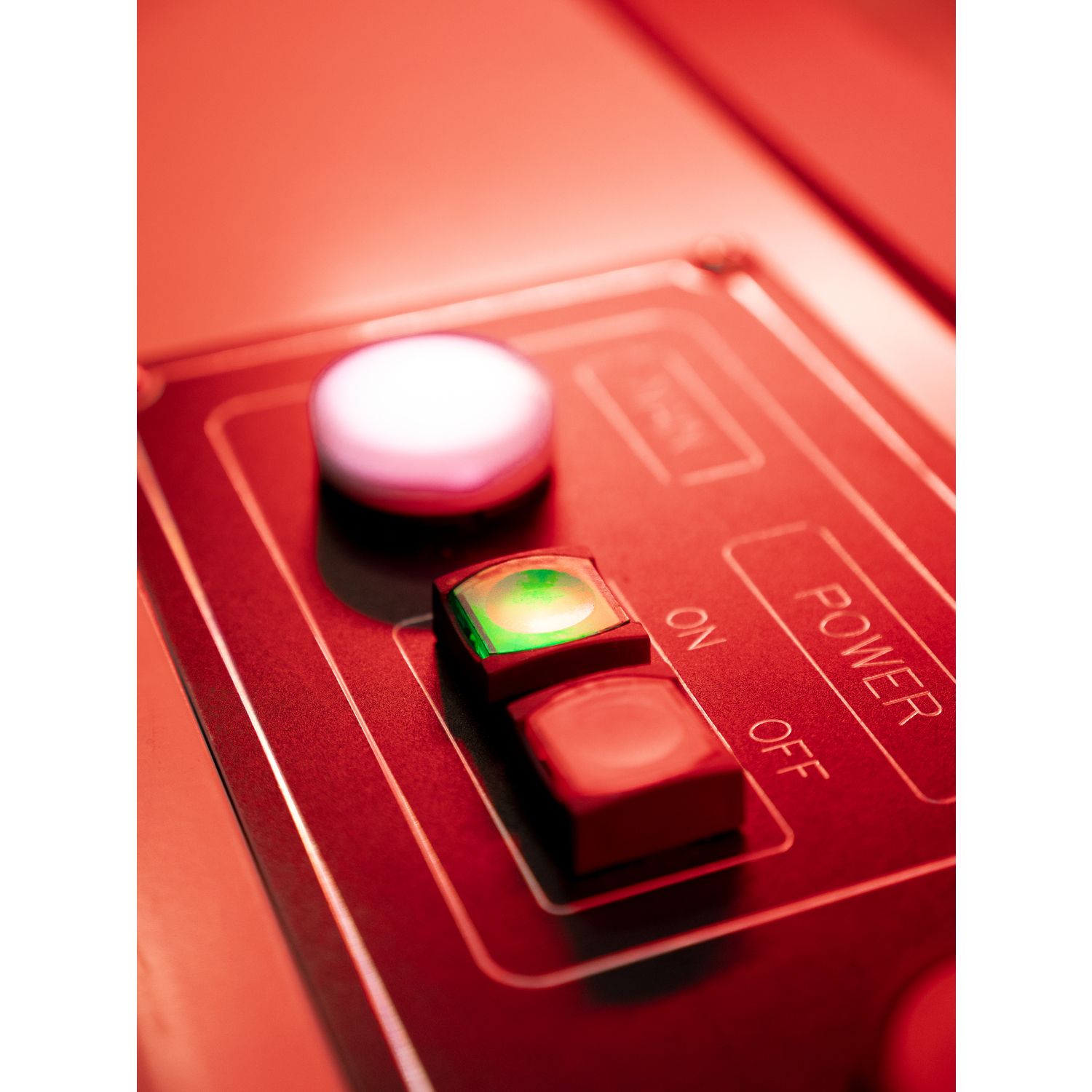

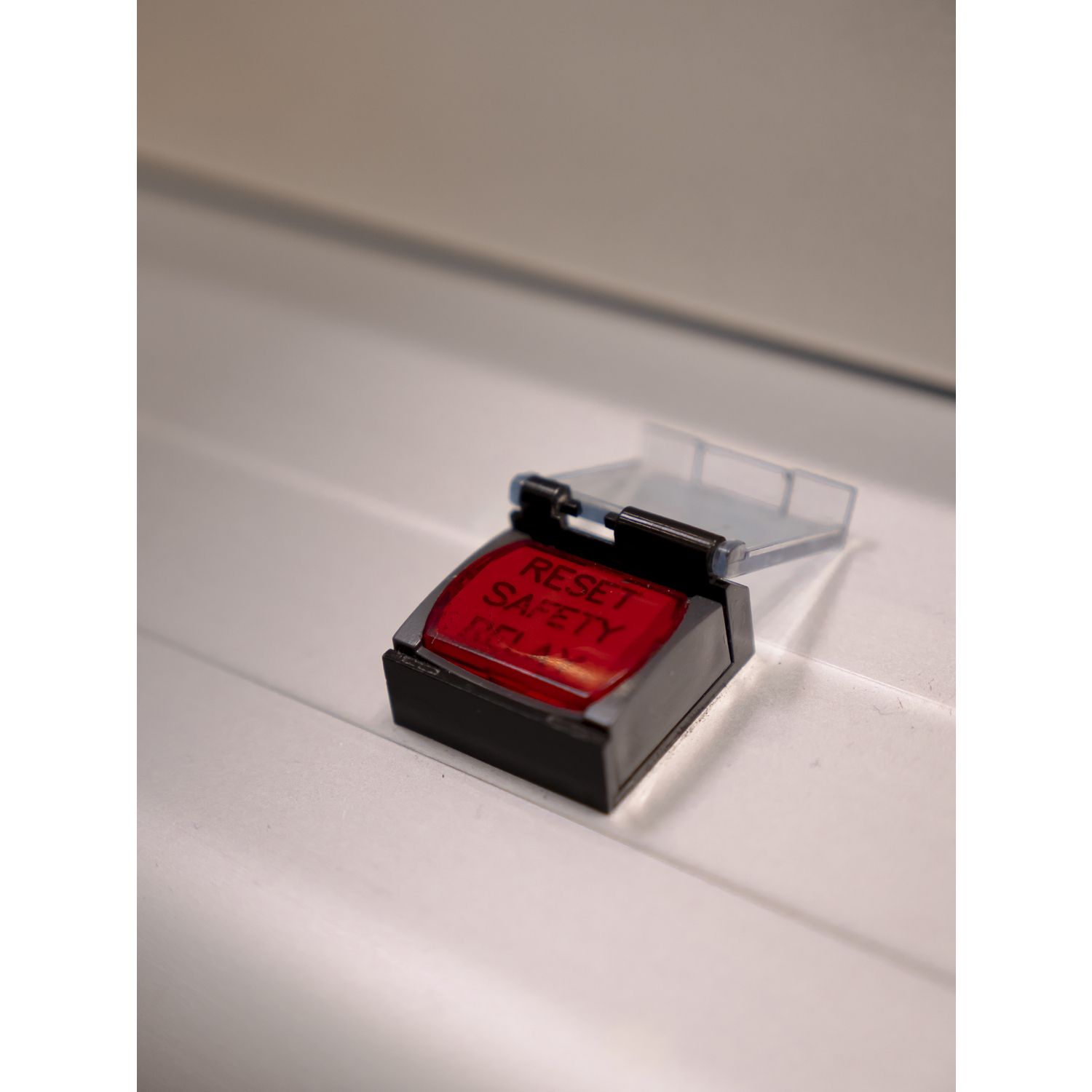

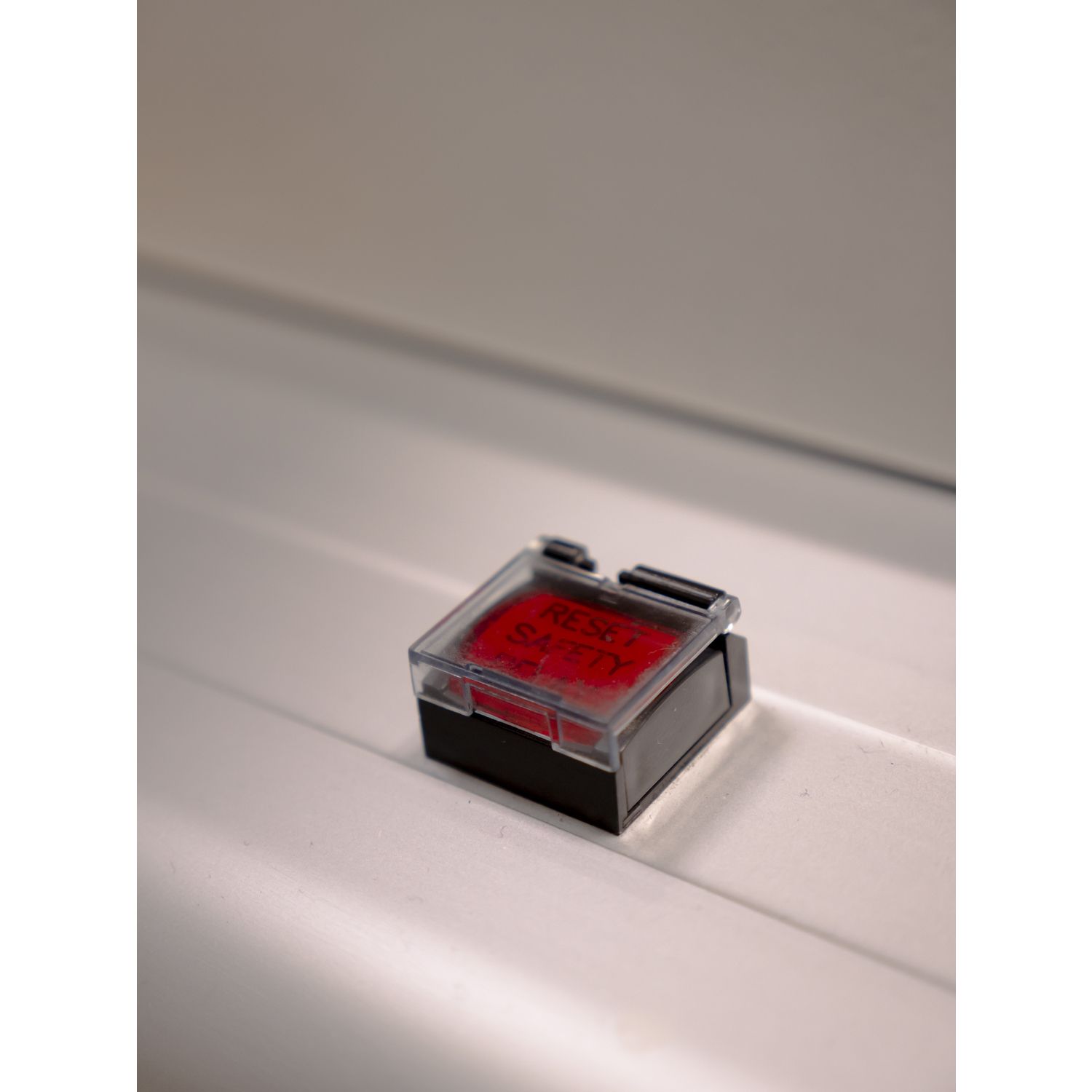

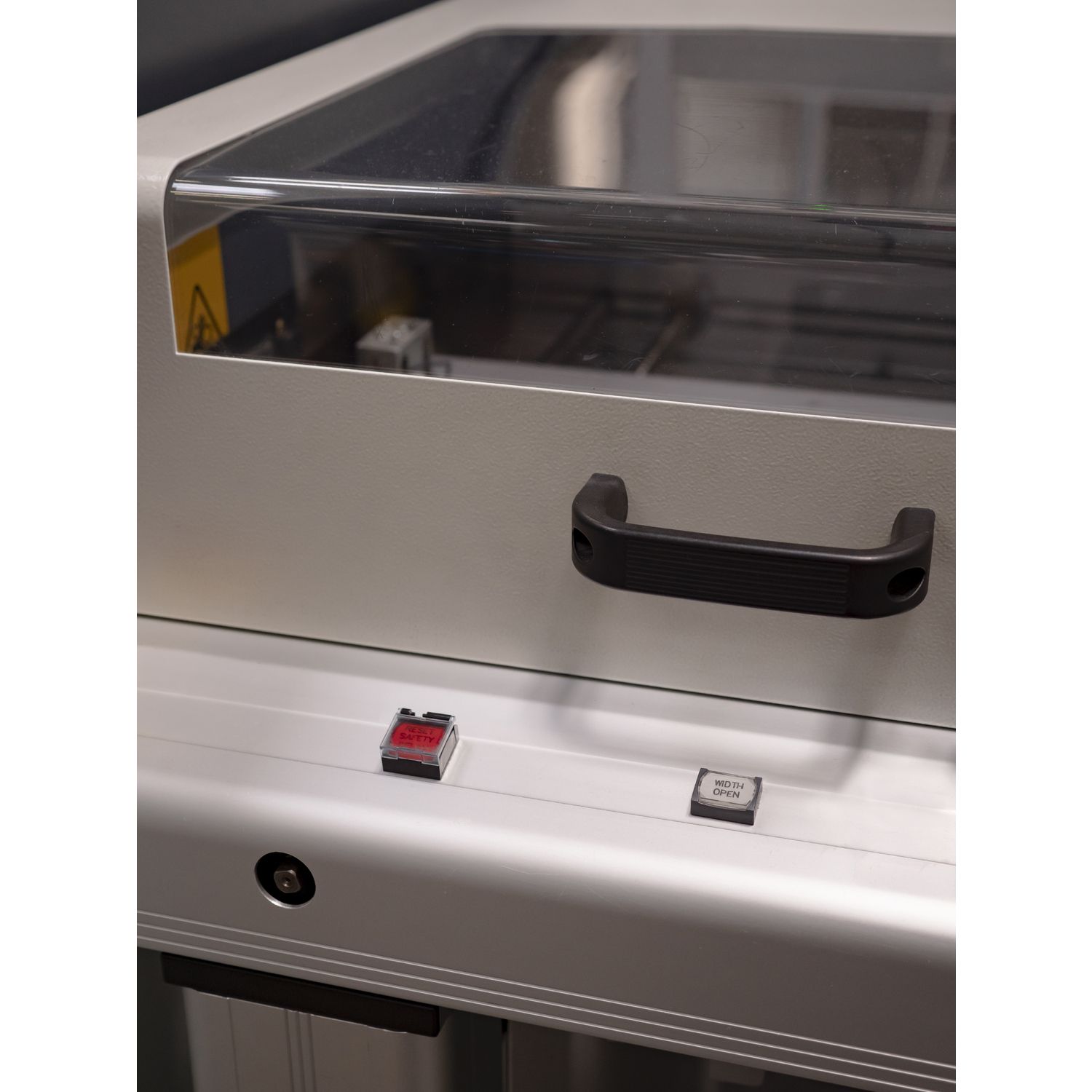

Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
CAD
Catalog
Product Page Link
Product Data Sheet

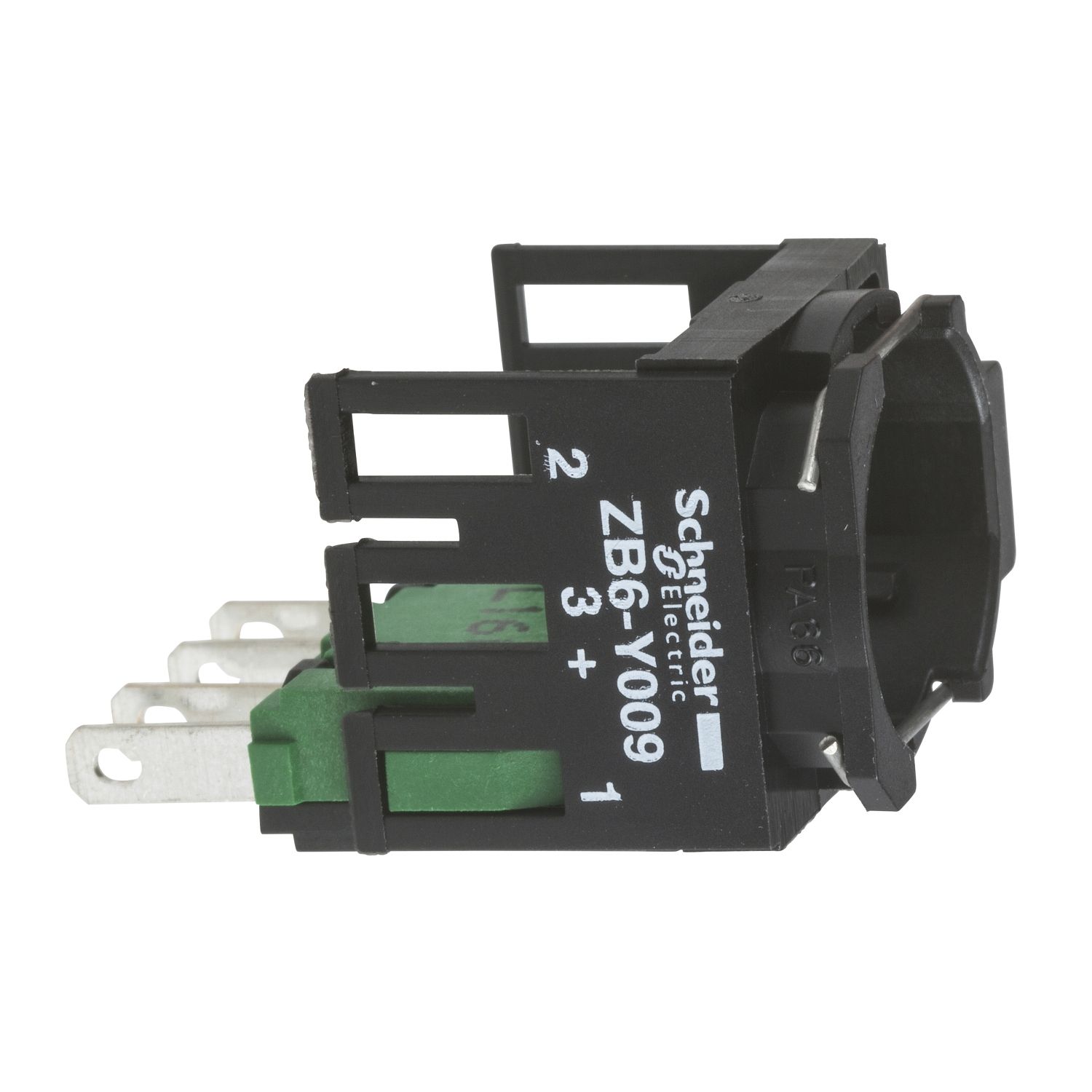

This Harmony ZB6Z3B is a single contact block with body/fixing collar, 2 NO faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Products specifications

Attribute name Attribute value
Main
Device short name ZB6
Contact operation slow-break
Sale per indivisible quantity 1
Fixing collar material plastic
Range of product Harmony XB6
[Us] rated supply voltage <= 250 V
Contacts type and composition 2 NO
Connections - terminals Faston connector, connection size: 2.8 x 0.5 mm, Faston connector
Product or component type complete body for push-buttons or selector switches
Complementary
Electrical reliability λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Compatibility code ZB6
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300, 0.1 A at 250 V, DC-13, R300, 1.5 A at 240 V, AC-15, B300, 3 A at 120 V, AC-15, B300
Electrical durability 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
CAD overall height 18 mm
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2 mm (NO changing electrical state)
Operating force 1.6 N NO changing electrical state
CAD overall depth 40 mm
CAD overall width 18 mm
Net weight 0.006 kg
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 6 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO
Contacts usage standard
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 61140
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C 852, JIS C 4520, CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-5
Product certifications CSA, GOST, UL, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 3.0 cm
Package 1 Length 4.0 cm
Package 1 Weight 8.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.014 kg

Related products

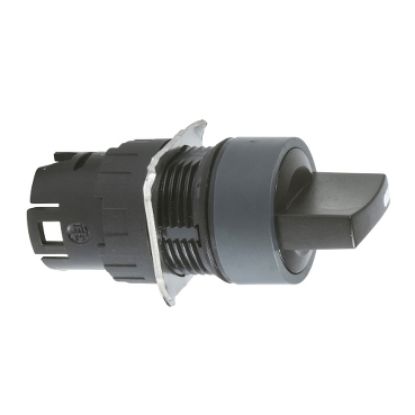

Head for selector switch, Harmony XB6, black handle, round, 16mm, 3 positions, stay put
