SKU:

ZB6E2B

Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NC

Old price: $17.82 INC GST
$13.90 INC GST
Available for Shipping : 15-Dec-2025
Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025

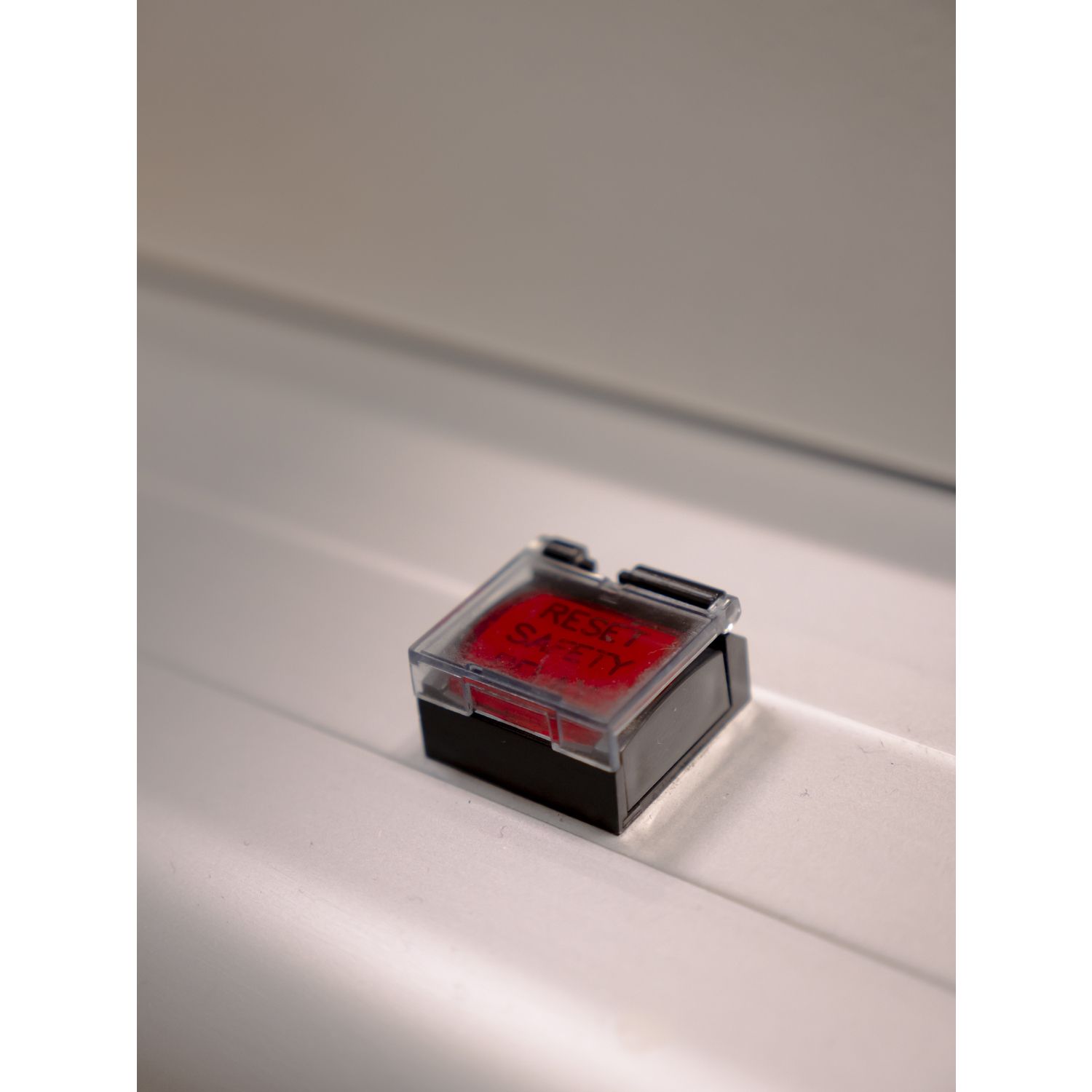

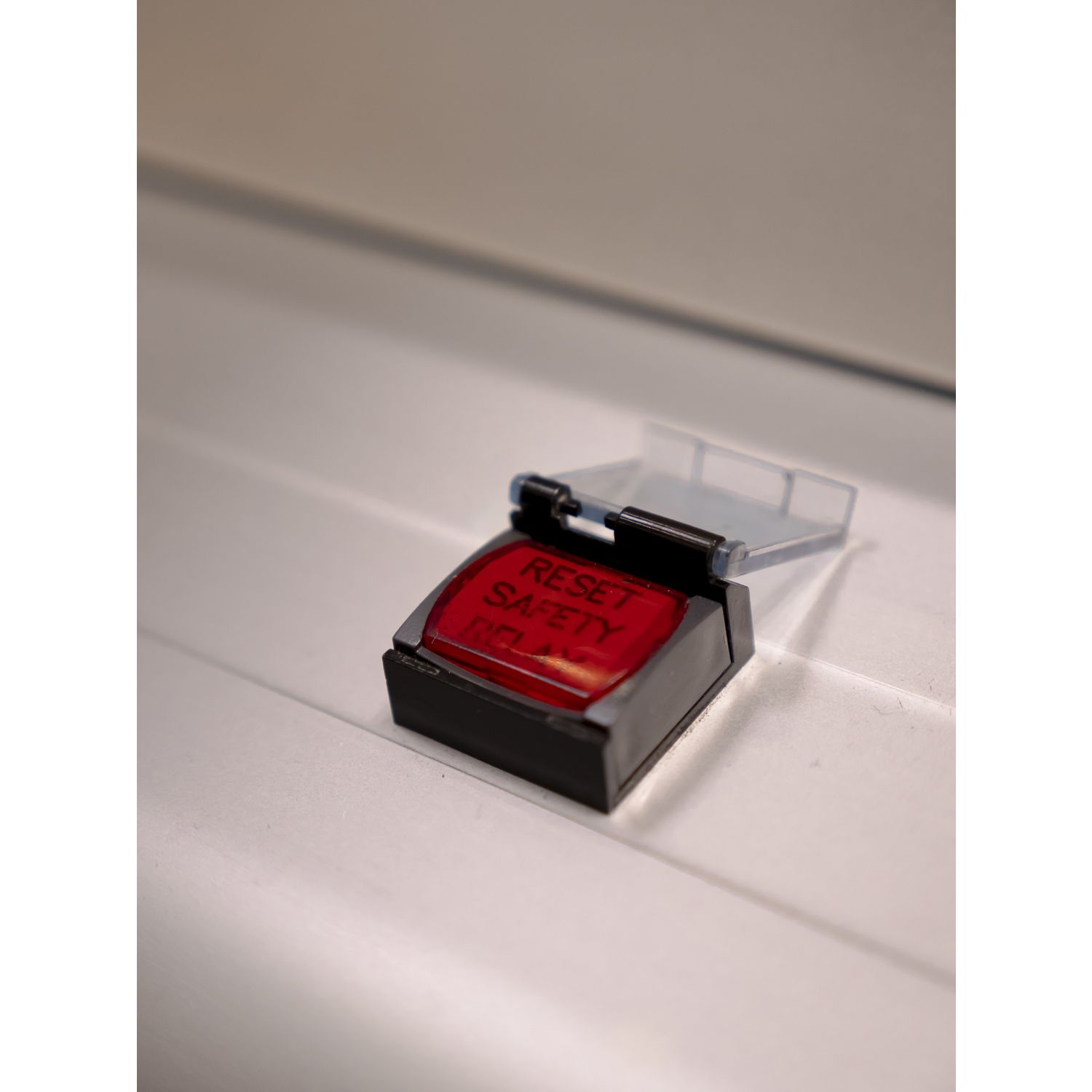

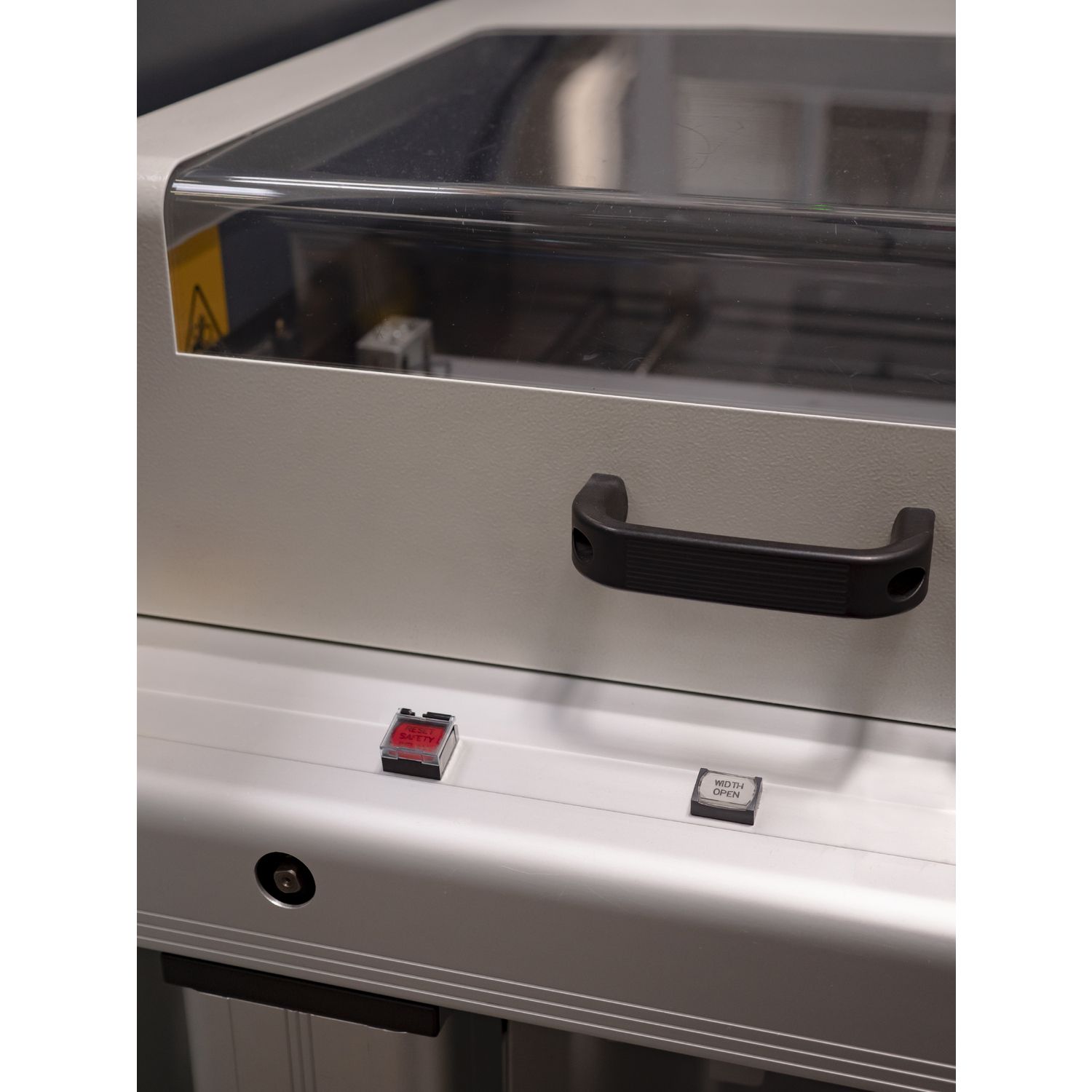

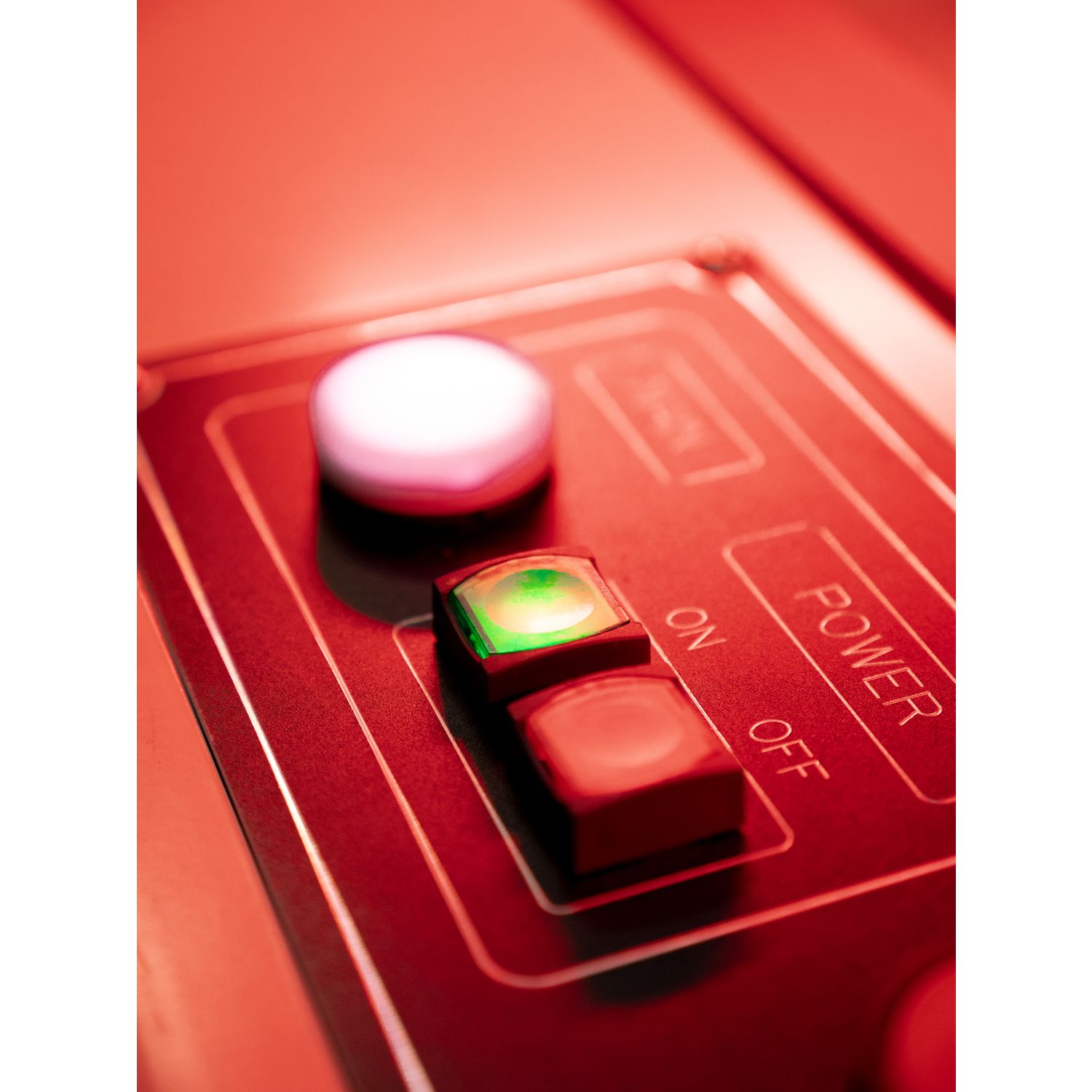

Image of product in real life situation
Image of product in real life situation
Circularity Profile
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Catalog
CAD
Product Page Link
Product Data Sheet
This Harmony ZB6E2B is a single contact block for head, 1 NC faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Products specifications

Attribute name Attribute value
Main
Device short name ZB6
Contact operation slow-break
Sale per indivisible quantity 10
Contacts type and composition 1 NC
Connections - terminals Faston connector
Product or component type contact block
Contact block type single
Contacts material silver alloy (Ag/Ni)
Range of product Harmony XB6
Complementary
Electrical reliability λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN/IEC 60947-5-4
Compatibility code ZB6
Mechanical durability 5000000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300, 0.1 A at 250 V, DC-13, R300, 1.5 A at 240 V, AC-15, B300, 3 A at 120 V, AC-15, B300
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1
Electrical durability 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
Net weight 0.004 kg
Positive opening with conforming to EN/IEC 60947-5-1 appendix K
Operating travel 3.5 mm (total travel), 1 mm (NC changing electrical state)
Short-circuit protection 6 A cartridge fuse type gG
Operating force 2.5 N NC changing electrical state
Terminals description ISO n°1 (1-2)NC
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-1, JIS C 4520, UL 508
Ambient air temperature for operation -25-70 °C
Product certifications CCC, UL, CSA, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 6.500 cm
Package 1 Length 3.200 cm
Package 1 Weight 2.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 2.200 cm
Package 2 Width 6.500 cm
Package 2 Length 3.200 cm
Package 2 Weight 28.000 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.354 kg
