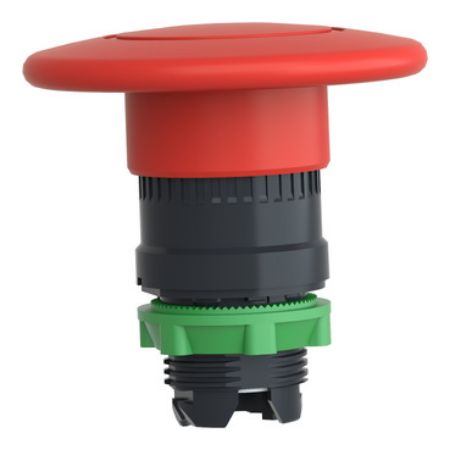

Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Picture of Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
SKU:

ZB5AX84

Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull

Old price: $99.99 INC GST
$77.99 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Emergency stop head, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger latching push pull
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Image of product in real life situation
Circularity Profile
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, emergency stop / shutdown 60mm mushroom red button head operates with a latched push-pull mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Operator profile red mushroom Ø 60 mm, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Device presentation basic element
Head type standard
Shape of signaling unit head round
Product or component type head for emergency stop push-button
Type of operator trigger action and mechanical latching
Mounting diameter 22 mm
Range of product Harmony XB5
Reset push-pull
Product destination emergency stop push-button
Complementary
Group of product emergency stop pull to release
CAD overall depth 56 mm
CAD overall width 60 mm
Station name XALK 1 cut-out, XALD 1 cut-out
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 300000 cycles
Cap/operator or lens colour red
CAD overall height 60 mm
Net weight 0.05 kg
Electrical composition code C10 for <4 contacts using single and double blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting
Main group E-stop
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, ISO 13850, IEC 60947-5-4, UL 508, GB 14048.5, IEC 60204-1, IEC 60364-5-53, IEC 60947-5-5, JIS C8201-5-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications BV, DNV, GL, UL listed, CSA, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 7.0 cm
Package 1 Length 7.0 cm
Package 1 Weight 62.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.575 kg
