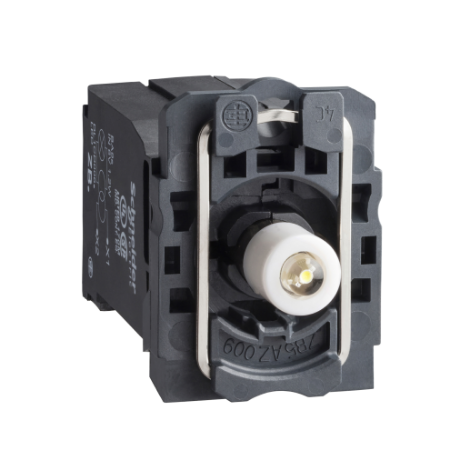

Picture of Complete body/light block assembly, Harmony XB5, XB4, white light, with body/fixing collar, BA9s LED bulb, 220...240V AC
SKU:

ZB5AV4D1

Complete body/light block assembly, Harmony XB5, XB4, white light, with body/fixing collar, BA9s LED bulb, 220...240V AC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Complete body/light block assembly, Harmony XB5, XB4, white light, with body/fixing collar, BA9s LED bulb, 220...240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Technical illustration
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Bulb base BA 9s
Device short name ZB5
Light source colour white
Sale per indivisible quantity 1
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Fixing collar material plastic
Product or component type complete body/light block assembly
Light block supply via integral transformer 1.2 VA 6 V
Light source LED
Range of product Harmony XB5
Complementary
[Us] rated supply voltage 230...240 V AC at 50/60 Hz, 220...240 V
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
CAD overall depth 55 mm
CAD overall width 30 mm
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Customizable no, 0
Compatibility code ZB5
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
CAD overall height 42 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.102 kg
Electrical composition code M9, P4
Terminals description ISO n°1 (X1-X2)PL
Mounting of block front mounting
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1
Ambient air temperature for operation -40-70 °C
Product certifications DNV, LROS (Lloyds register of shipping), CSA, UL listed, BV, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.4 cm
Package 1 Width 5.4 cm
Package 1 Length 8.8 cm
Package 1 Weight 102.0 g
