SKU:

ZBZM156

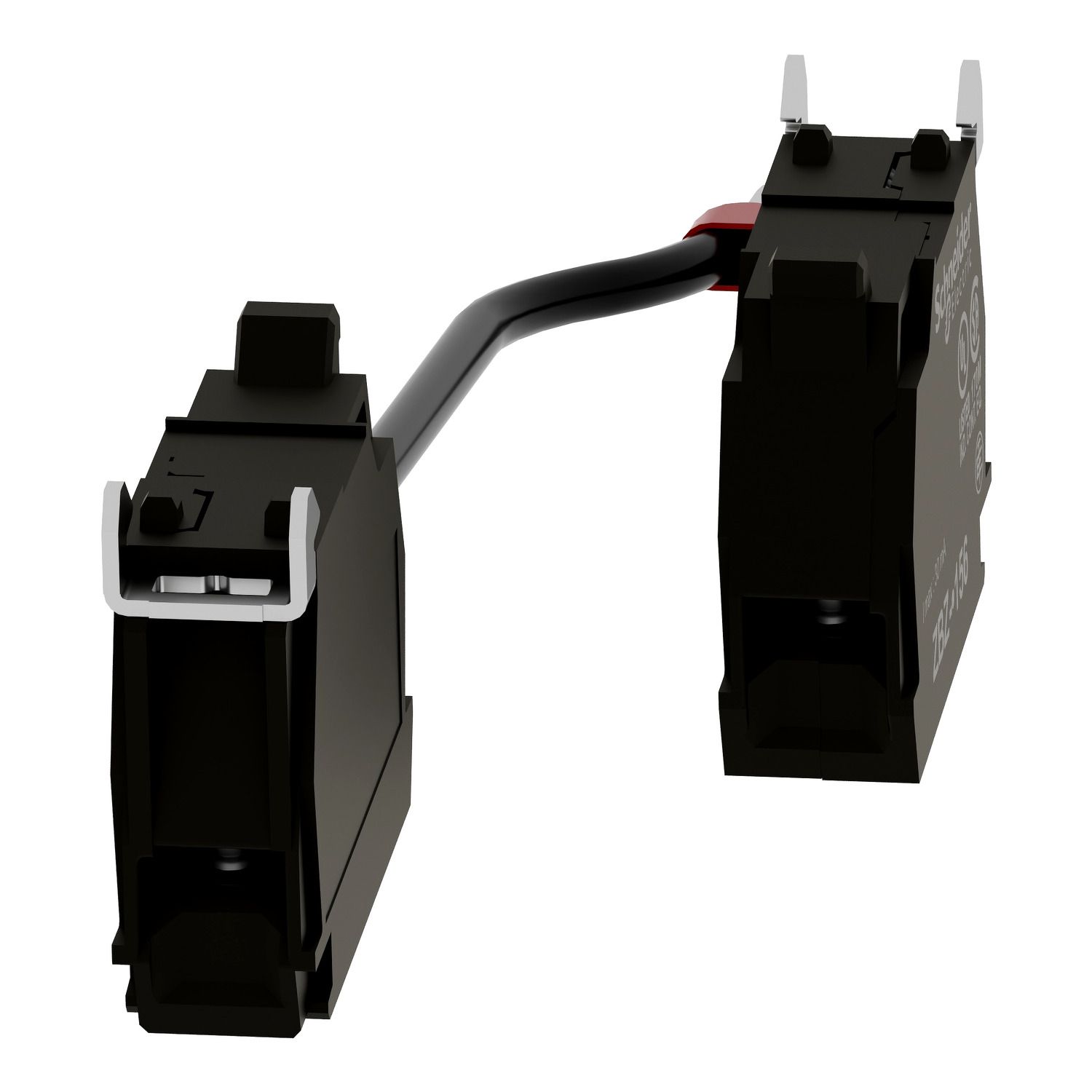

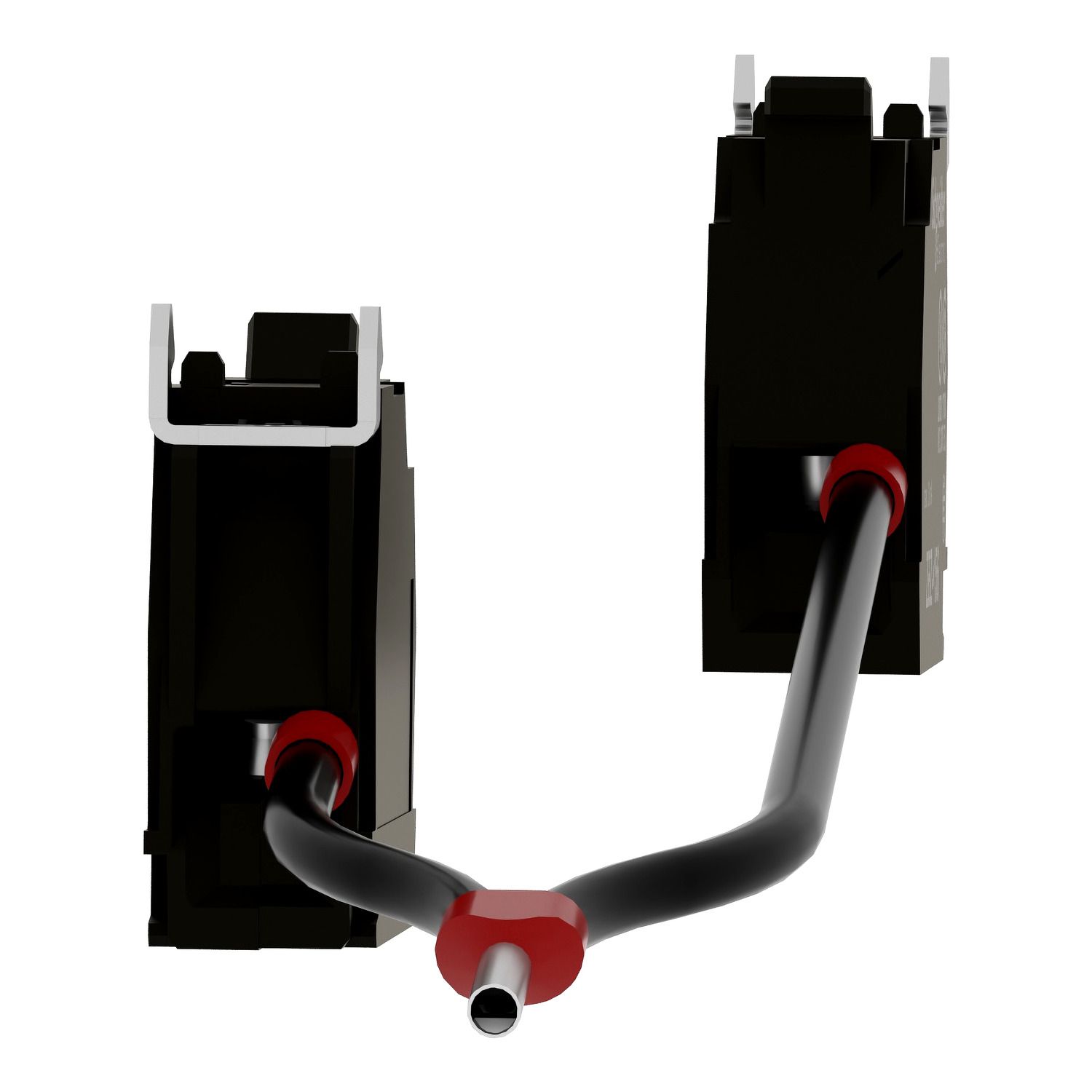

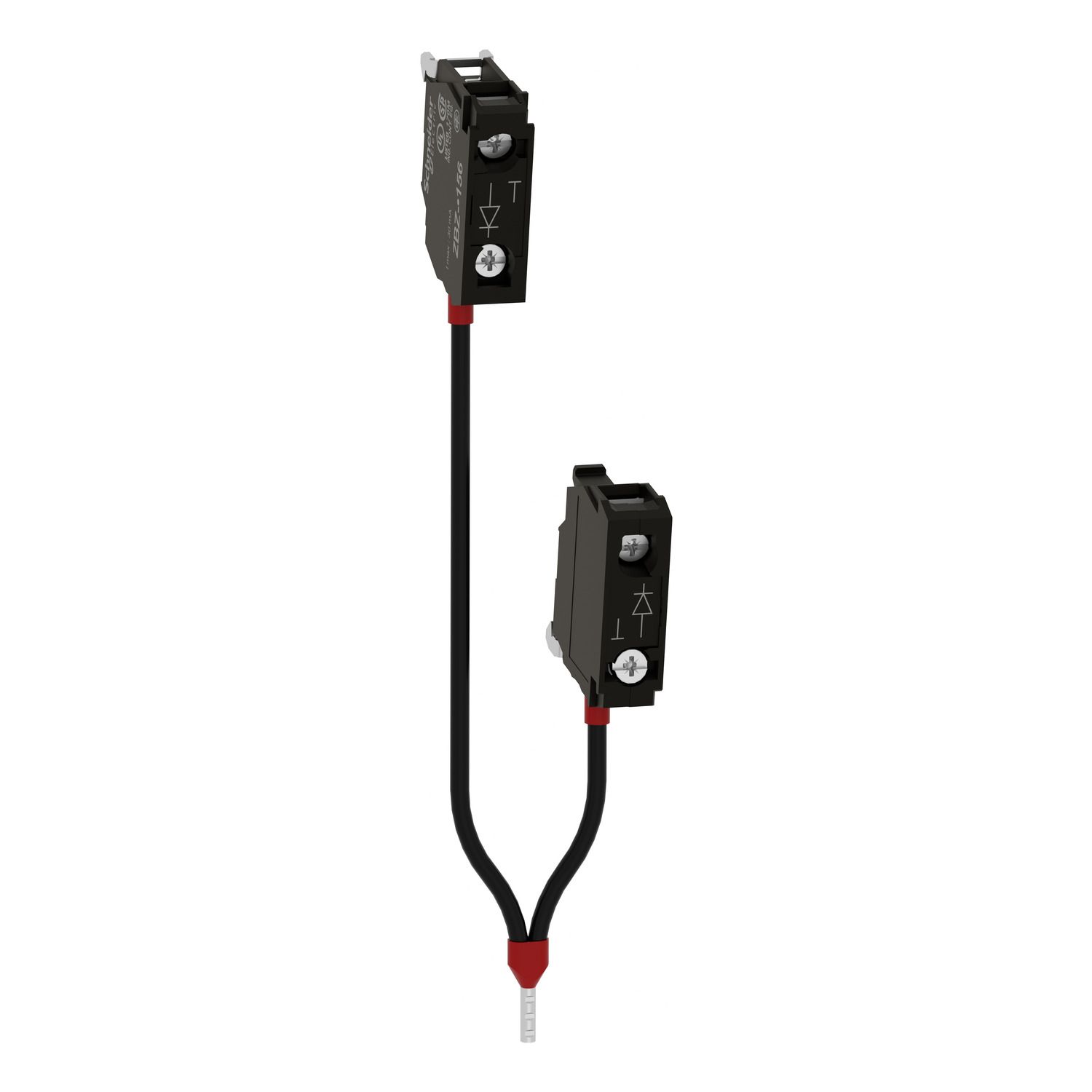

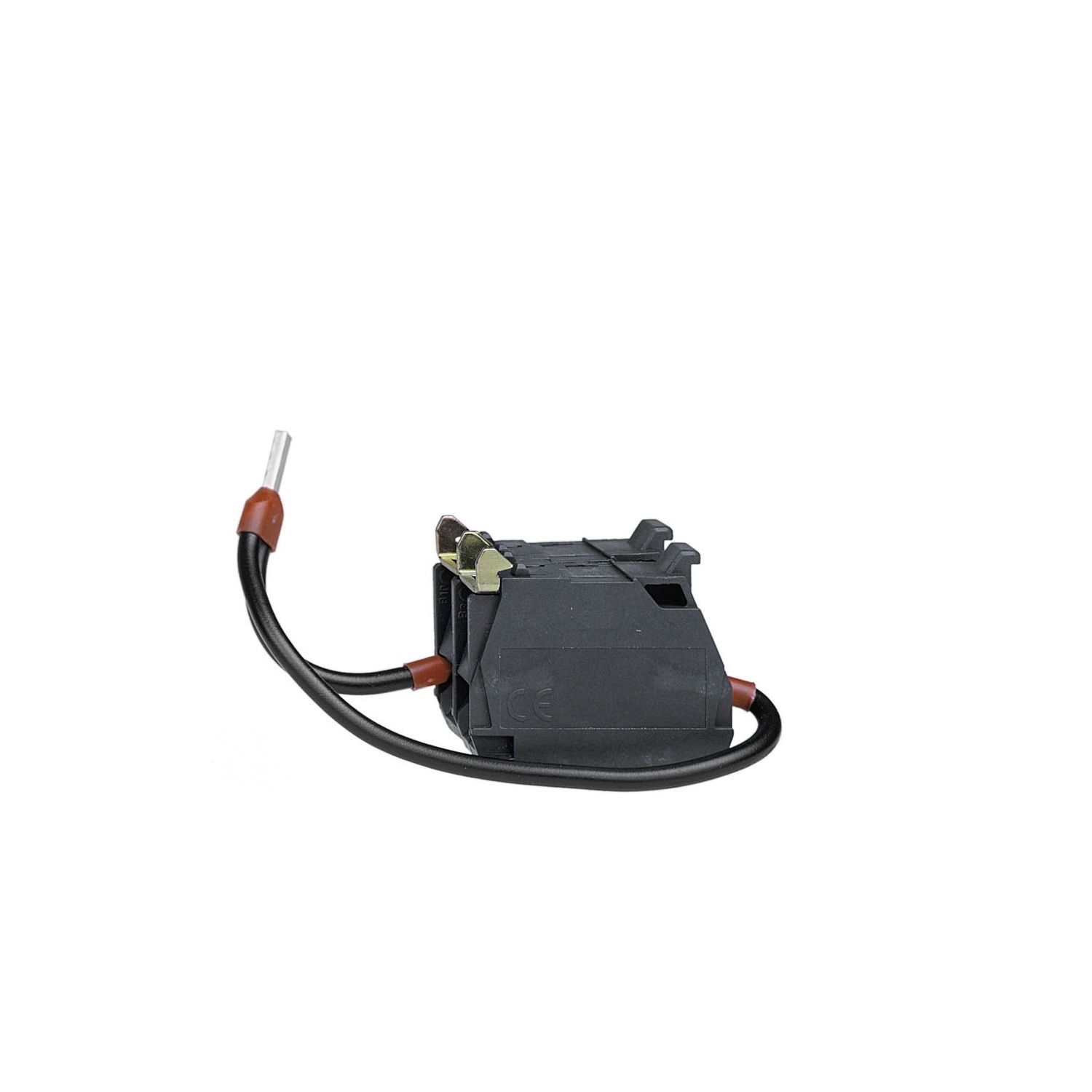

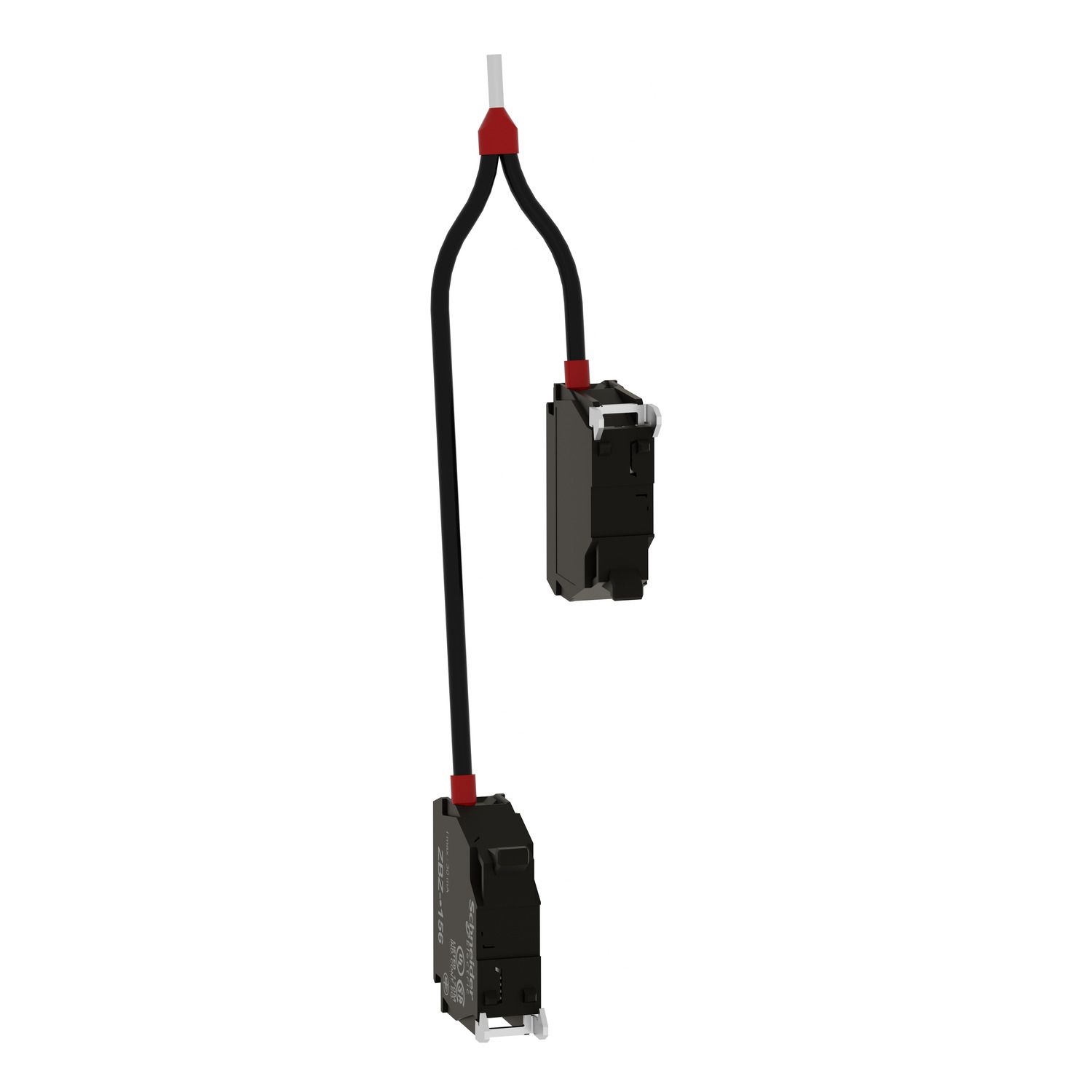

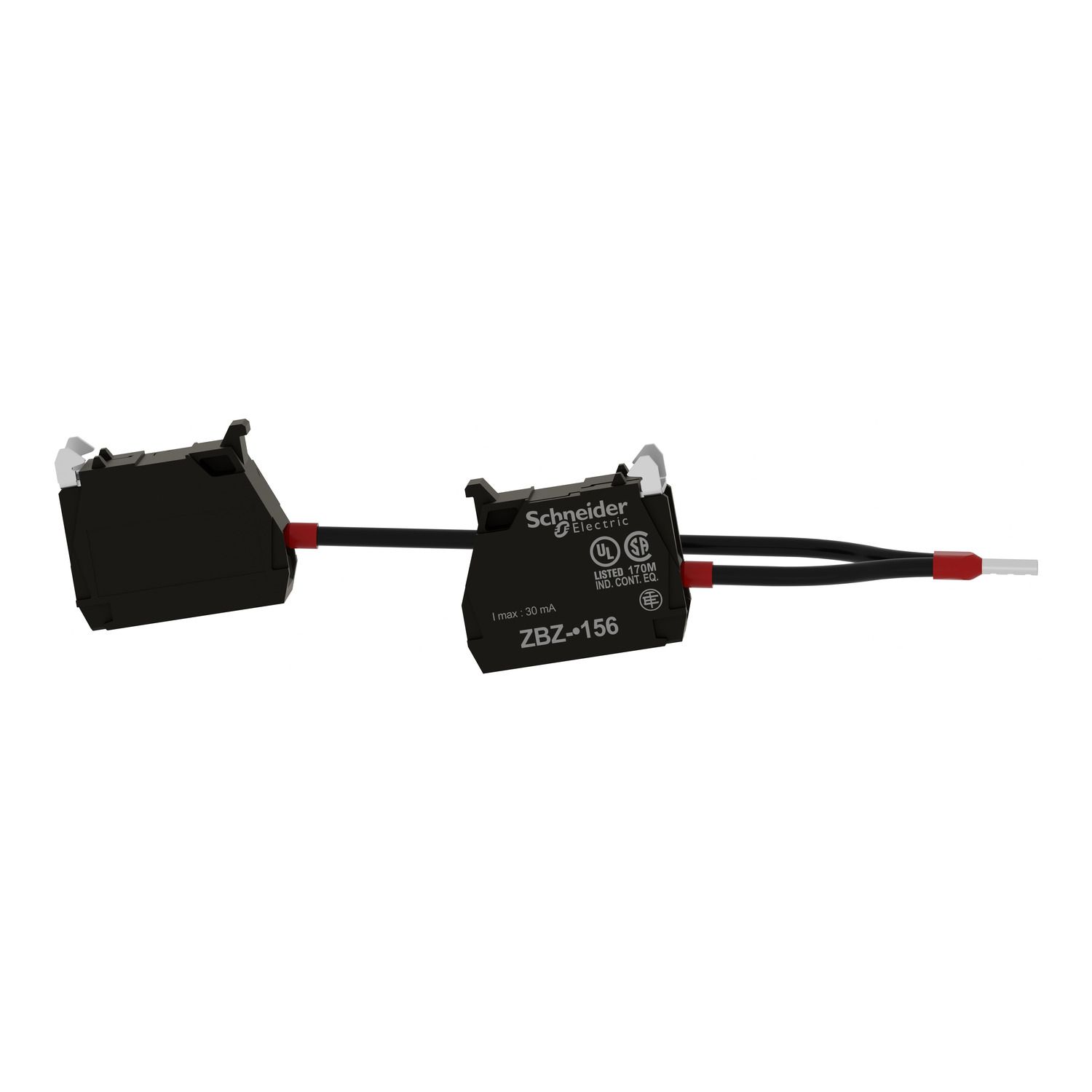

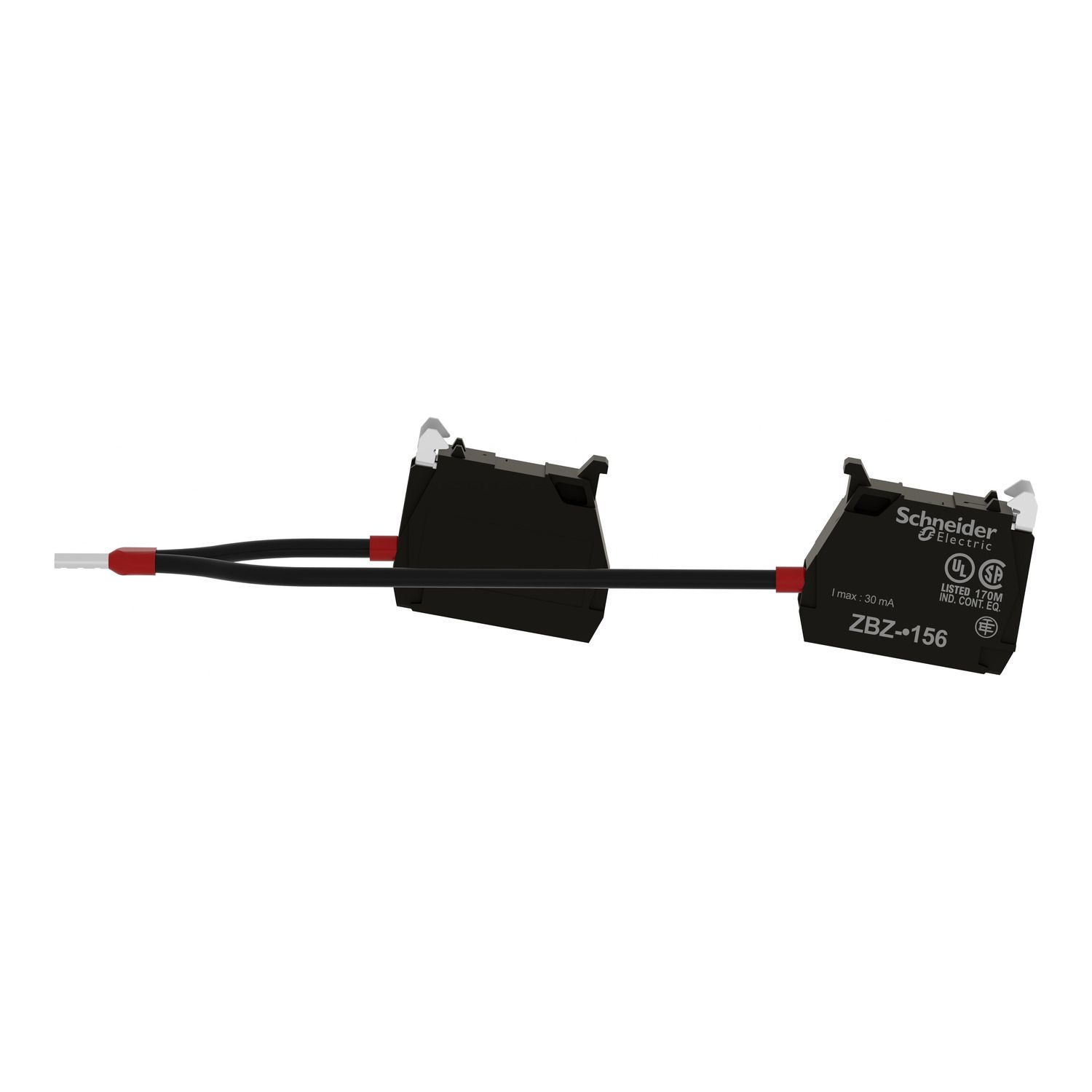

Block for test light function with integral LED, Harmony XB4, double, 48...230V AC

Old price: $56.98 INC GST
$44.44 INC GST
Available for Shipping : 10-Dec-2025
Block for test light function with integral LED, Harmony XB4, double, 48...230V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025

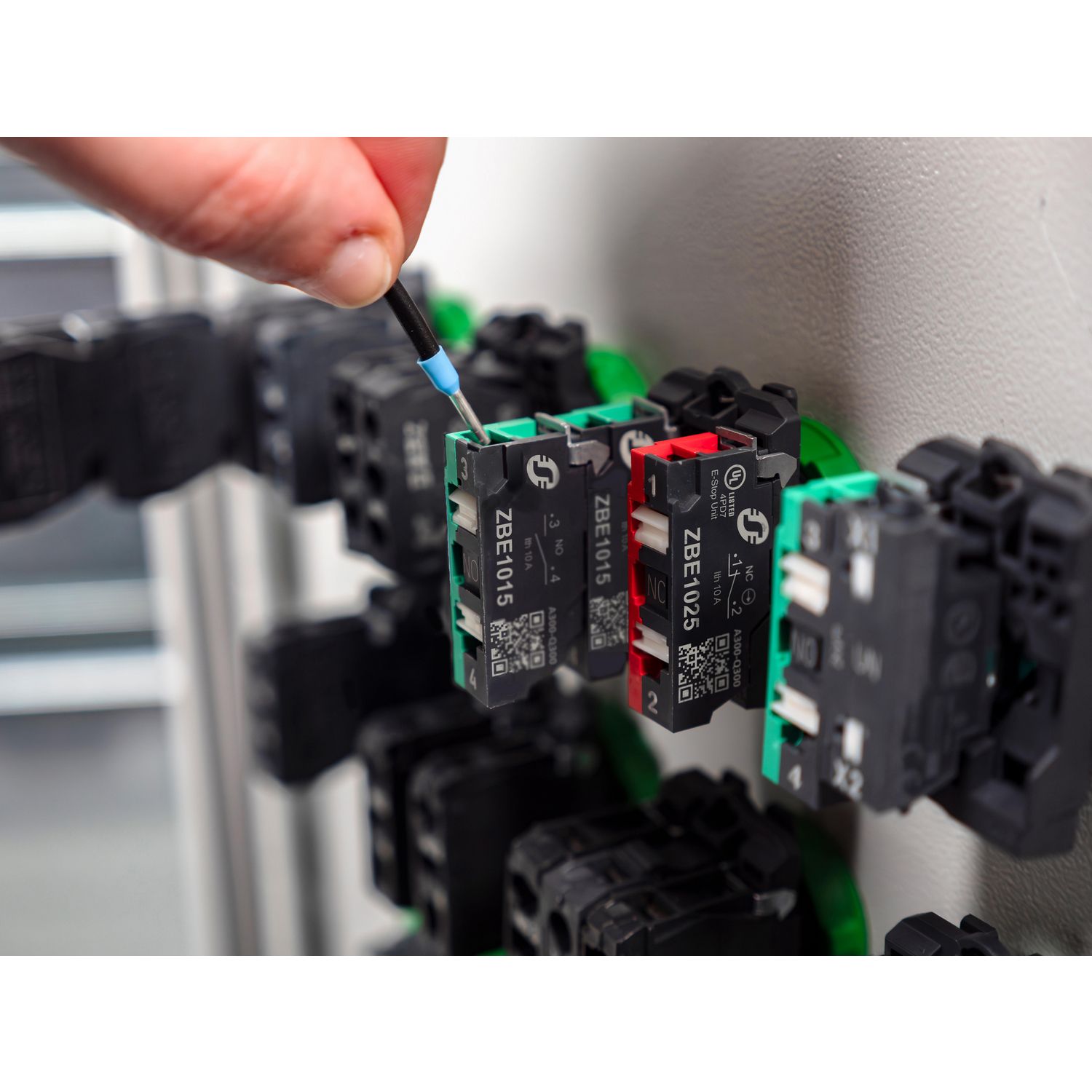

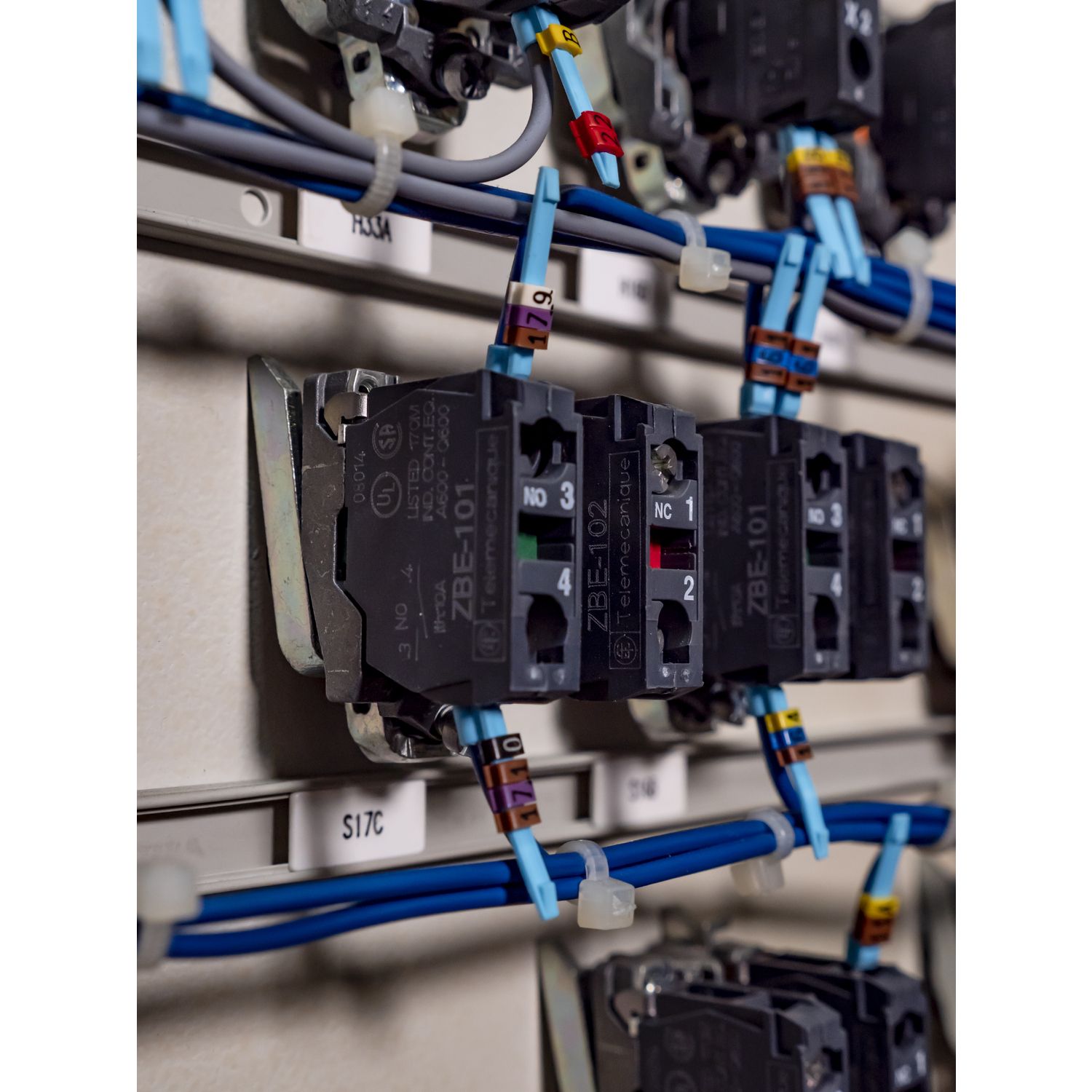

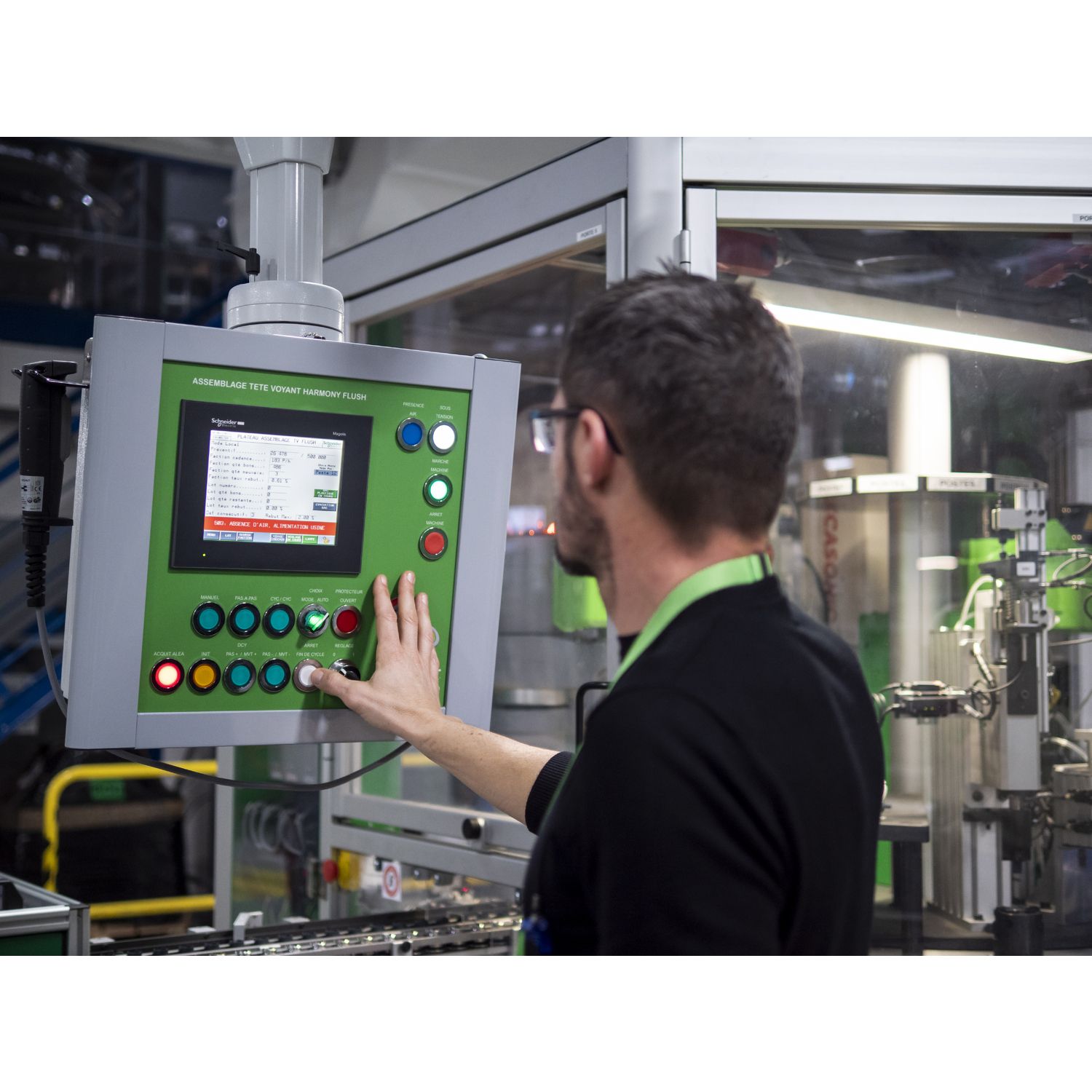

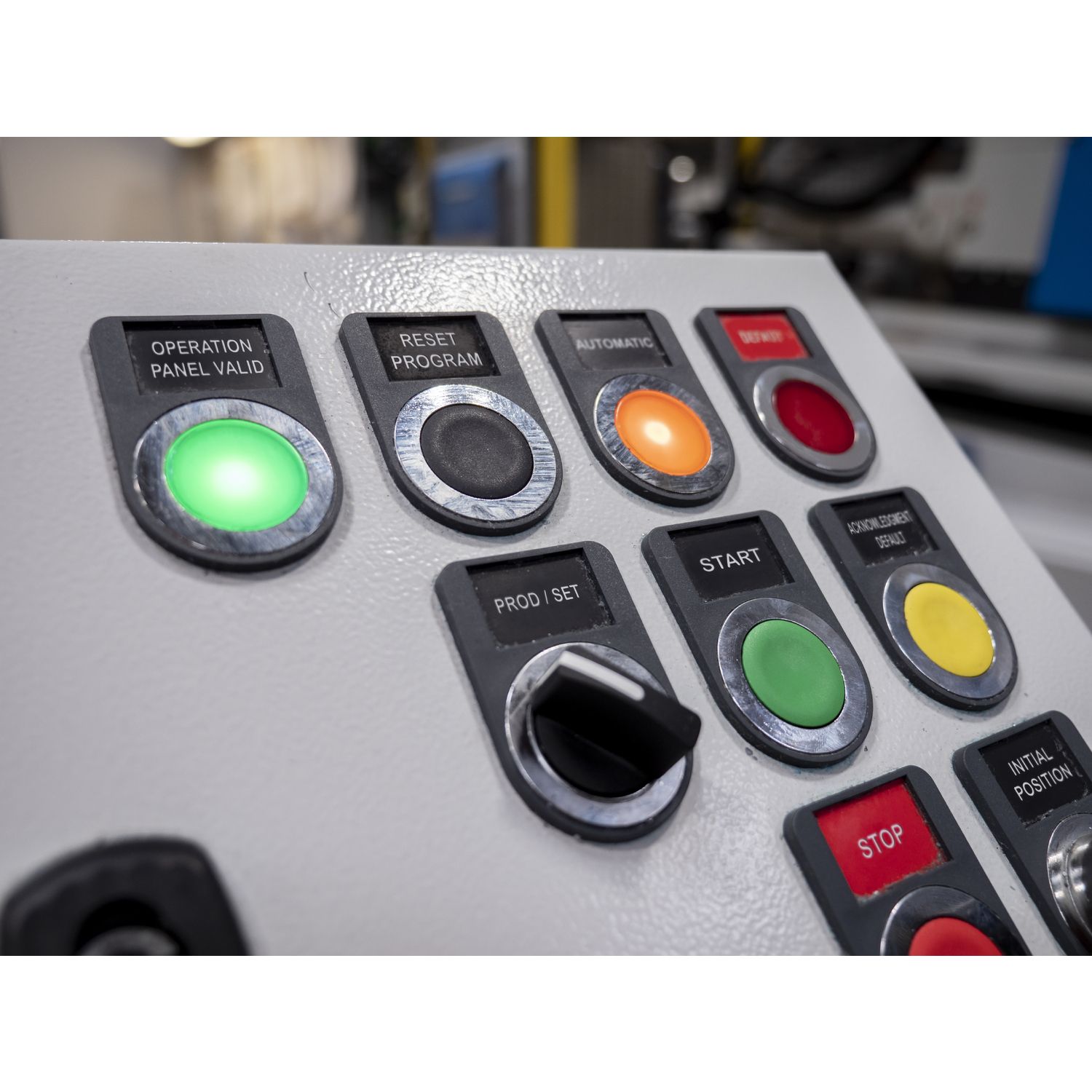

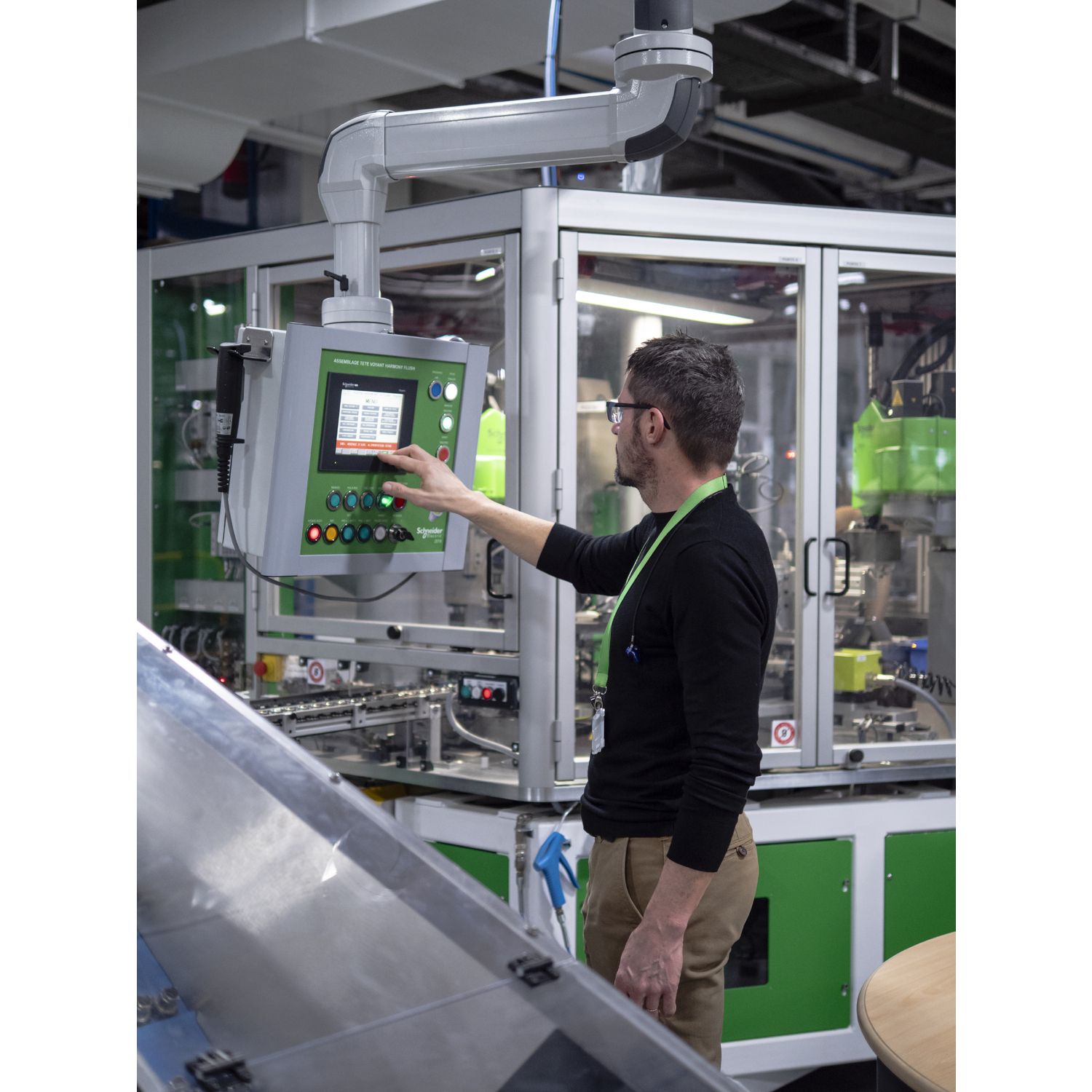

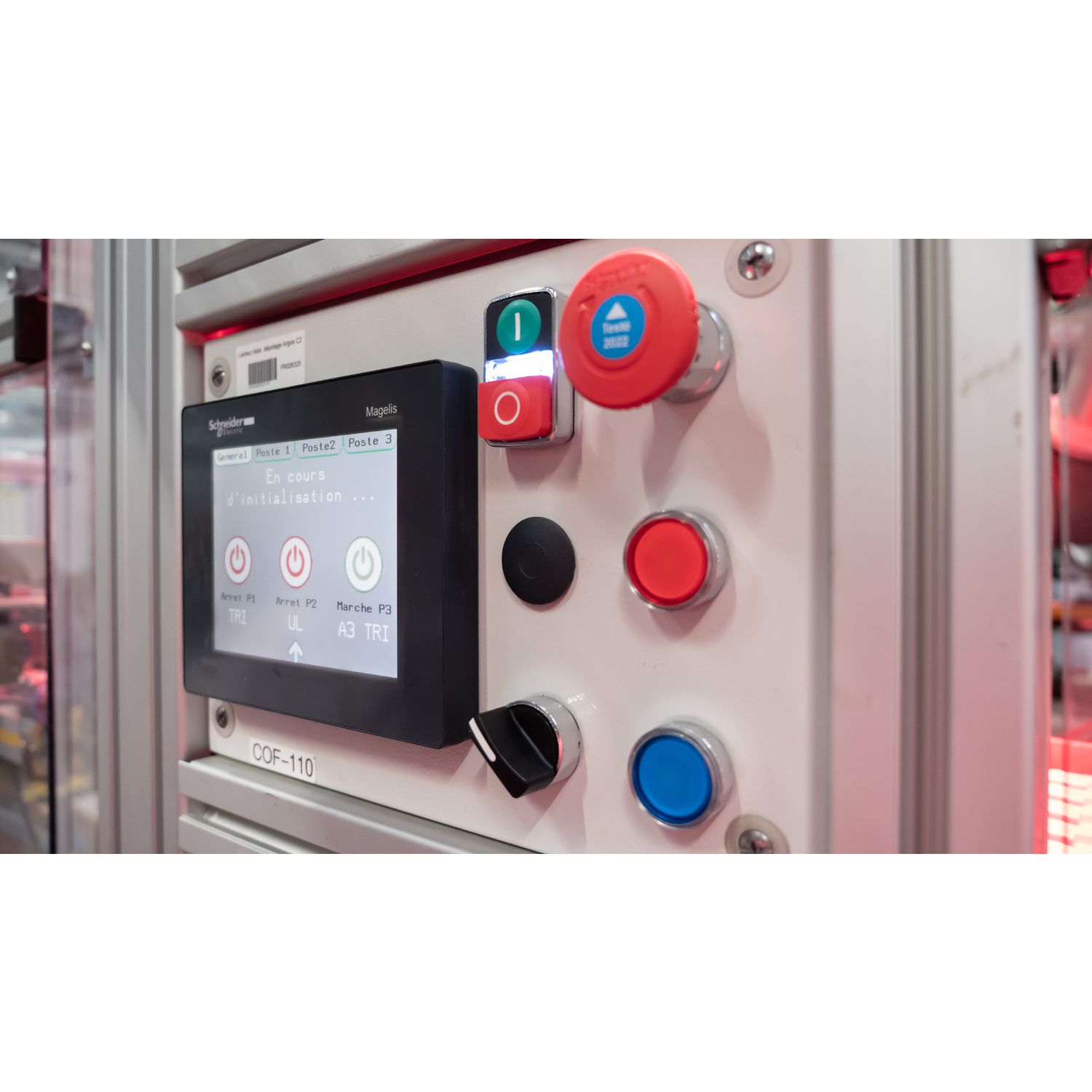

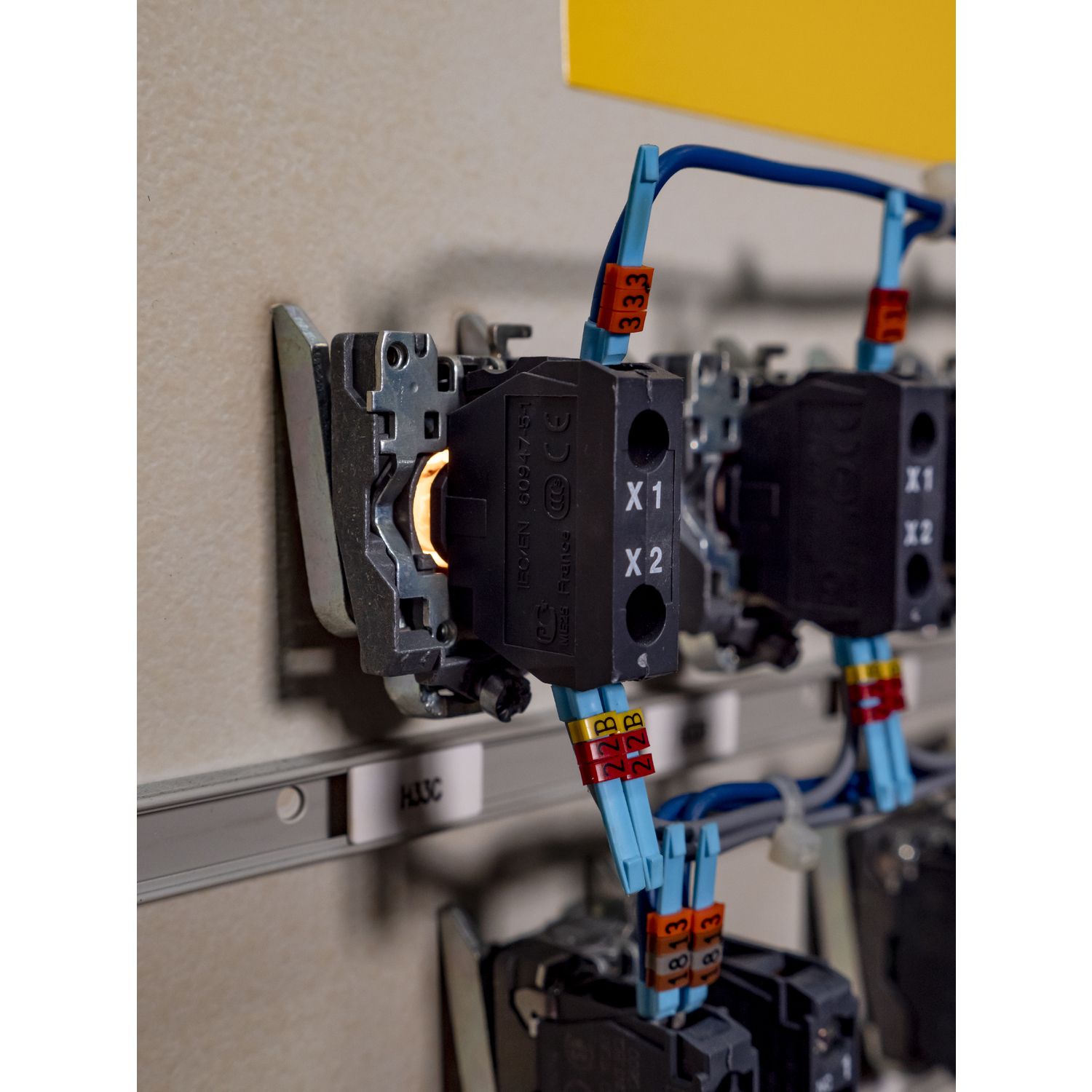

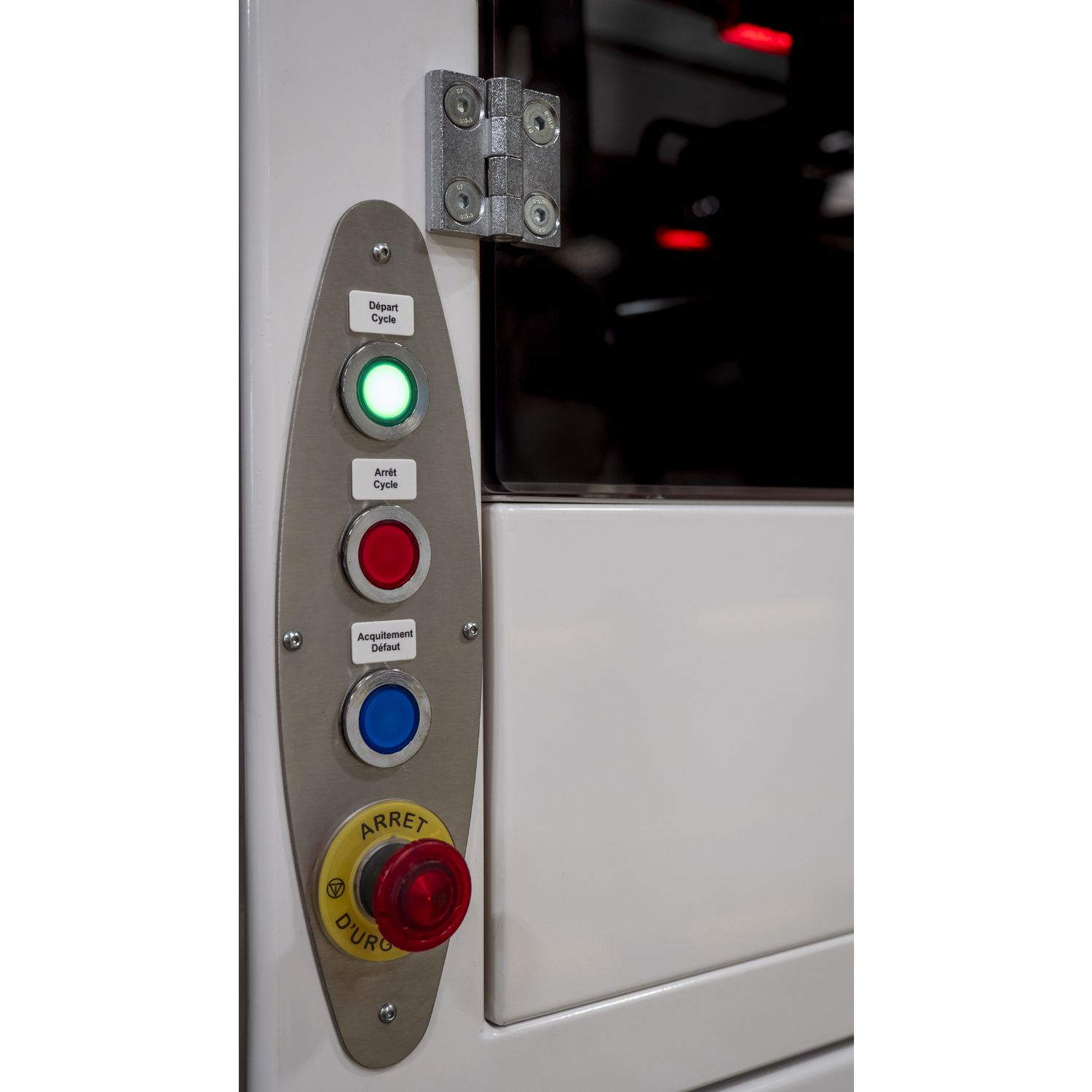

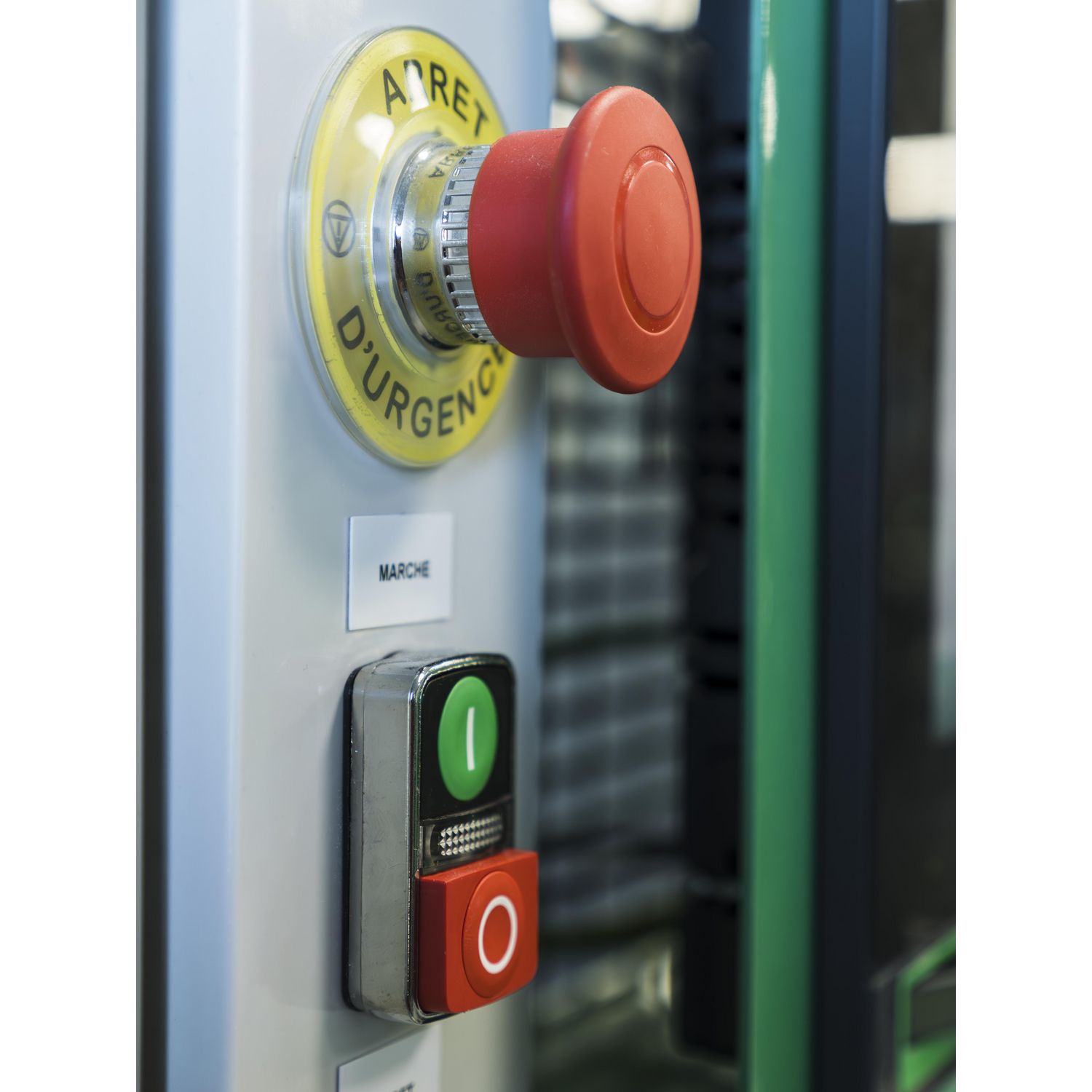

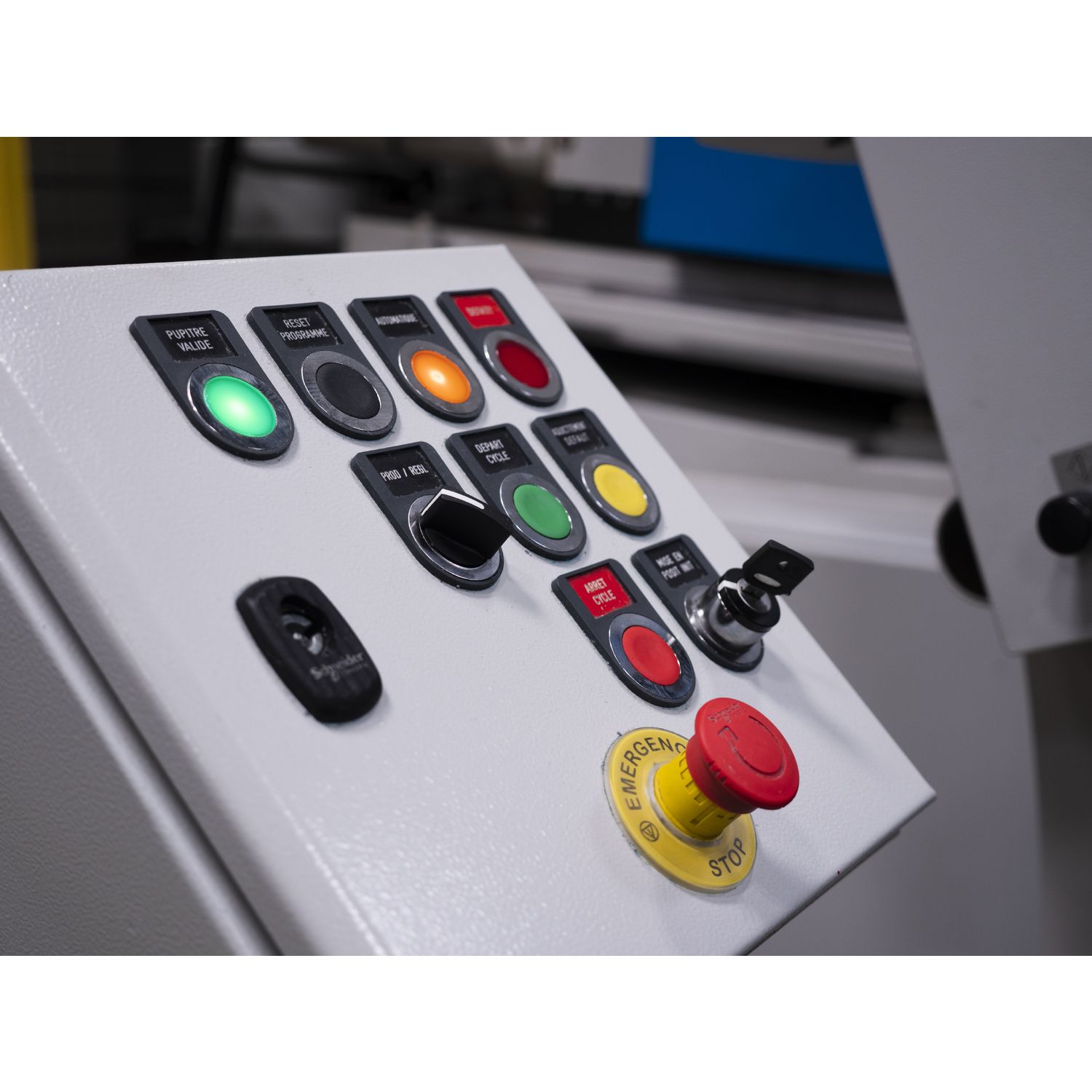

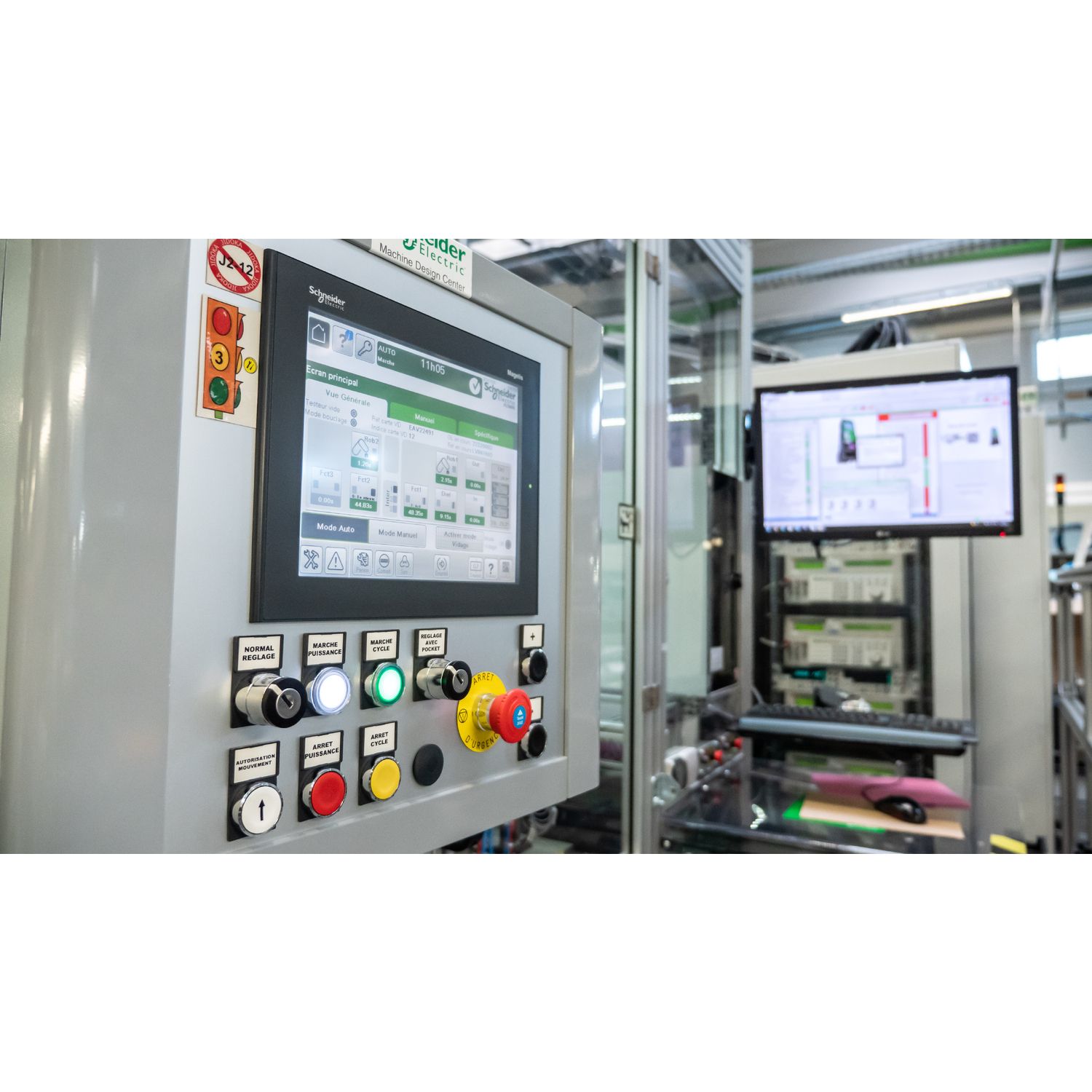

Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony ZB, double light block for test light function operates with an integral LED. It is supplied with 48V to 230V AC. It is compatible with Harmony XB4 and XB5. This double light block allows fast and easy replacement and configuration of your signaling units for light testing purpose. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Product compatibility integral LED
Light block type double block for test light function
Range of product Harmony XB4, Harmony XB5
[Us] rated supply voltage 48...230 V, 48...230 V AC
Electrical connection wires
Product or component type block for test light
Complementary
Customizable 0, no
Electrical shock protection class class II for Harmony XB5 conforming to IEC 60536, class I for Harmony XB4 conforming to IEC 60536
Net weight 0.01 kg
Material plastic
Environment
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27, 30 gn for 18 ms conforming to IEC 60068-2-27
Standards JIS C 4520, IEC 60947-5-5, UL 508, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1
Product certifications CSA, BV, UL listed, LROS (Lloyds register of shipping), GL, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.3 cm
Package 1 Width 3.4 cm
Package 1 Length 8.8 cm
Package 1 Weight 29 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.73 kg

Related products

Legend holder 30x40mm, Harmony XB4, plastic, without legend 8x27mm

ZBZ32
$3.42 INC GST $4.39 INC GST
View Detail

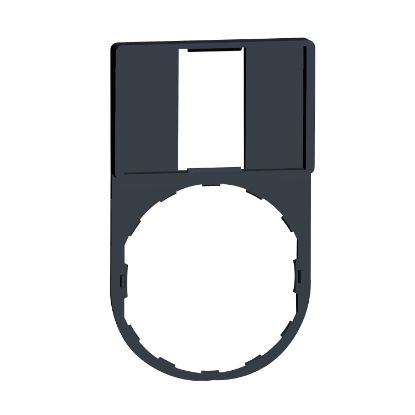

Legend holder 30x50mm, Harmony XB4, plastic, without legend 18x27mm
