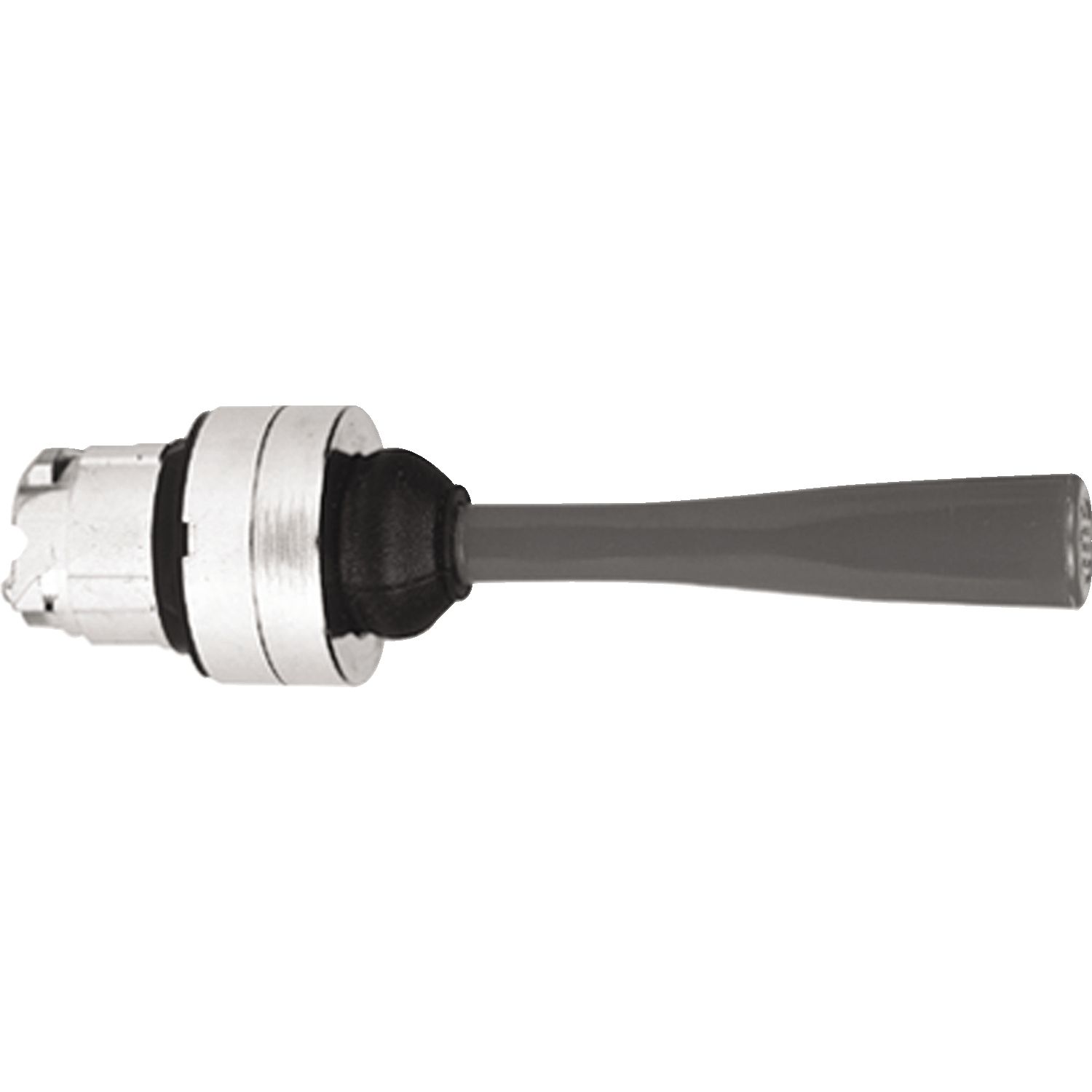

Picture of Head for joystick controller, Harmony XB4, black metal, 22mm, omnidirectional, spring return
SKU:

ZB4BB2

Head for joystick controller, Harmony XB4, black metal, 22mm, omnidirectional, spring return

Old price: $275.55 INC GST
$214.93 INC GST
Available for Shipping : 19-Jan-2026
Product Selector
Head for joystick controller, Harmony XB4, black metal, 22mm, omnidirectional, spring return
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Circularity Profile
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony XB4, black head operates with omnidirectional and spring return / impulse mechanism. This wobble stick head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible omnidirectional controllers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator to zero position spring return
Range of product Harmony XB4
Operator profile black 54 mm long operating shaft
Bezel material chromium plated metal
Operator direction information omnidirectional
Shape of signaling unit head round
Product or component type head for joystick controller
Mounting diameter 22 mm
Complementary
Compatibility code ZB4
Mechanical durability 1000000 cycles
Device presentation basic element
Customizable 0, no
Operator position information all positions
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.058 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-5, UL 508, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certifications CSA, DNV, LROS (Lloyds register of shipping), BV, GL, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 5.300 cm
Package 1 Length 13.300 cm
Package 1 Weight 74.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.415 kg
