SKU:

ZART12D

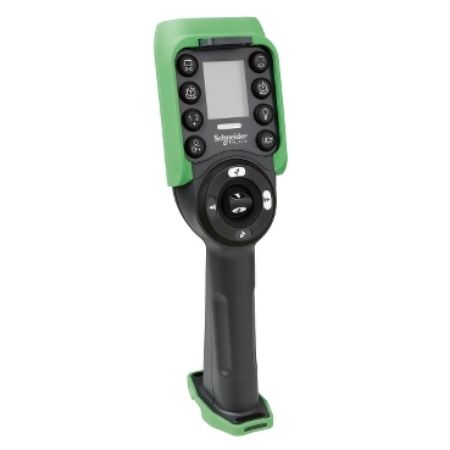

Harmony eXLhoist, Remote control, standard, display, 6 motion push buttons, 6 auxiliary push buttons

$1,461.88
Available for Shipping : 30-Oct-2024
Harmony eXLhoist, Remote control, standard, display, 6 motion push buttons, 6 auxiliary push buttons
Be the first to review this product
Manufacturer: Schneider Electric
Quick start guide
Instruction sheet
CAD
Product environmental
Declaration of conformity
End of life manual
User guide
Catalogue
Product Page Link
Product Data Sheet
This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons. It has LCD display with rechargeable battery. This remote control (transmitter) with display is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 6 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB18W and ZARB18H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.

Products specifications

Attribute name Attribute value
Main
Device short name ZART
Control button type 6 configurable auxiliary push-button, 6 configurable motion push-button
Product or component type hand-held remote control
Range of product Harmony eXLhoist
Complementary
Depth 90 mm
Width 100 mm
Display type LCD display 34 x 42 mm
Mechanical durability 5000000 cycles
Material protective cover: EPDM rubber, cover: PP (polypropylene), enclosure: PBT (polybutylene terephthalate), enclosure: PC (polycarbonate)
Service life 5 year(s)
Maximum sensing distance 100 m in free field
Function available vibrator function, accelerometer function
Communication network type wireless: bluetooth low energy
Charging time 900 s
Net weight 0.65 kg
Response time < 300 ms at full duplex
Operating distance 50 m
Autonomy 30 h
Transmission frequency 2.4 GHz
Height 340 mm
Mechanical robustness free fall resistance 4.5 m conforming to IEC 60068-2-27
Environment
Operating altitude 0...2000 m
NEMA degree of protection NEMA 4
Relative humidity 0-95 % at -20-60 °C operating
Ambient air temperature for storage -20-45 °C
IP degree of protection IP65
Radio agreement SRRC, ANATEL, ICASA, RSS, ARIB, FCC
Shock resistance 100 gn conforming to IEC 60068-2-27
Vibration resistance 0.075 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Storage altitude 0-3000 m
Ambient air temperature for operation -20-60 °C
Product certifications UL, EAC, KC, JIS, CE, CSA, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.700 cm
Package 1 Width 10.200 cm
Package 1 Length 33.700 cm
Package 1 Weight 749.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.485 kg

Related products

Picture of Harmony eXLhoist, Kit of adhesive labels for remote device, standard, black and white

Harmony eXLhoist, Kit of adhesive labels for remote device, standard, black and white

ZARC07
$70.01
View Detail
Picture of Harmony eXLhoist, External antenna, standard, for base station

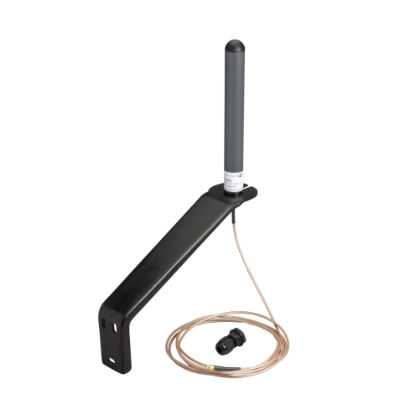

Harmony eXLhoist, External antenna, standard, for base station
