SKU:

ZA2BG5

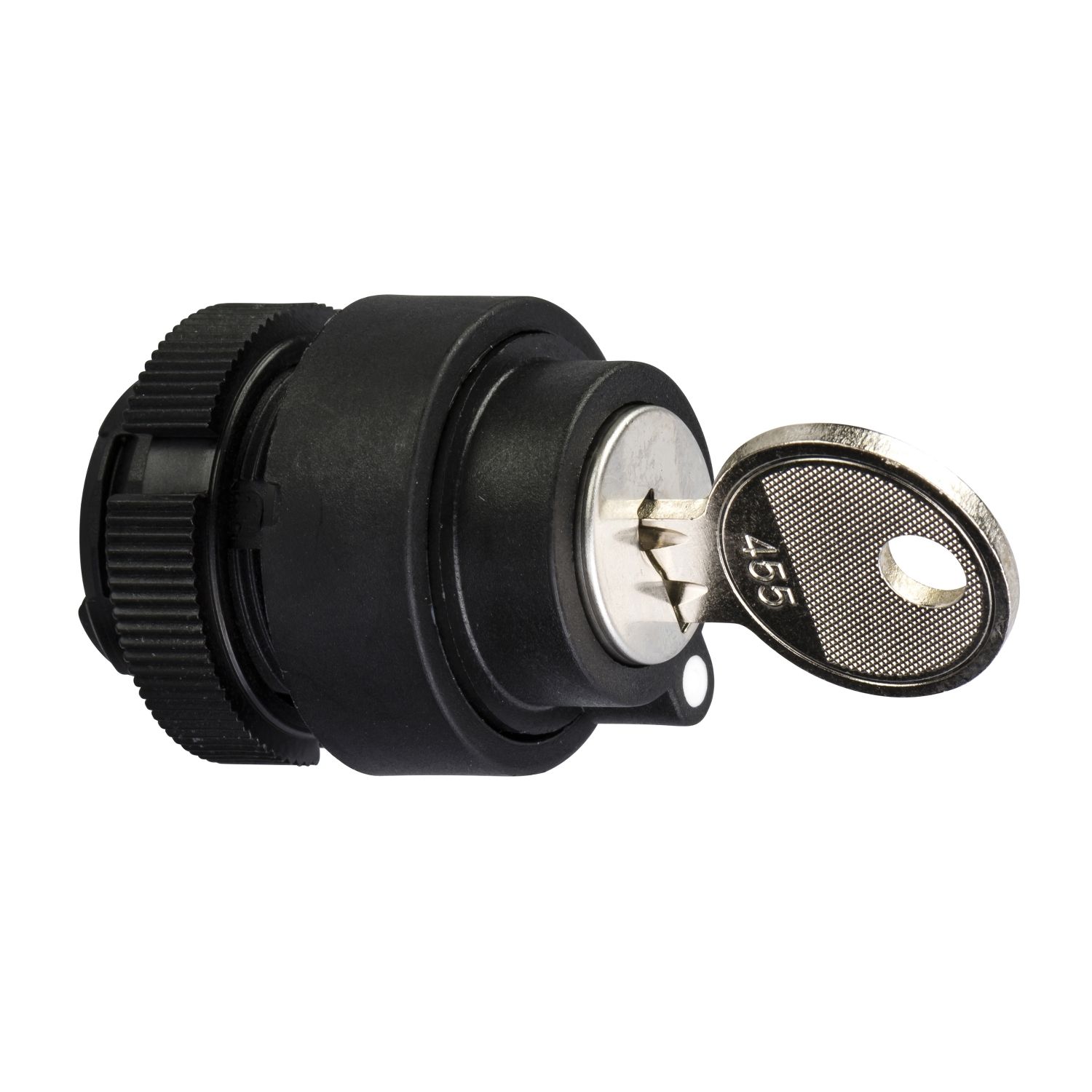

Selector switch, Harmony XAC, plastic, black, 3 positions, left/right withdrawal position, stay put

Old price: $162.80 INC GST

Price: $126.98 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

Selector switch, Harmony XAC, plastic, black, 3 positions, left/right withdrawal position, stay put

Manufacturer: Schneider Electric

Declaration of conformity

Circularity Profile

Environmental Disclosure

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product compatibility	XACA
Component name	ZA2
Product or component type	selector switch
Range of product	Harmony XAC
Complementary
Sale per indivisible quantity	1
Mounting location	front of enclosure
Net weight	0.042 kg
Cap/operator or lens colour	black
Marking	unmarked
Environment
Overvoltage category	class II conforming to IEC 61140
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP65 conforming to IEC 60529
Vibration resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance	100 gn conforming to IEC 60068-2-27
Standards	UL 508, IEC 60204-32, CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.9 cm
Package 1 Width	6.9 cm
Package 1 Length	9.7 cm
Package 1 Weight	48.0 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	3.0 cm
Package 2 Width	24.0 cm
Package 2 Length	17.0 cm
Package 2 Weight	498.0 g
Unit Type of Package 3	3
Number of Units in Package 3	50
Package 3 Height	15.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	2.761 kg
