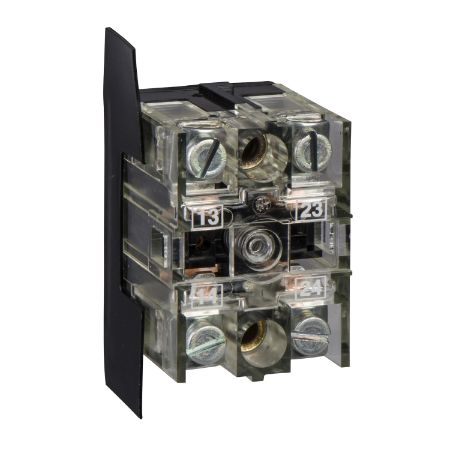

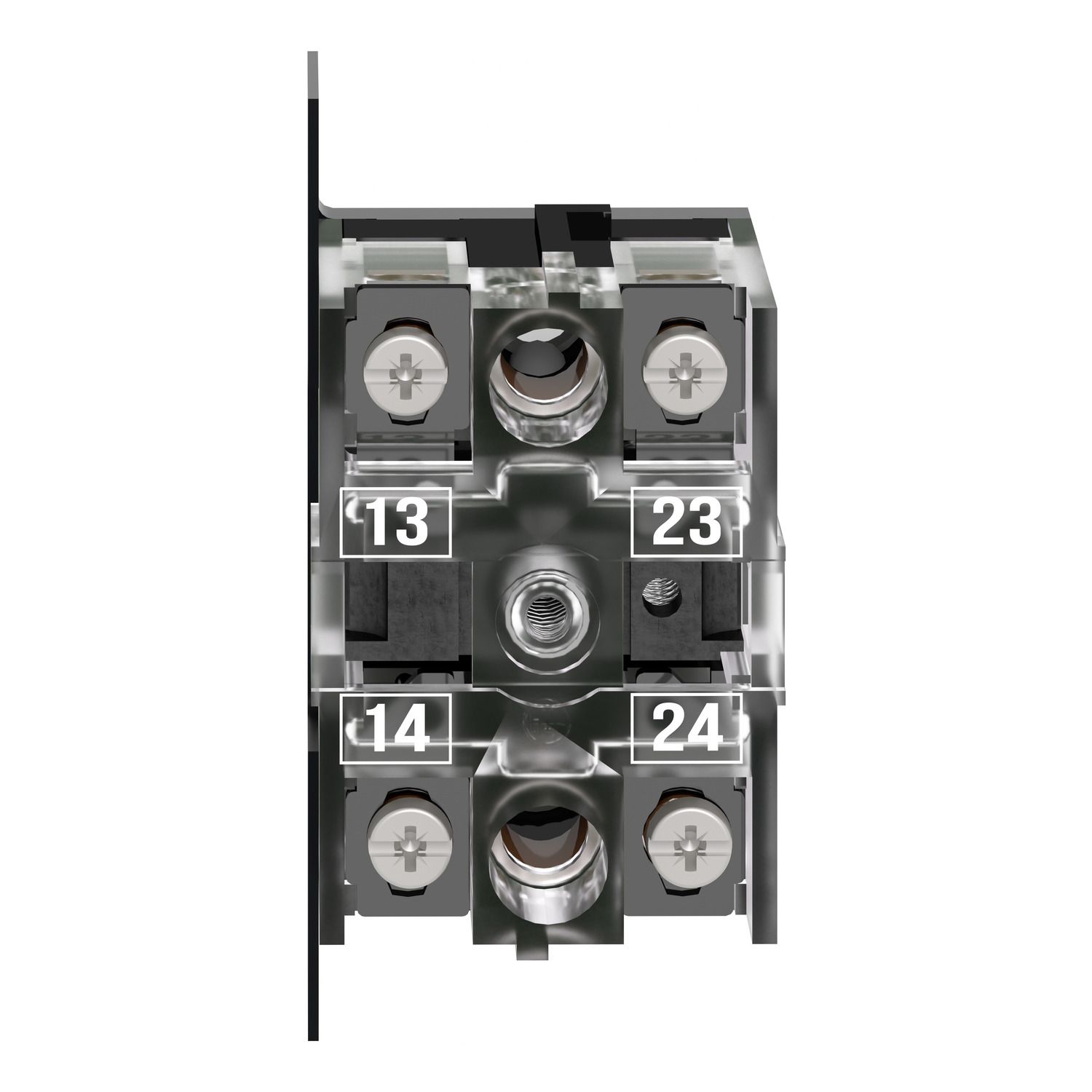

Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

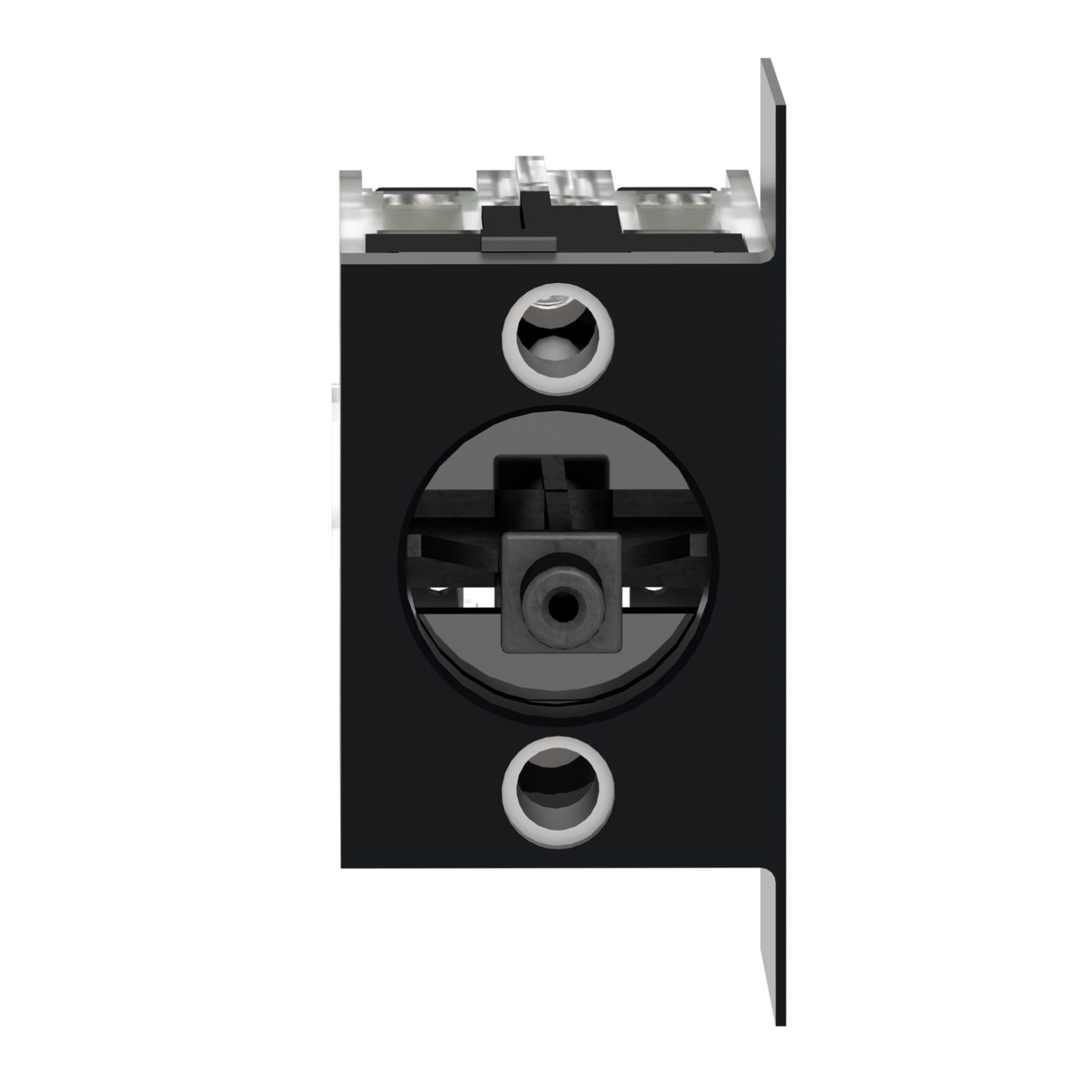

Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

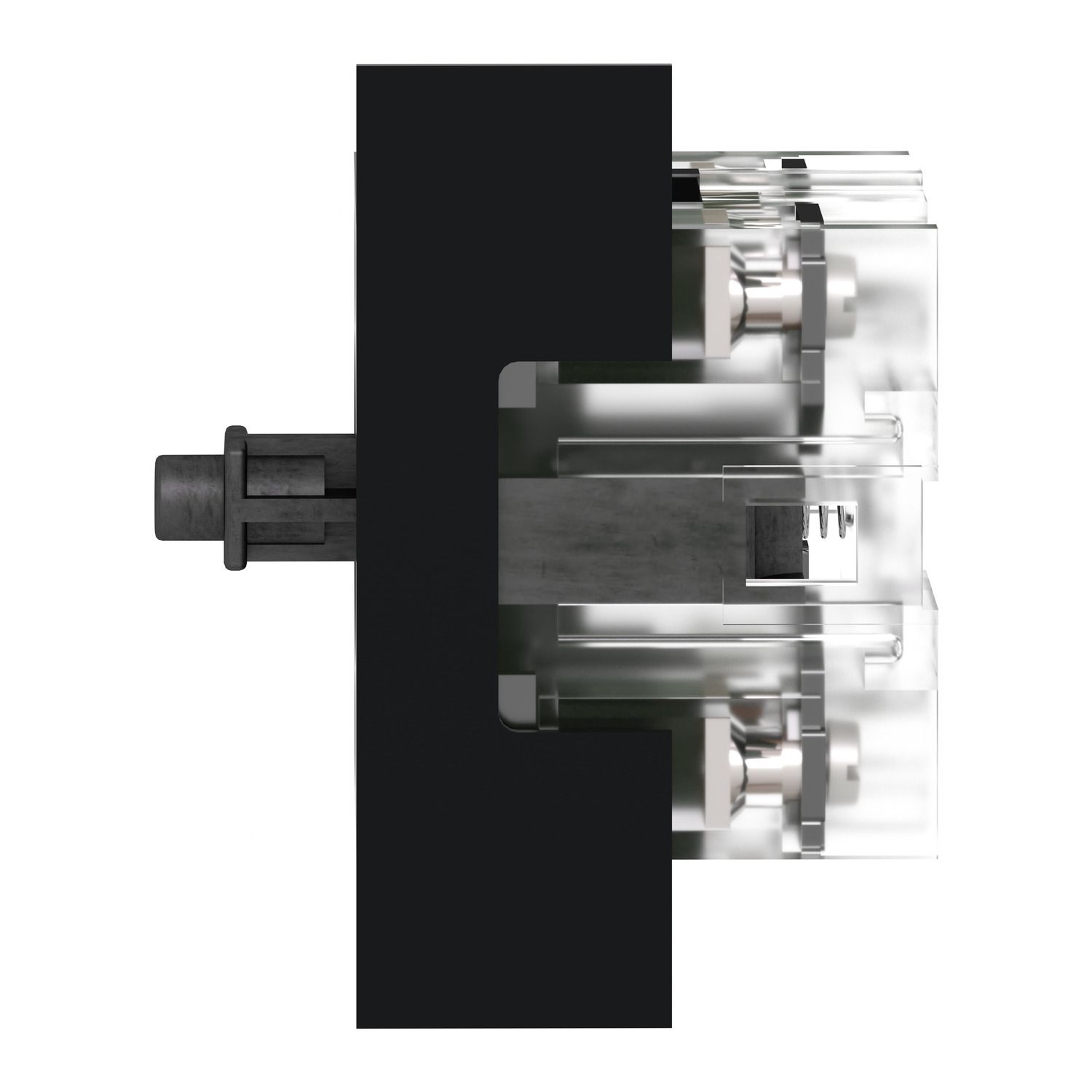

Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

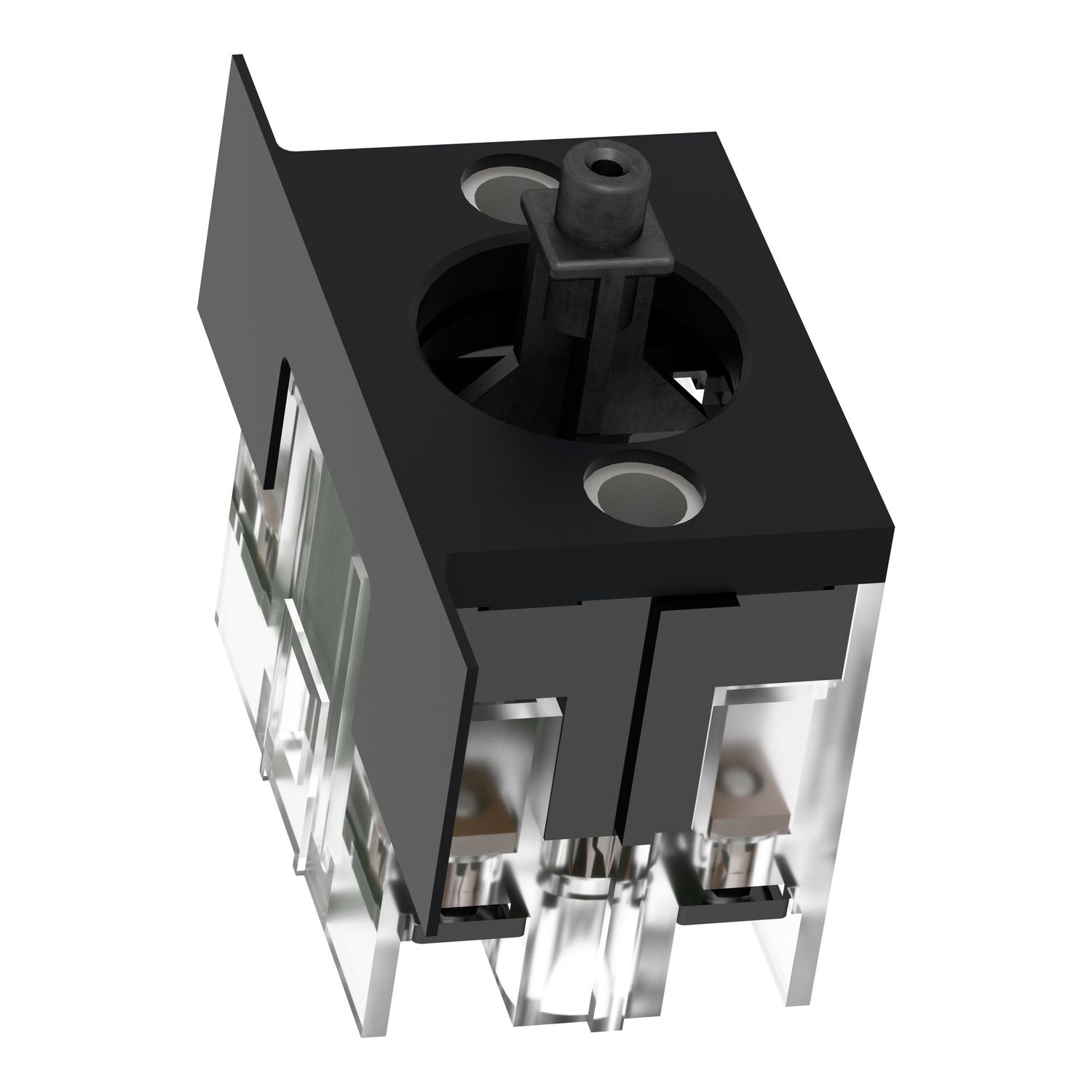

Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO
Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

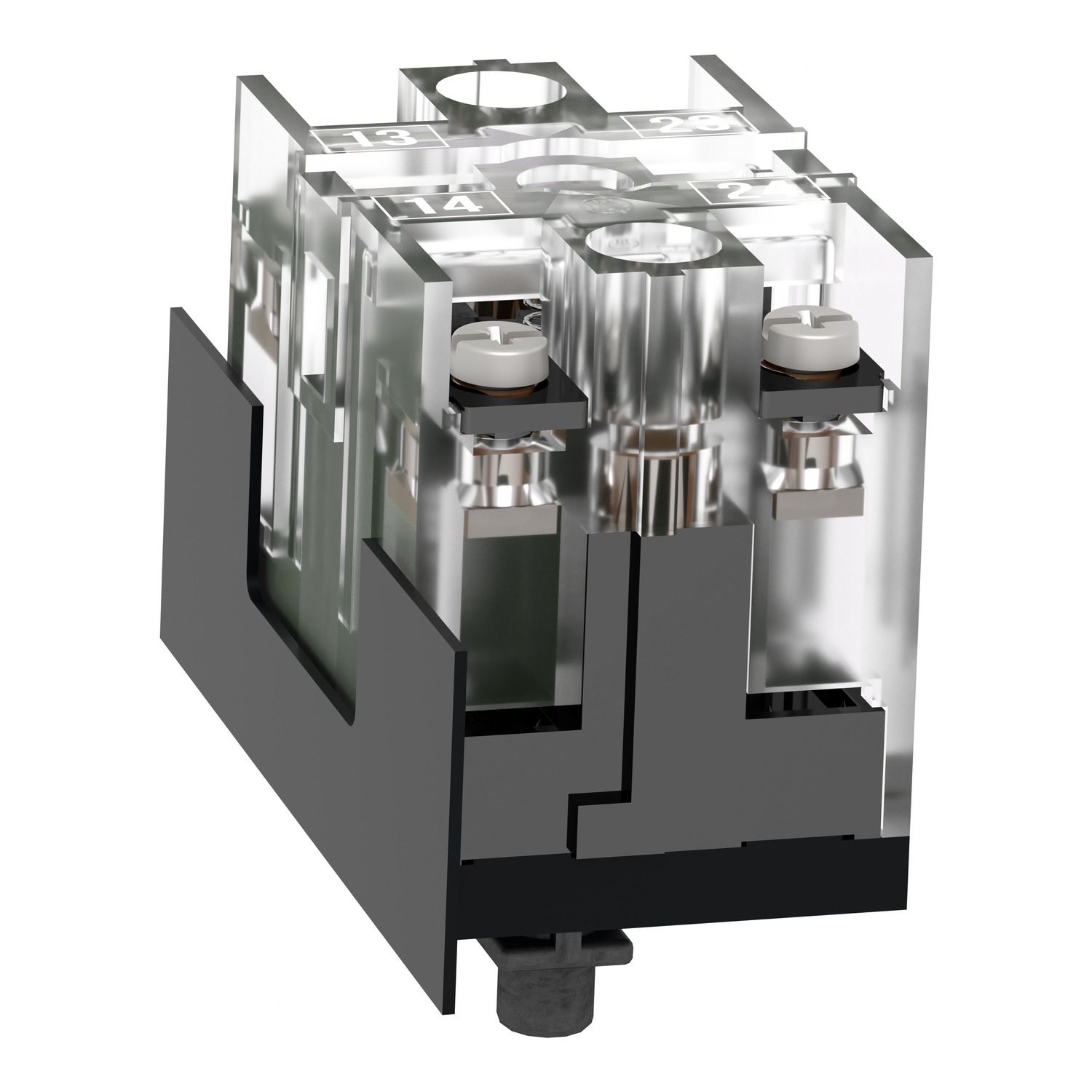

Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

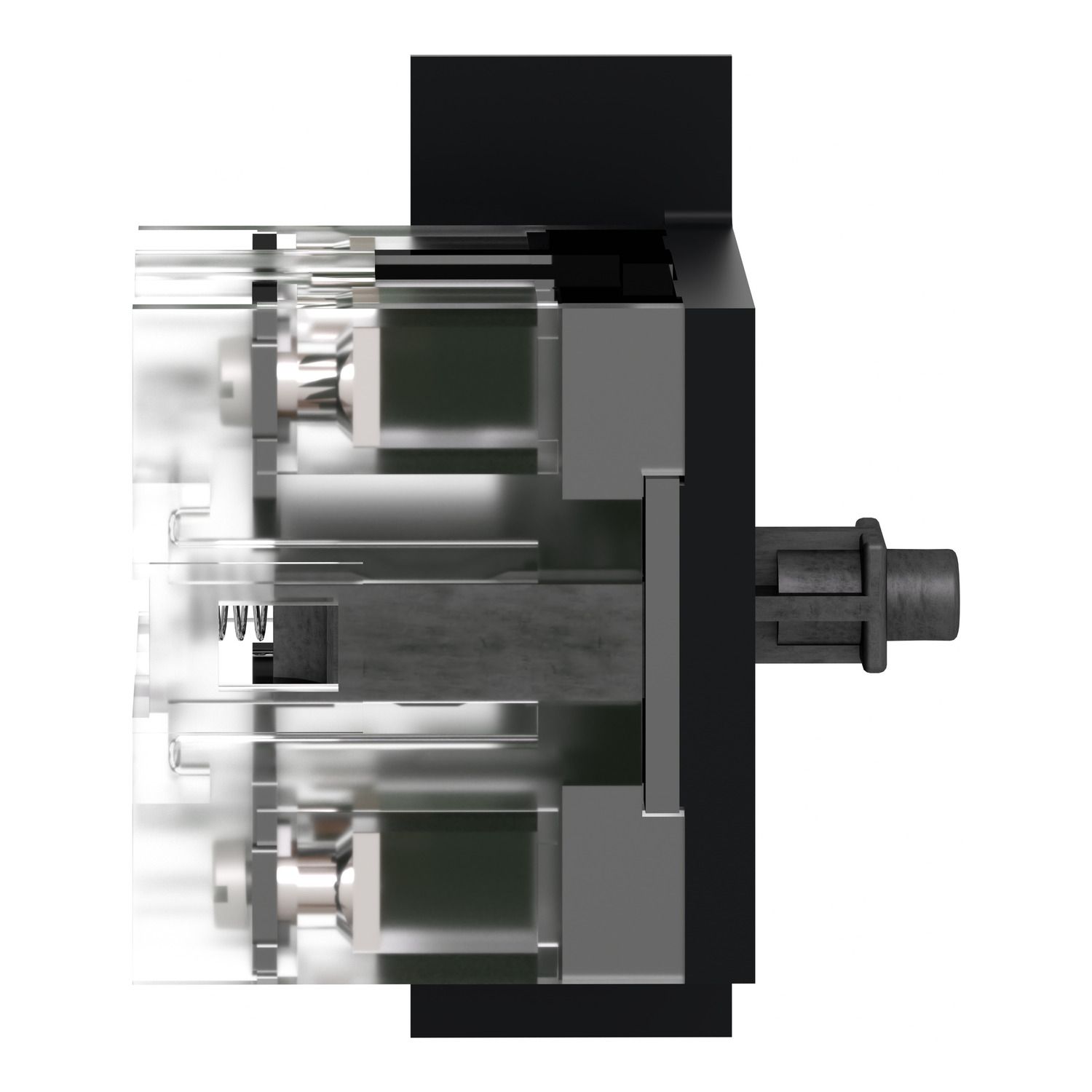

Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

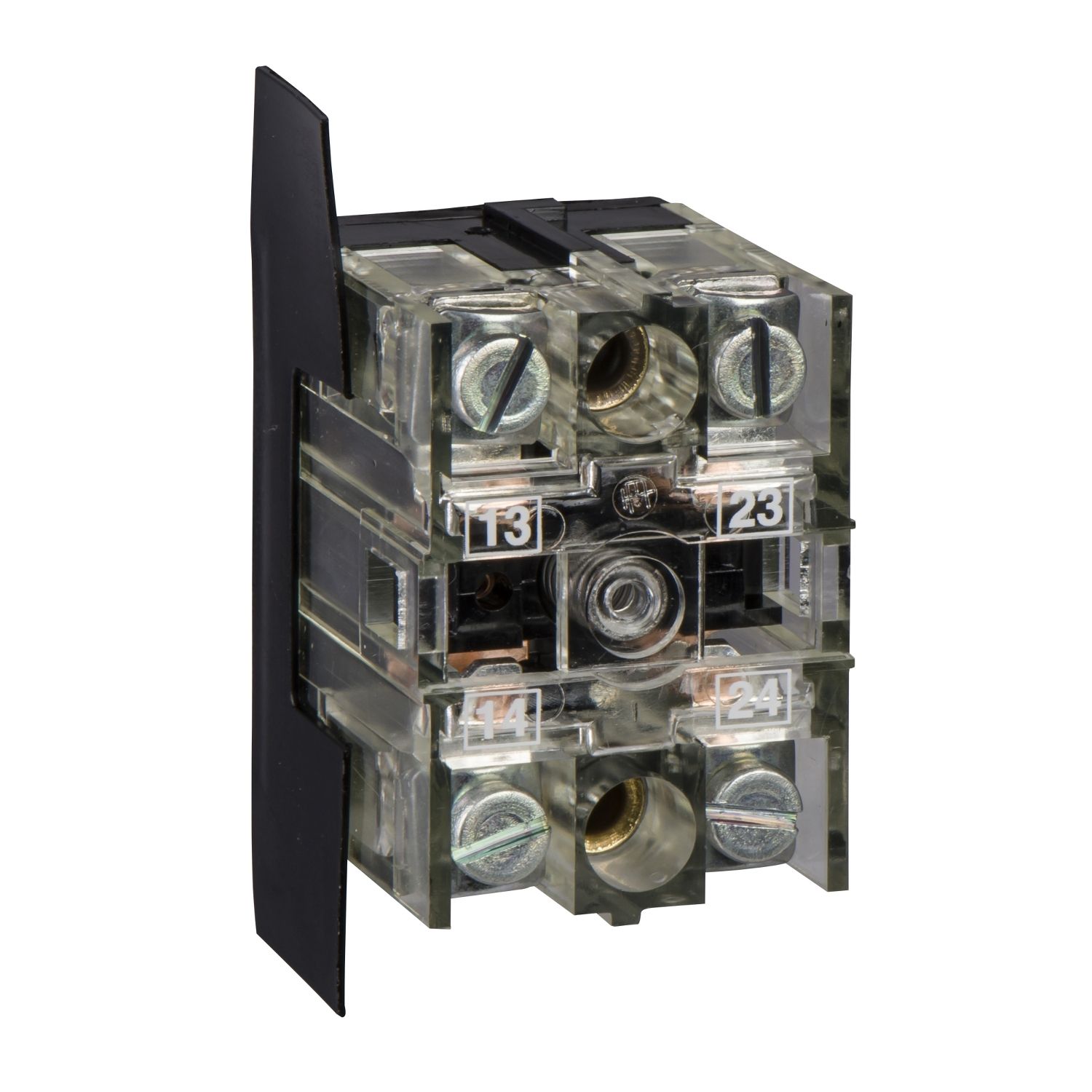

Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO
Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO
Picture of Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO
SKU:

XENB1181

Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO

Old price: $186.56 INC GST
$145.52 INC GST
Available for Shipping : 06-Jan-2026
Single contact block, Harmony XAC, spring return, 2 speed, spring return, front mounting, 2NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026

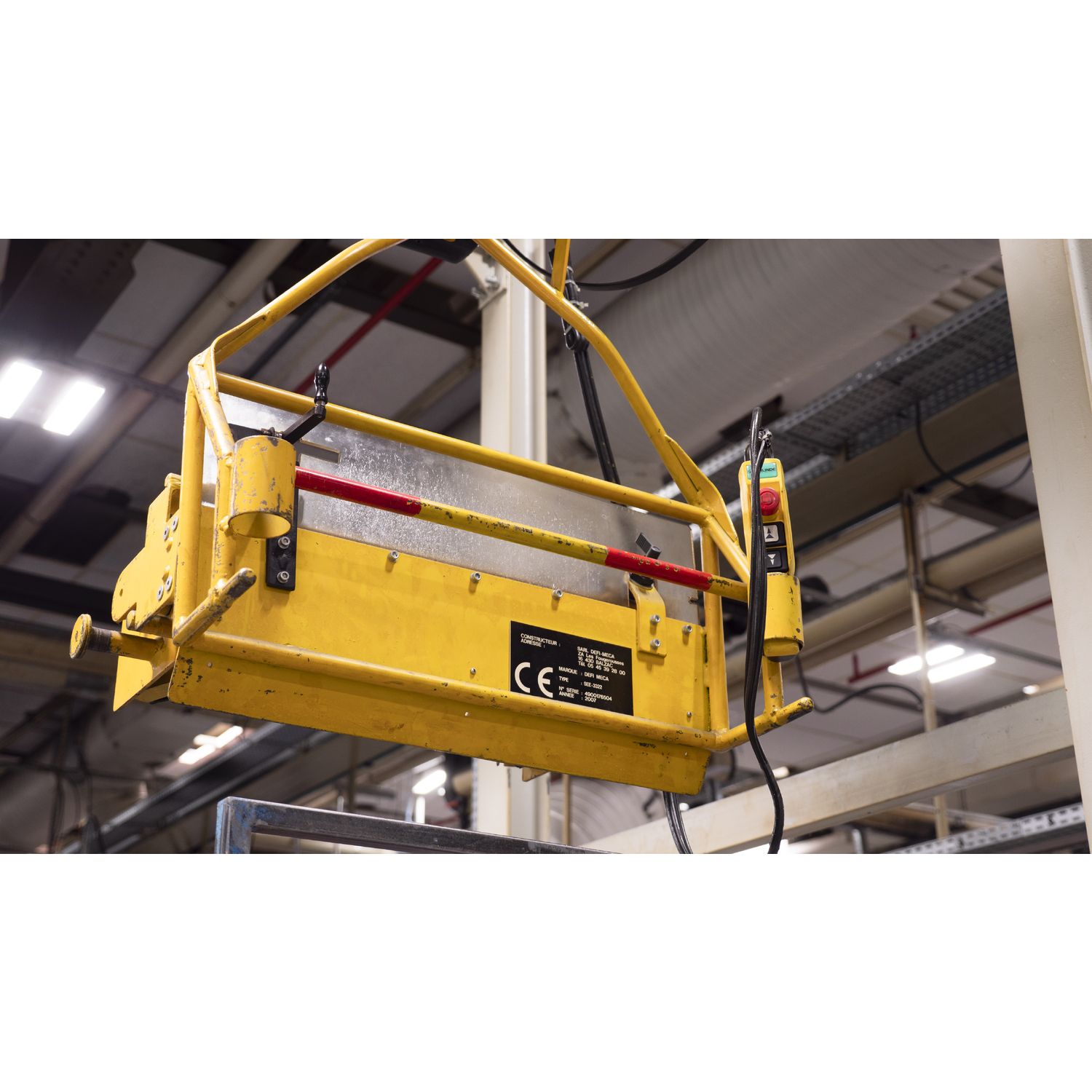

Image of product in real life situation
Instruction sheet
Catalog
Image of product in real life situation
Declaration of conformity
Product Page Link
Product Data Sheet
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections

Products specifications

Attribute name Attribute value
Main
Product compatibility XACM, XACB
Electrical circuit type control circuit
Type of operator spring return
Mechanical interlocking without mechanical interlock
Contact operation slow-break, staggered
Contacts type and composition 2 NO
Component name XENB
Contact block application 2-speed
Product or component type contact block
Contact block type single
Range of product Harmony XAC
Mounting of block front mounting
Complementary
Rated operational power in W 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 35 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 31 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Contact code designation Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Mechanical durability 1000000 cycles
Rated operational power in VA 680 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load), 640 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load), 210 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load), 140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load)
[Ui] rated insulation voltage 400 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.05 kg
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
[Ithe] conventional enclosed thermal current 10 A
Maximum resistance across terminals 25 MOhm
Terminals description ISO n°1 (43-44)NO_CL, (33-34)NO
Terminal identifier (11-12)NC, (13-14)NO
Environment
Ambient air temperature for storage -40-70 °C
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.400 cm
Package 1 Width 7.500 cm
Package 1 Length 9.700 cm
Package 1 Weight 45.000 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.450 kg
