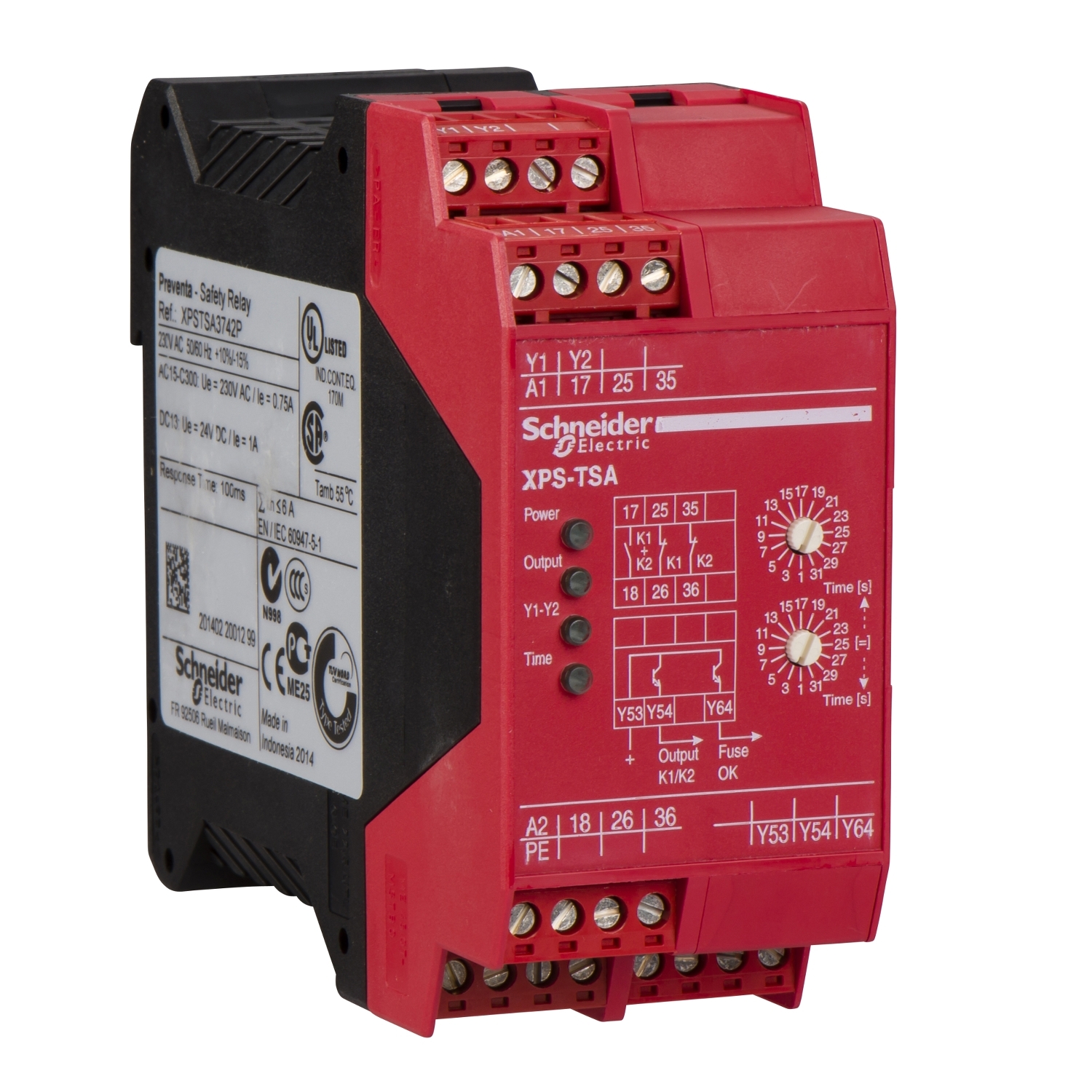

Picture of module XPSTS - interlocking on high inertia machines - 230 V AC
SKU:

XPSTSA3742P

module XPSTS - interlocking on high inertia machines - 230 V AC

Old price: $716.10 INC GST
$526.33 INC GST
Available for Shipping : 26-Jan-2026
Product Selector
module XPSTS - interlocking on high inertia machines - 230 V AC
Be the first to review this product
Manufacturer: Telemecanique
Delivery date: 26-Jan-2026
Instruction sheet
Circularity Profile
Catalog
Product Page Link
Product Data Sheet
This XPSTSA safety module monitors applications with interlocking on high inertia machines. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Products specifications

Attribute name Attribute value
Main
Safety reliability data PFHd = 1.3E-7 1/h conforming to EN/IEC 62061, DC = 60...90 % conforming to EN/ISO 13849-1, MTTFd = 126 years conforming to EN/ISO 13849-1
Safety module application for application with interlocking on high inertia
Number of additional circuits 2 solid state outputs
Safety module name XPSTSA
Range of product Preventa Safety automation
[Us] rated supply voltage 230 V AC - 15...10 %
Safety level can reach SILCL 2 conforming to EN/IEC 62061, can reach PL d/category 3 conforming to EN/ISO 13849-1
Function of module monitoring safety time delays
Output type relay, 1 NO + 2 NC circuit(s), volt-free
Product or component type Preventa safety time delay module
Complementary
Supply frequency 50/60 Hz
Input protection type internal, electronic
Connections - terminals captive screw clamp terminals, removable terminal block solid cable: 0.2...2.5 mm² without cable end, 1 wire, captive screw clamp terminals, removable terminal block solid cable: 0.2...1 mm² without cable end, 2 wires, captive screw clamp terminals, removable terminal block flexible cable: 0.5...1.5 mm² with cable end, with double bezel, 2 wires, captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, without bezel, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, with bezel, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.25...1 mm² with cable end, without bezel, 2 wires, captive screw clamp terminals, removable terminal block flexible cable: 0.2...2.5 mm² without cable end, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.2...1.5 mm² without cable end, 2 wires
Associated fuse rating 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Time delay 1...31 s configurable
Minimum output voltage 17 V for relay output
[Ith] conventional free air thermal current 6 A for relay output
Height 99 mm
Breaking capacity 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 20 mA at 24 V for solid state output circuit, 10 mA at 48 V
Maximum power consumption in VA 5.5 VA AC
Depth 114 mm
Width 45 mm
Local signalling 4 LEDs
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, 300 V (pollution degree 2) conforming to IEC 60947-5-1
Net weight 0.36 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to DIN VDE 0110 part 1, 4 kV overvoltage category III conforming to IEC 60947-5-1
Minimum output current 10 mA for relay output
Mounting support 35 mm symmetrical DIN rail
Environment
Ambient air temperature for storage -25-85 °C
IP degree of protection IP40 (enclosure) conforming to EN/IEC 60529, IP20 (terminals) conforming to EN/IEC 60529
Ambient air temperature for operation -10-55 °C
Standards EN/IEC 60947-5-1, EN/IEC 60204-1
Product certifications TÜV, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.3 cm
Package 1 Width 10.7 cm
Package 1 Length 12.6 cm
Package 1 Weight 403.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.325 kg
