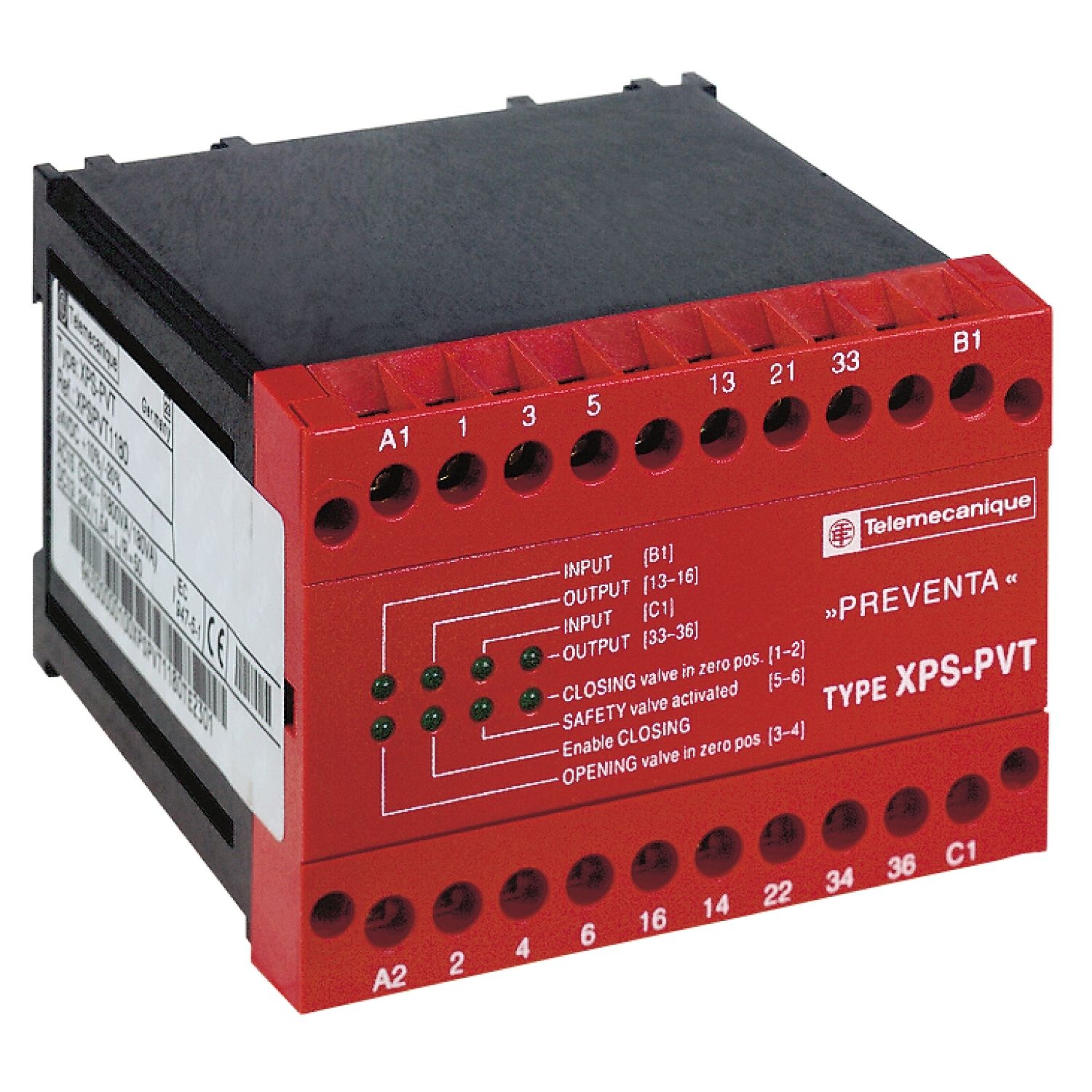

Picture of module XPS-PV - hydraulic valves on linear presses - 24 V DC
SKU:

XPSPVT1180

module XPS-PV - hydraulic valves on linear presses - 24 V DC

Old price: $1,386.00 INC GST
$1,018.71 INC GST
Available for Shipping : 28-Jan-2026
module XPS-PV - hydraulic valves on linear presses - 24 V DC
Be the first to review this product
Manufacturer: Telemecanique
Delivery date: 28-Jan-2026
Environmental Disclosure
Circularity Profile
Catalog
Instruction sheet
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Safety reliability data PFHd = 2.24E-8 1/h conforming to IEC 62061, DC = 0...99 % conforming to ISO 13849-1, MTTFd = 50.9 years conforming to ISO 13849-1
Safety module application for dynamic monitoring of hydraulic valves on linear presses
Safety module name XPSPVT
Enclosure type removable
Range of product Preventa Safety automation
[Us] rated supply voltage 24 V DC - 10...10 %
Safety level can reach SILCL 3 conforming to IEC 62061, can reach PL e/category 4 conforming to ISO 13849-1
Function of module monitoring hydraulic valves
Output type relay, 2 NO + 1 NC circuit(s), volt-free
Product or component type Preventa safety module
Complementary
Maximum response time on input open 15 ms
Number of terminal blocks 20
Minimum output wiping time 100 ms
Associated fuse rating 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output voltage 17 V for relay output
Height 73 mm
Breaking capacity 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
Depth 118 mm
Width 100 mm
Enclosure material polycarbonate
Local signalling 8 LEDs
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1
Connections - terminals captive screw clamp terminals, 2 x 2.5 mm² without cable end, captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable end
Net weight 0.54 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1
[Ith] conventional free air thermal current 2.5 A
Minimum output current 10 mA for relay output
Power consumption in W 6 W
Mounting support 35 mm symmetrical DIN rail
Environment
Ambient air temperature for storage -25-85 °C
IP degree of protection IP40 (enclosure) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -10-55 °C
Standards IEC 60947-5-1, IEC 60204-1, IEC 693
Product certifications TÜV, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.3 cm
Package 1 Width 13.2 cm
Package 1 Length 8.3 cm
Package 1 Weight 599.0 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.55 kg
