SKU:

XESD1281

Double contact block, Harmony XAC, spring return, front mounting, 2 speed CO+N O staggered

Old price: $390.50 INC GST
$304.59 INC GST
Available for Shipping : 06-Jan-2026
Double contact block, Harmony XAC, spring return, front mounting, 2 speed CO+N O staggered
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026

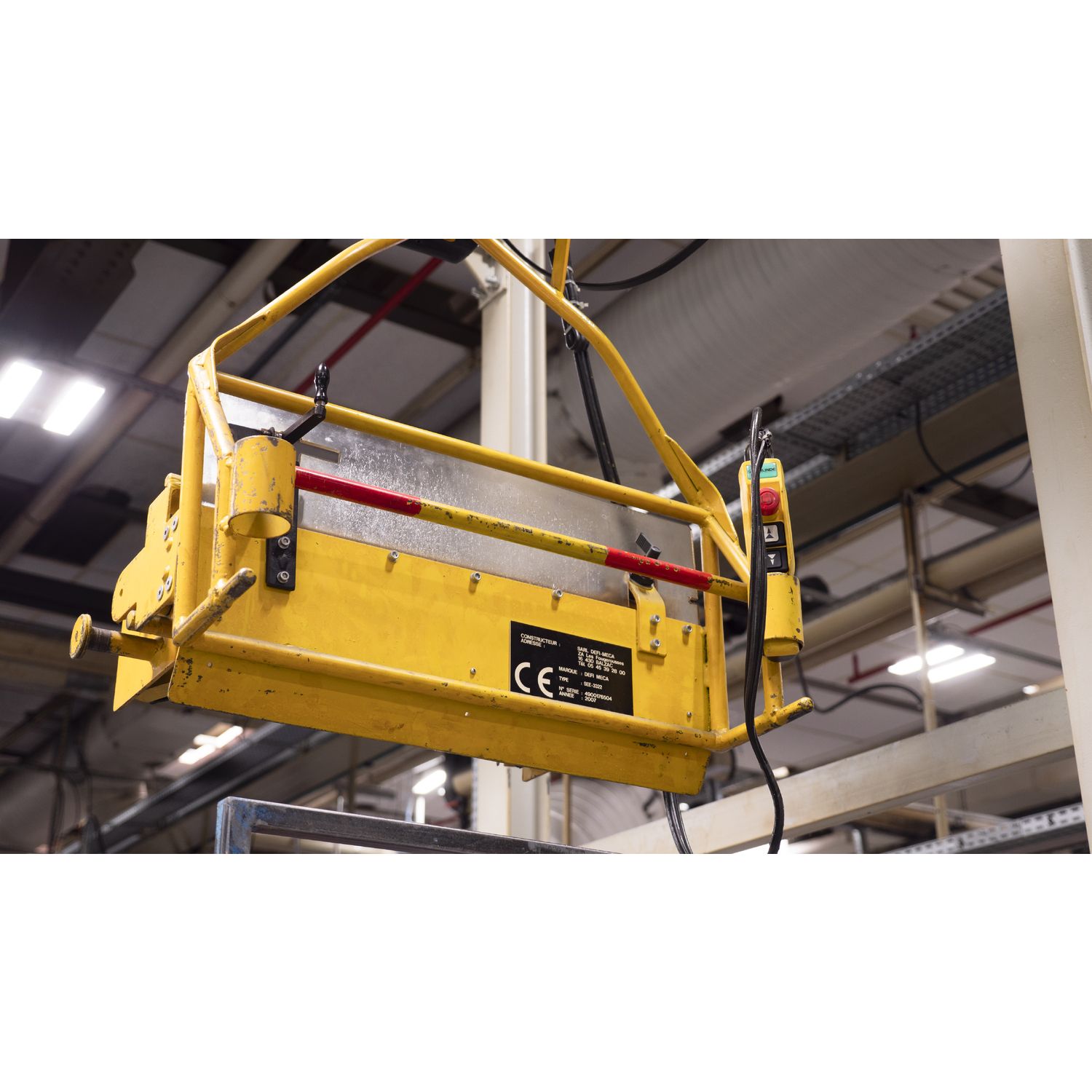

Image of product in real life situation
Instruction sheet

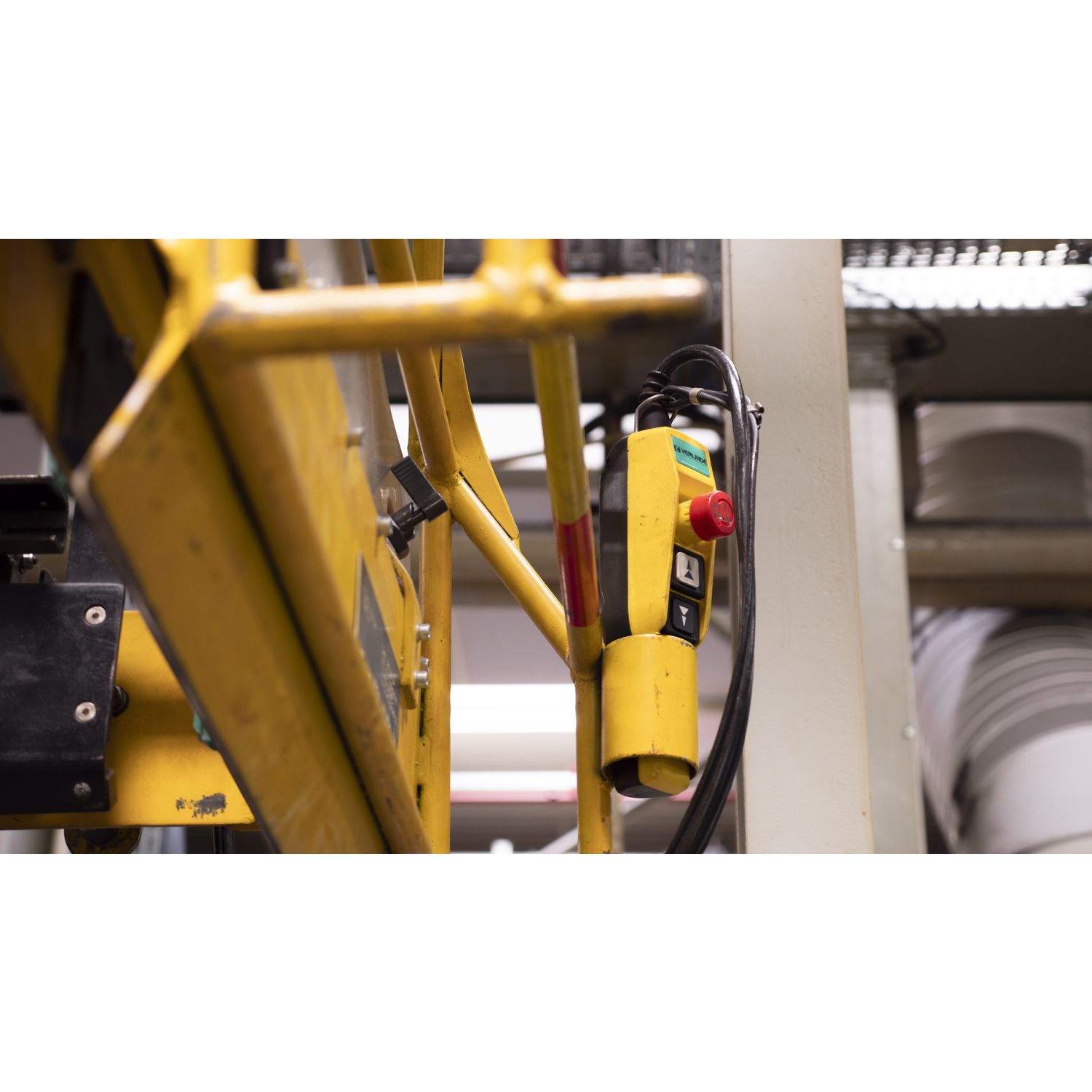

Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet

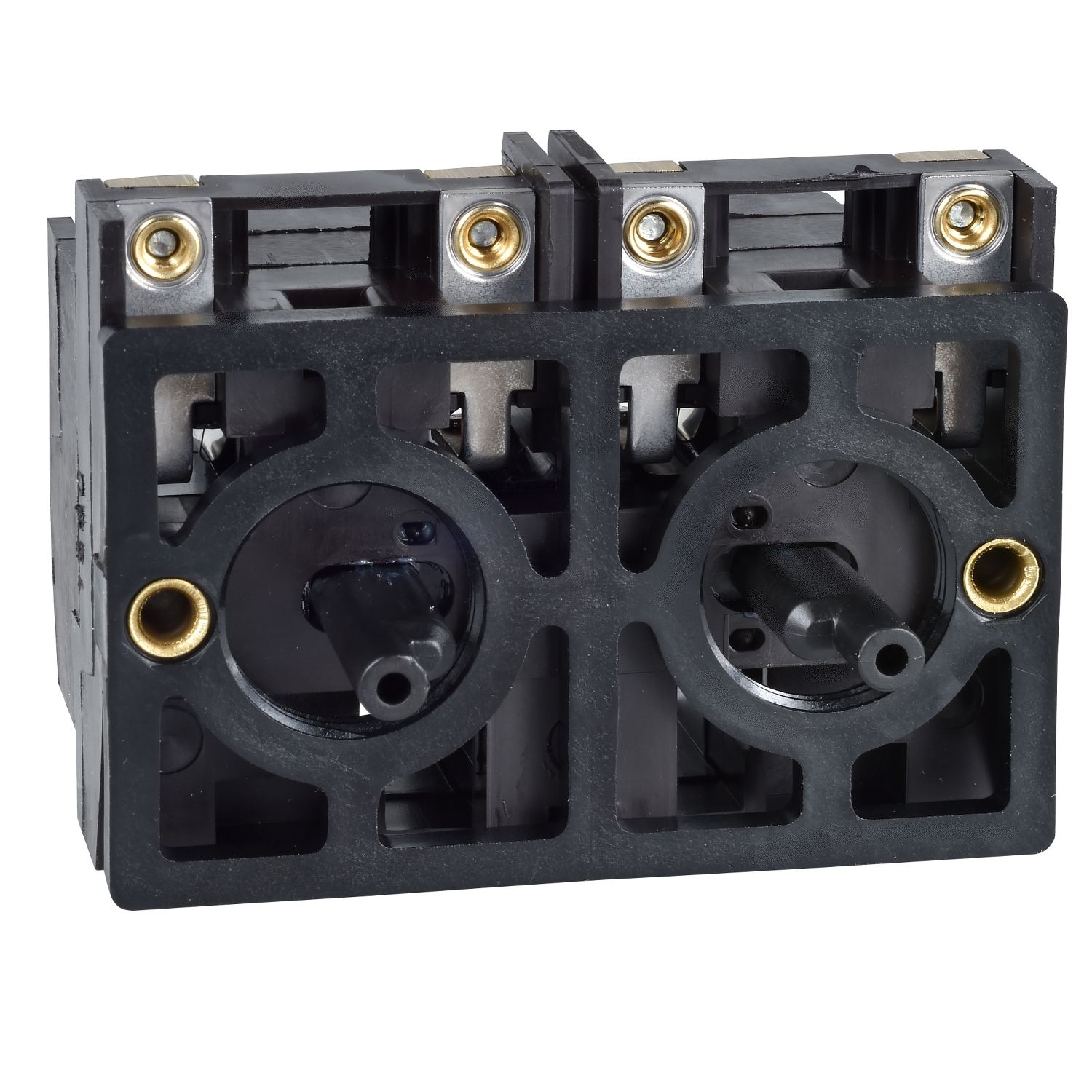

This Harmony XAC, double contact block uses screw-clamp terminals and has 1 x NO + 1 changeover contact SPDT single pole double throw. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACM, XACB
Electrical circuit type control circuit
Contact operation snap action, staggered
Contact block application 2-speed
Contact block type double
Range of product Harmony XAC
Type of operator 2 spring return
Mechanical interlocking with mechanical interlocking
Contacts type and composition 1 C/O + 1 NO
Component name XESD
Product or component type contact block
Mounting of block front mounting
Complementary
Contact code designation Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Operating force 25 N, 15 N
Mechanical durability 1000000 cycles
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Rated operational power in W 95 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Rated operational power in VA 750 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load), 50 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load), 450 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load), 100 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load)
[Ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.19 kg
[Ithe] conventional enclosed thermal current 10 A
Terminals description ISO n°1 (13-14-11-12)OF, (33-34)NO_CL, B
Terminals description ISO n°2 B, (23-24-21-22)OF, (43-44)NO_CL
Terminal identifier (11-12)NC, (13-14)NO
Environment
Ambient air temperature for storage -40-70 °C
Shock resistance 100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 61140
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards EN 60947-5-1, IEC 60947-5-1, CSA C22.2 No 14
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 7.0 cm
Package 1 Length 9.0 cm
Package 1 Weight 185.0 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.358 kg
