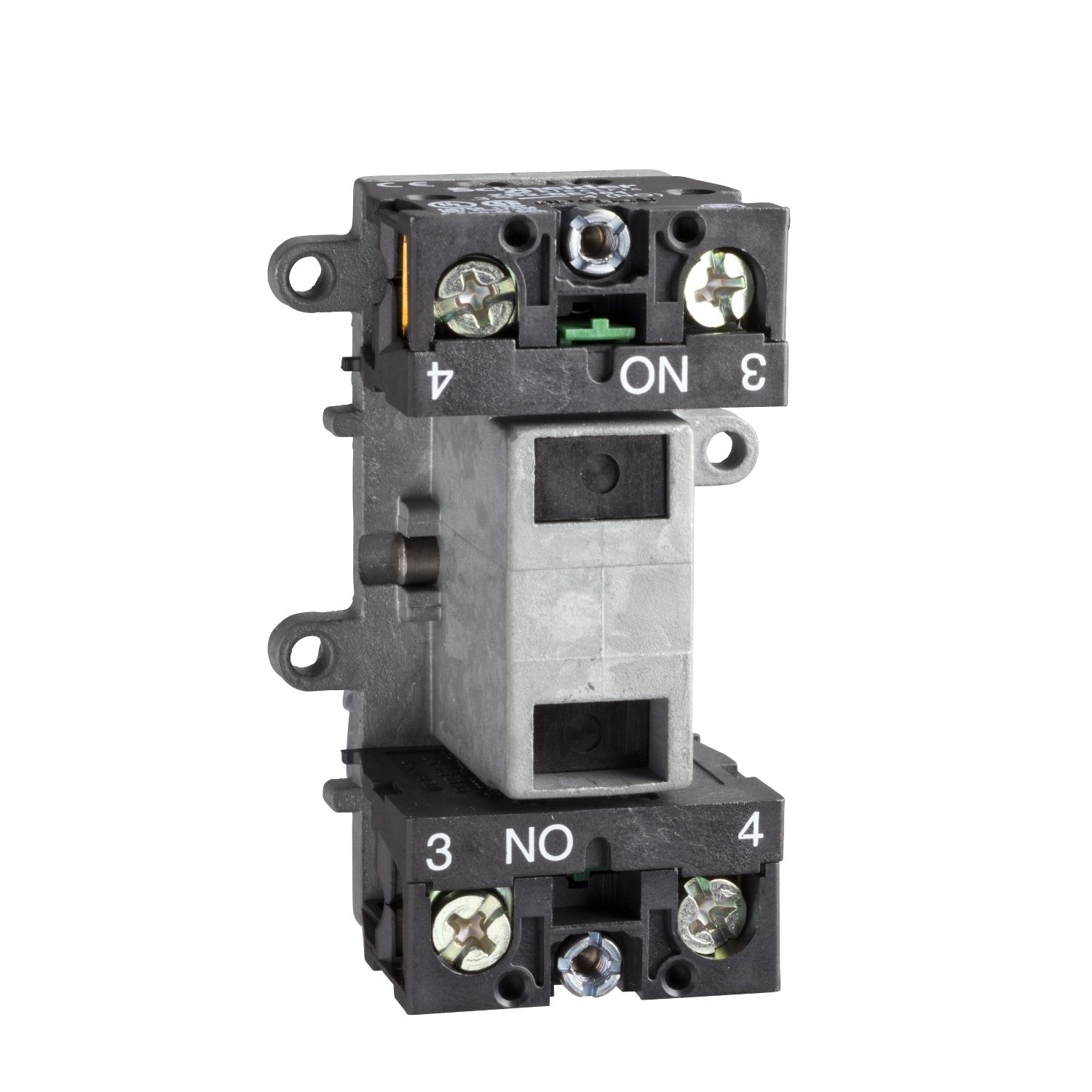

Picture of Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 1NO + 1NC
SKU:

XENG3791

Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 1NO + 1NC

Old price: $124.52 INC GST
$97.13 INC GST
Available for Shipping : 06-Jan-2026
Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 1NO + 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA
Electrical circuit type control circuit
Type of operator latching
Contact operation slow-break
Contacts type and composition 1 NO + 1 NC
Component name XENG
Contact block application single speed
Product or component type contact block
Contact block type double
Range of product Harmony XAC
Mounting of block front mounting
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Operating force 13 N
Mechanical durability 1000000 cycles
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
[Ithe] conventional enclosed thermal current 10 A
Maximum resistance across terminals 25 MOhm
Terminals description ISO n°1 B, (13-14)NO
Terminals description ISO n°2 B, (11-12)NC
Environment
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 4.0 cm
Package 1 Length 6.0 cm
Package 1 Weight 91.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.765 kg
