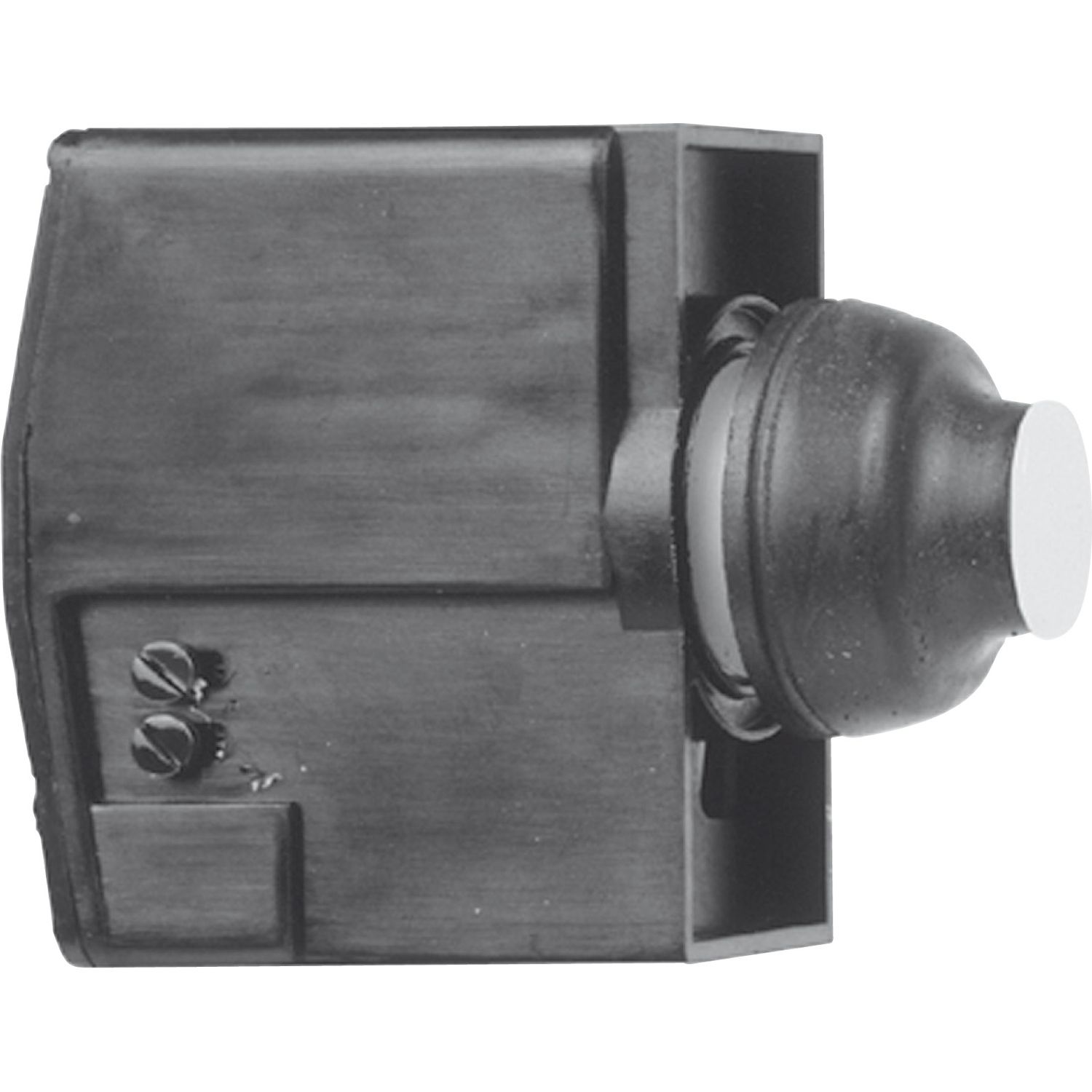

Picture of Booted push button, Harmony XAC, control circuit, black, booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC
SKU:

XEAB15361

Booted push button, Harmony XAC, control circuit, black, booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC

Old price: $2,140.60 INC GST
$1,669.67 INC GST
Availability: Please contact our sales team on 1300 724 622.
Booted push button, Harmony XAC, control circuit, black, booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Control station name XACB, XACM
Electrical circuit type control circuit
Range of product Harmony XAC
Control circuit type DC
[Us] rated supply voltage 0...-15 V
Operating travel 11 mm
Product or component type booted push-button
Complementary
Mechanical durability 1000000 cycles
Operating force 9 N at end of travel, 4 N at start of travel
Contacts type and composition 1 NO at end of travel, 1 NC + 1 NO at start of travel
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals terminal connectors, 2 x 1.5 mm², terminal connectors, 1 x 2.5 mm²
Current consumption < 15 mA
Net weight 0.065 kg
Rated power in VA 30 VA AC-15 for 1000000 cycles at 48 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 230 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 110 V 50/60 Hz conforming to IEC 60947-5-1 appendix C
[Ithe] conventional enclosed thermal current 6 A
Rated power in W DC-13: 48 W 48 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13: 12 W 110 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards IEC 60947-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 6.500 cm
Package 1 Length 4.000 cm
Package 1 Weight 85.900 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.950 kg
