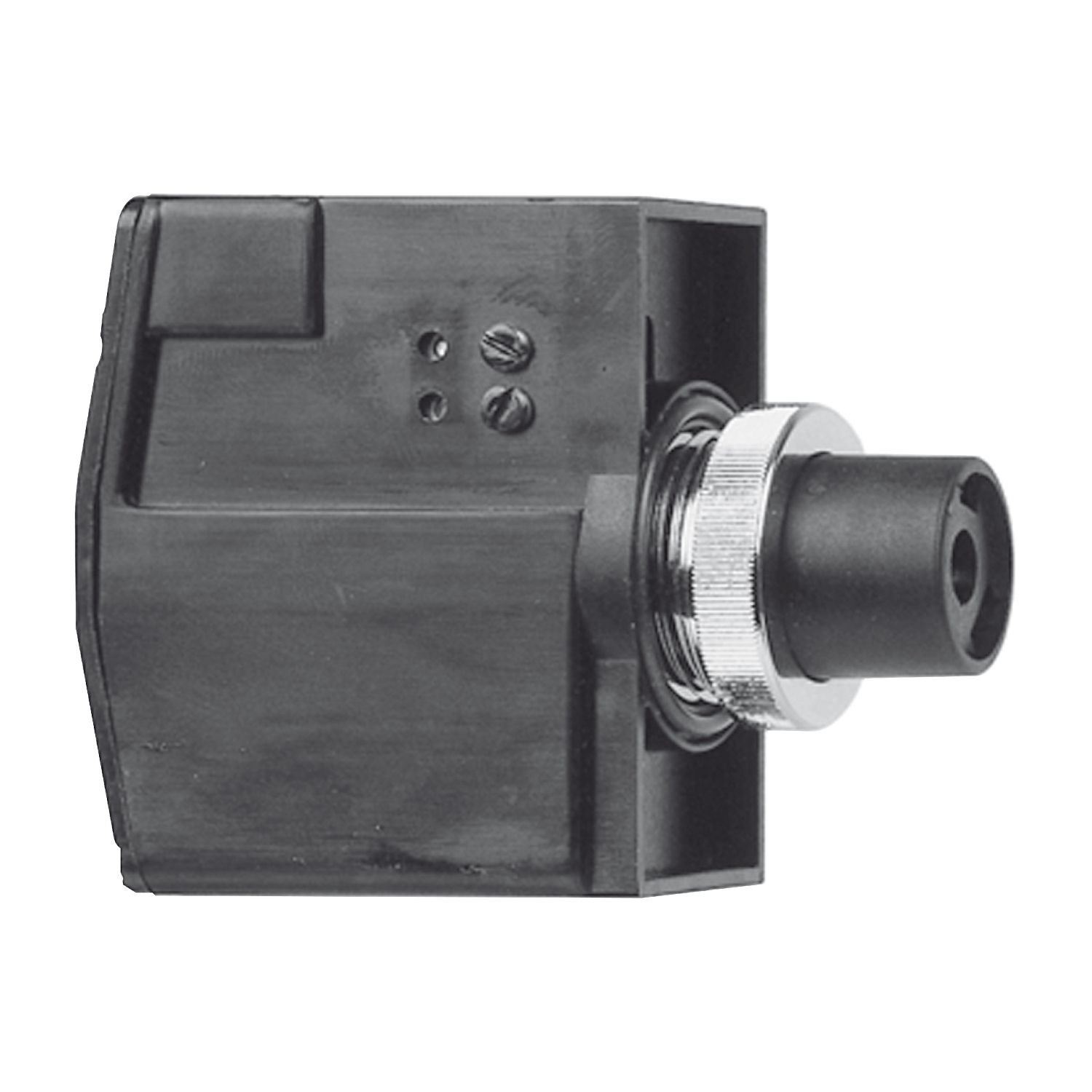

Picture of non booted push button, Harmony XAC, control circuit, black, non booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC
SKU:

XEAC25361

non booted push button, Harmony XAC, control circuit, black, non booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC

Old price: $2,479.40 INC GST
$1,933.93 INC GST
Availability: Please contact our sales team on 1300 724 622.
non booted push button, Harmony XAC, control circuit, black, non booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This Harmony XEAC25361 is a non booted push button for control circuit with analog output 0 to 15V DC. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Control station name XACM, XACB
Operating travel 11 mm
Electrical circuit type control circuit
Product or component type non booted push-button
Range of product Harmony XAC
Control circuit type DC
[Us] rated supply voltage 0...15 V
Complementary
Mechanical durability 1000000 cycles
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals terminal connectors, 2 x 1.5 mm², terminal connectors, 1 x 2.5 mm²
Current consumption < 15 mA
Net weight 0.065 kg
Rated power in VA 30 VA AC-15 for 1000000 cycles at 48 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 230 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 110 V 50/60 Hz conforming to IEC 60947-5-1 appendix C
[Ithe] conventional enclosed thermal current 6 A
Operating force 9 N at end of travel, 4 N at start of travel
Contacts type and composition 1 NO at end of travel, 1 NC + 1 NO at start of travel
Rated power in W DC-13: 48 W 48 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13: 12 W 110 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Standards EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.300 cm
Package 1 Width 6.200 cm
Package 1 Length 6.700 cm
Package 1 Weight 98.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 3.140 kg
Unit Type of Package 3 3
Number of Units in Package 3 960
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 108.480 kg
