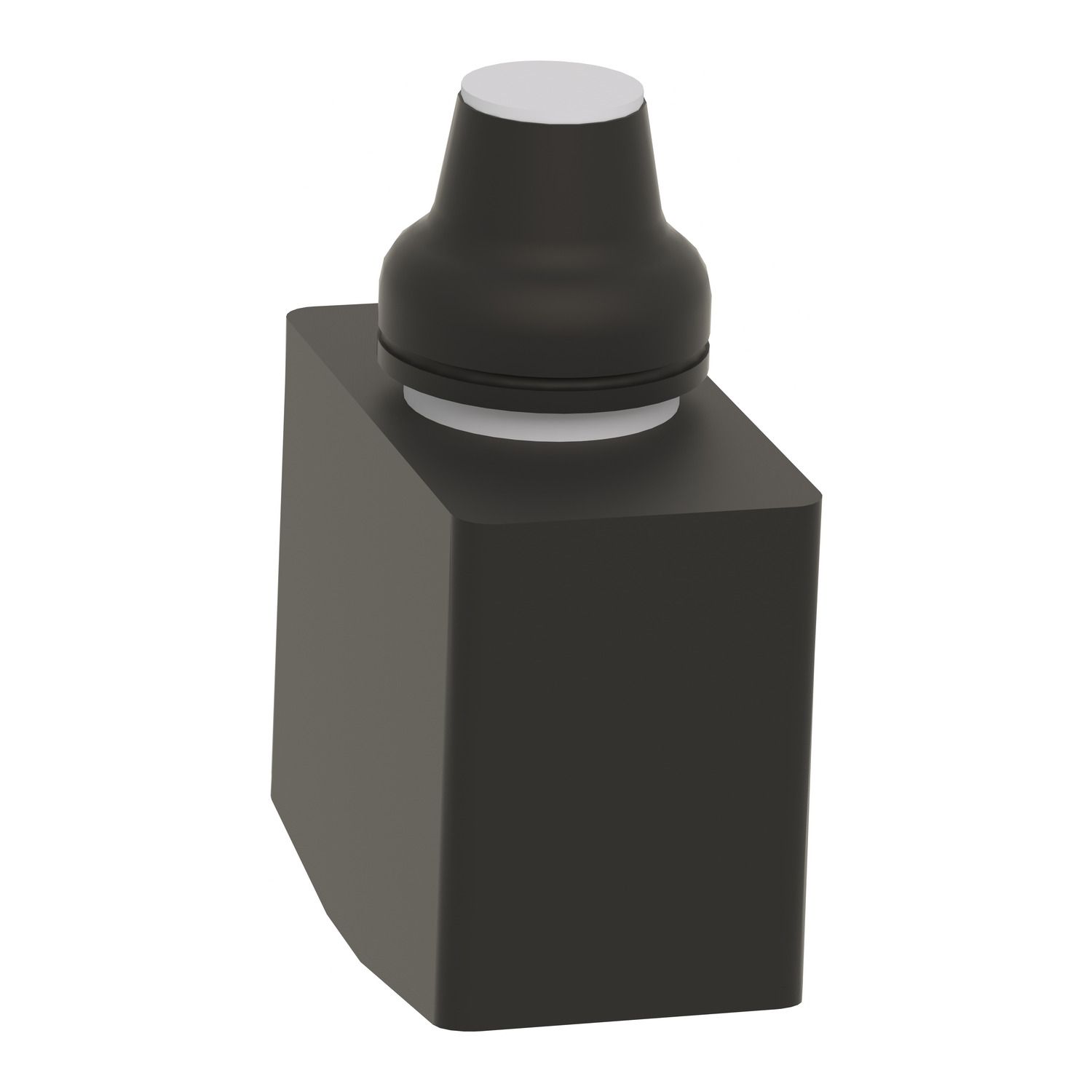

Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel

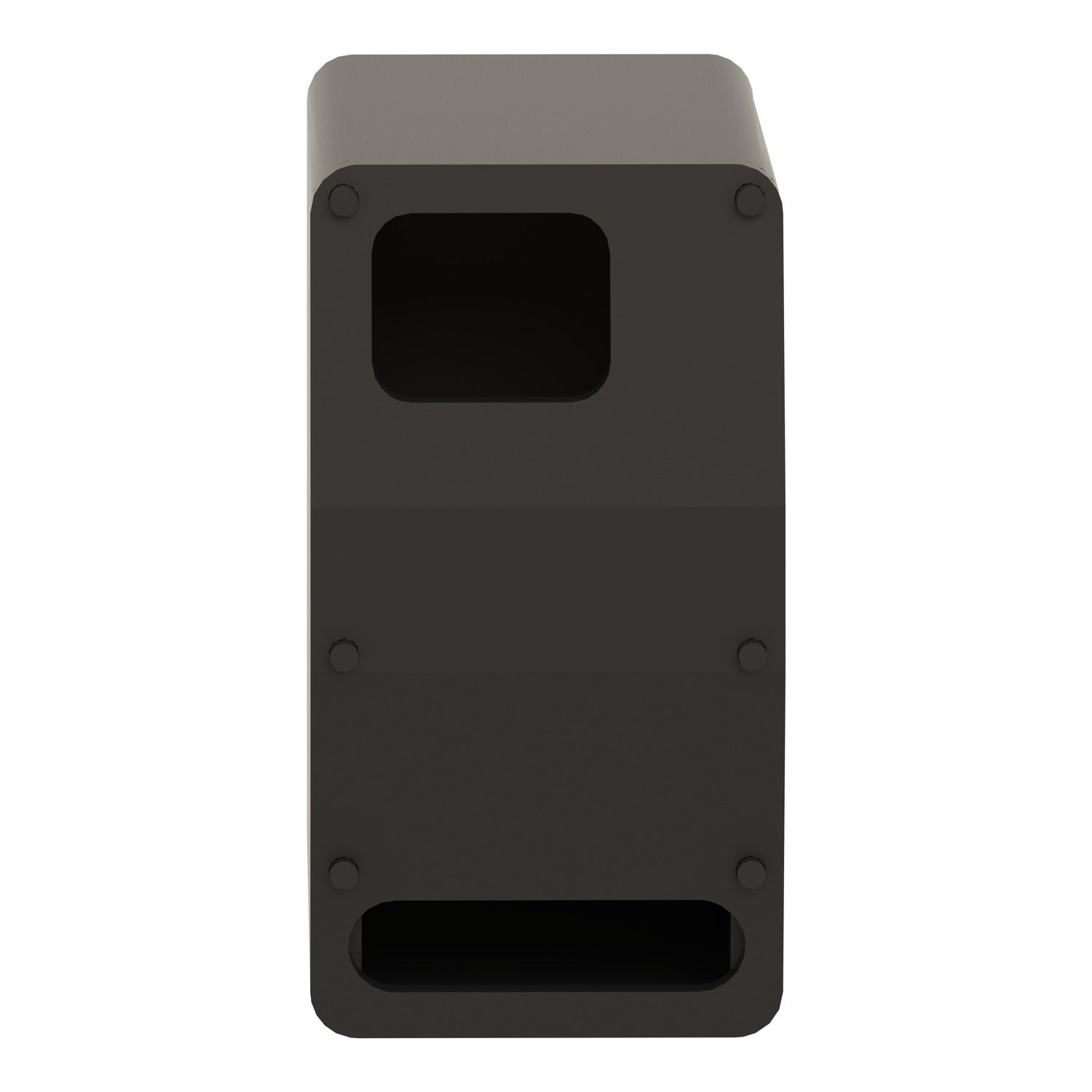

Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel

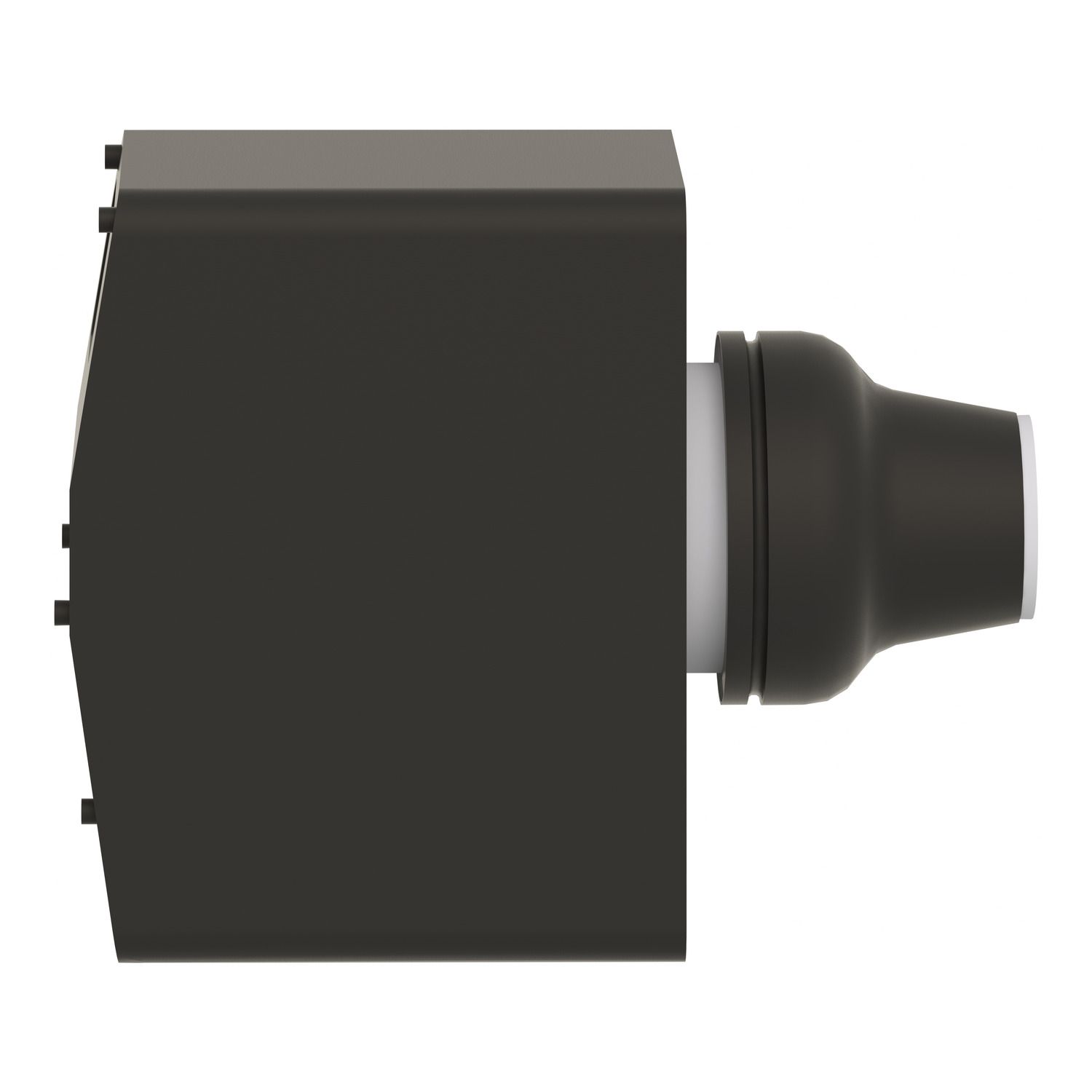

Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel

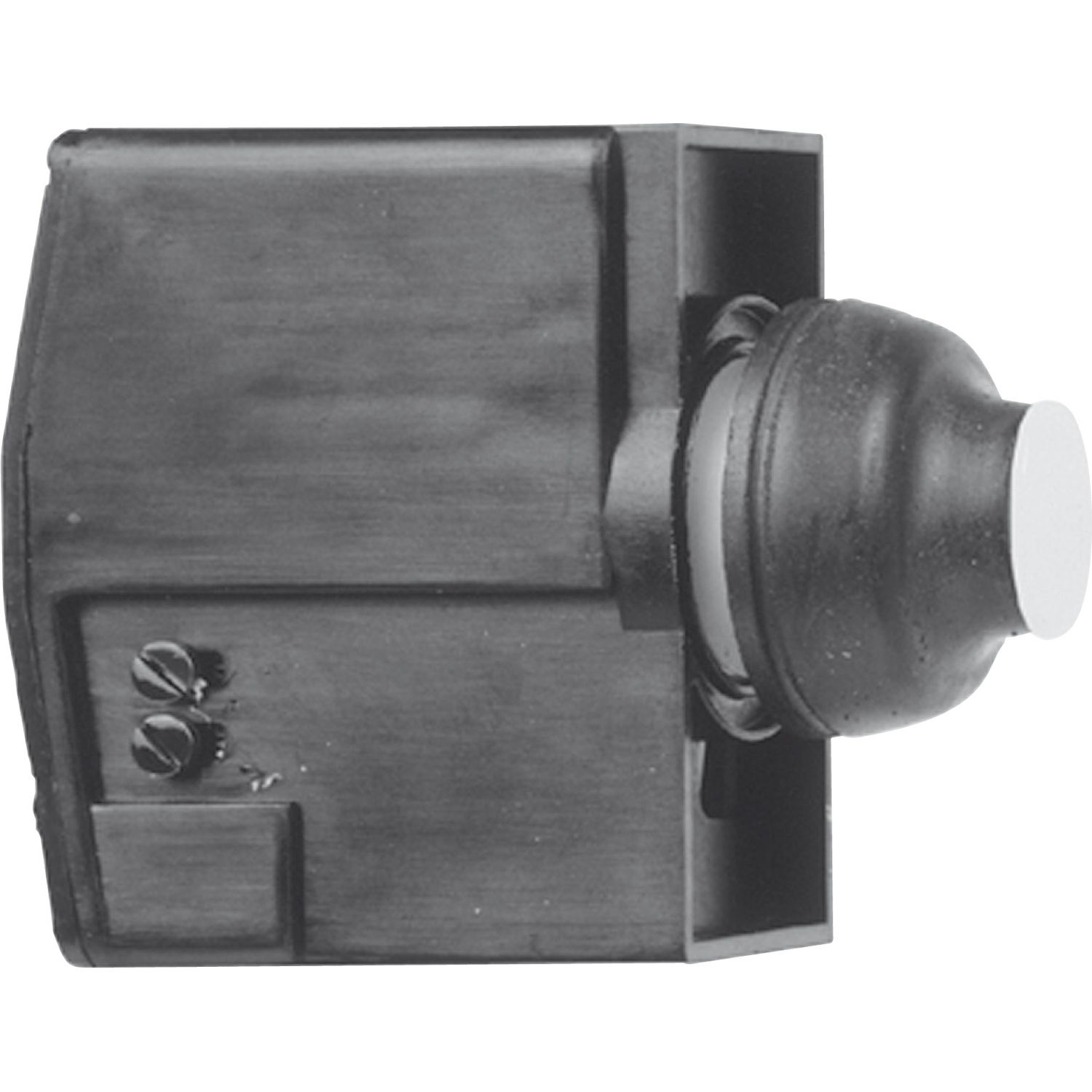

Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel

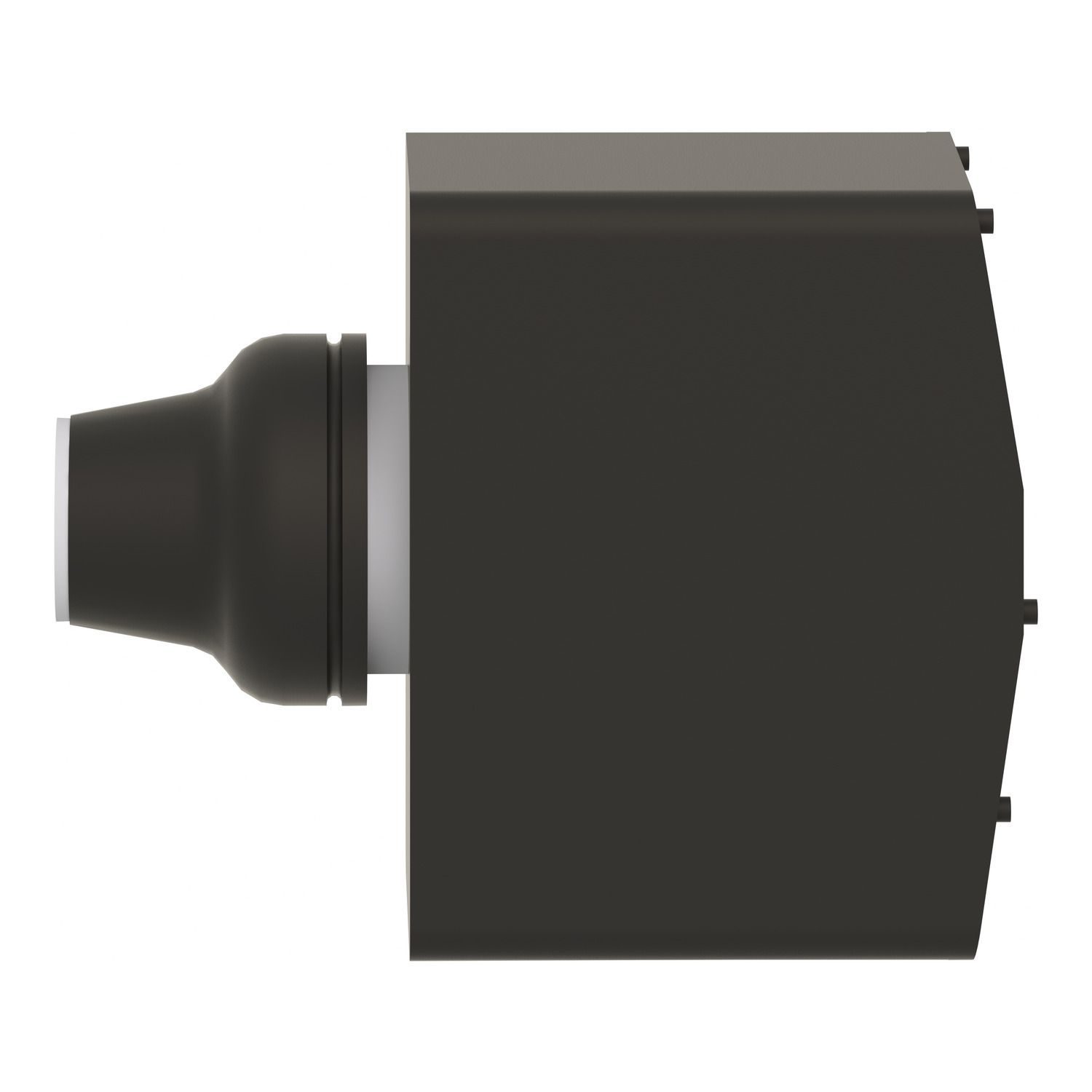

Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel

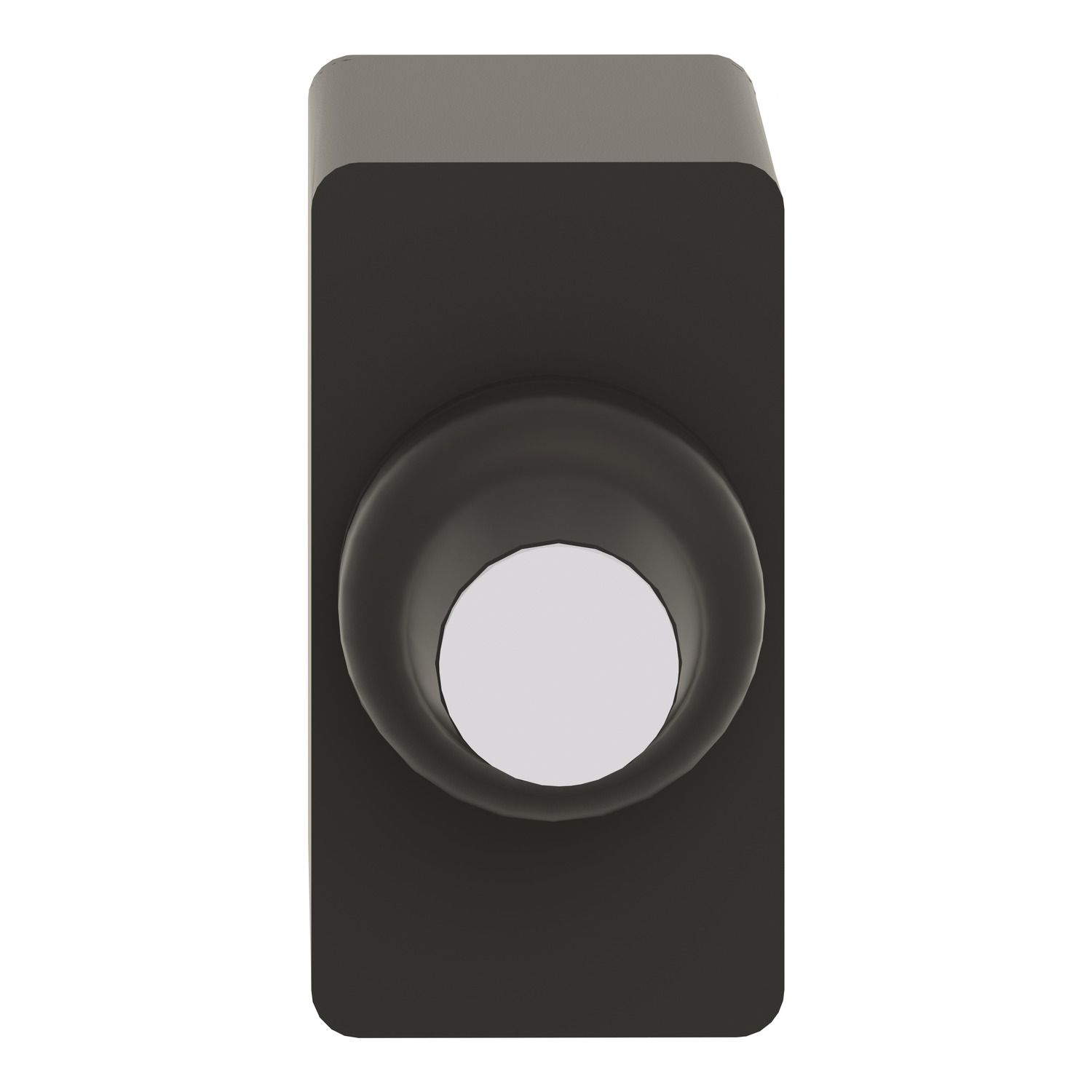

Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel

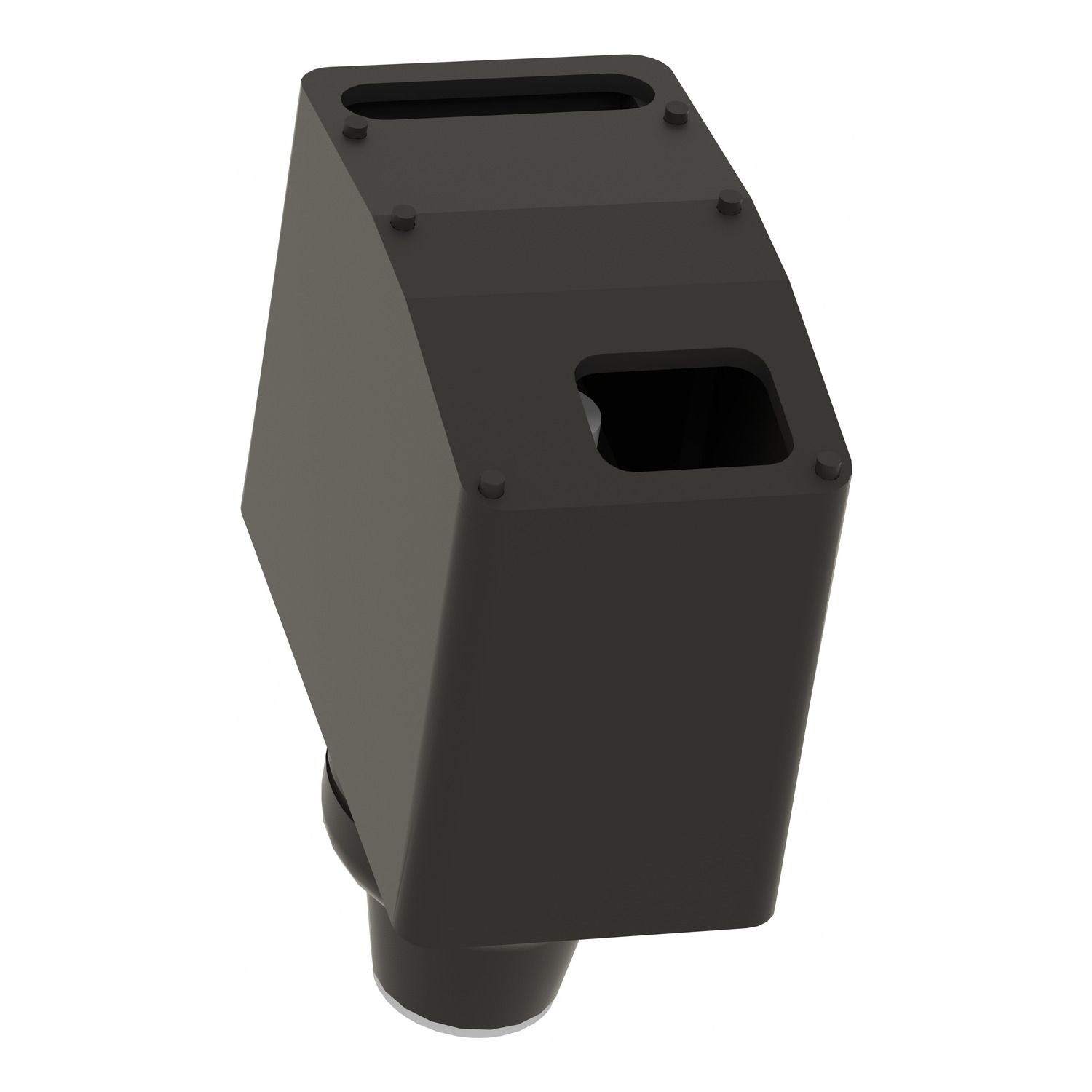

Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel
Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel
Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel
Picture of Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel
SKU:

XEAB25361

Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel

Old price: $1,865.60 INC GST
$1,455.17 INC GST
Availability: Please contact our sales team on 1300 724 622.
Push button for control circuit, Harmony XAC, plastic, black, booted, 0...15V DC, 1 NO + 1 NC at start of travel, 1 NO at end of travel
Be the first to review this product
Manufacturer: Schneider Electric

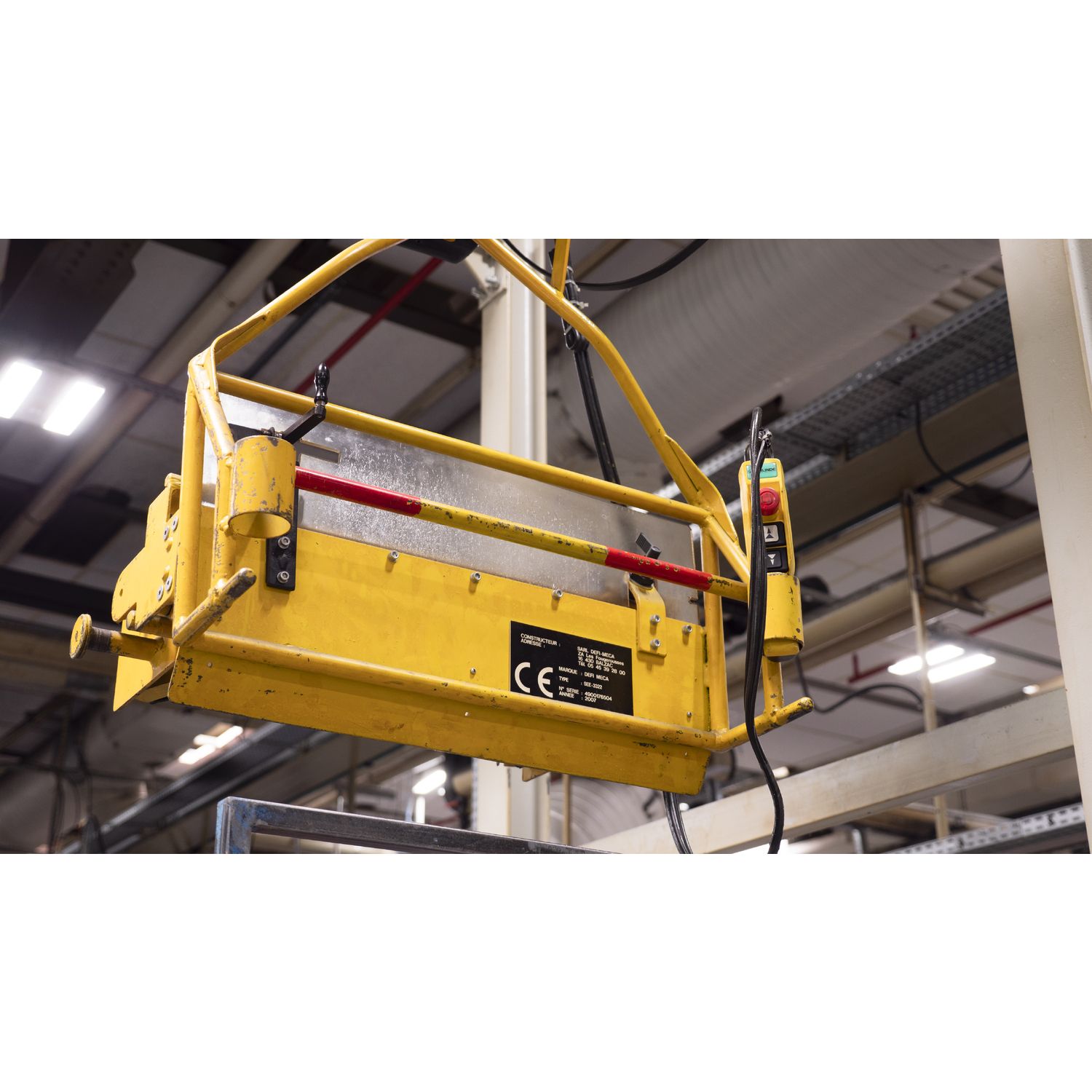

Image of product in real life situation
Catalog
Environmental Disclosure
Instruction sheet
Image of product in real life situation
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XAC, booted push button with analogue output is supplied with 0V to 15V DC. It is compatible with XACM and XACB control stations. This booted button head for pendant control station provides a simple solution to comply with hygiene requirement. It is easily combined with control circuits to perform a large variety of control functions. It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments. The booted head prevents growth of bacteria in joints and gaps: ideal for high hygiene environments like food and beverage industry. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Products specifications

Attribute name Attribute value
Main
Control station name XACB, XACM
Electrical circuit type control circuit
Range of product Harmony XAC
Control circuit type DC
[Us] rated supply voltage 0...15 V
Operating travel 11 mm
Product or component type booted push-button
Complementary
Mechanical durability 1000000 cycles
Operating force 9 N at end of travel, 4 N at start of travel
Contacts type and composition 1 NO at end of travel, 1 NC + 1 NO at start of travel
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals terminal connectors, 2 x 1.5 mm², terminal connectors, 1 x 2.5 mm²
Current consumption < 15 mA
Net weight 0.065 kg
Rated power in VA 30 VA AC-15 for 1000000 cycles at 48 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 230 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 110 V 50/60 Hz conforming to IEC 60947-5-1 appendix C
[Ithe] conventional enclosed thermal current 6 A
Rated power in W DC-13: 48 W 48 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13: 12 W 110 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards IEC 60947-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 5.6 cm
Package 1 Length 4.0 cm
Package 1 Weight 84.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.894 kg
