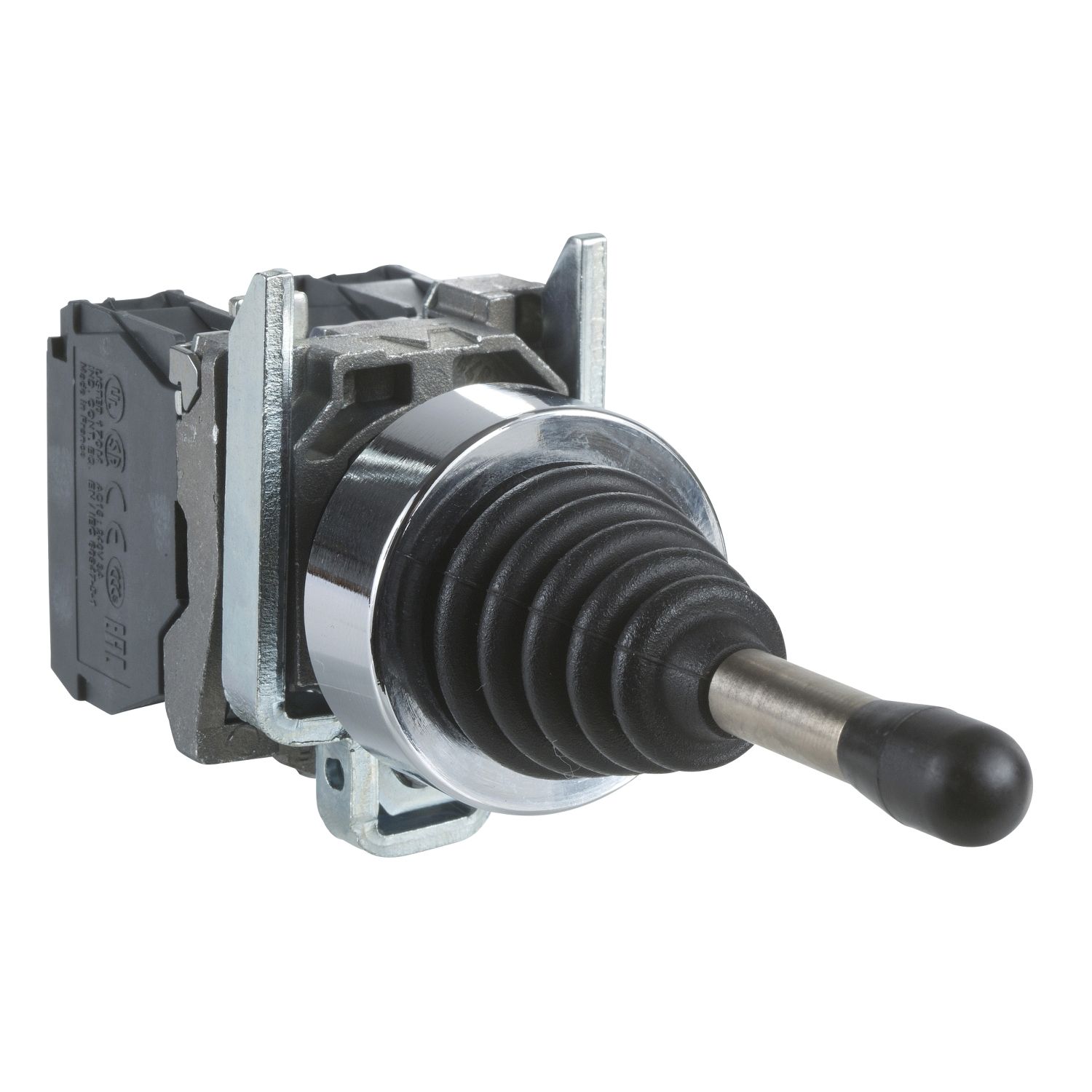

Picture of Joystick controller, Harmony XDA, Ø22 mm 4 direction spring return 1 NO per direction
SKU:

XD4PA247

Joystick controller, Harmony XDA, Ø22 mm 4 direction spring return 1 NO per direction

Old price: $539.55 INC GST
$420.85 INC GST
Available for Shipping : 07-Jan-2026
Joystick controller, Harmony XDA, Ø22 mm 4 direction spring return 1 NO per direction
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 07-Jan-2026
Declaration of conformity
Catalog
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This XD4PA247 is a joystick controller diameter 22mm with 4 direction spring return - 1NO per direction. It is part of the range Harmony XB4 diameter 22 mm modular metal push buttons, switches, and pilot lights .

Products specifications

Attribute name Attribute value
Main
Device short name XD4
Operator position information 5 positions
Contact operation slow-break
Bezel material black metal
Sale per indivisible quantity 1
Contacts type and composition 1 NO
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Type of operator spring return to 0 position, long operating shaft 54 mm length
Fixing collar material zamak
Operator direction information 4 directions
Product or component type joystick controller
Mounting diameter 22 mm
Range of product Harmony XDA
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XD4
Notch per direction 1/1/2024 12:00:00 AM
Mechanical durability 1000000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation complete product
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.133 kg
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Contacts material silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Contacts usage standard
Environment
Protective treatment TH
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60947-5-5
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications CSA, LROS (Lloyds register of shipping), GL, UL listed, BV, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 5.300 cm
Package 1 Length 13.200 cm
Package 1 Weight 134.000 g
