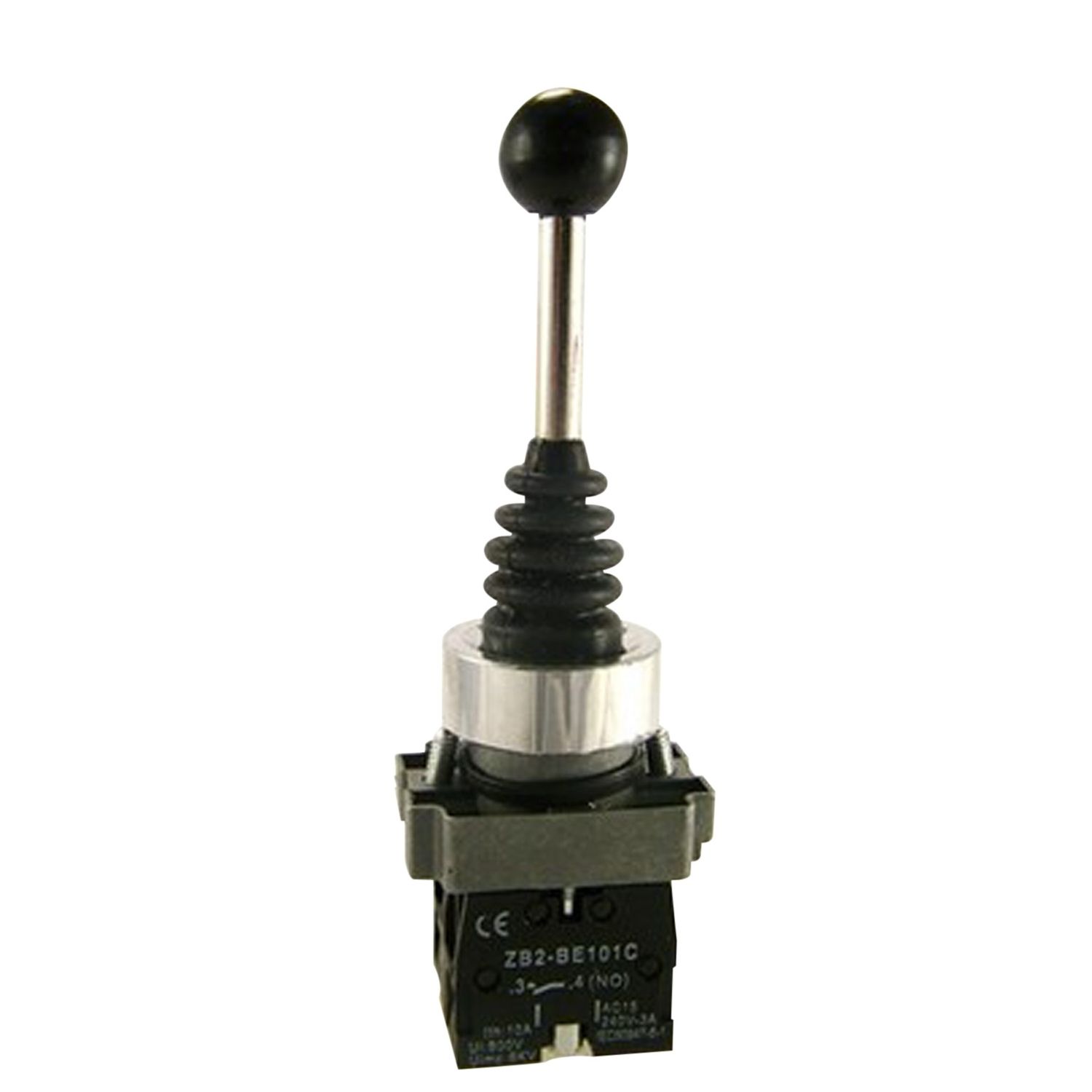

Picture of Complete joystick controller, Harmony XD2, 30mm, 2 directions, 2NC per direction, with return position 0
SKU:

XD2LC21

Complete joystick controller, Harmony XD2, 30mm, 2 directions, 2NC per direction, with return position 0

Old price: $1,768.80 INC GST
$1,379.66 INC GST
Available for Shipping : 08-Jan-2026
Complete joystick controller, Harmony XD2, 30mm, 2 directions, 2NC per direction, with return position 0
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Jan-2026
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XD2LC21 is a complete joystick controller mounting diameter 30mm with 2 directions - 2 NC per direction. It is part of the range Harmony XD controllers for hoisting applications.

Products specifications

Attribute name Attribute value
Main
Device short name XD2
Bezel material chromium plated metal
Product or component type complete joystick controller
Mounting diameter 30 mm
Range of product Harmony XD2
Complementary
Depth 85 mm
Compatibility code XD2
Notch per direction 1/1/2024 12:00:00 AM
Mechanical durability 1000000 cycles
Operator position information all positions
Overvoltage category class I conforming to IEC 61140
Connections - terminals captive screw clamp terminals, 1 x 2.5 mm² with or without cable end, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end
Electrical durability 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Net weight 0.35 kg
Fixing center 60 x 100 mm
Operator direction information 2 directions
Short-circuit protection 10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1<LineBreak/>
Contact code designation A600-Q600
Height 156 mm
Return to 0 position
Contacts type and composition 2 NC for time delayed
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
Vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Product certifications CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.900 cm
Package 1 Width 10.300 cm
Package 1 Length 16.600 cm
Package 1 Weight 408.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.773 kg
