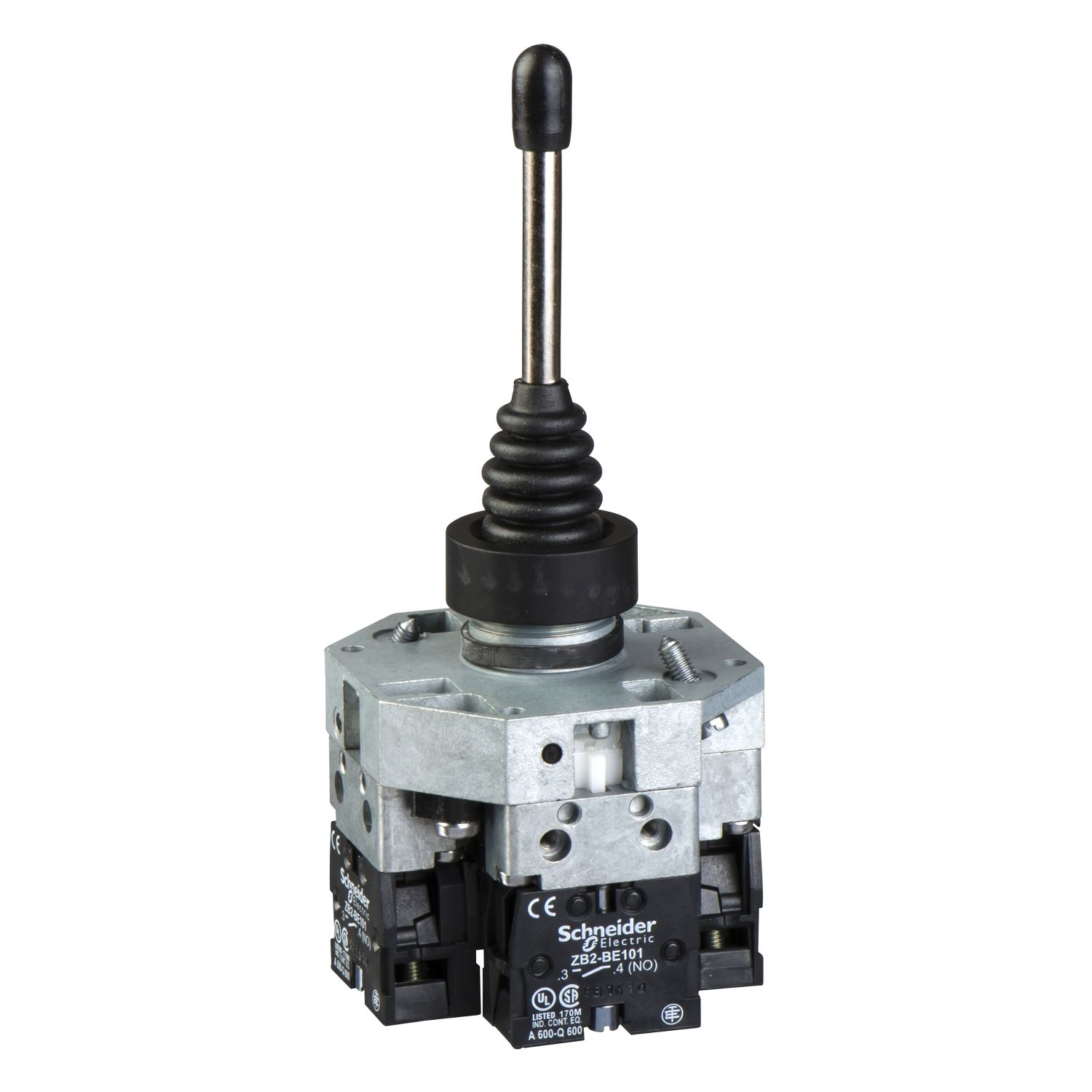

Picture of Complete joystick controller, Harmony XB5, Ø22 mm 4 directions 1 NO per direction
SKU:

XD2GA84217

Complete joystick controller, Harmony XB5, Ø22 mm 4 directions 1 NO per direction

Old price: $764.50 INC GST
$596.31 INC GST
Available for Shipping : 06-Jan-2026
Complete joystick controller, Harmony XB5, Ø22 mm 4 directions 1 NO per direction
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XD2GA84217 is a joystick controller diameter 22mm with 4 directions - 1 NO per direction. It is part of the range Harmony XD controllers for hoisting applications.

Products specifications

Attribute name Attribute value
Main
Device short name XD2
Bezel material black metal
Product or component type complete joystick controller
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Depth 90 mm
Electrical reliability λ < 10exp(-6)
Compatibility code XD2
Notch per direction 1/1/2024 12:00:00 AM
Mechanical durability 1000000 cycles
Operator position information all positions
[Ie] rated operational current 3 A at 240 V, AC-15, A300, 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
Overvoltage category class I conforming to IEC 61140
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to CSA C22.2 No 14, 600 V (pollution degree 3) conforming to UL 508, 500 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminals Faston connectors, connection size: 6.3 mm, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end, captive screw clamp terminals, 1 x 0.5 mm²
Electrical durability 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 24...48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Net weight 0.33 kg
Fixing center 90 x 90 mm
Operator direction information 4 directions
Short-circuit protection 10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1<LineBreak/>
Contact code designation A600-Q600
Height 145 mm
Return to 0 position
Contacts type and composition 1 NO for slow-break
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
Vibration resistance 5 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 20 gn conforming to IEC 60068-2-27
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Product certifications LROS (Lloyds register of shipping), CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 9.400 cm
Package 1 Length 15.000 cm
Package 1 Weight 394.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.657 kg
