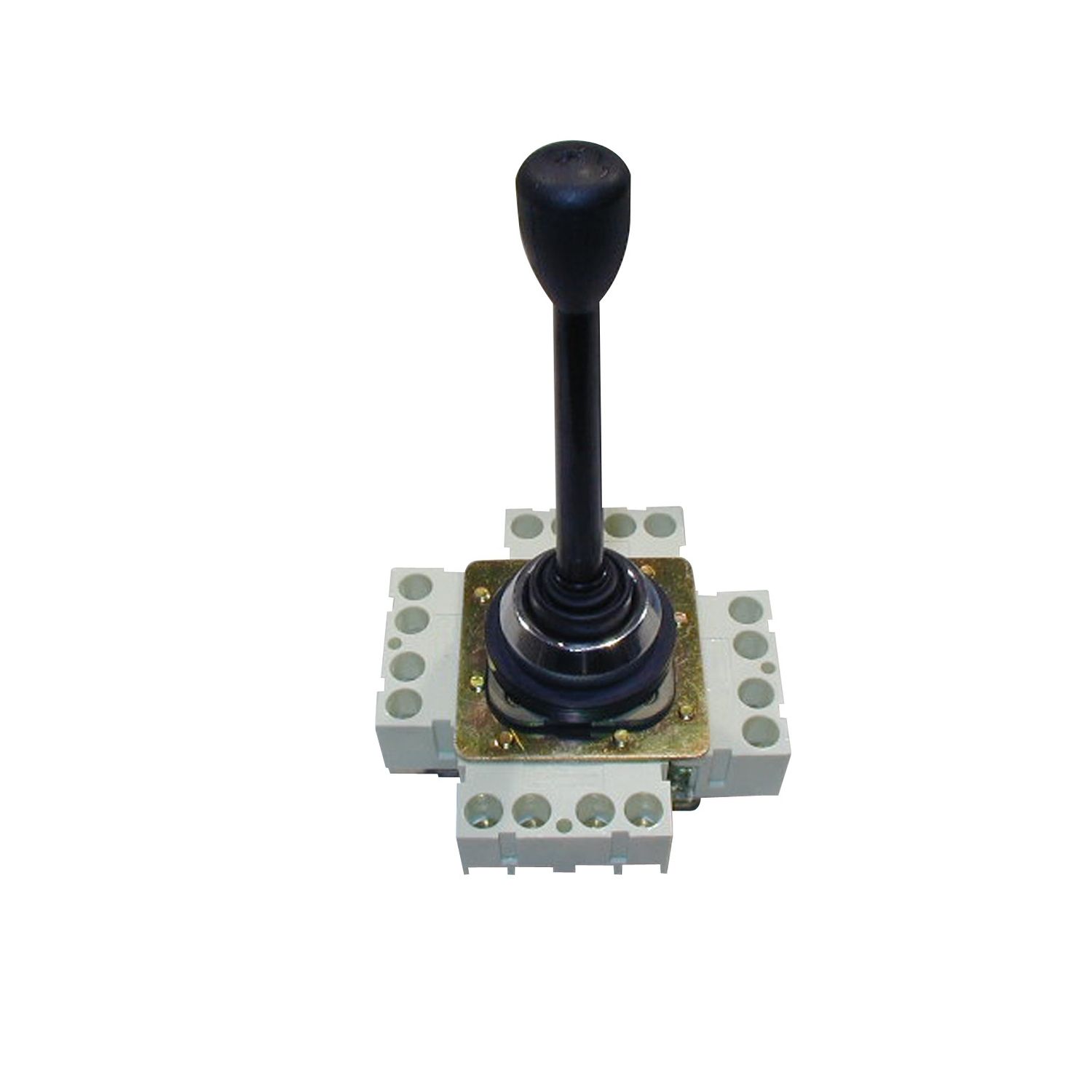

Picture of complete joystick controller - Ø30 - 8 directions - 1 or 2 C/O per direction
SKU:

XD2EC1111

complete joystick controller - Ø30 - 8 directions - 1 or 2 C/O per direction

Old price: $684.20 INC GST
$533.68 INC GST
Available for Shipping : 14-Jan-2026
complete joystick controller - Ø30 - 8 directions - 1 or 2 C/O per direction
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XD2EC1111 is a complete joystick controller mounting diameter 30mm with 8 direction - 1 or 2 C/O per direction. It is part of the range Harmony XD controllers for hoisting applications.

Products specifications

Attribute name Attribute value
Main
Device short name XD2
Range of product Harmony XD2
Bezel material chromium plated metal
Product or component type complete joystick controller
Mounting diameter 30 mm
Complementary
Compatibility code XD2
Mechanical durability 1000000 cycles
Electrical durability 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Fixing center 100 x 100 mm
Short-circuit protection 10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1<LineBreak/>
Height 127 mm
Contacts type and composition 2 C/O for snap action, 1 C/O for snap action
Depth 91 mm
Notch per direction 1/2/2024 12:00:00 AM
Operator position information all positions
Overvoltage category class I conforming to IEC 61140
Connections - terminals captive screw clamp terminals, 1 x 2.5 mm² with or without cable end, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end
Net weight 0.3 kg
Operator direction information 8 directions
Contact code designation A600-Q600
Return to 0 position
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards IEC 60947-5-1
Product certifications GL, DEMKO, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.400 cm
Package 1 Width 9.800 cm
Package 1 Length 18.000 cm
Package 1 Weight 352.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.950 kg
