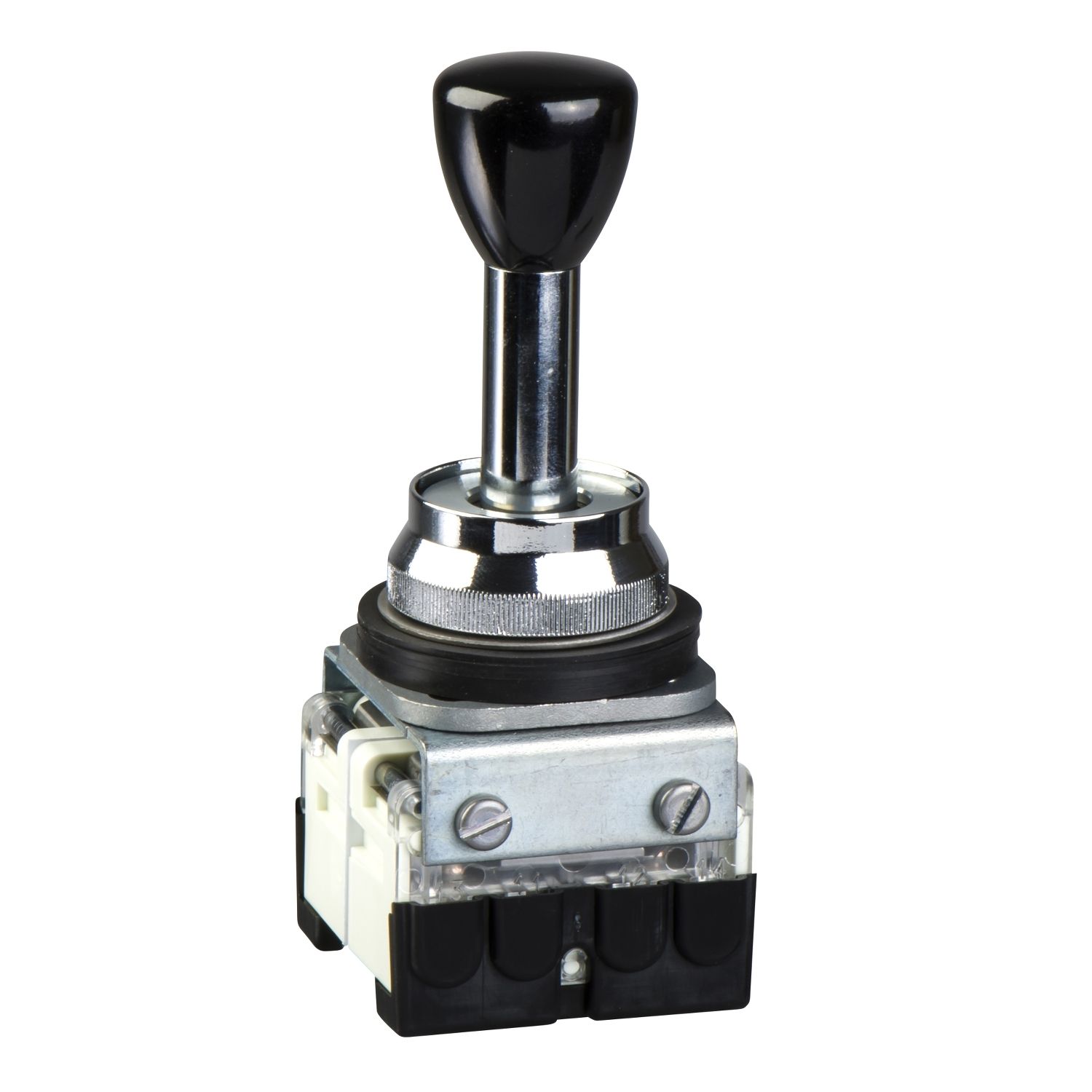

Picture of Complete joystick controller, Harmony XD2, 30mm, 2 directions, 1 C/O per direction, without/with return position 0
SKU:

XD2AC2019H2

Complete joystick controller, Harmony XD2, 30mm, 2 directions, 1 C/O per direction, without/with return position 0

Old price: $862.40 INC GST
$672.67 INC GST
Available for Shipping : 21-Jan-2026
Complete joystick controller, Harmony XD2, 30mm, 2 directions, 1 C/O per direction, without/with return position 0
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This complete joystick controller is part of the range Harmony XK, XD controllers. It is supplied with chromium plated metal bezel and standard handle 68mm length. It features 2 direction operator, with maintained positions and is supplied with 1 C/O contact and screw clamp terminals. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed into a standard 30mm diameter panel cut-out. Its protection index is IP40. It is designed for hoisting applications. It can be installed on control panels or enclosures types XAL, XAM and XAP.

Products specifications

Attribute name Attribute value
Main
Device short name XD2
Range of product Harmony XD2
Bezel material chromium plated metal
Product or component type complete joystick controller
Mounting diameter 30 mm
Complementary
Compatibility code XD2
Mechanical durability 1000000 cycles
Electrical durability 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Fixing center 68 x 46 mm
Short-circuit protection 10 A gG (gl) Neozed cartridge fuse conforming to IEC 337-1B<LineBreak/>
Height 111 mm
Contacts type and composition 1 C/O for snap action
Depth 46 mm
Width 68 mm
Notch per direction 1/1/2024 12:00:00 AM
Operator position information all positions
Overvoltage category class I conforming to IEC 536
Connections - terminals captive screw clamp terminals, 1 x 2.5 mm² with or without cable end, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end
Net weight 0.22 kg
Operator direction information 2 directions
Return to 0 position,  without
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards IEC 60947-5-1, NF C 20-030, IEC 60529
Product certifications GL, CSA, DEMKO
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.300 cm
Package 1 Width 7.500 cm
Package 1 Length 12.200 cm
Package 1 Weight 258.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.655 kg
