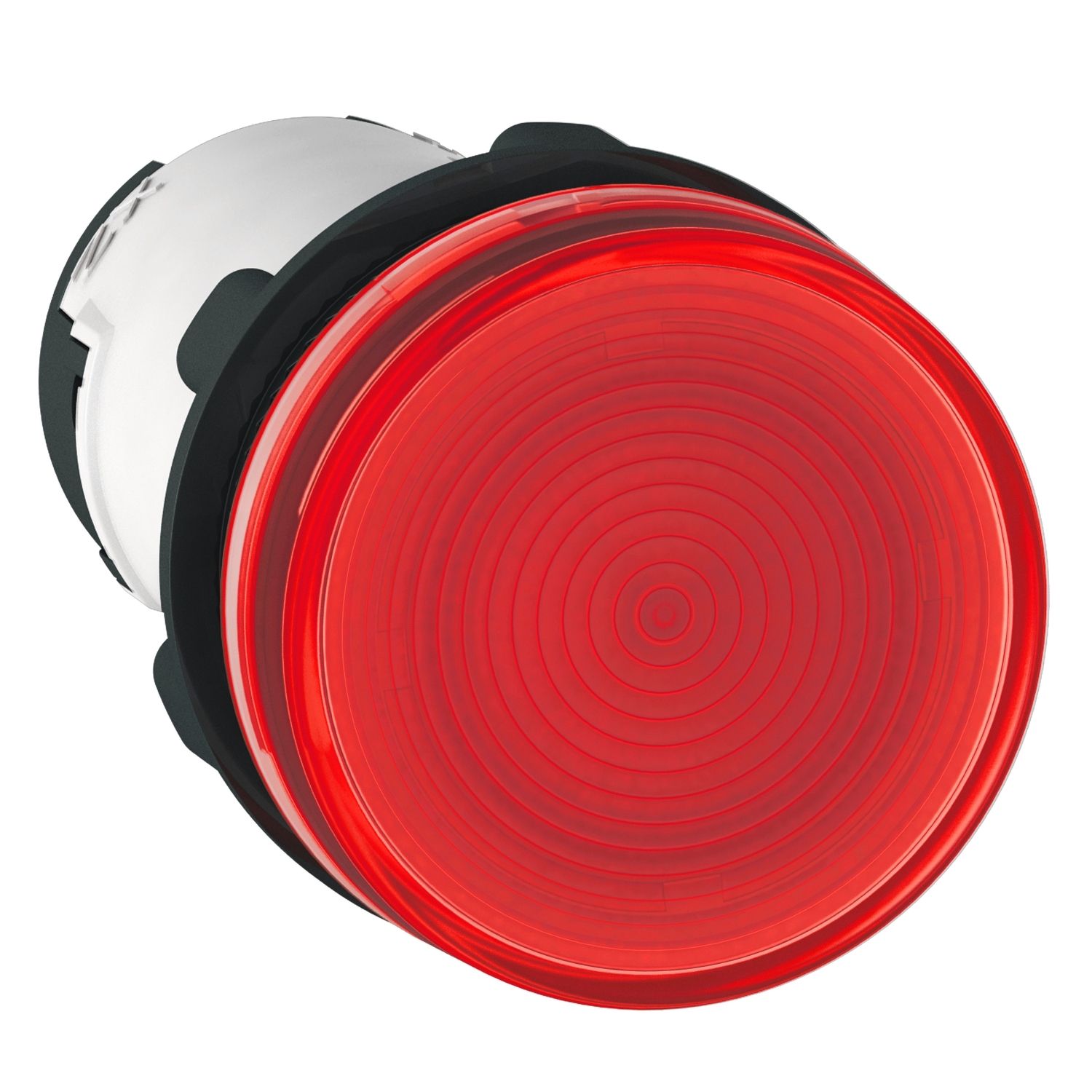

Pilot light, Harmony XB7, round red, 22mm, bulb BA9s, screw clamp terminals, 230V

Old price: $81.84 INC GST
$63.84 INC GST
Available for Shipping : 13-Jan-2026
Product Selector
Pilot light, Harmony XB7, round red, 22mm, bulb BA9s, screw clamp terminals, 230V
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Instruction sheet
Catalog
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony XB7, monolithic red pilot light is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XB7
Sale per indivisible quantity 10
Device presentation monolithic product
Range of product Harmony XB7
Product or component type pilot light
Mounting diameter 22 mm
Light source incandescent
Operator additional information with plain lens
Complementary
Device mounting fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with JIS No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code XB7
Supply voltage limits 195-264 V AC
Cap/operator or lens colour red
Fixing mode fixing nut beneath head: 2-2.4 N.m
Light block supply direct through resistor <2.6 W 130 V
Height 29 mm
[Us] rated supply voltage 230 V, 230 V AC at 50/60 Hz
Bulb base BA 9s
Depth 54 mm
Width 29 mm
Overvoltage category class II conforming to IEC 60536
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Service life 2000 h at rated voltage and 25 °C
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, forked type tag connectors, connection size: 6.5 mm conforming to IEC 60947-1, Faston connectors, connection size: 6.35 x 0.8 mm conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.02 kg
Shape of signaling unit head round
Fixing center >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm
Terminals description ISO n°1 (X1-X2)PL
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP54 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529
Electromagnetic compatibility disturbing field emission class B conforming to IEC 55011
Ambient air temperature for operation -25-55 °C
NEMA degree of protection NEMA 12
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, UL 508, CSA C22.2 No 14
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 3.000 cm
Package 1 Length 5.500 cm
Package 1 Weight 20.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 10.000 cm
Package 2 Length 15.000 cm
Package 2 Weight 203.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.300 kg
