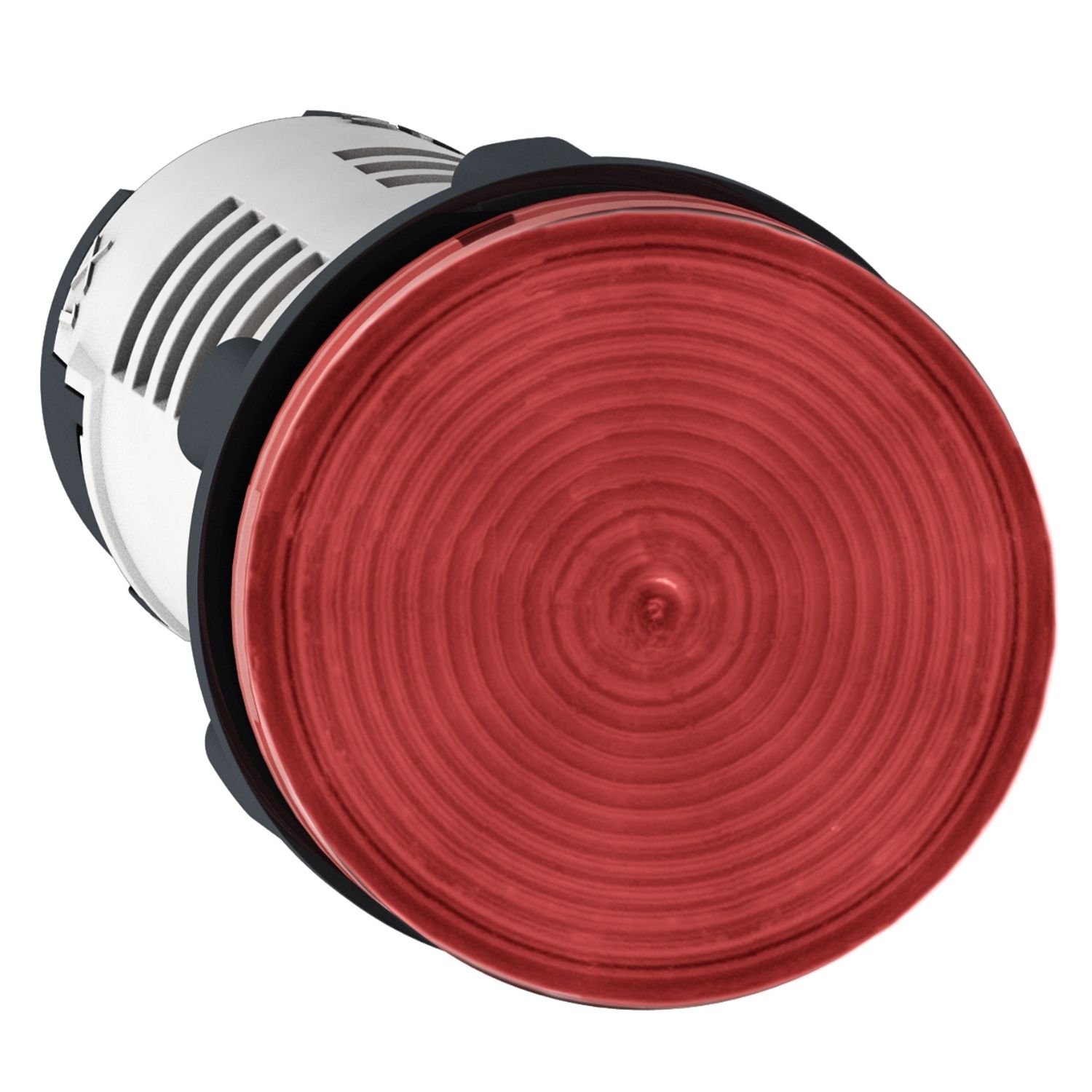

Pilot light, Harmony XB7, round Ø22 mm, red, integral LED, 230...240 V, faston connectors

Old price: $56.98 INC GST
$44.44 INC GST
Available for Shipping : 17-Dec-2025
Product Selector
Pilot light, Harmony XB7, round Ø22 mm, red, integral LED, 230...240 V, faston connectors
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Instruction sheet
CAD
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony XB7, plain lens monolithic red pilot light is supplied with 230V AC, uses an integral LED and Faston terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple Faston connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XB7
Sale per indivisible quantity 10
Device presentation monolithic product
Cap/operator or lens colour red
Range of product Harmony XB7
Bulb base integral LED
Shape of signaling unit head round
Product or component type pilot light
Mounting diameter 22 mm
Light source LED
Operator additional information with plain lens
[Us] rated supply voltage 230...240 V AC 50/60 Hz
Complementary
Device mounting fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
Compatibility code XB7
Supply voltage limits 195-264 V AC
Fixing mode fixing nut beneath head: 2-2.4 N.m
Height 29 mm
[Us] rated supply voltage 230...240 V
Depth 54 mm
Width 29 mm
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1
Service life 70000 h at rated voltage and 25 °C
Connections - terminals Faston connectors, connection size: 2 x 2.8 mm conforming to EN/IEC 60947-1, Faston connectors, connection size: 1 x 6.35 mm conforming to EN/IEC 60947-1
Current consumption 16...20 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Net weight 0.02 kg
Fixing center >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm
Terminals description ISO n°1 (X1-X2)PL
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529
Electromagnetic compatibility disturbing field emission class B conforming to EN 55011
Ambient air temperature for operation -25-70 °C
NEMA degree of protection NEMA 12 conforming to UL 50 E, NEMA 4 conforming to UL 50 E
Overvoltage category class II conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508, CSA C22.2 No 14
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 10.000 cm
Package 1 Length 7.000 cm
Package 1 Weight 18.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.000 cm
Package 2 Width 10.000 cm
Package 2 Length 14.000 cm
Package 2 Weight 183.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.182 kg
