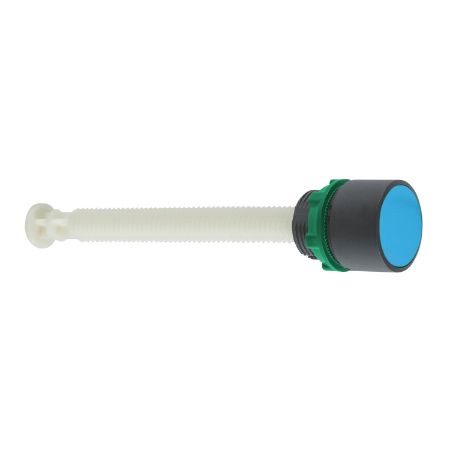

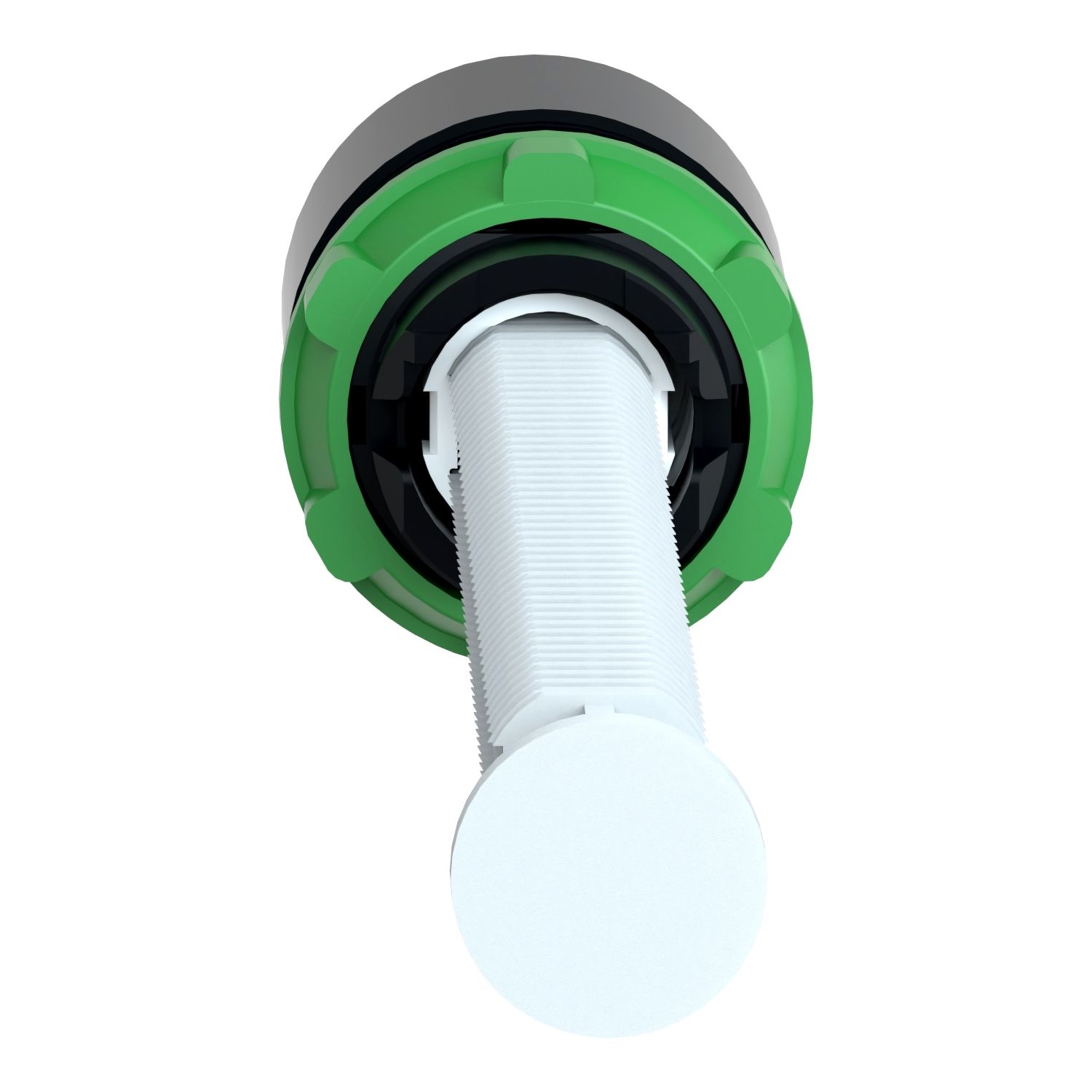

Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R

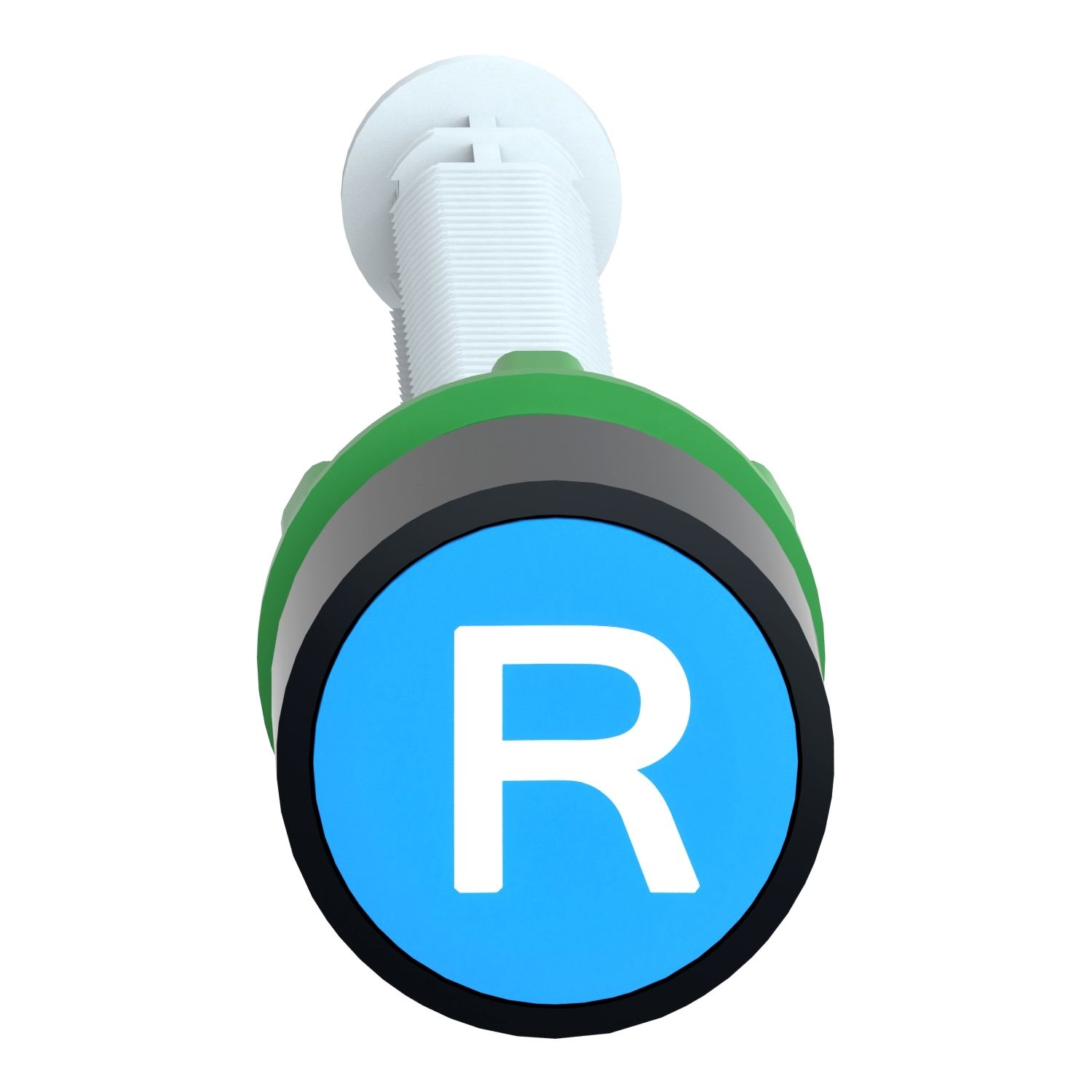

Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R

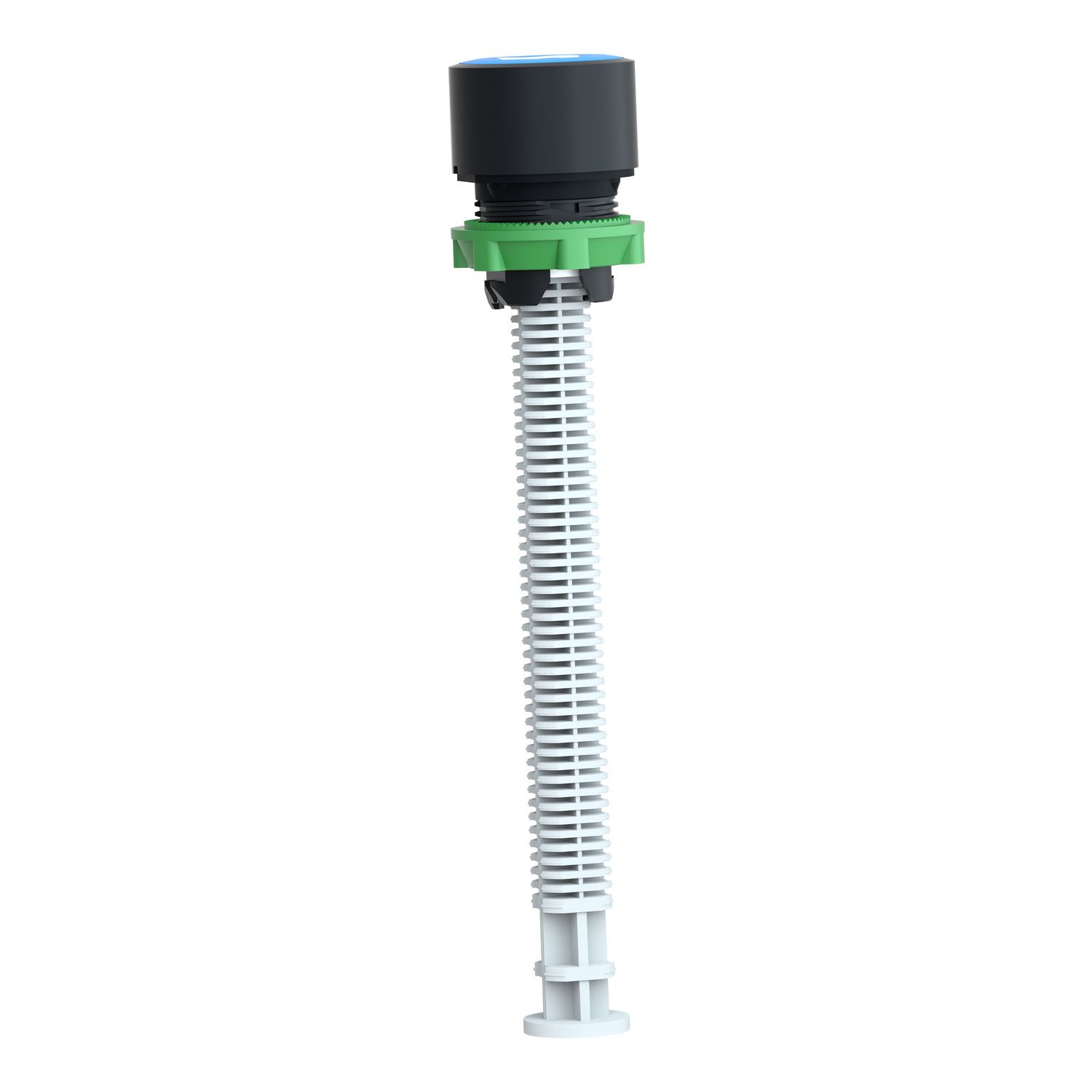

Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R

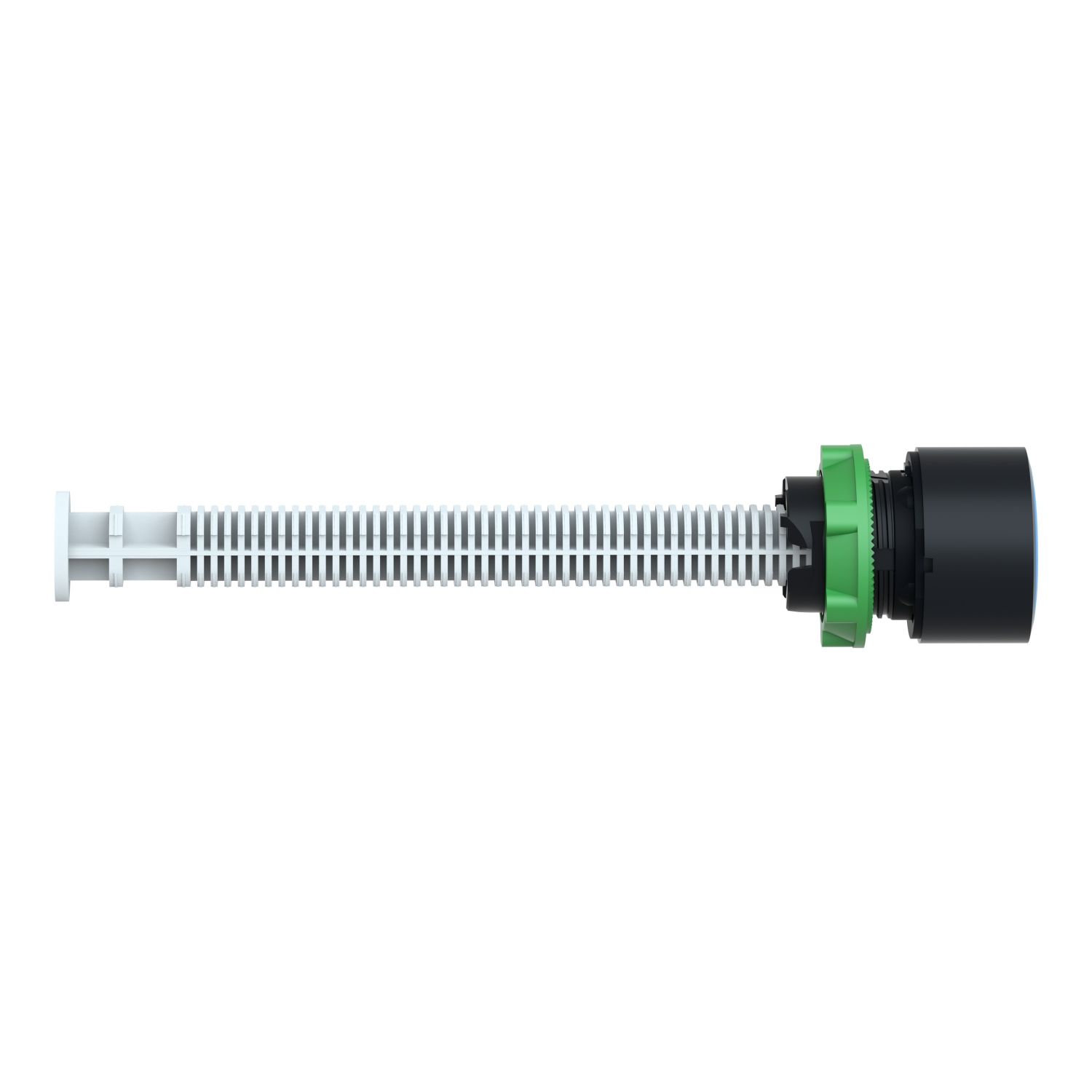

Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R

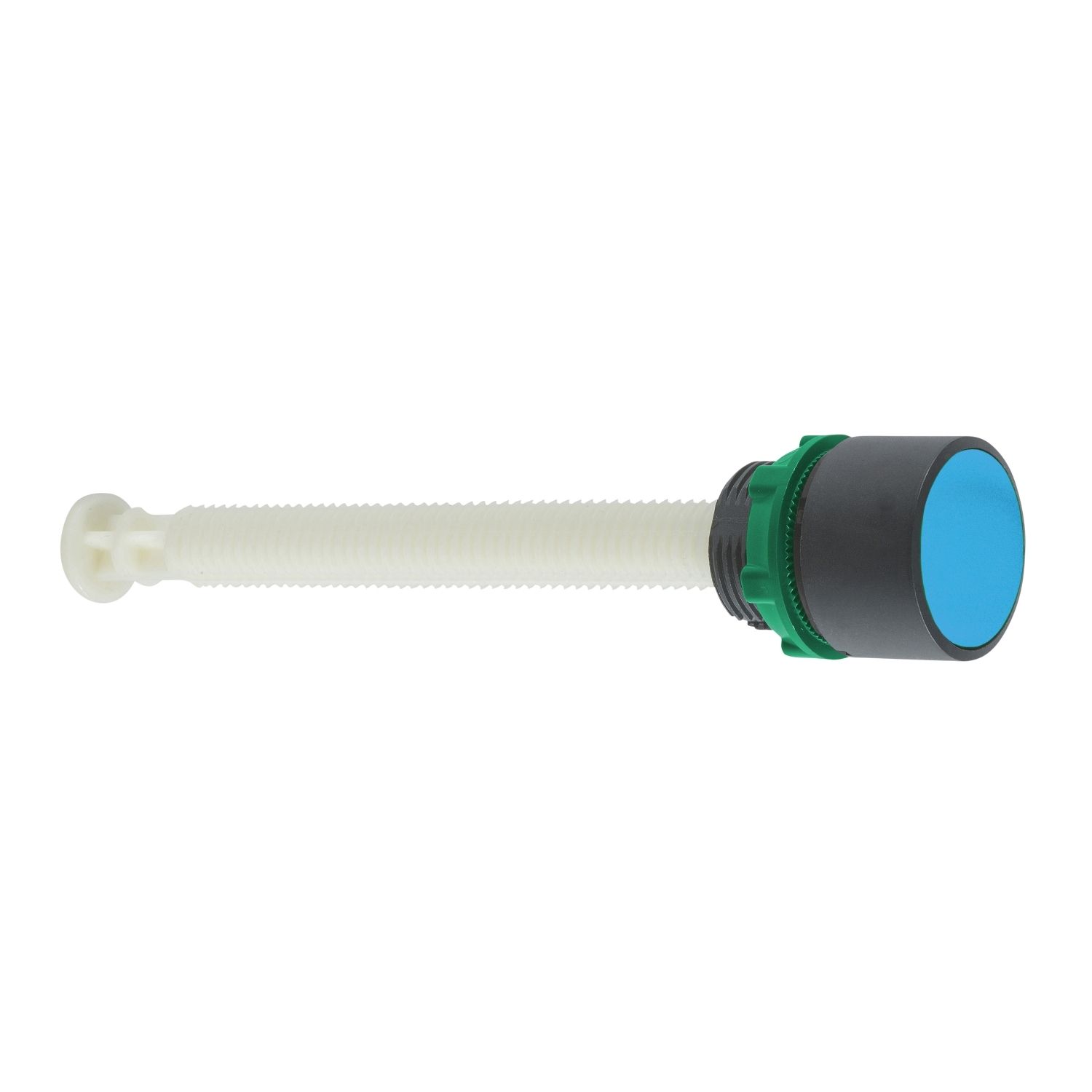

Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R

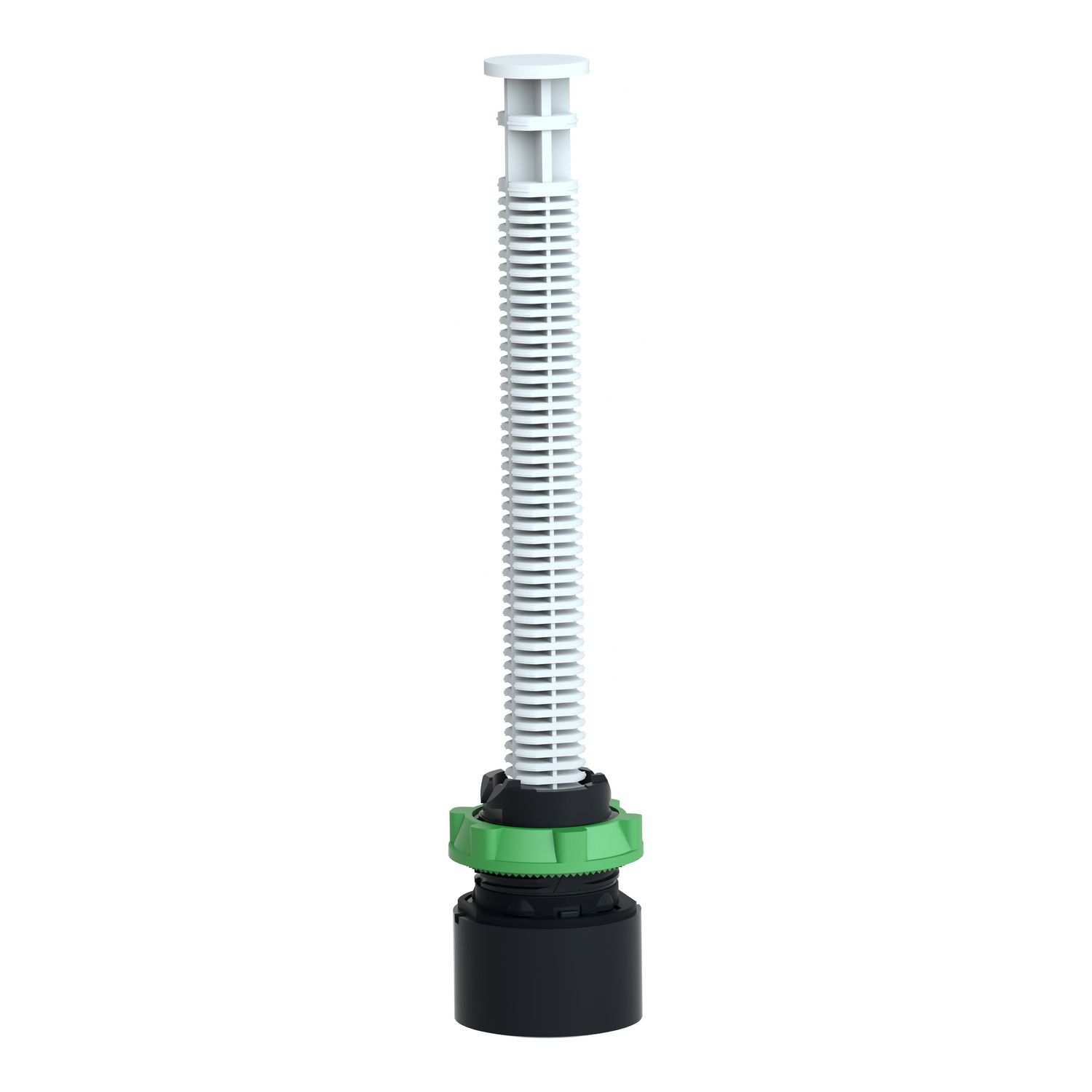

Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R

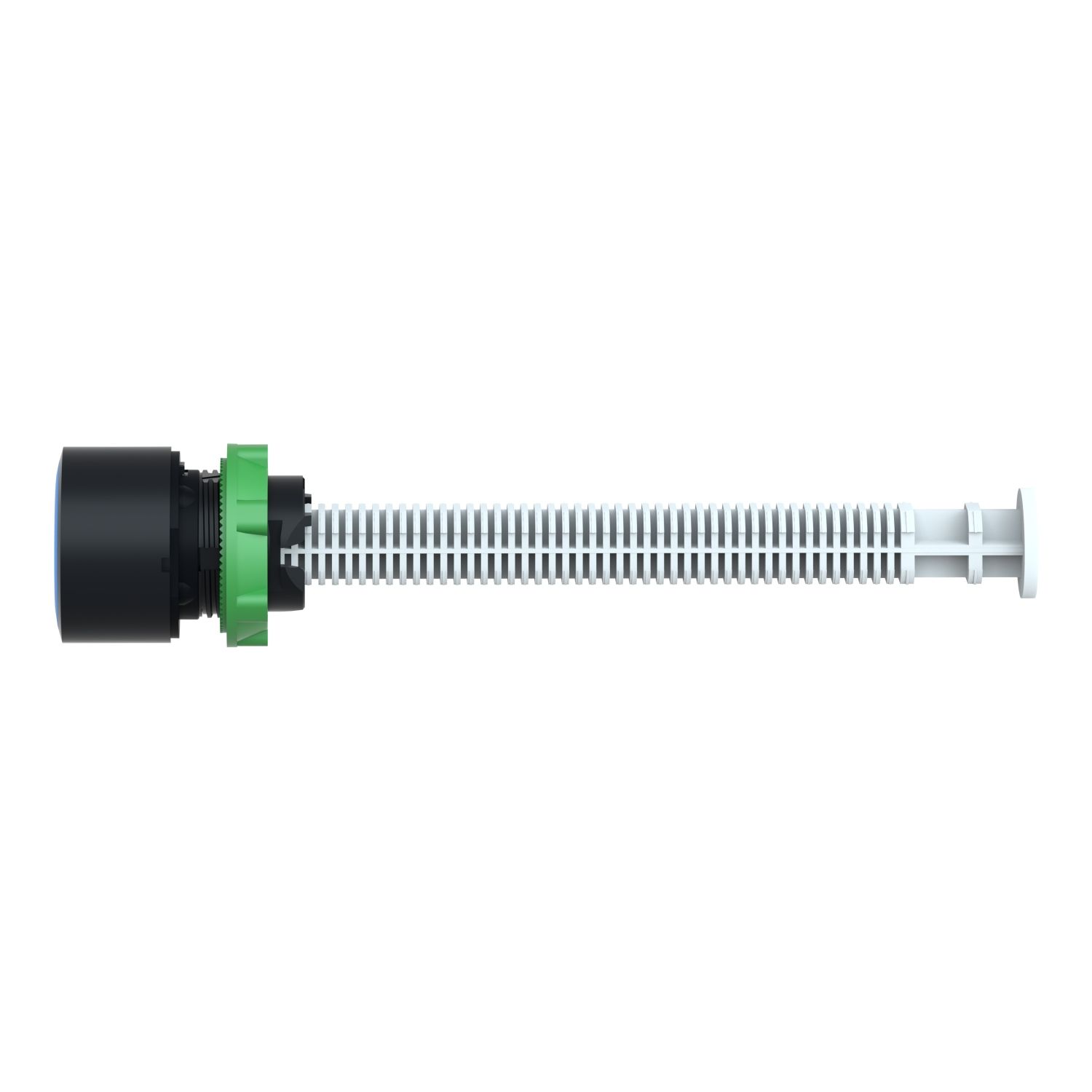

Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R
Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R
Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R
Picture of Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R
SKU:

XB5AA86202

Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R

Old price: $39.82 INC GST
$31.06 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Manual overload reset push button, Harmony XB5, plastic, for 120...257mm actuation distance, flush, blue, 22mm, marked R
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025

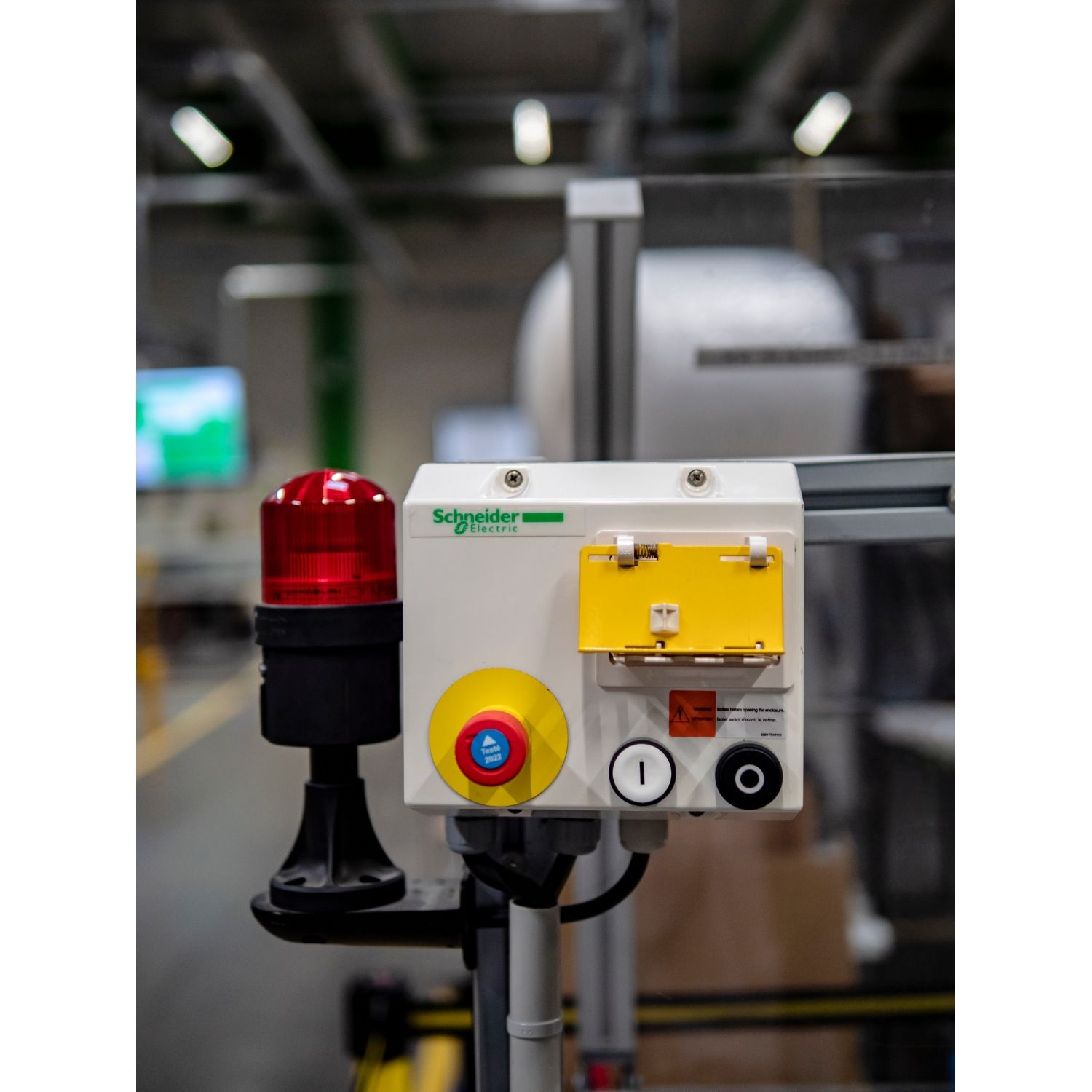

Image of product in real life situation
Circularity Profile
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This manual overload reset pushbutton is part of the range diameter 22mm plastic, Harmony XB5. It is supplied with blue flush cap, marked R (white). It features an actuation distance from 120mm to 257mm. It provides a robust and precise control when it is required to reset your machines and processes. It is easily installed into standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It weighs 40g. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Device short name XB5
Operator profile blue flush, R (white)
Bezel material dark grey plastic
Device presentation complete product
Head type standard
Fixing collar material plastic
Shape of signaling unit head round
Product or component type manual overload reset push-button
Mounting diameter 22 mm
Activating distance 120-257 mm
Range of product Harmony XB5
Complementary
Depth 257 mm
Width 29 mm
Customizable no, 0
Compatibility code XB5
Mechanical durability 5000000 cycles
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.04 kg
Cap/operator or lens colour blue
Operating travel 10 mm
Height 29 mm
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Standards IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 13.000 cm
Package 1 Length 5.300 cm
Package 1 Weight 51.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.600 kg
