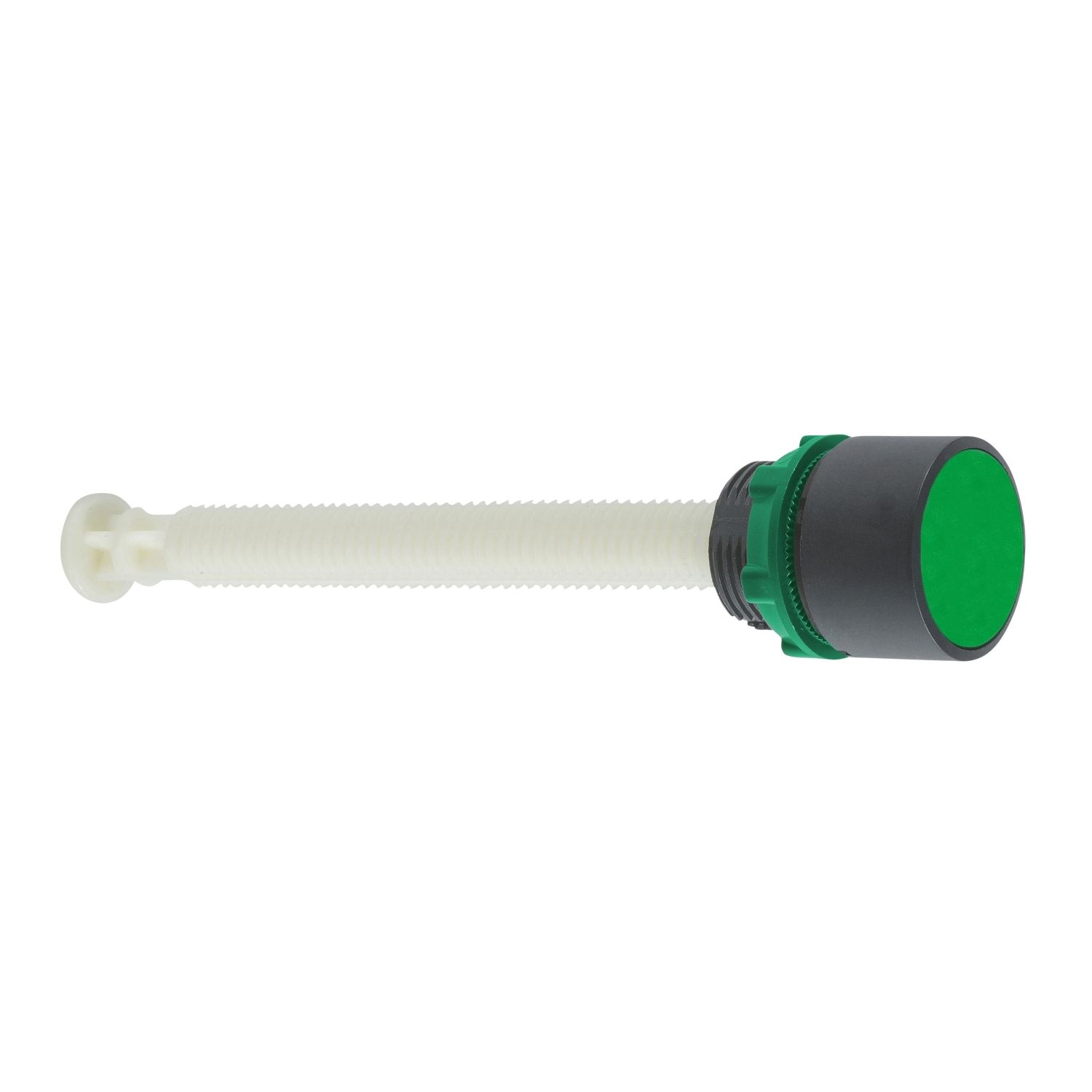

Picture of Manual overload reset push button, Harmony XB5, green flush, 22mm, for 17...120 mm actuation distance
SKU:

XB5AA831

Manual overload reset push button, Harmony XB5, green flush, 22mm, for 17...120 mm actuation distance

Old price: $49.83 INC GST
$38.87 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Manual overload reset push button, Harmony XB5, green flush, 22mm, for 17...120 mm actuation distance
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
"This product is part of the Harmony XB5 range, an offer of Ø 22mm modular plastic pushbuttons, switches, and pilot lights." "This manual overload pushbutton comes with round head and green flush operator." "The pushbutton activating distance is 17mm to 120mm." "It is an IP66 and NEMA 4X rated product." "The pushbutton is fitted with dark grey plastic bezel and plastic fixing collar. Its dimensions are 29mm (width) x 120mm (depth) x 29mm (height). It weighs 0.027kg." "It is ideal for food and beverages, chemical industry, paper mill and marine applications. It is also suitable for the service sector and infrastructure applications." "This product is certified by UL. It meets EN/IEC 60947-1 standard." "It is installed into a Ø 22mm panel cutout." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of Ø 22mm metal control and signaling units combines simplicity of installation, modern standard and flush mounted design."

Products specifications

Attribute name Attribute value
Main
Device short name XB5
Operator profile green flush, unmarked
Bezel material dark grey plastic
Device presentation complete product
Head type standard
Fixing collar material plastic
Shape of signaling unit head round
Product or component type manual overload reset push-button
Mounting diameter 22 mm
Activating distance 17-120 mm
Range of product Harmony XB5
Complementary
Depth 120 mm
Width 29 mm
Customizable no, 0
Compatibility code XB5
Mechanical durability 5000000 cycles
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.027 kg
Cap/operator or lens colour green
Operating travel 10 mm
Height 29 mm
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Standards IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 5.3 cm
Package 1 Length 4.4 cm
Package 1 Weight 38.0 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.548 kg
