SKU:

XB4BS84462

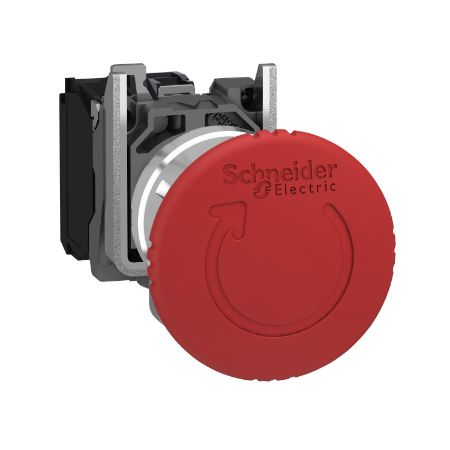

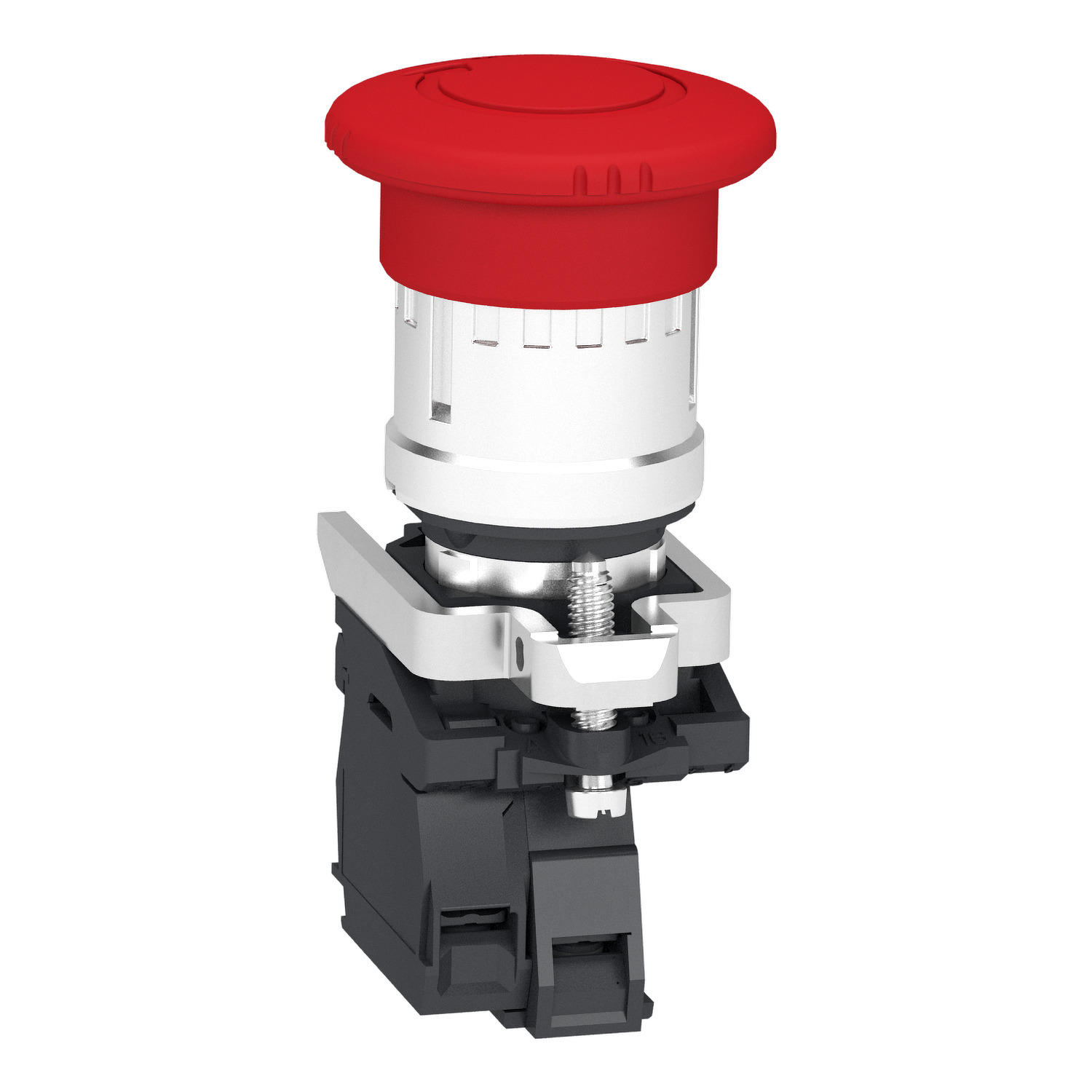

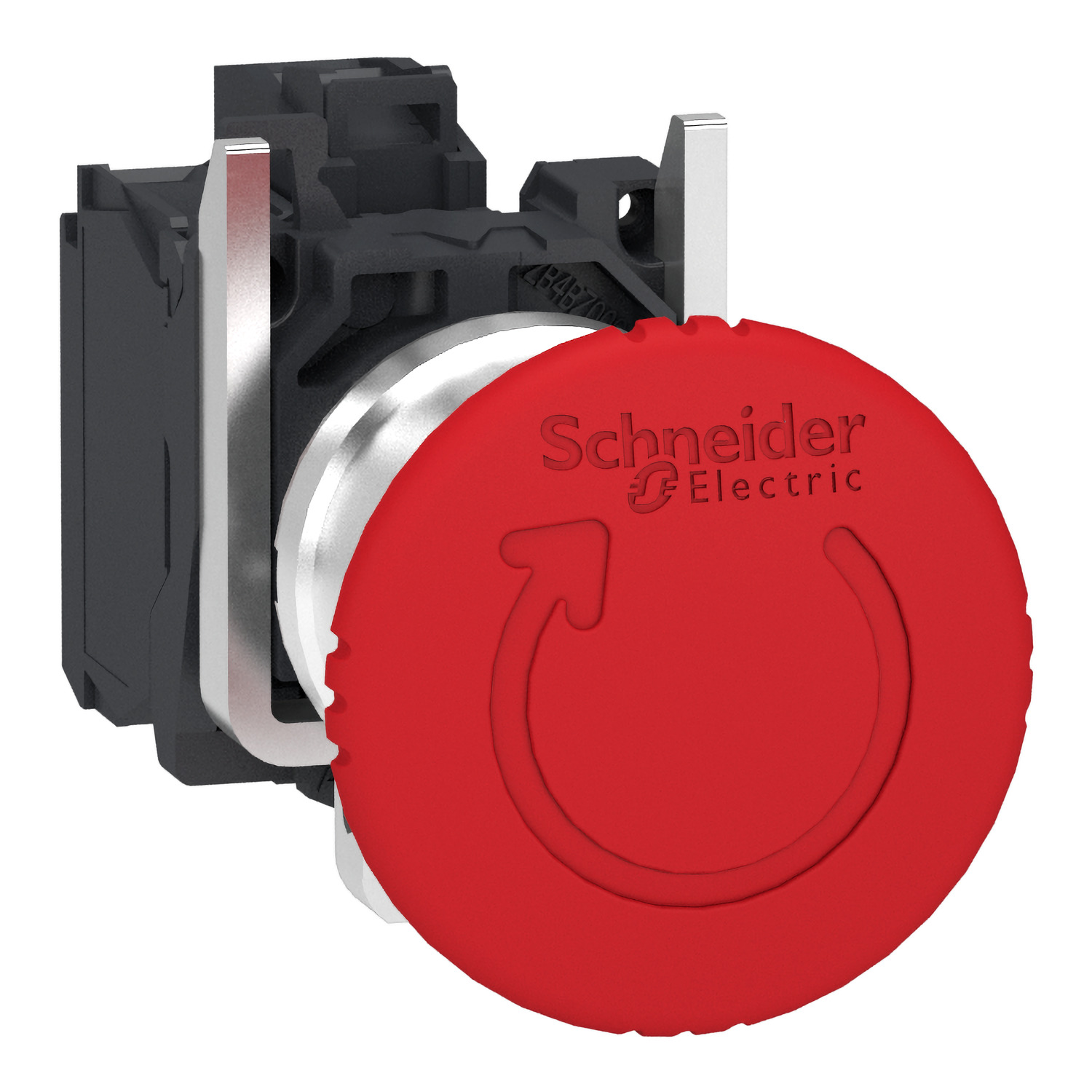

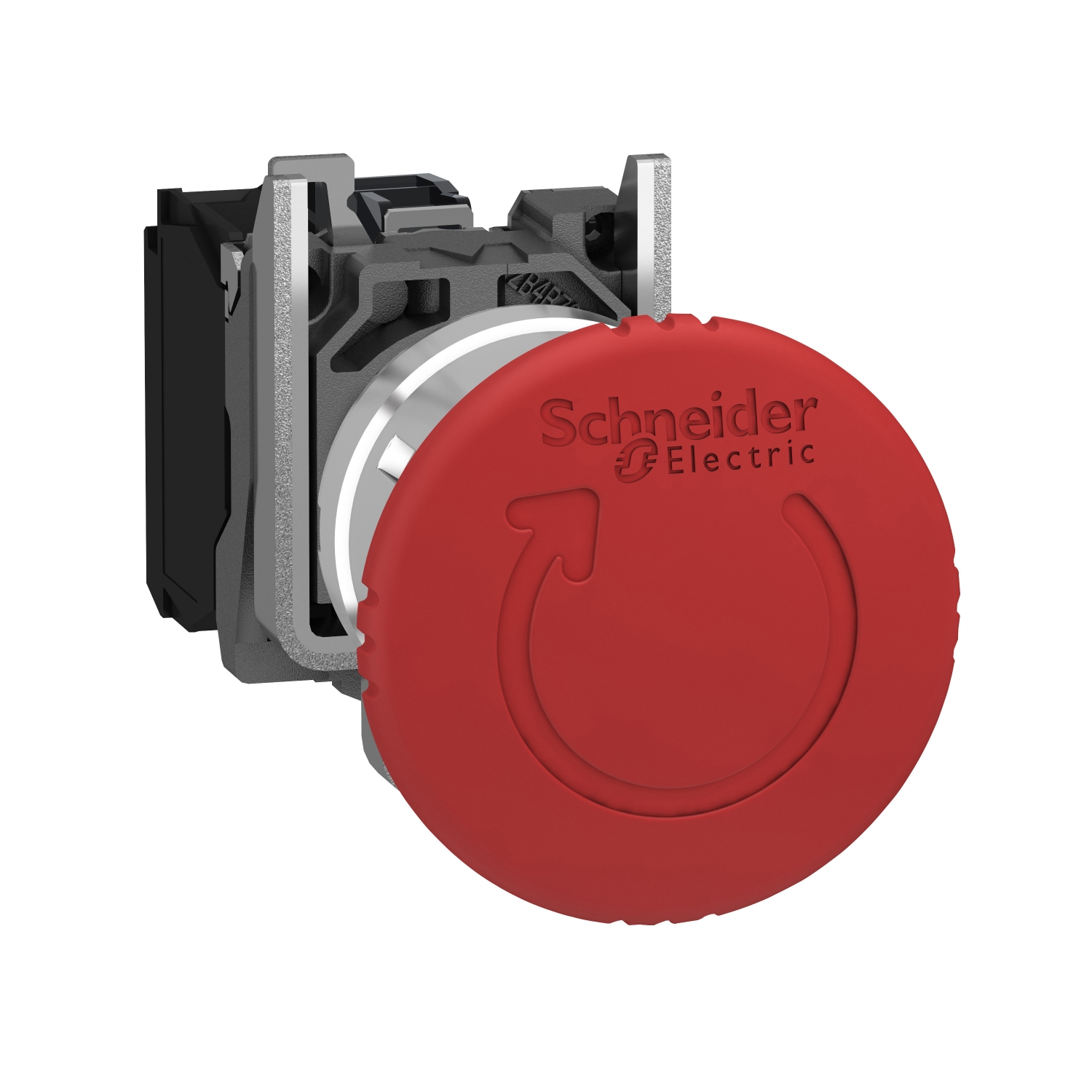

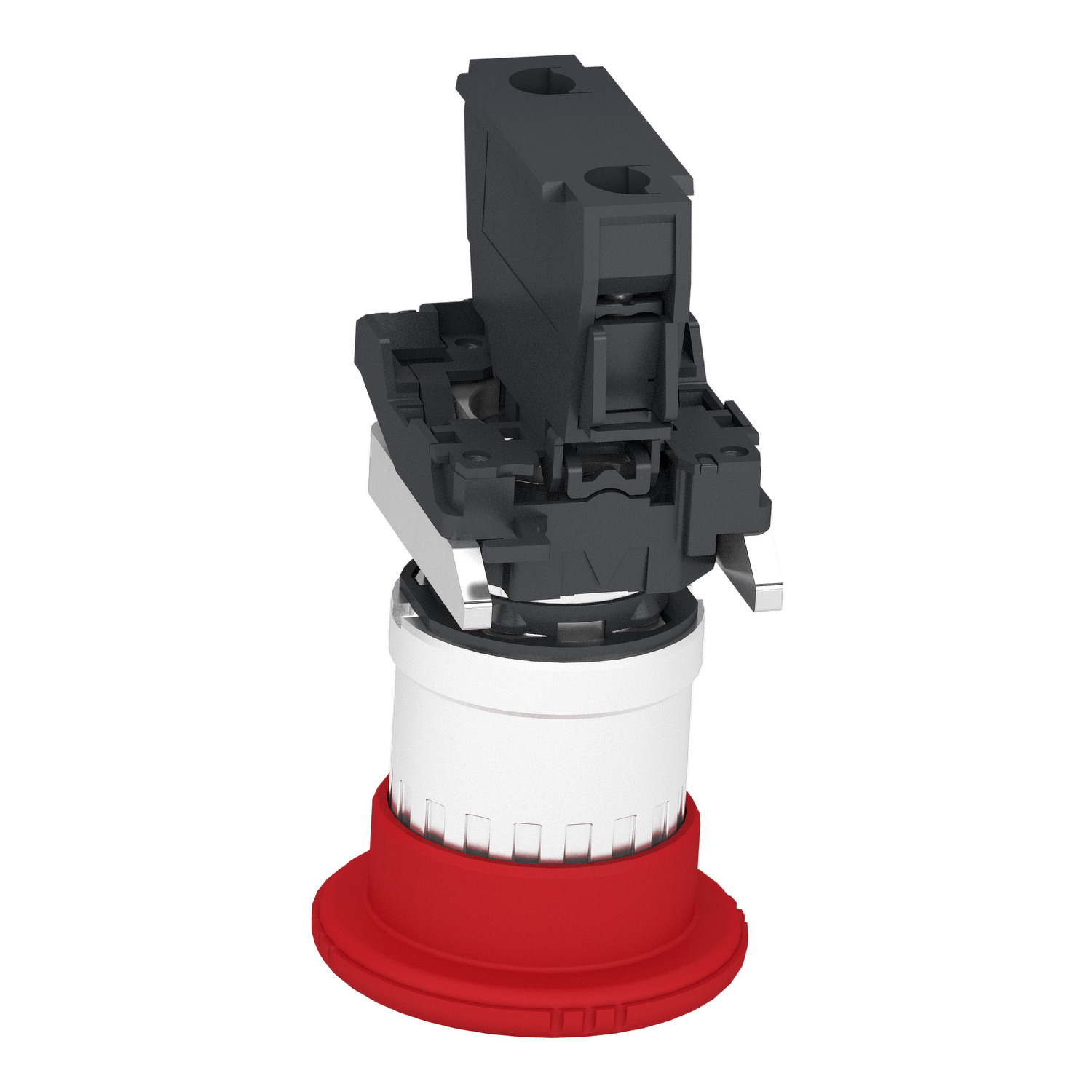

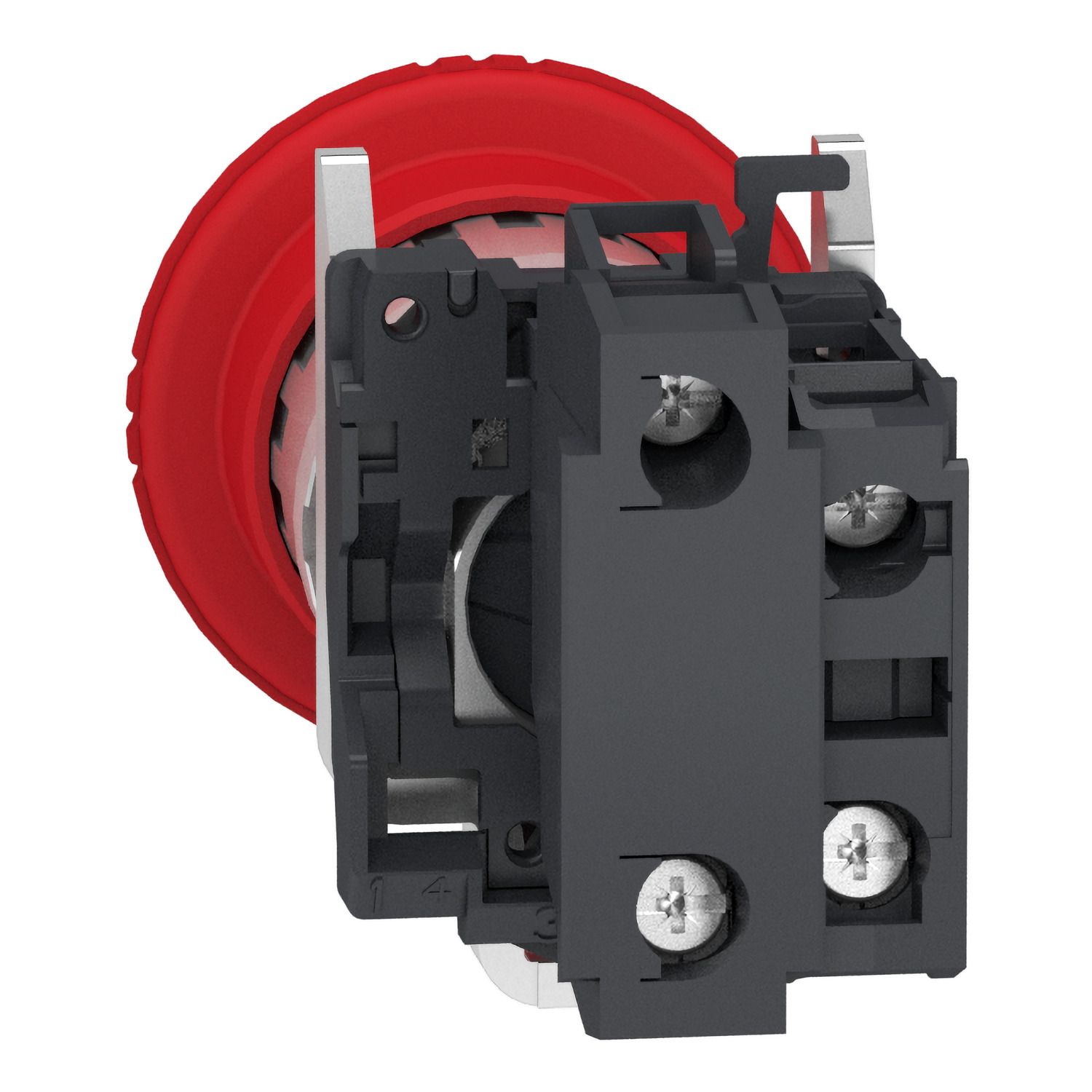

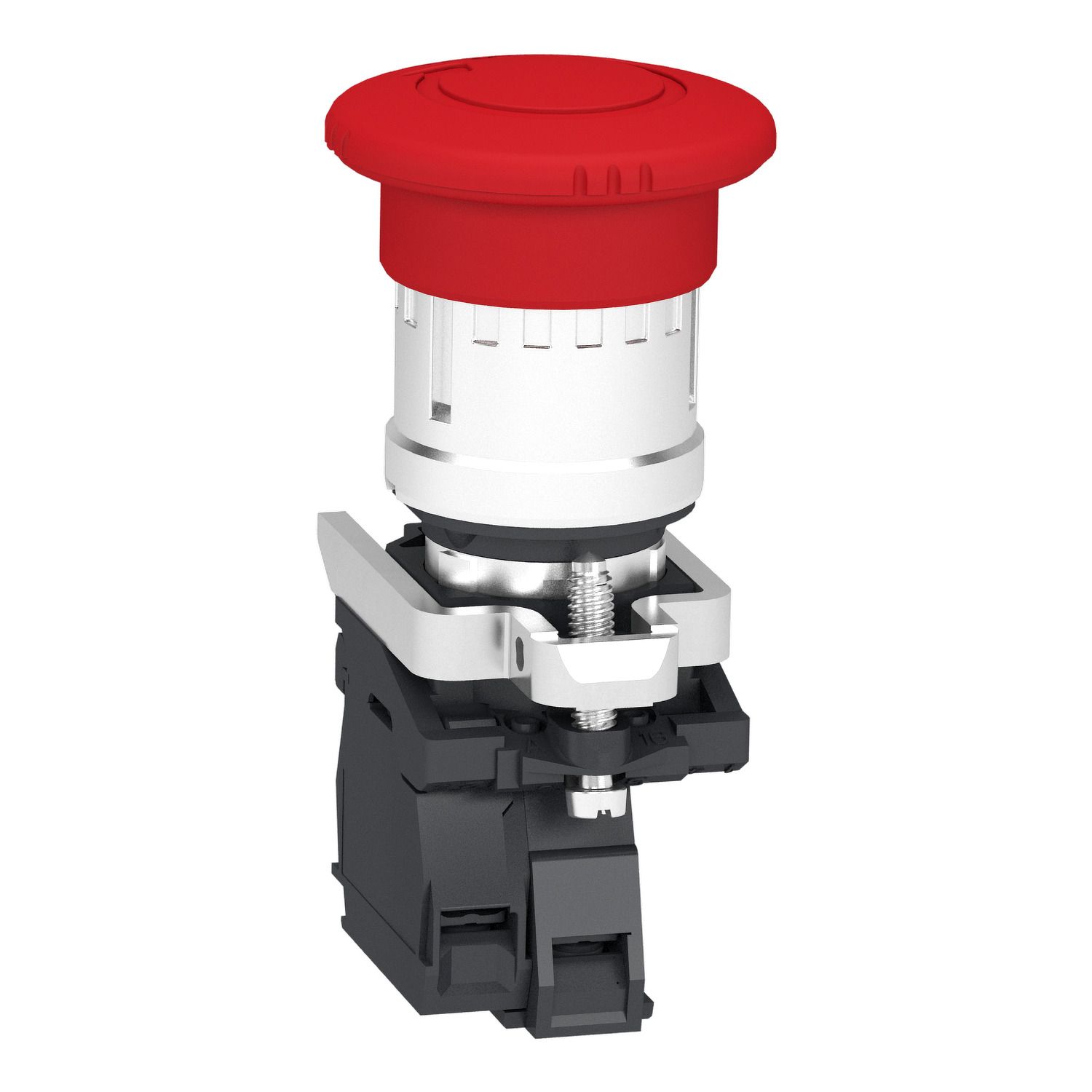

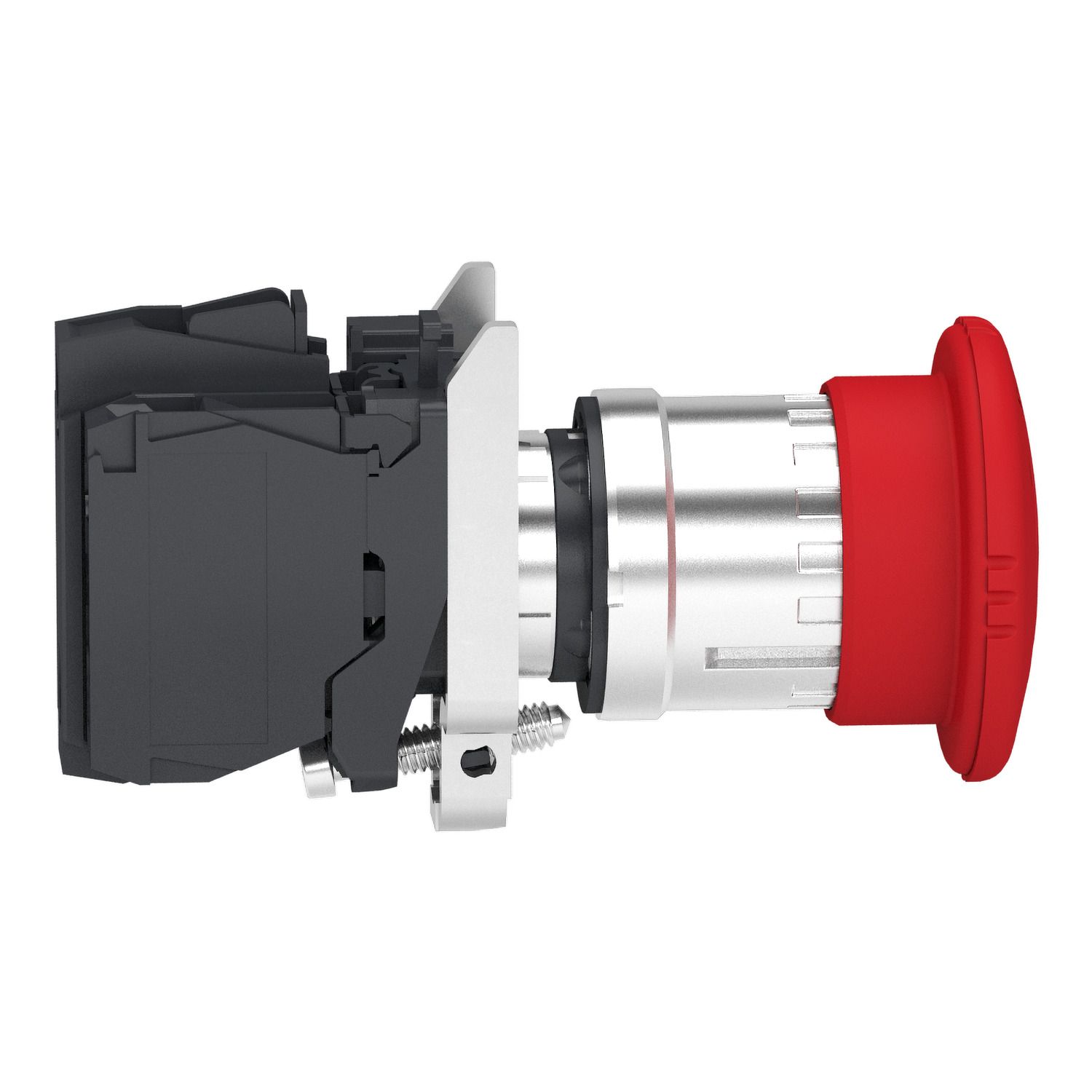

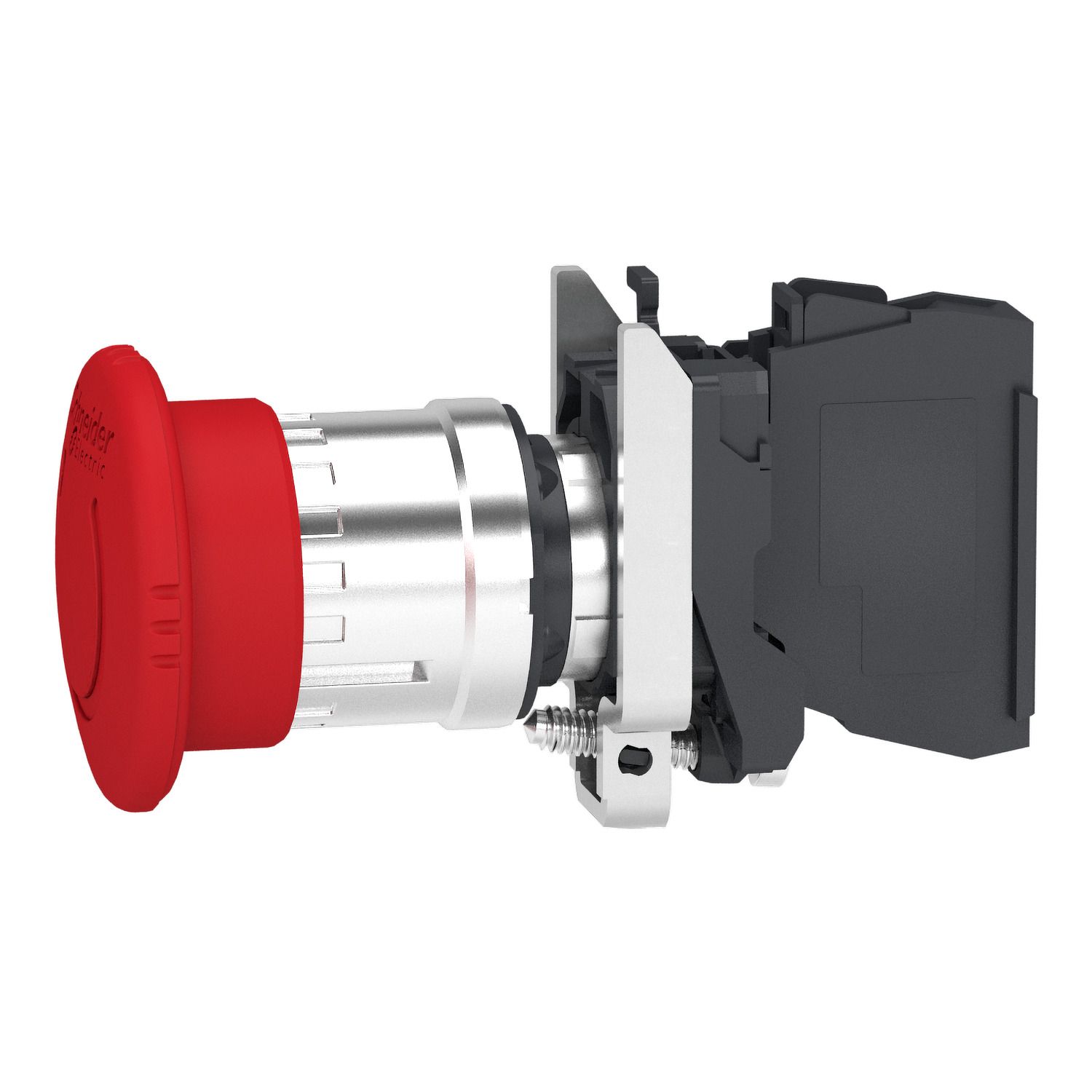

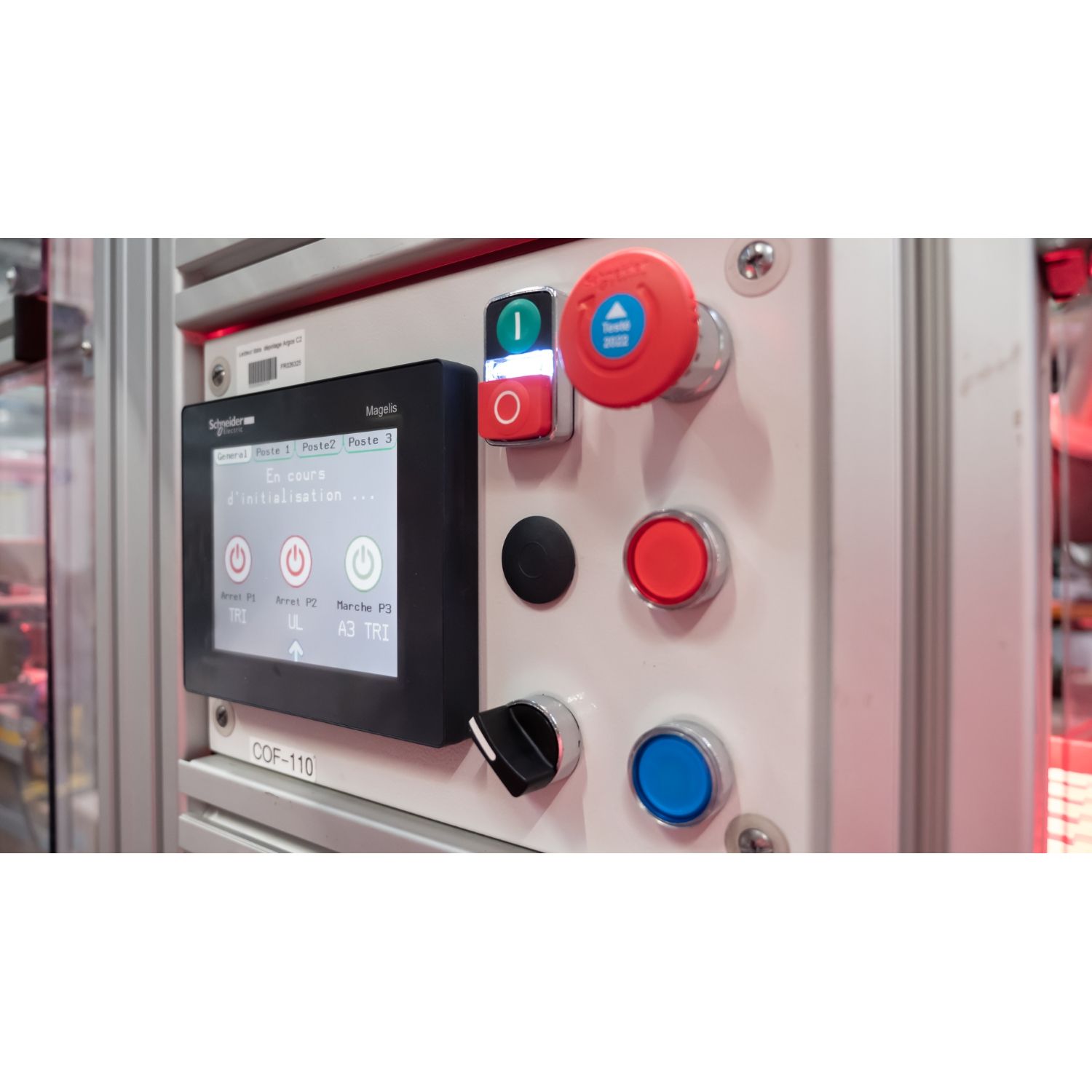

Emergency stop switching off, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring

$106.12
Available for Shipping : 30-Oct-2024
Product Selector
Emergency stop switching off, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Declaration of conformity
Product environmental
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet

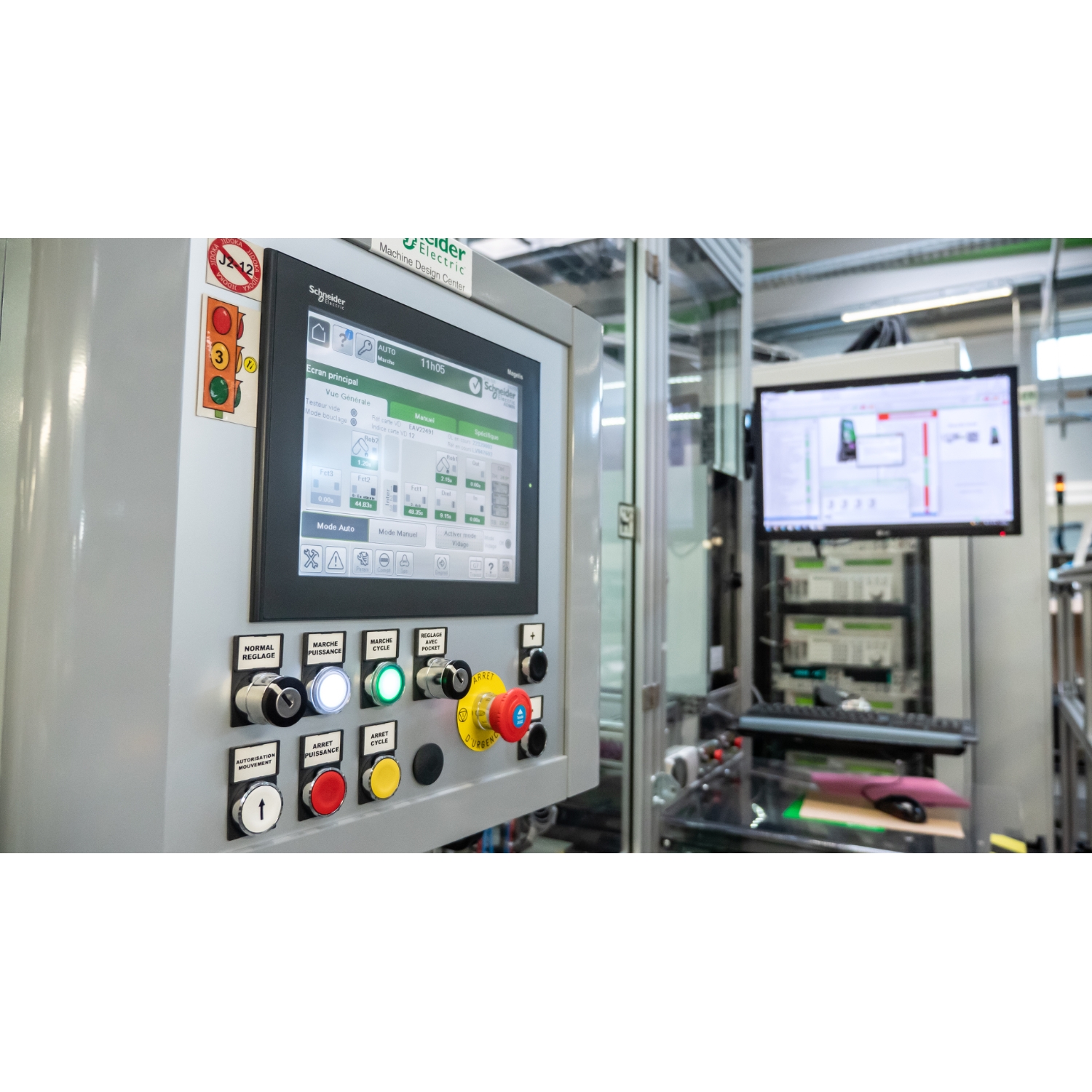

This product is part of the Harmony XB4 range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC and 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a chromium plated metal bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use.

Products specifications

Attribute name Attribute value
Main
Device short name XB4
Contact operation slow-break
Sale per indivisible quantity 1
Head type standard
Fixing collar material zamak
Type of operator trigger action and mechanical latching
Range of product Harmony XB4
Reset turn to release
Operator profile red mushroom Ø 40 mm, unmarked
Bezel material chromium plated metal
Connections - terminals screw clamp terminals, >= 1 x 0.34 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type emergency stop push-button, emergency switching off push-button
Mounting diameter 22 mm
Complementary
Device mounting fixing hole - diameter: 22.5 mm +/- 0.2 mm
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 3.4 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XB4
Mechanical durability 300000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.11 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1
Electrical durability 300000 cycles, DC-13, 1 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation complete product
Cap/operator or lens colour red
Contacts material silver alloy (AgSnO2), silver alloy (AgNi)
Operating travel 4.3 mm (total travel), 1.5 mm (NC changing electrical state)
Fixing mode by fixing collar recommended torque: 1 N.m (+/- 0.2 N.m)
Operating force 47 N
Height 47 mm
Depth 85 mm
Width 40 mm
Customizable no
[Ui] rated insulation voltage 300 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to 86/188/EEC, 4 kV conforming to IEC 60947-1
Net weight 0.126 kg
[Ith] conventional free air thermal current 6 A conforming to IEC 60947-5-1
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 6 A cartridge fuse type gG conforming to IEC 60947-5-1
Contacts usage standard contacts, monitoring contact
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 60068-2-75
Electrical shock protection class class I conforming to IEC 60536
Vibration resistance 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards GOST IEC 60947-5-1, BS EN 60947-5-1, GB/T 14048.5, JIS C8201-5-1, JIS C8201-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, ISO 13850, IEC 60364-5-53, IEC 60947-5-4, IEC 60204-1, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-1
Product certifications EAC, UKCA, CB Scheme, CCC, CE, DNV, LROS (Lloyds register of shipping), UL listed, BV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 4.0 cm
Package 1 Length 4.7 cm
Package 1 Weight 141.0 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.721 kg
