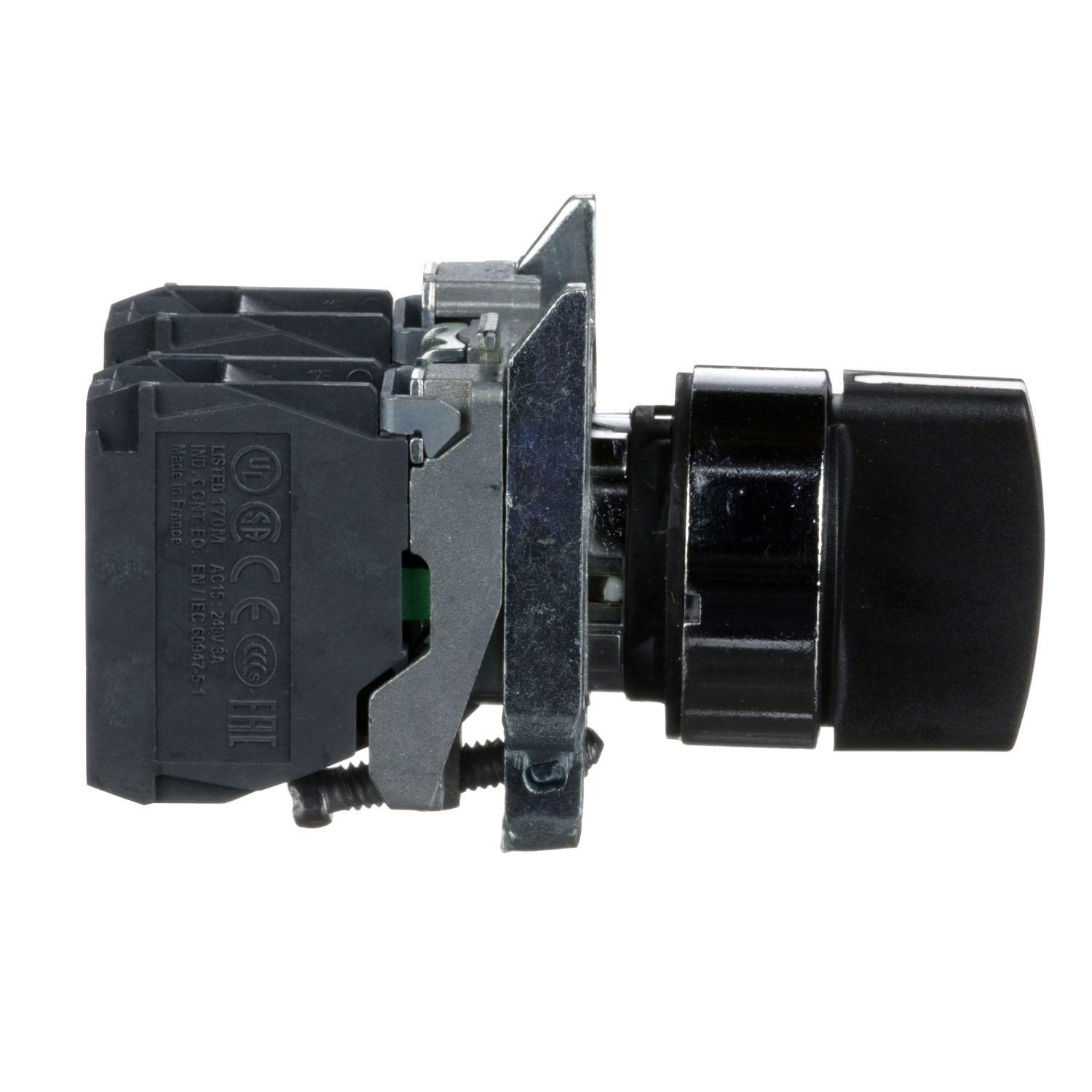

Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Picture of Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
SKU:

XB4BD33

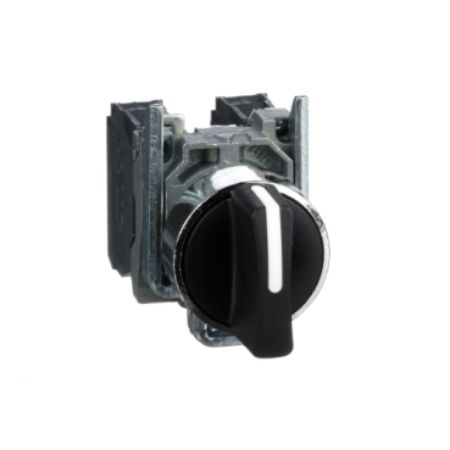

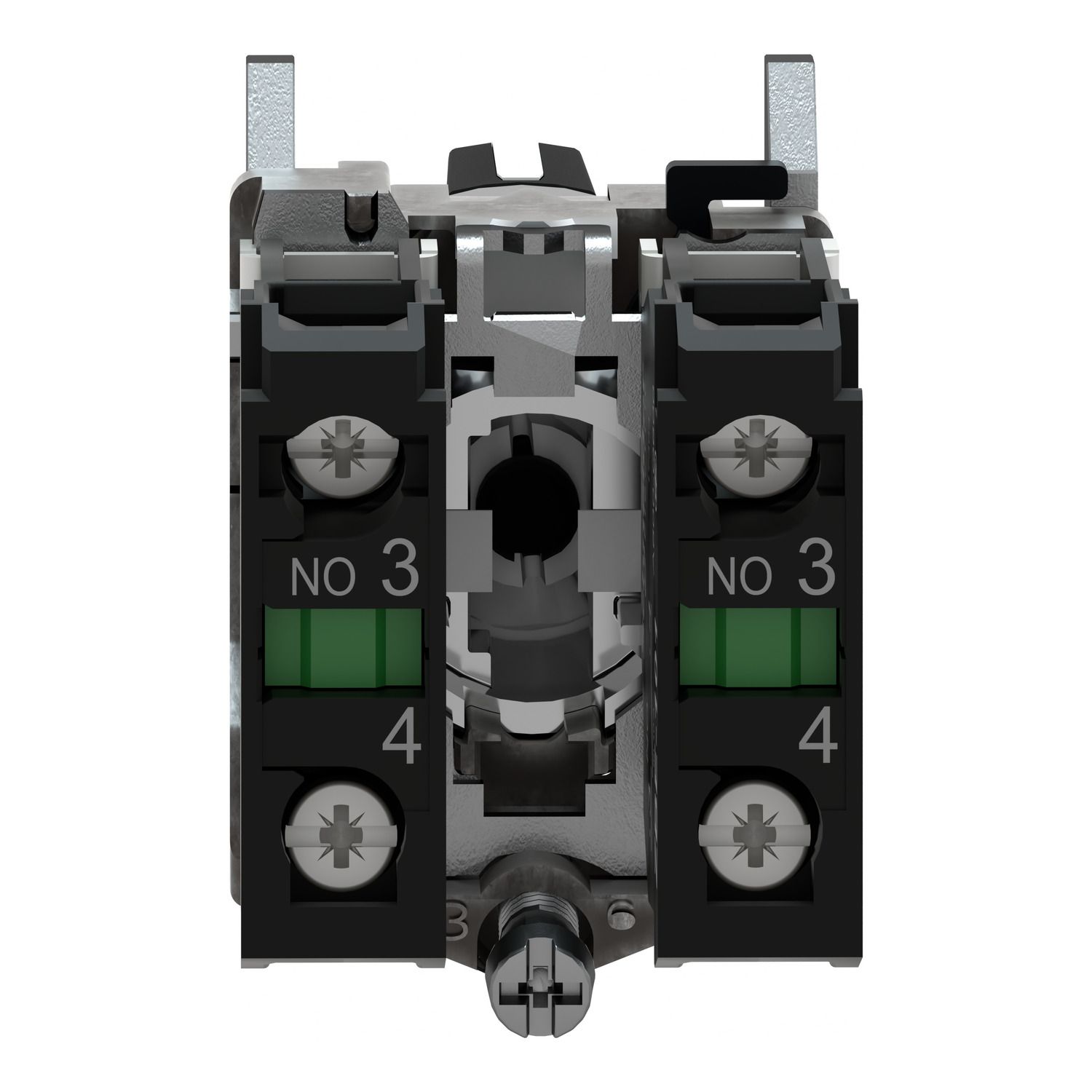

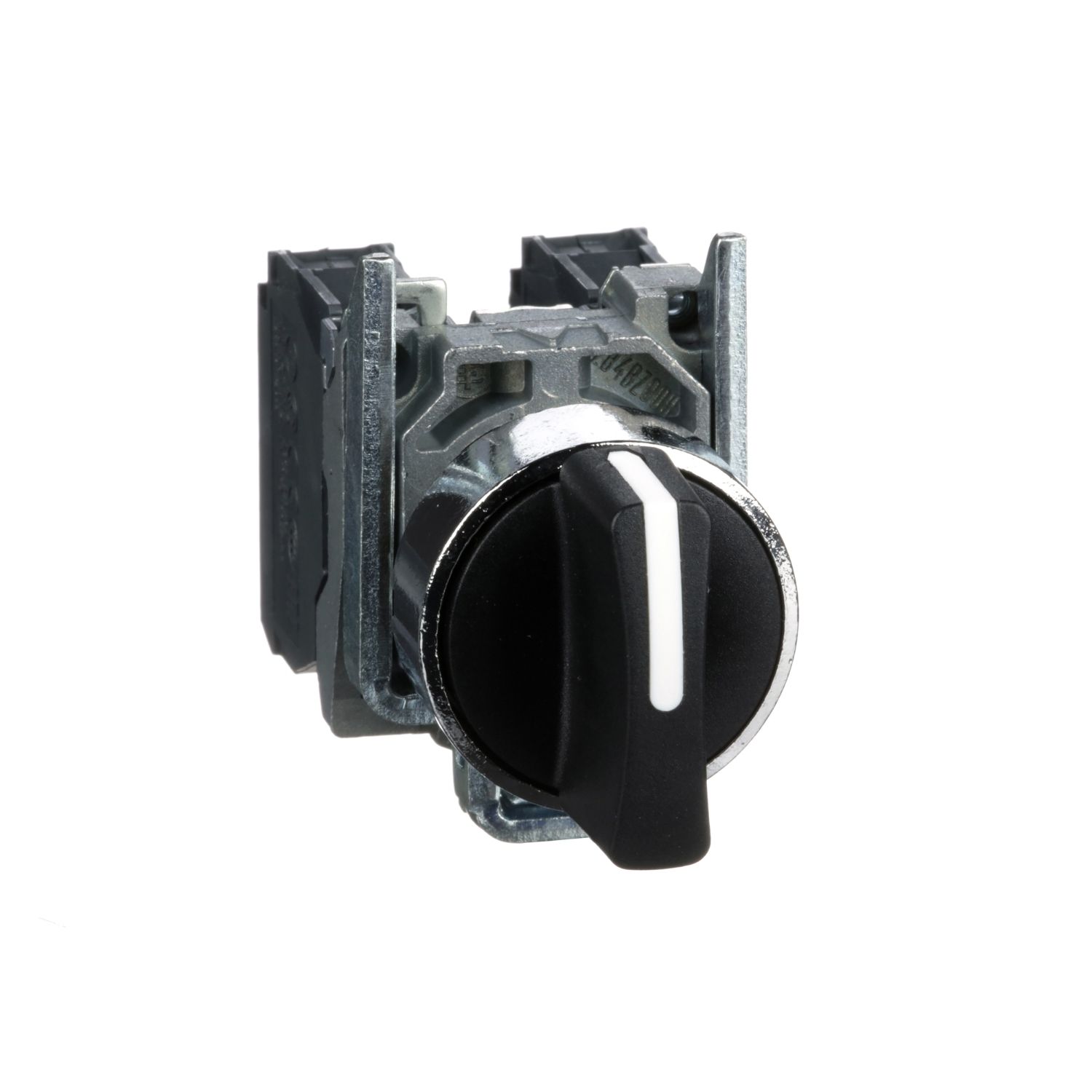

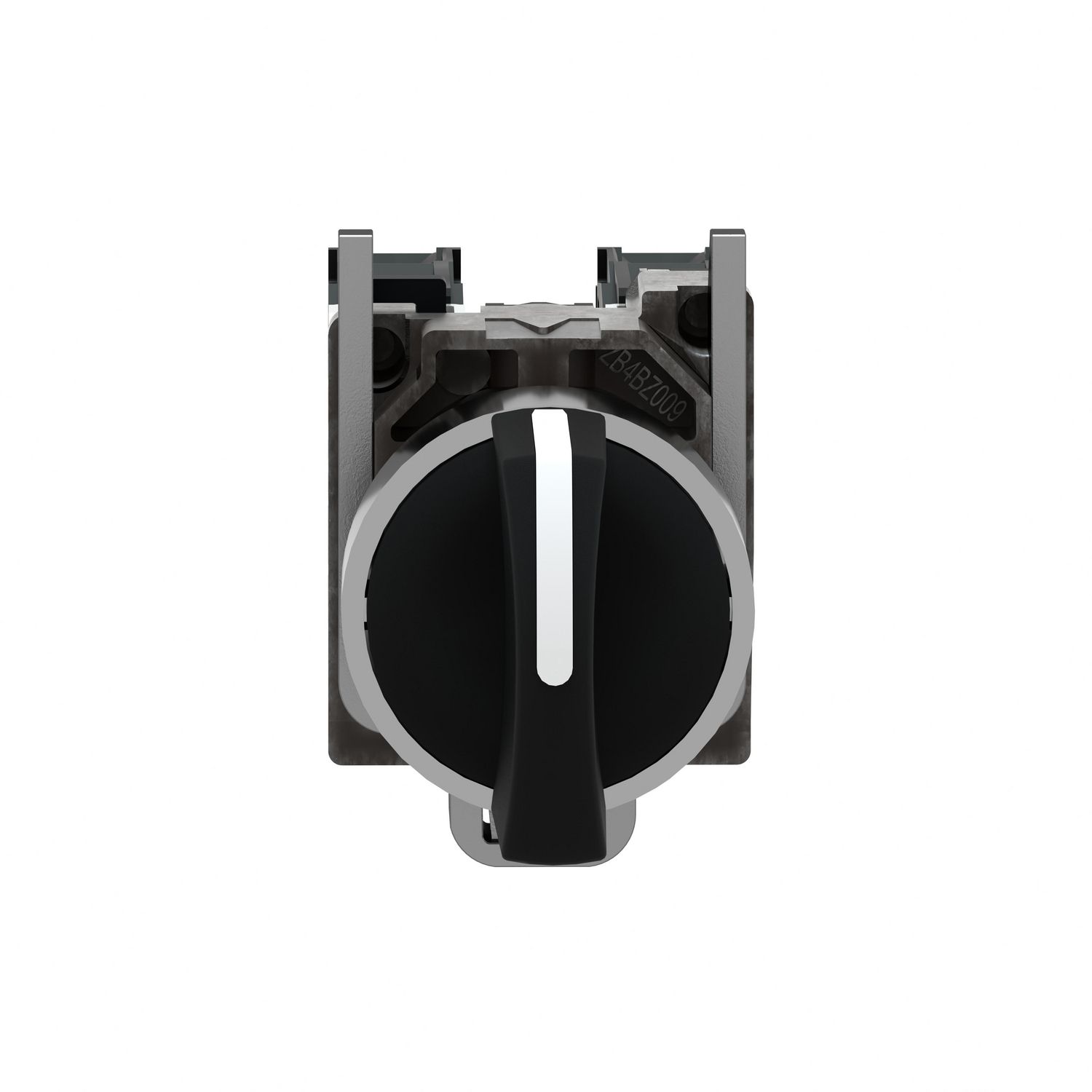

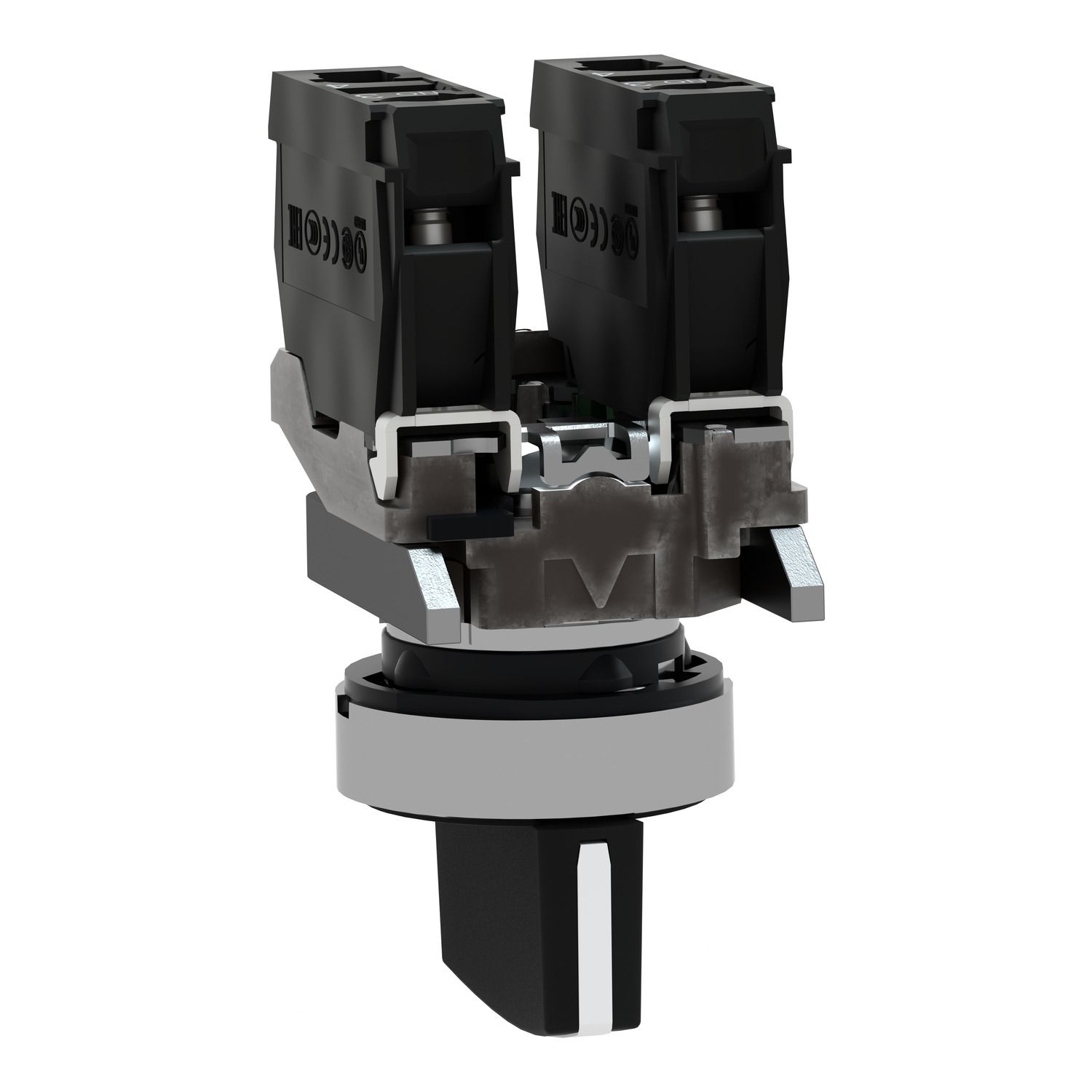

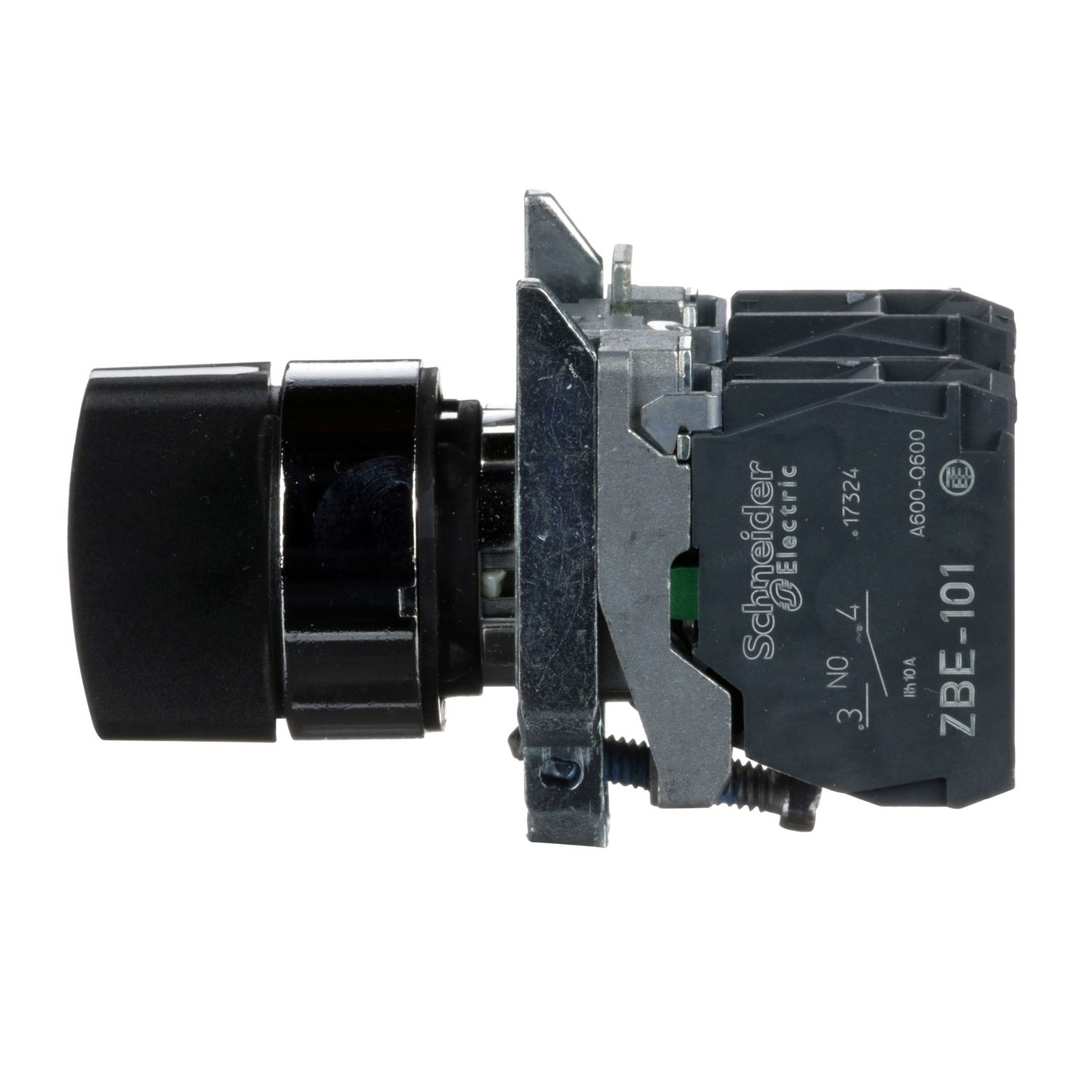

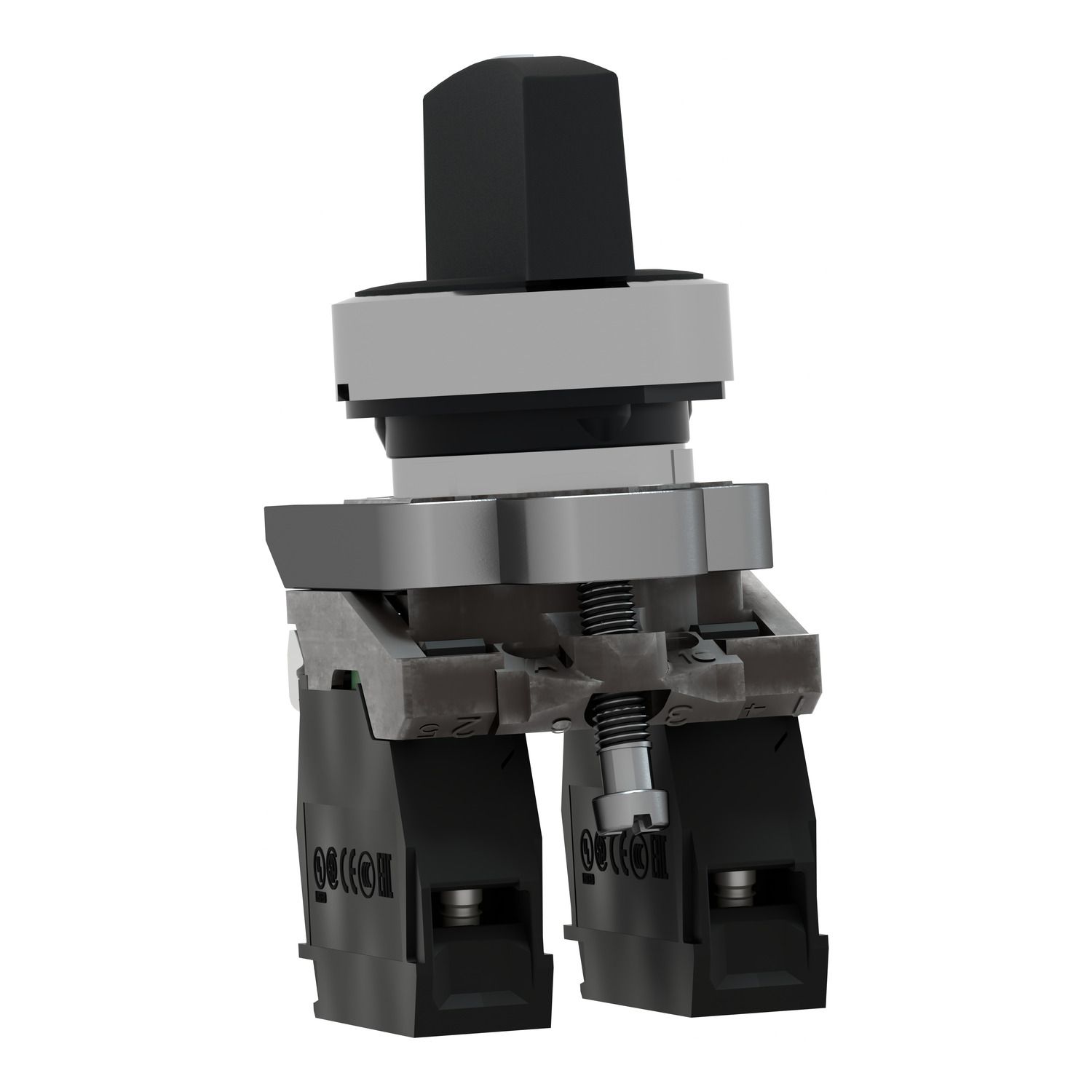

Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO

Old price: $106.15 INC GST
$82.80 INC GST
Available for Shipping : 16-Dec-2025
Product Selector
Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025

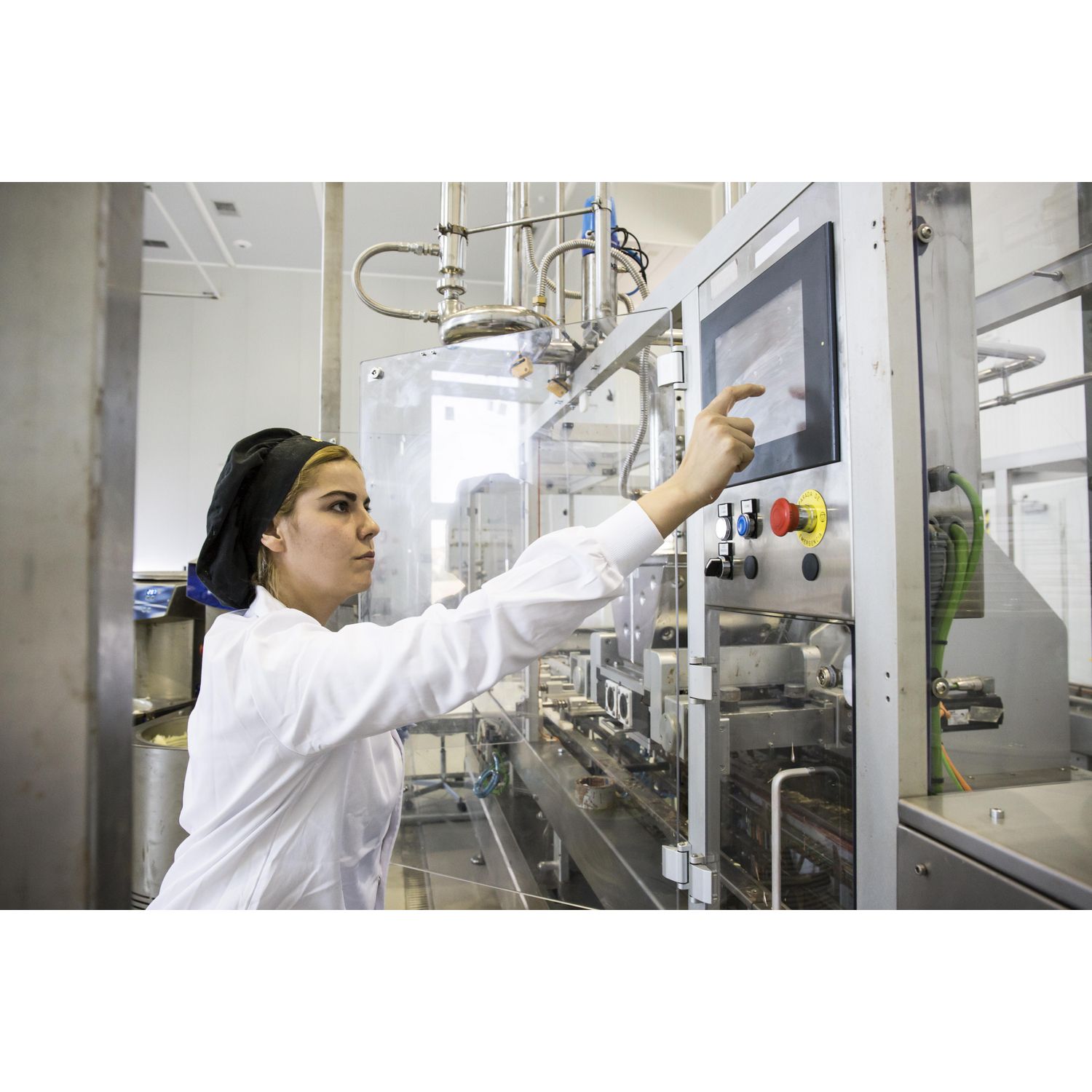

Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
Circularity Profile
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4 modular black selector switch has 3 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Contact operation slow-break
Sale per indivisible quantity 1
Fixing collar material zamak
Type of operator stay put
Operator position information 3 positions +/- 45°
Contacts type and composition 2 NO
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Device short name XB4
Head type standard
Range of product Harmony XB4
Operator profile black standard handle
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type selector switch
Mounting diameter 22 mm
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XB4
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
Device presentation complete product
Customizable 0, no
Cap/operator or lens colour black
Height 47 mm
[Us] rated supply voltage 600 V
Torque value 0.14 N.m NO changing electrical state
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.105 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Mechanical durability 1000000 cycles
Contacts material silver alloy (Ag/Ni)
Depth 68 mm
Width 30 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO, (23-24)NO
Contacts usage standard contacts
Environment
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 4X, NEMA 13
Product certifications DNV, BV, CSA, LROS (Lloyds register of shipping), UL, GL
Protective treatment TH
IP degree of protection IP67 conforming to IEC 60529, IP69K, IP69
Ambient air temperature for operation -40-70 °C
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-5, IEC 60947-5-1, UL 508, IEC 60947-5-4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 5.400 cm
Package 1 Length 9.000 cm
Package 1 Weight 104.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 8.800 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 520.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 10.888 kg
Unit Type of Package 4 4
Number of Units in Package 4 800
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 97.404 kg
