SKU:

XALD222

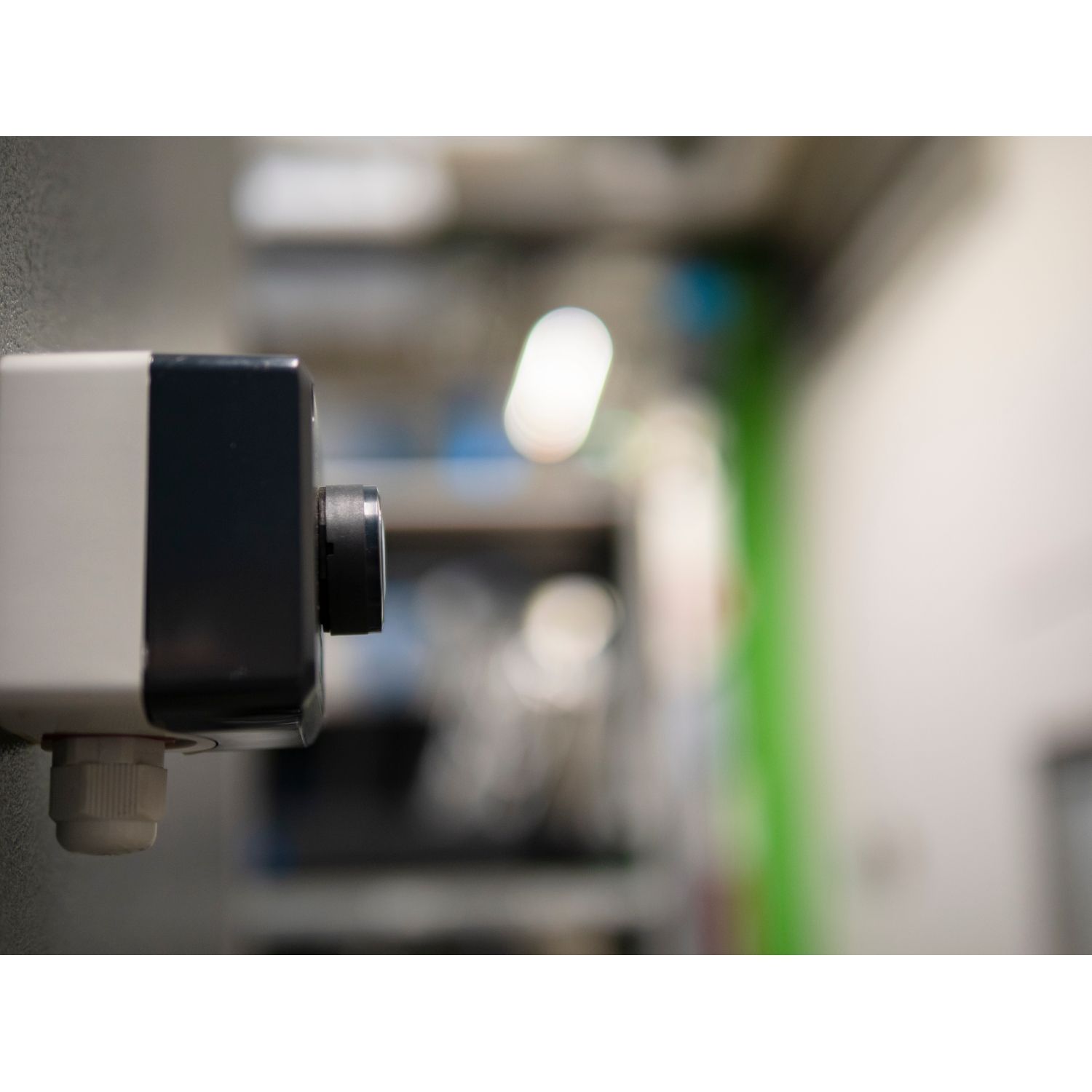

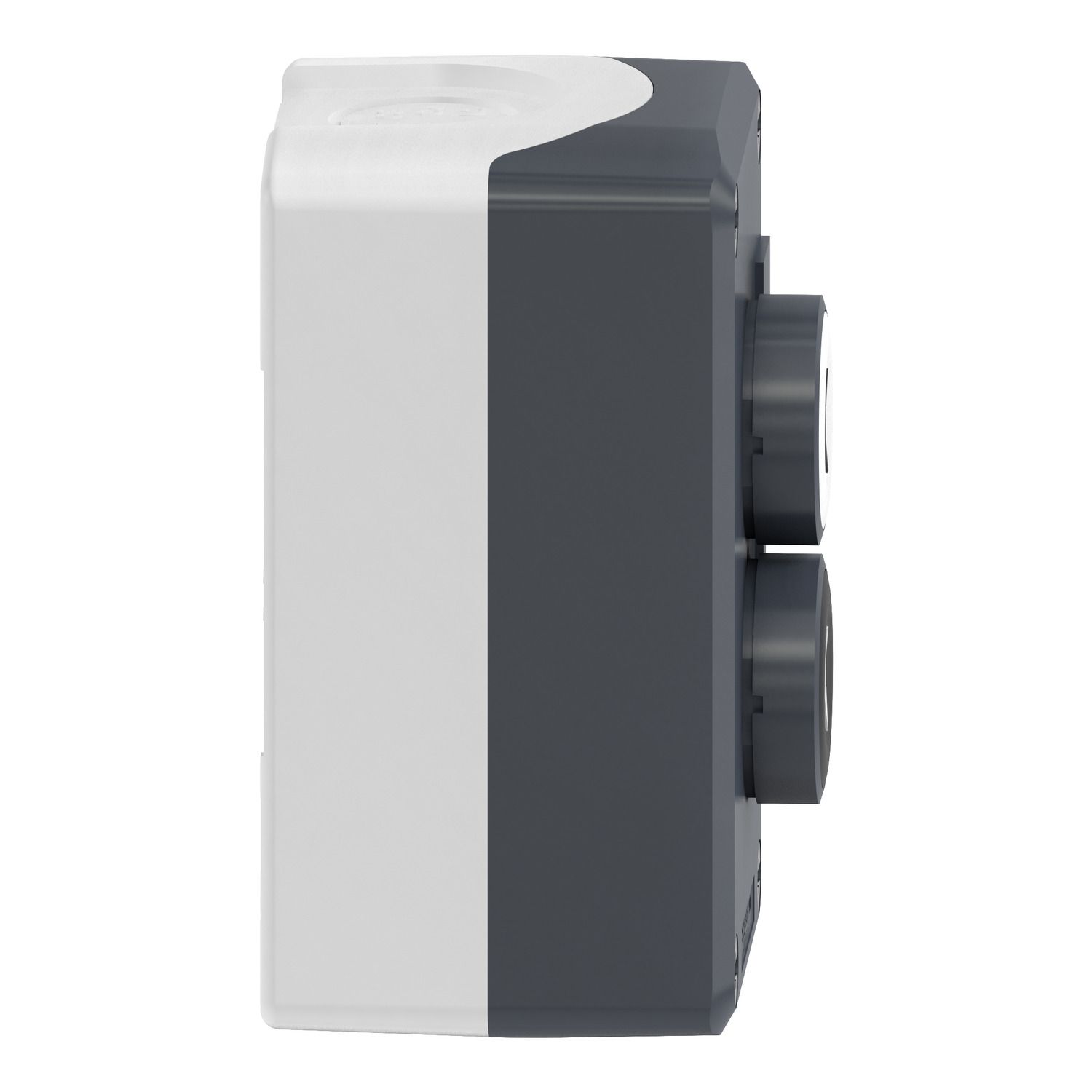

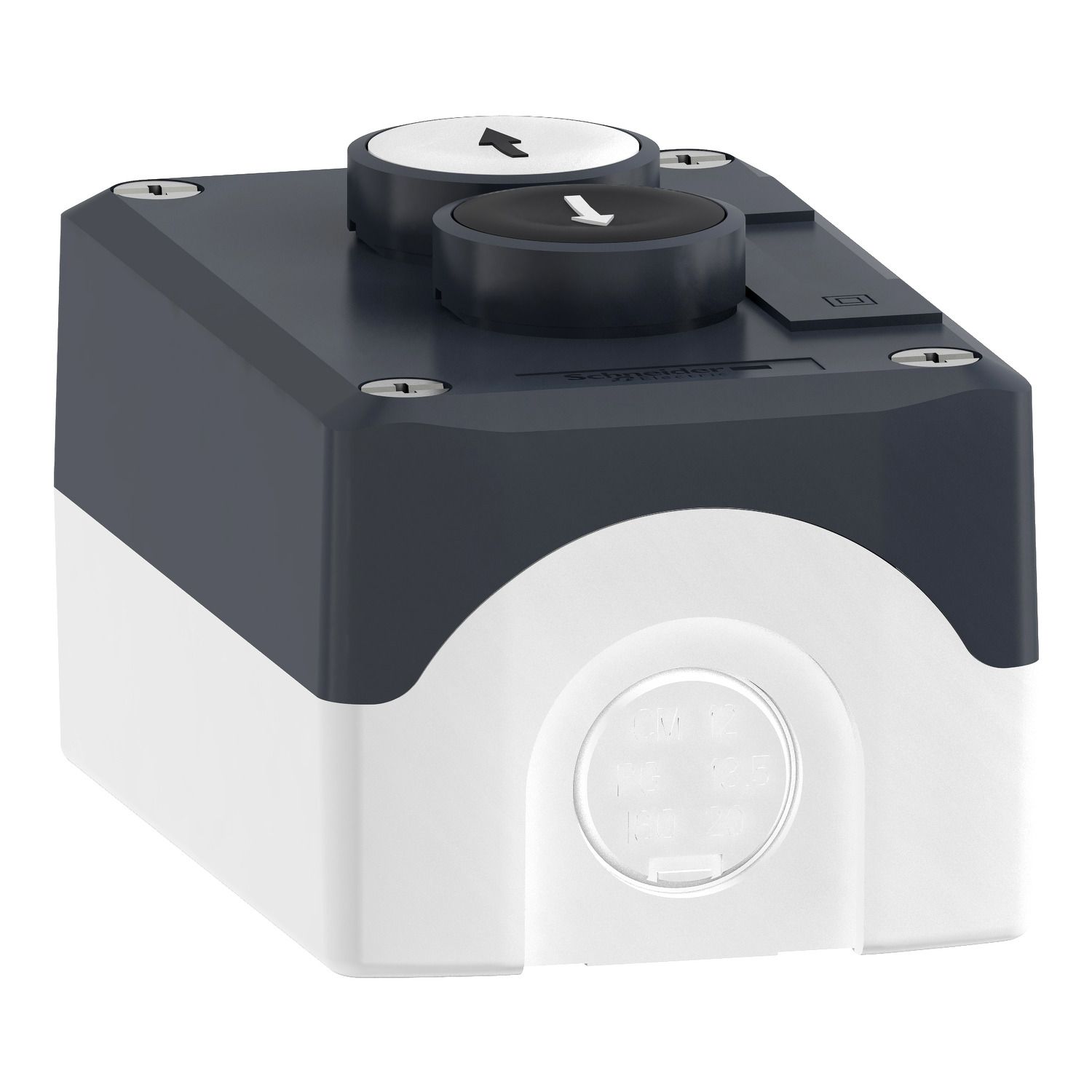

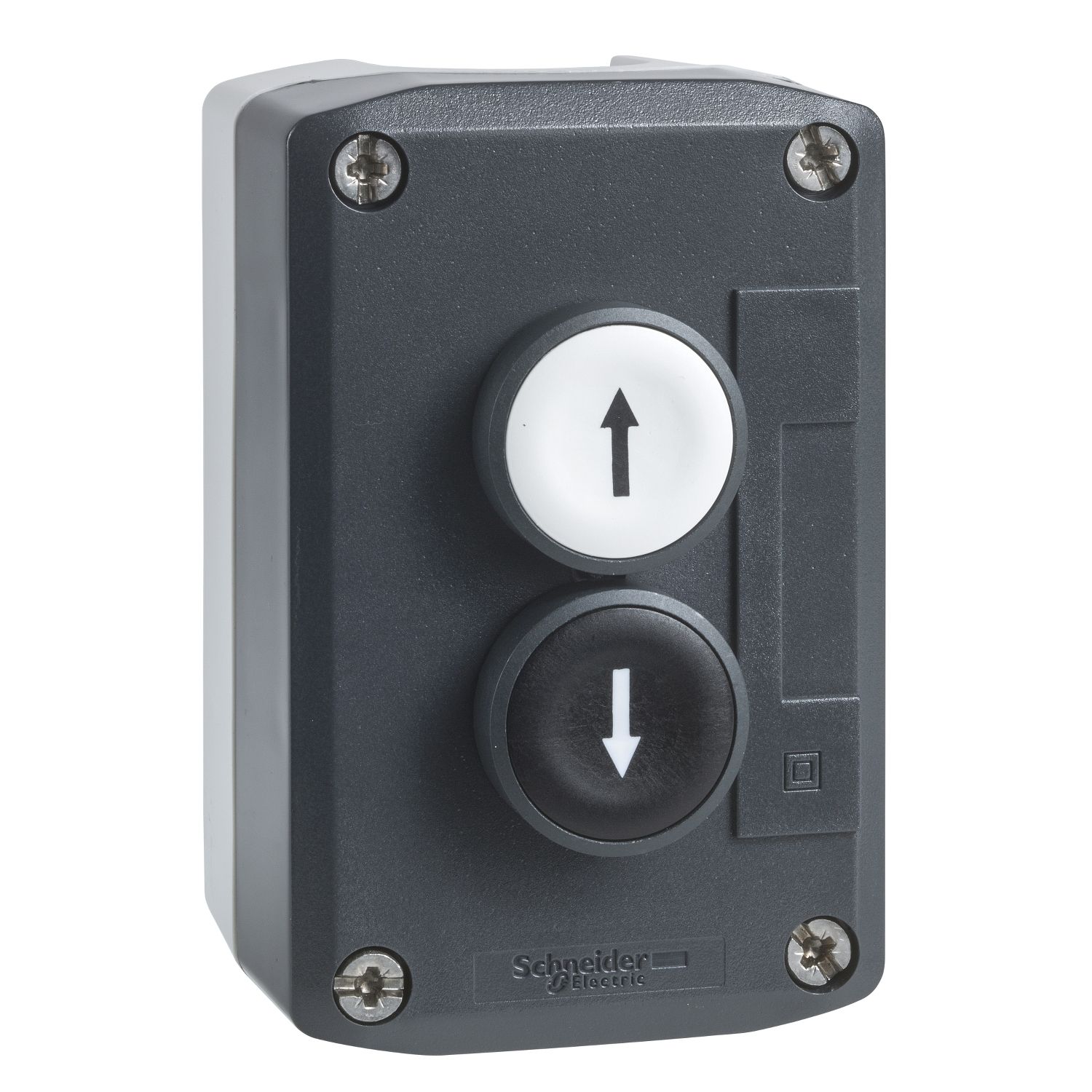

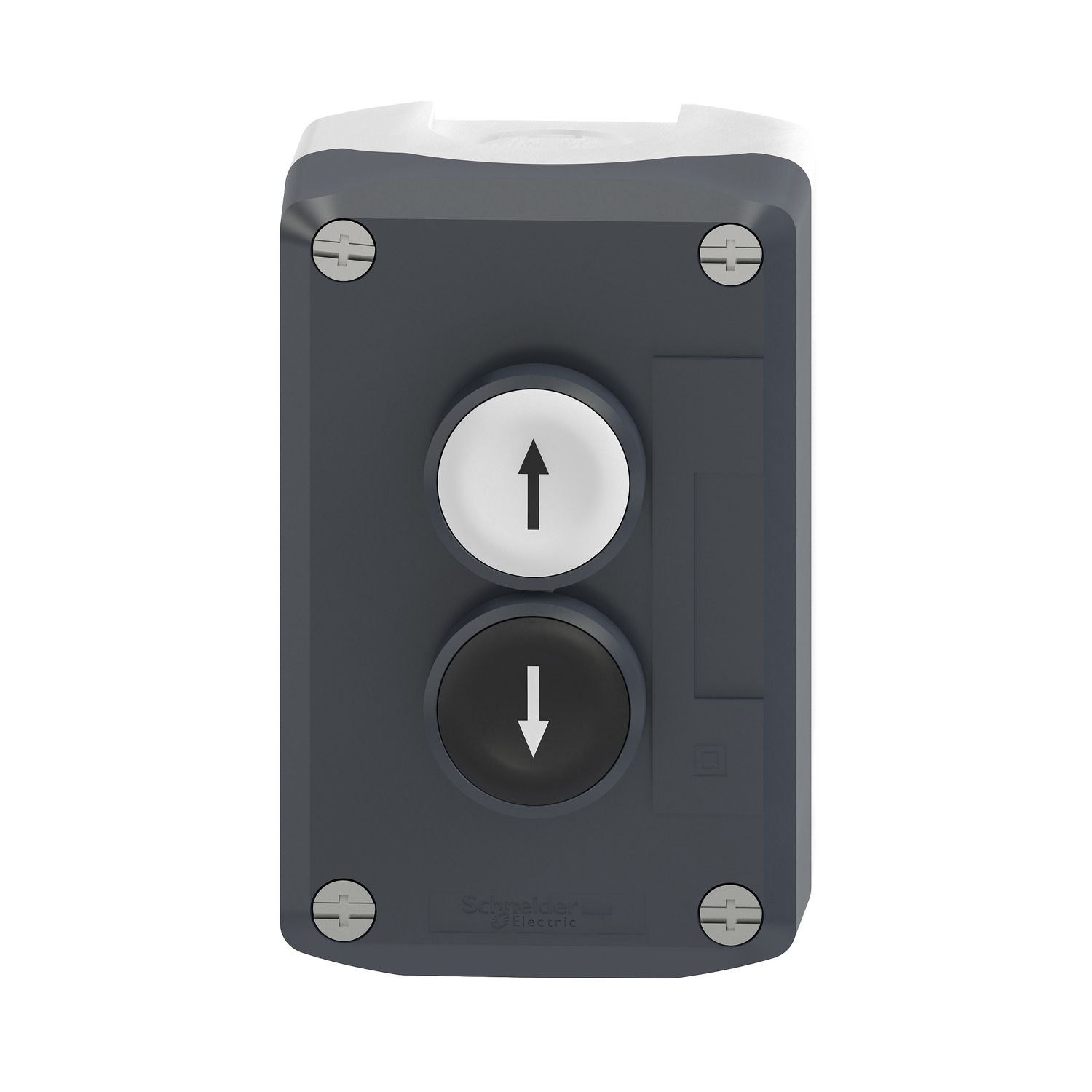

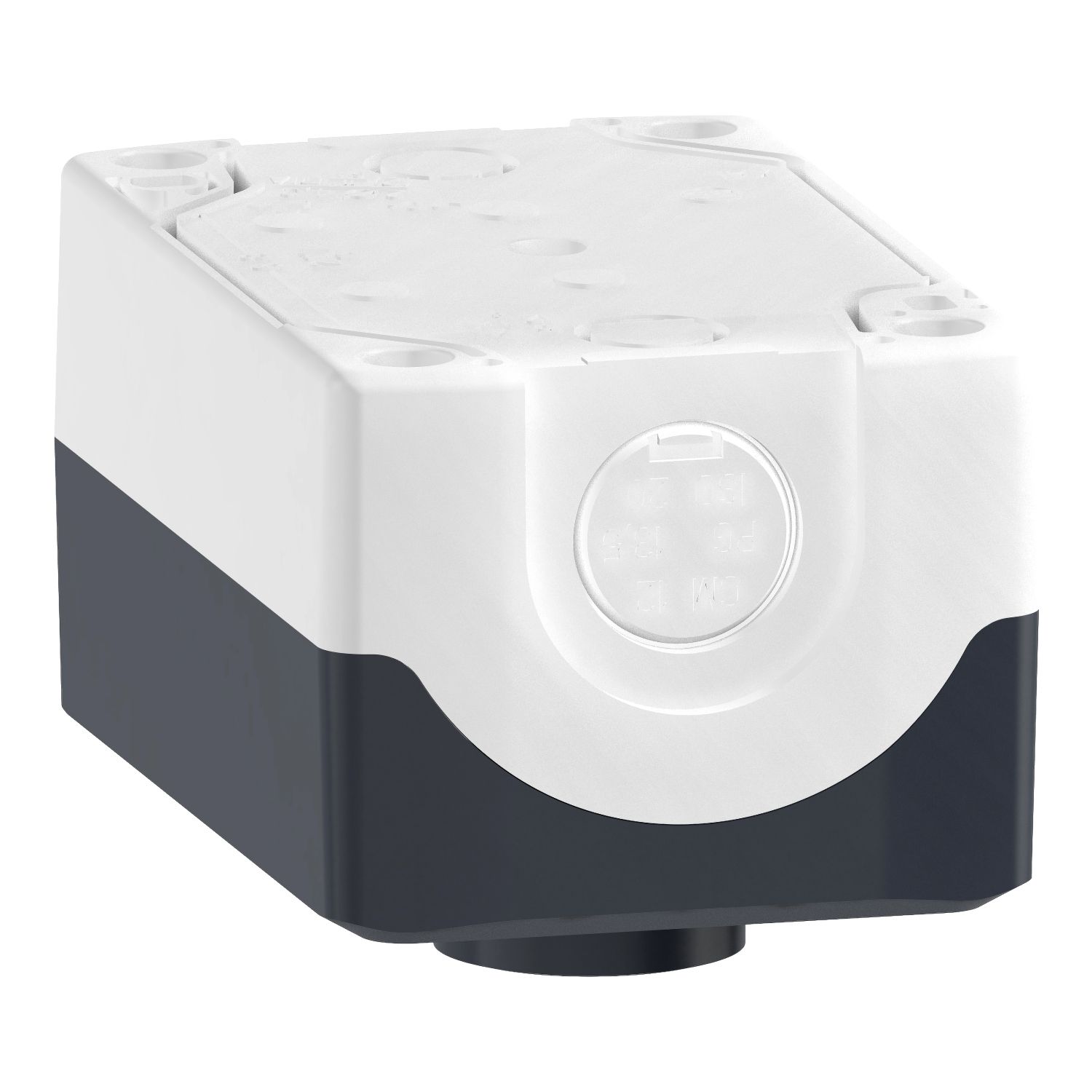

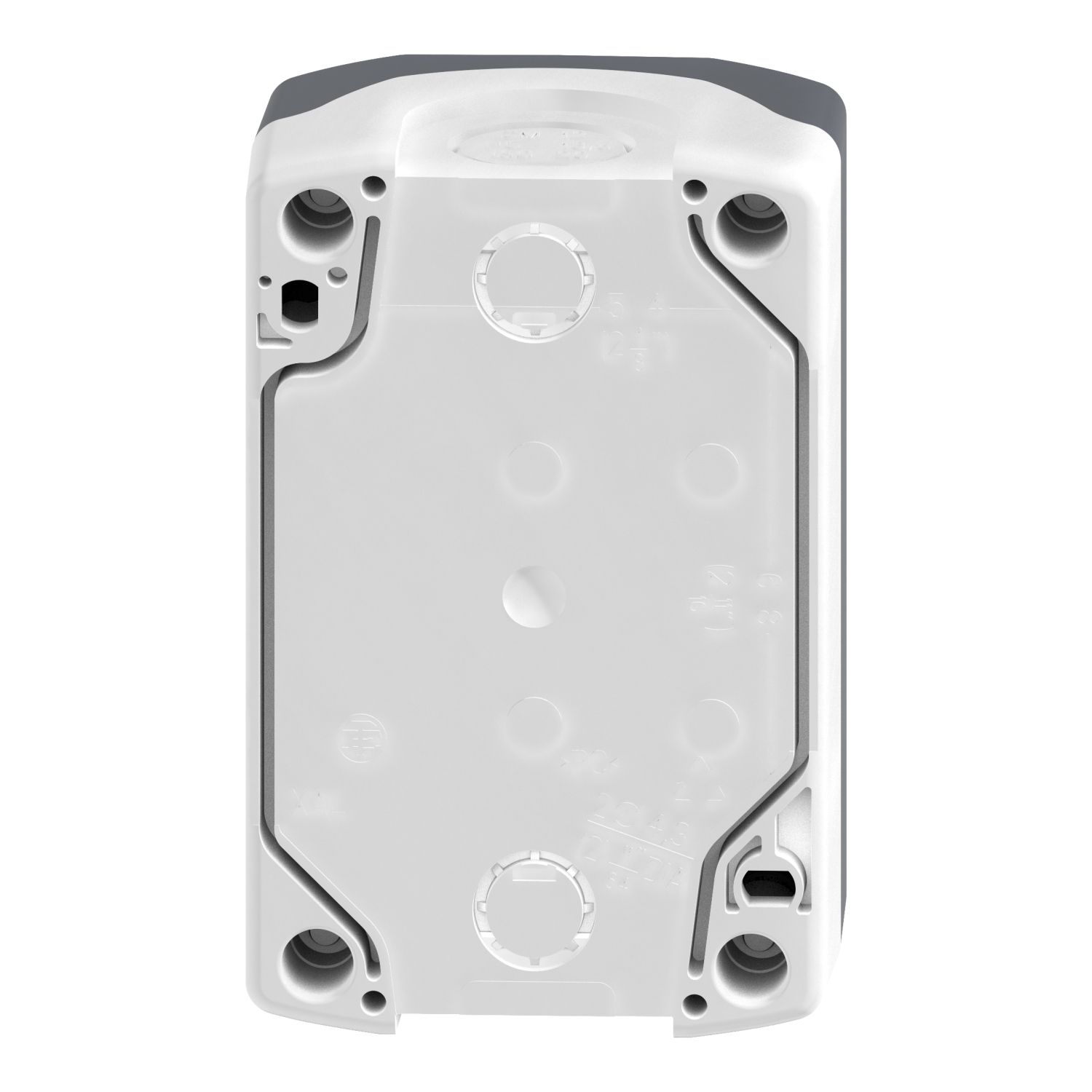

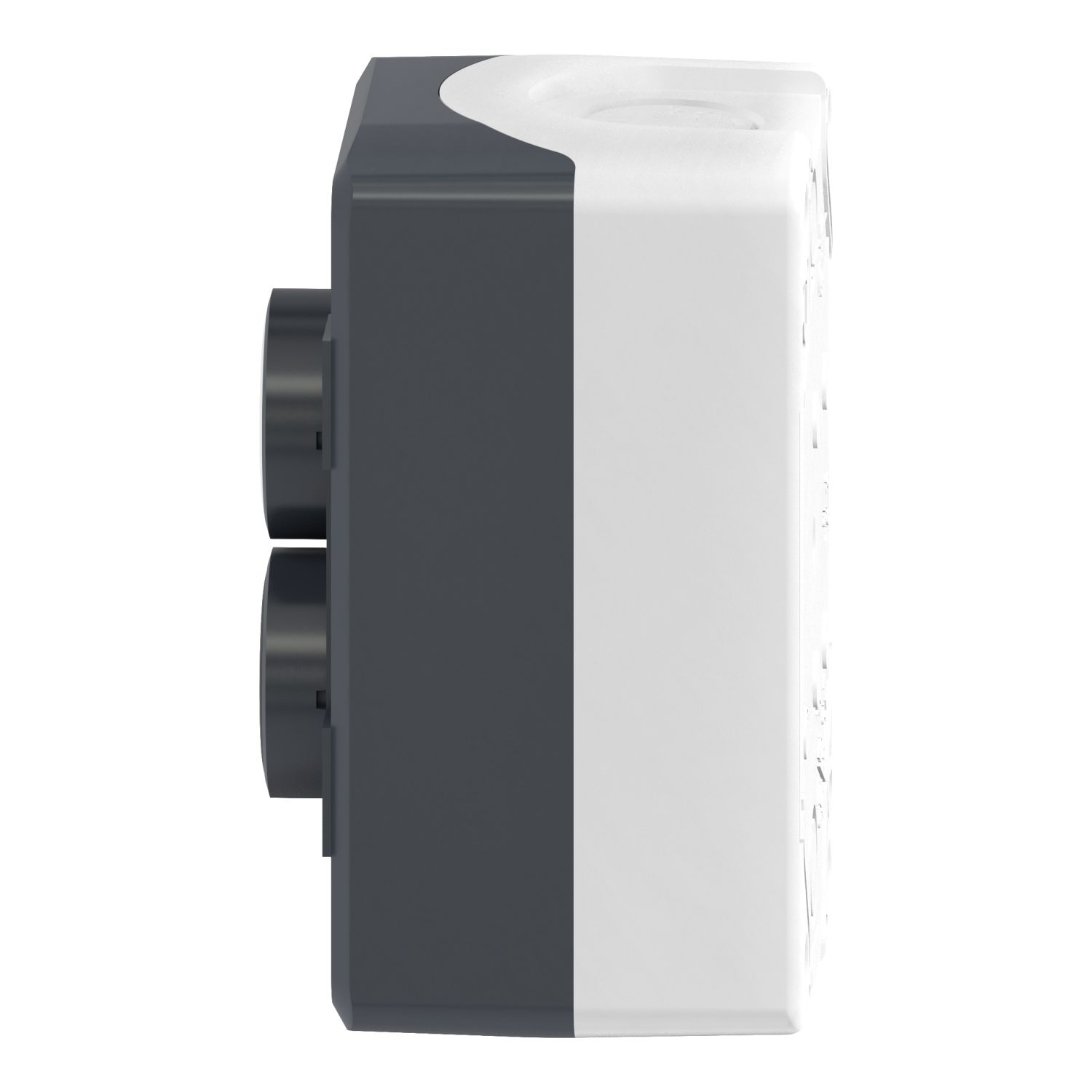

Control station, Harmony XALD, XALK, plastic, dark grey lid, 2 flush push buttons 22mm, marked UP ARROW DOWN ARROW, 2NO

Old price: $174.24 INC GST
$135.91 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Control station, Harmony XALD, XALK, plastic, dark grey lid, 2 flush push buttons 22mm, marked UP ARROW DOWN ARROW, 2NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
Image of product in real life situation
Catalog
Instruction sheet

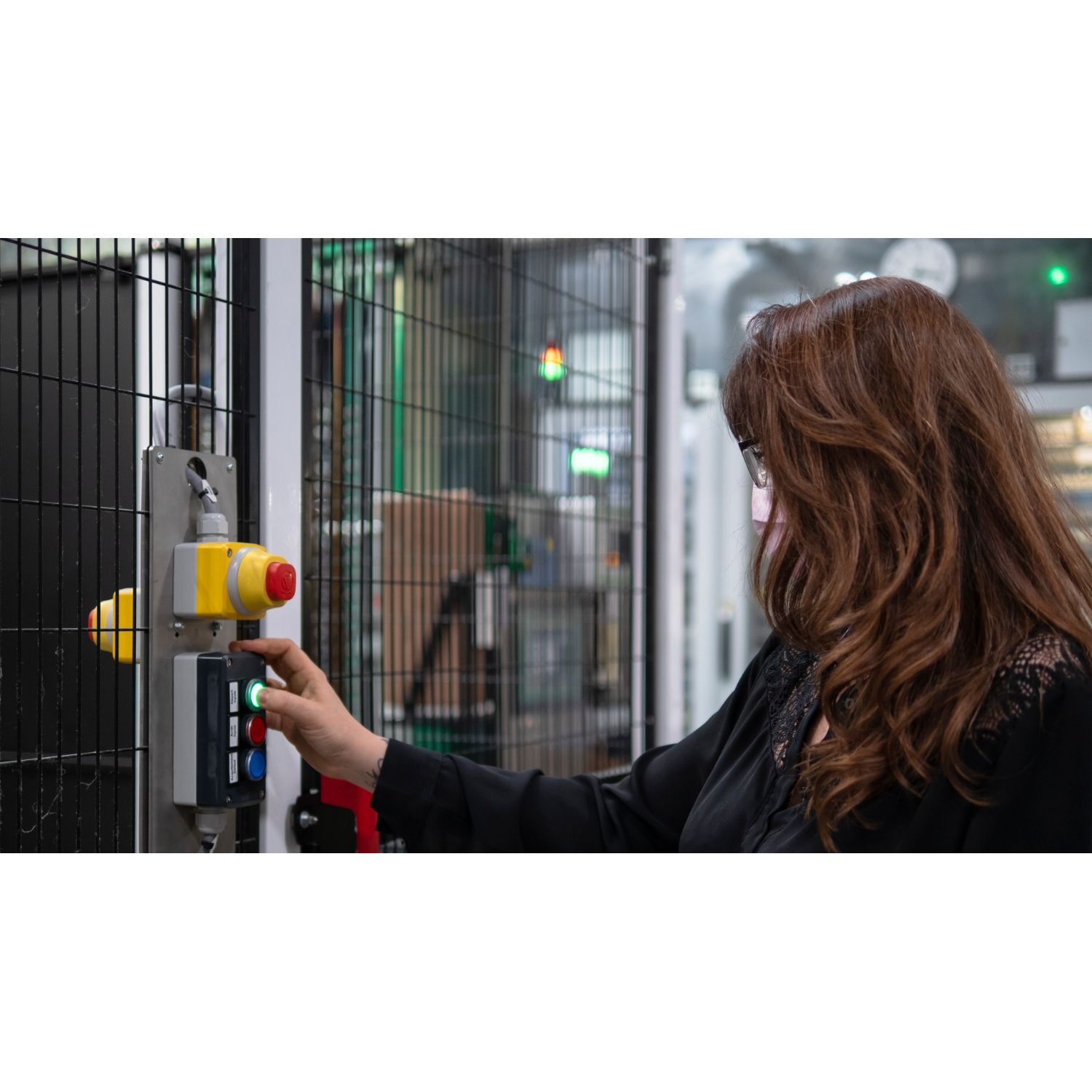

Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XALD dark grey control station is ideal to control simple hoists. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It is also resistant to chemicals and offers double insulation.

Products specifications

Attribute name Attribute value
Main
Device short name XALD
Contact operation slow-break
Colour of cover dark grey (RAL 7016)
Operators description white ''up arrow'' 1 NO - black ''down arrow'' 1 NO
Control station composition 1 flush push-button, white 1 NO, black up arrow marking, 1 flush push-button, black 1 NO, white down arrow marking
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALD
Control station application two functions
Operator profile 2 flush push-buttons
Marking location marking on push-button
Material polycarbonate
Product or component type complete control station
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA conforming to IEC 60947-5-4
Compatibility code XALD
Mechanical durability 10000000 cycles
[Ie] rated operational current 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Operating force 3.8 N NO changing electrical state
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.233 kg
Colour of marking black marking when white caps, white marking when green, red or black caps
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 2 knock-outs for cable entry, clamping capacity: 14-14 mm
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 62262
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-5, UL 508, IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 9.8 cm
Package 1 Length 11.0 cm
Package 1 Weight 224.0 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.085 kg
