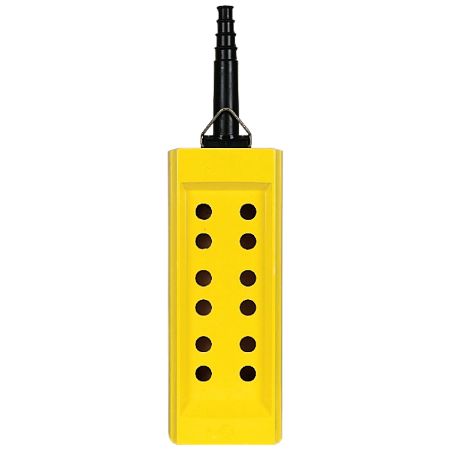

Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Picture of Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
SKU:

XACB12

Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm

Old price: $493.90 INC GST
$385.24 INC GST
Available for Shipping : 08-Jan-2026
Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs,for cable 10…22mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Jan-2026
Instruction sheet
Declaration of conformity
Catalog
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XACB12 is an empty pendant control station with 12 openings in 2 columns. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Device short name XACB
Range of product Harmony XAC
Product or component type pendant control station
Complementary
Protective treatment TH
Electrical circuit type control circuit, power circuit
Mechanical durability 1000000 cycles
Control station colour yellow
Ambient air temperature for storage -40-70 °C
Number of cut-out 12 cut-outs in 2 rows
Control station type double insulated
Vertical operator cut-out centre 40 mm
IP degree of protection IP65 conforming to IEC 60529
Enclosure type empty enclosure
Shock resistance 100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Guard rail without
IK degree of protection IK08 conforming to IEC 62262
Enclosure material glass reinforced polyester
Overvoltage category class II conforming to IEC 61140
Net weight 1.46 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Cable entry rubber sleeve with stepped entry 10-22 mm
Standards IEC 60947-5-1, CSA C22.2 No 14
Product certifications CSA type 4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.800 cm
Package 1 Width 16.200 cm
Package 1 Length 66.000 cm
Package 1 Weight 1.532 kg
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 36.850 kg
