SKU:

XACA9415

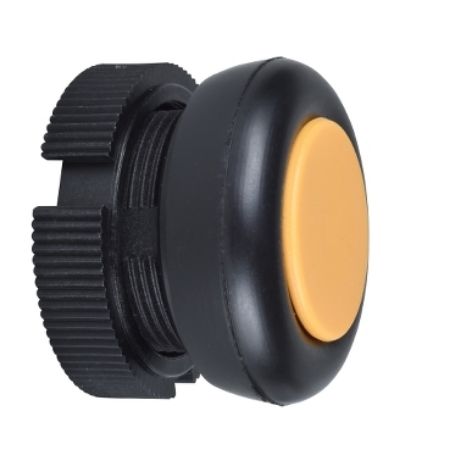

Head for push button, Harmony XAC, plastic, yellow, booted, spring return

Old price: $19.47 INC GST
$15.19 INC GST
Available for Shipping : 15-Dec-2025
Head for push button, Harmony XAC, plastic, yellow, booted, spring return
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This yellow booted operating head is a separate component for double insulated, XACA pendant control station. It is designed for front mounting. It is sold in lot of 10.

Products specifications

Attribute name Attribute value
Main
Range of product Harmony XAC
Component name XACA
Product or component type head for push-button
Complementary
Product compatibility XACA..
Ambient air temperature for storage -40-70 °C
Sale per indivisible quantity 10
IP degree of protection IP65 conforming to IEC 60529
Cap/operator or lens colour yellow
Marking unmarked
Shock resistance 100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
IK degree of protection IK08 conforming to IEC 62262
Overvoltage category class II conforming to IEC 61140
Mounting location front of enclosure
Net weight 0.01 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards CSA C22.2 No 14, IEC 60204-32, UL 508, IEC 60947-5-1
Operator additional information booted
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 3.000 cm
Package 1 Length 3.000 cm
Package 1 Weight 0.900 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4.000 cm
Package 2 Width 9.000 cm
Package 2 Length 10.000 cm
Package 2 Weight 96.000 g
Unit Type of Package 3 3
Number of Units in Package 3 250
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.753 kg
