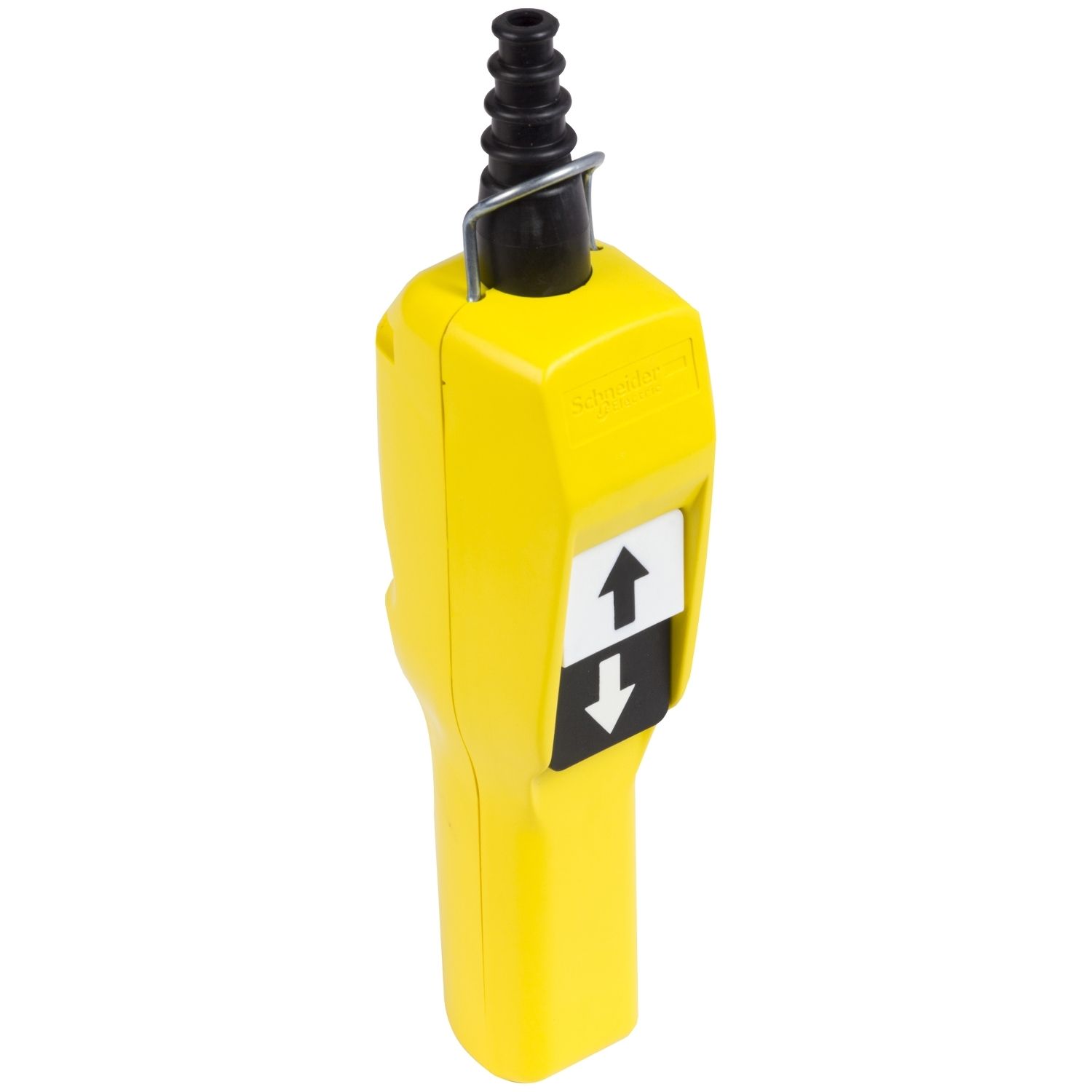

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC

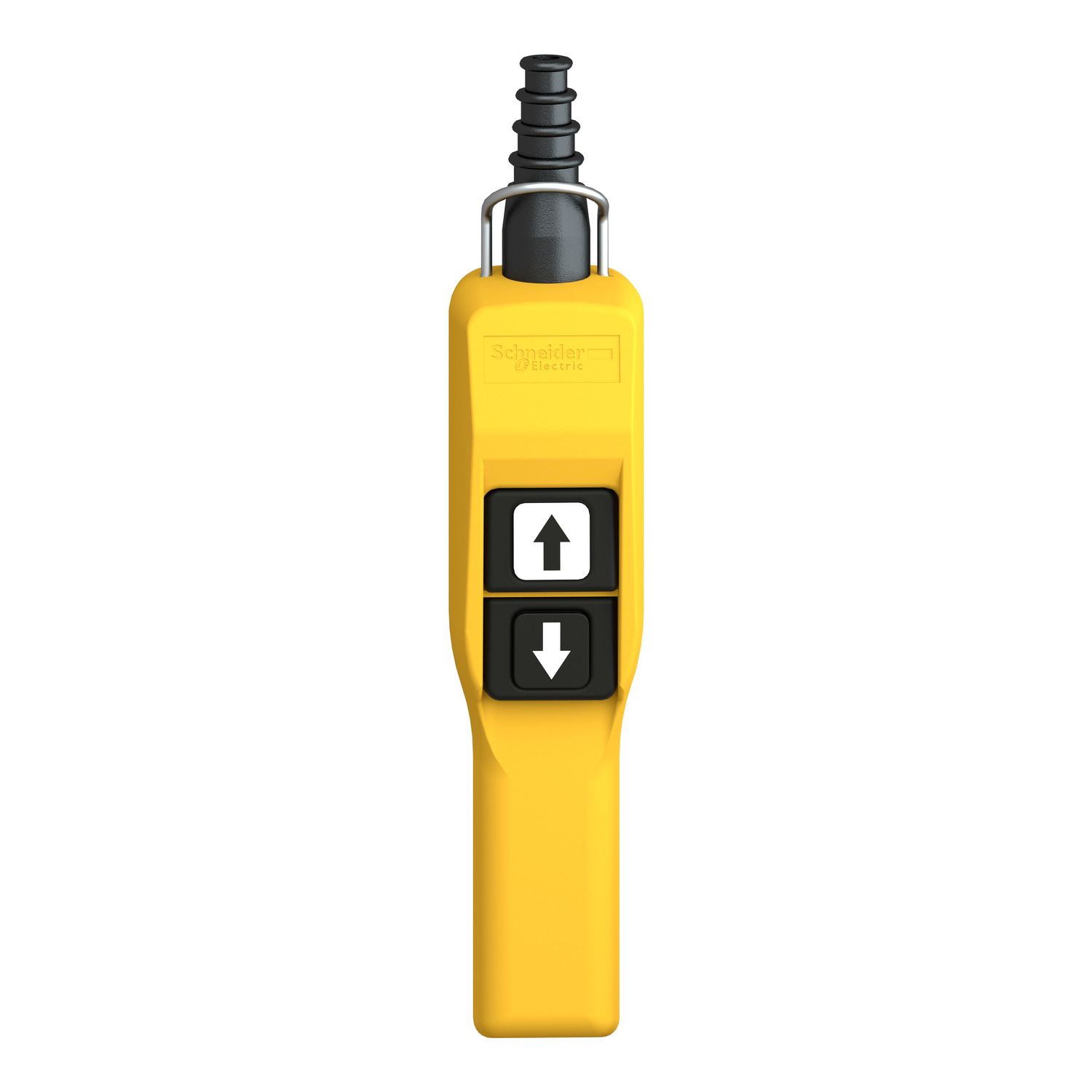

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC

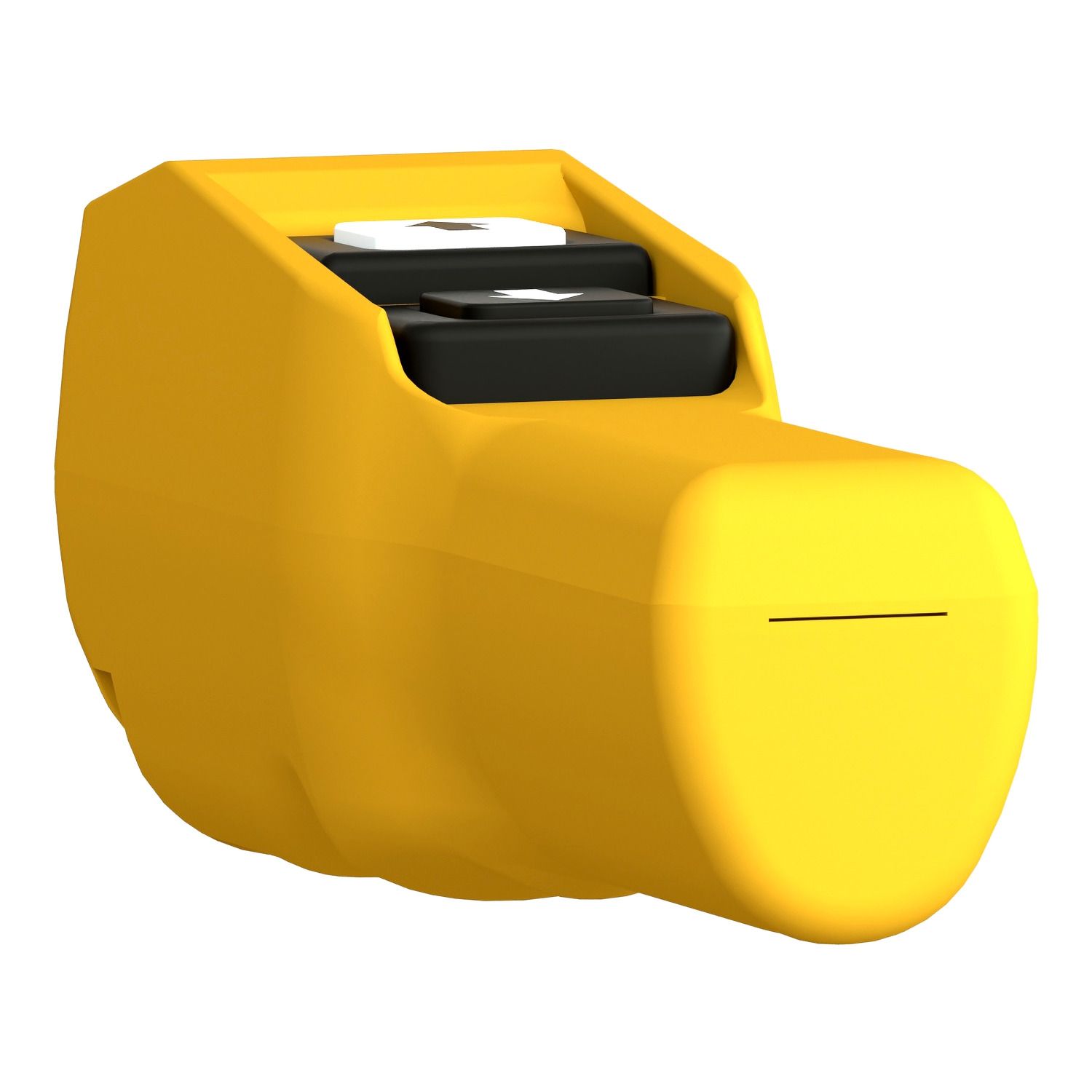

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC

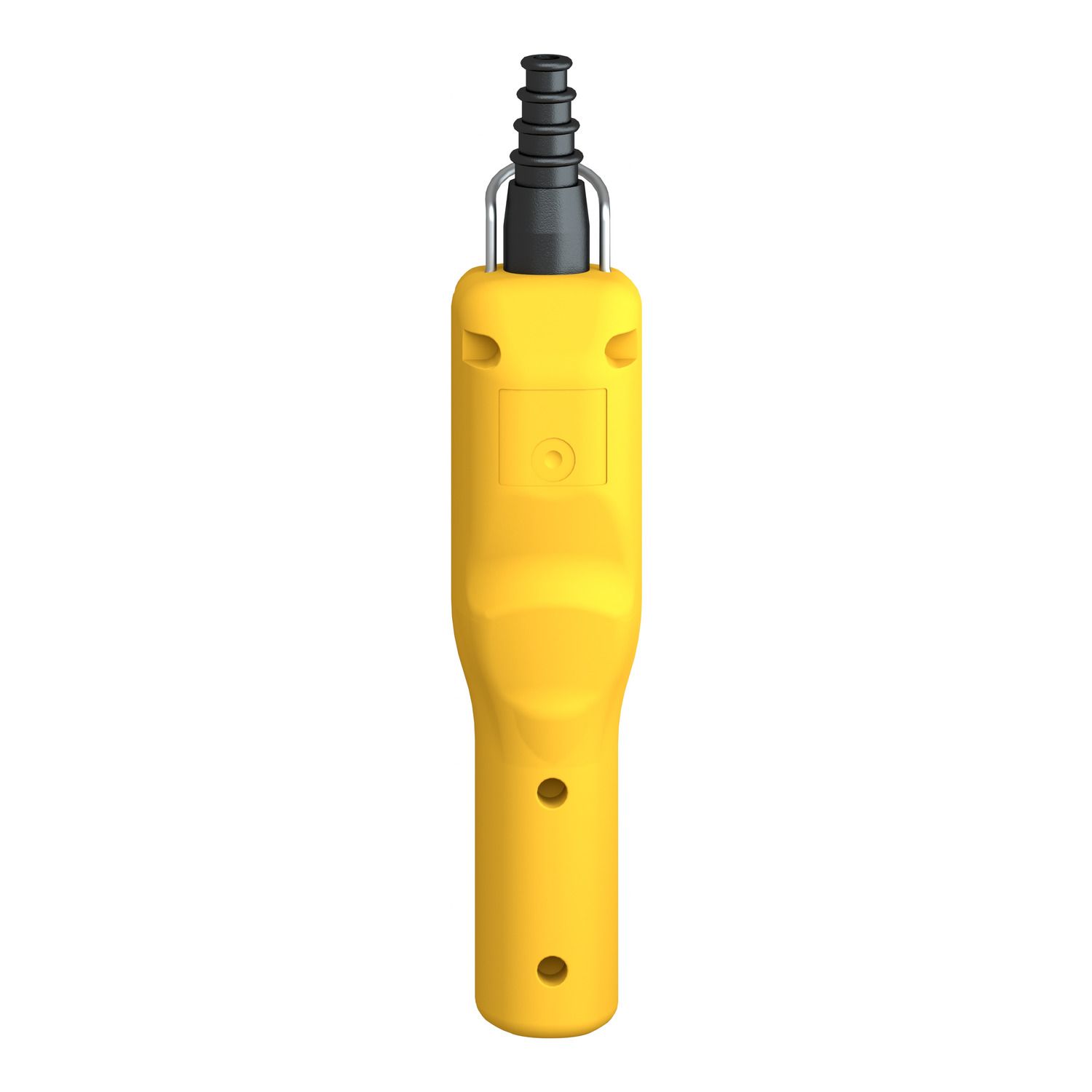

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC

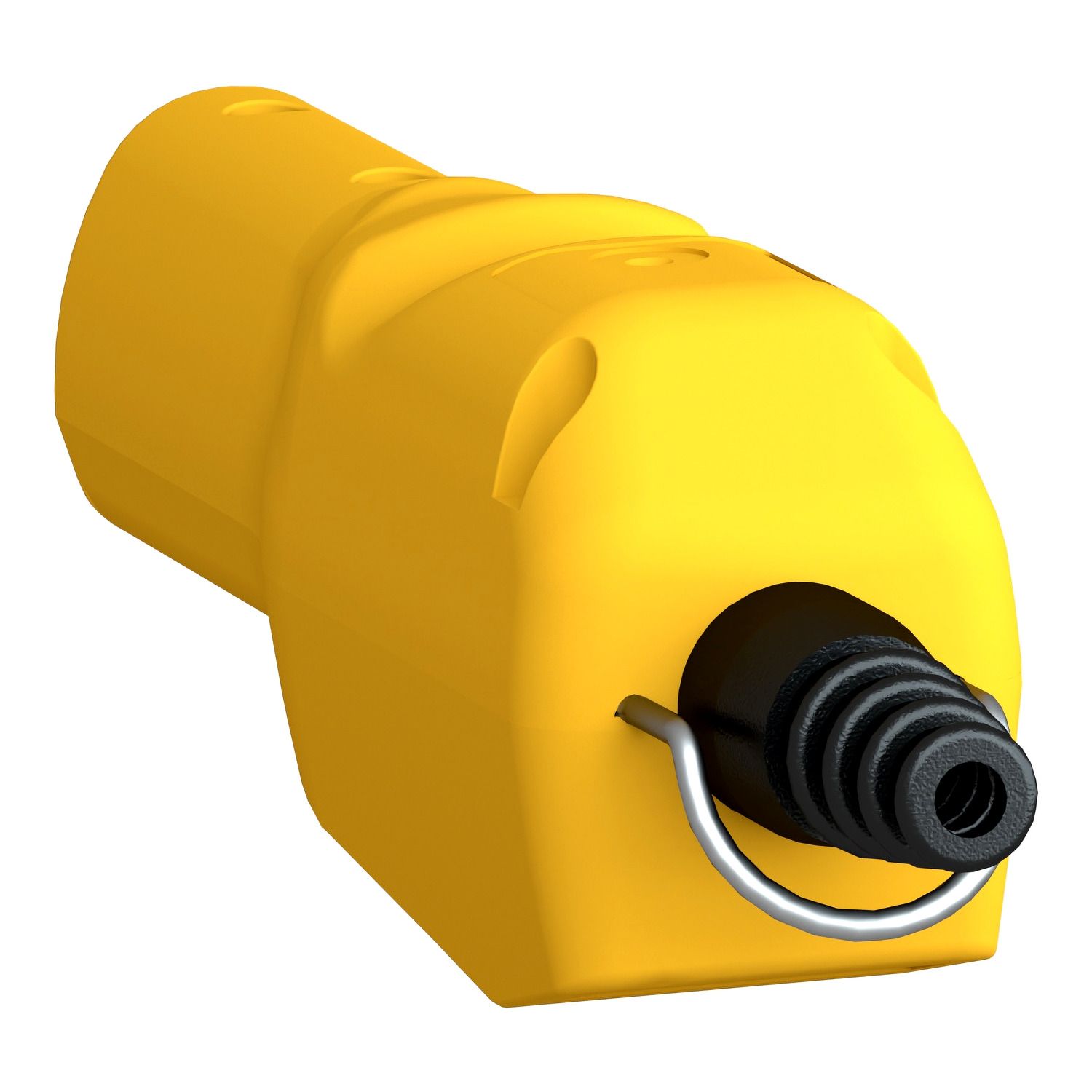

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC

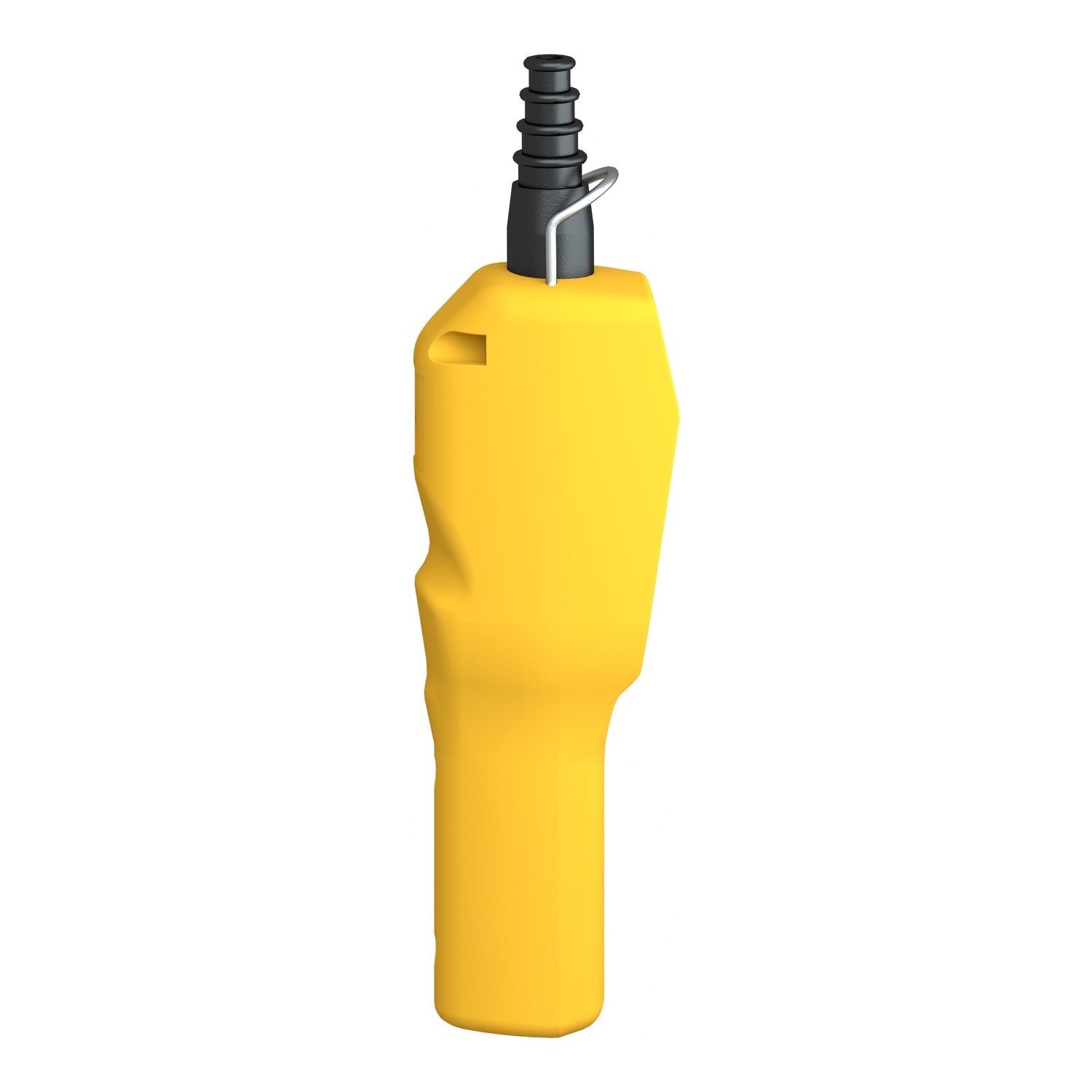

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC

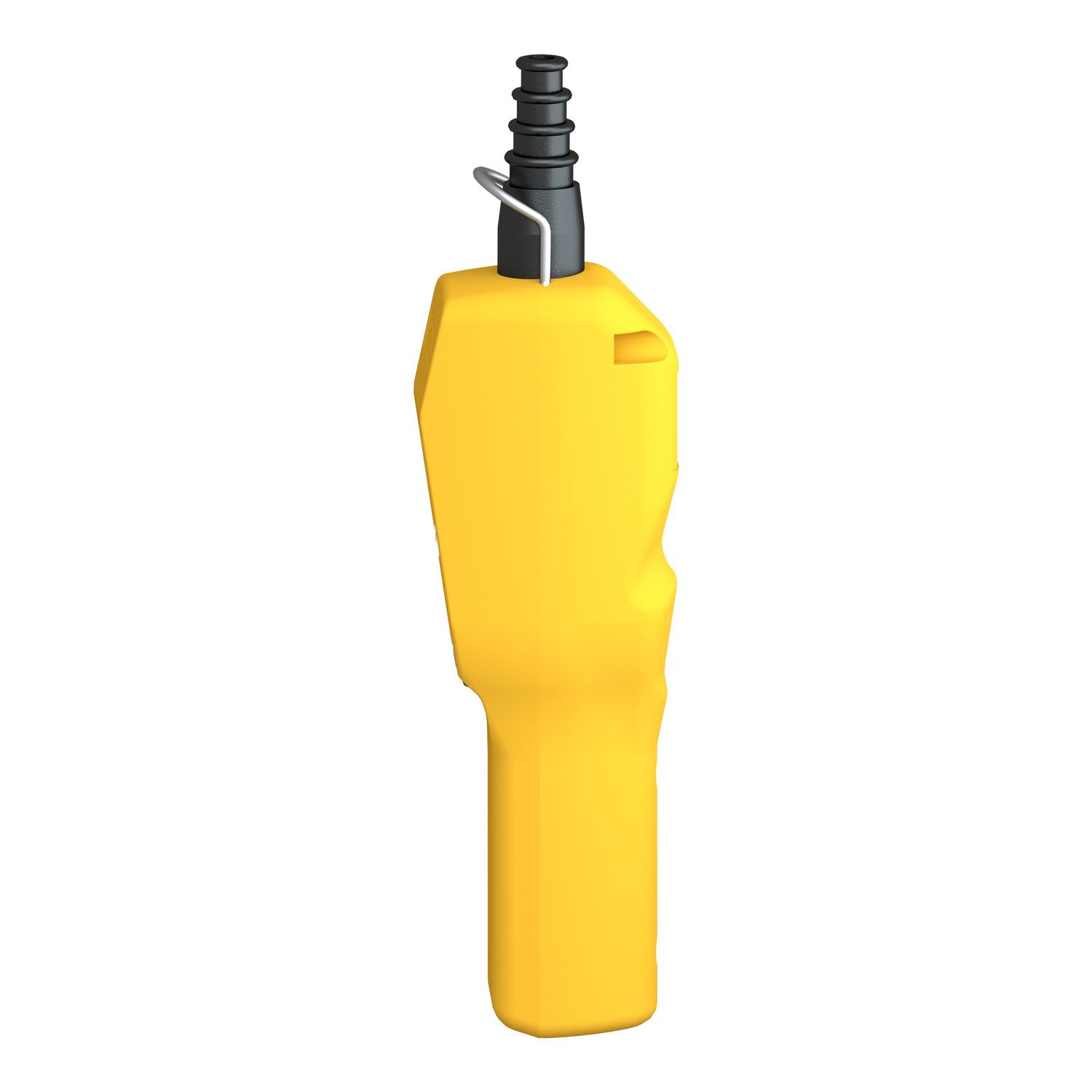

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC
SKU:

XACA215

Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC

Old price: $373.45 INC GST
$291.29 INC GST
Available for Shipping : 12-Jan-2026
Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with NO+NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
Declaration of conformity

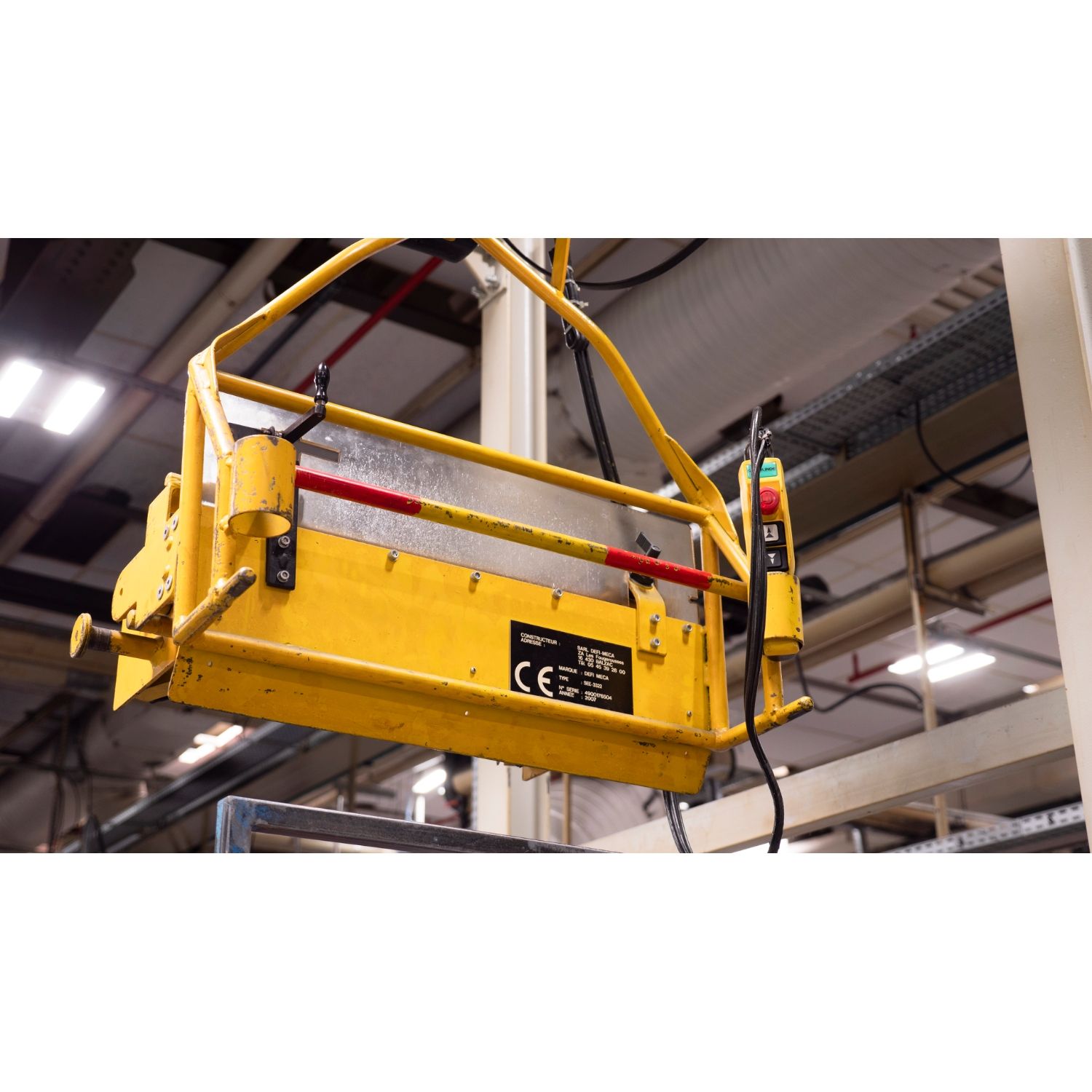

Image of product in real life situation
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

Products specifications

Attribute name Attribute value
Main
Device short name XACA pistol grip
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Electrical circuit type control circuit
Control button type second push-button 1 NC + 1 NO lower, slow, first push-button 1 NC + 1 NO raise, slow
Operating force 13-15 N
Mechanical durability 1000000 cycles
Control station colour yellow
Mechanical interlocking with mechanical interlocking
Contact operation slow-break
Overvoltage category class II conforming to IEC 61140
Control station composition 2 booted push-buttons
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
Control type intuitive
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product compatibility ZB2BE102 + ZB2BE101 for each direction
Net weight 0.32 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 7-15 mm
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Standards EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60204-32, UL 508, EN/ISO 13850: 2006
Terminals description ISO n°1 (11-12)NC, (13-14)NO
Ambient air temperature for operation -25-70 °C
Terminal identifier (13-14)NO, (11-12)NC
IK degree of protection IK08 conforming to EN 50102
Control station application control of single speed hoist motor
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.100 cm
Package 1 Width 8.900 cm
Package 1 Length 30.600 cm
Package 1 Weight 292.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.885 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 49.844 kg
