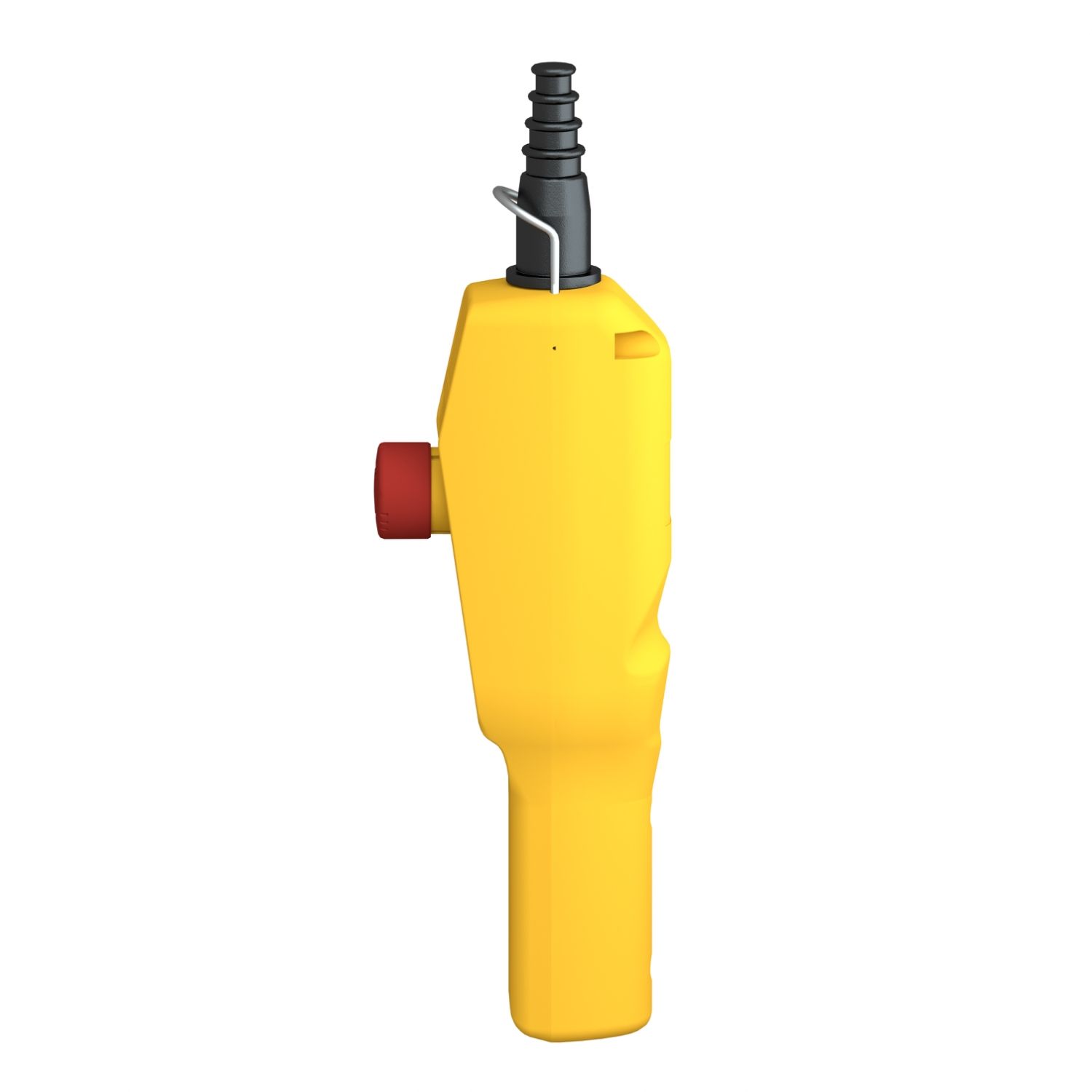

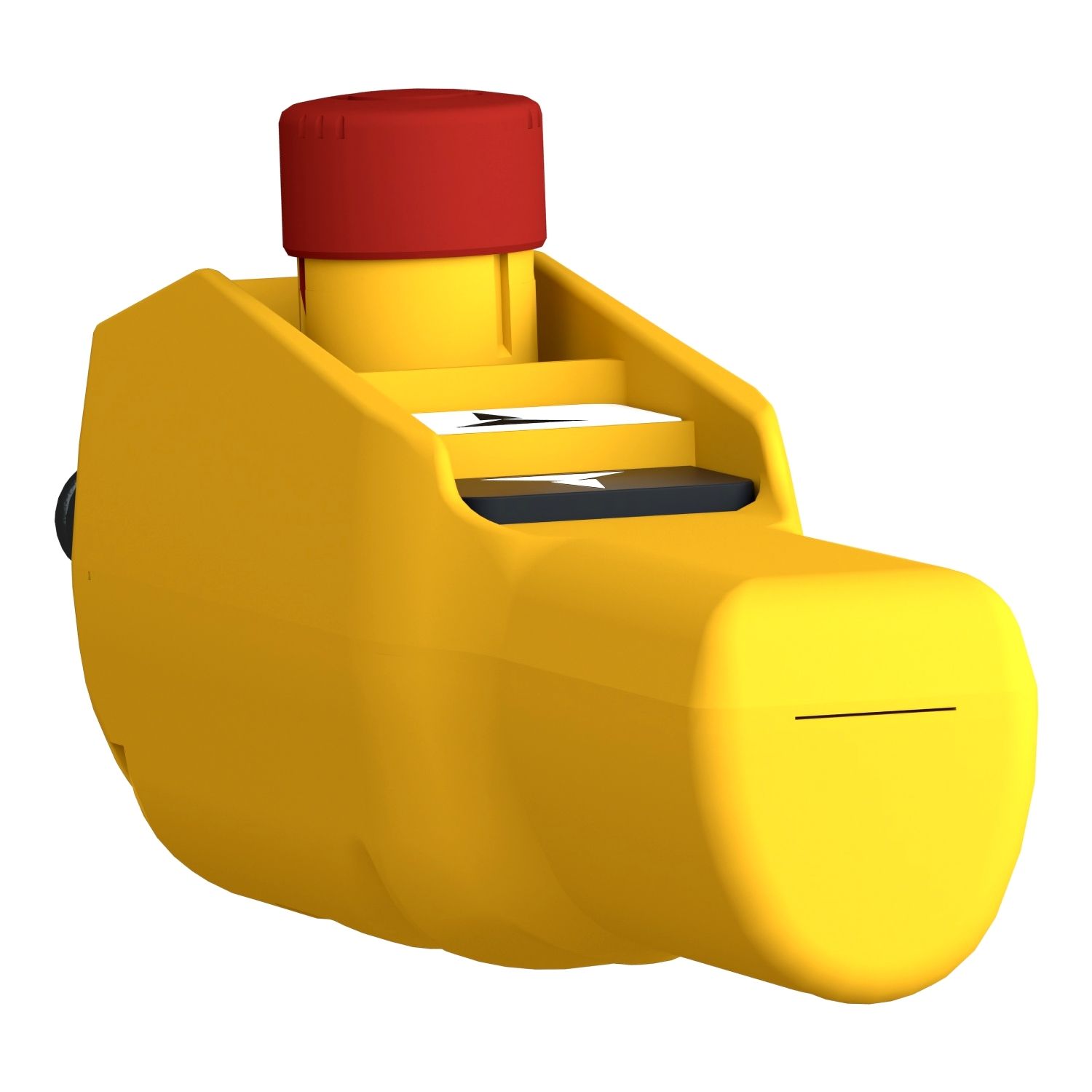

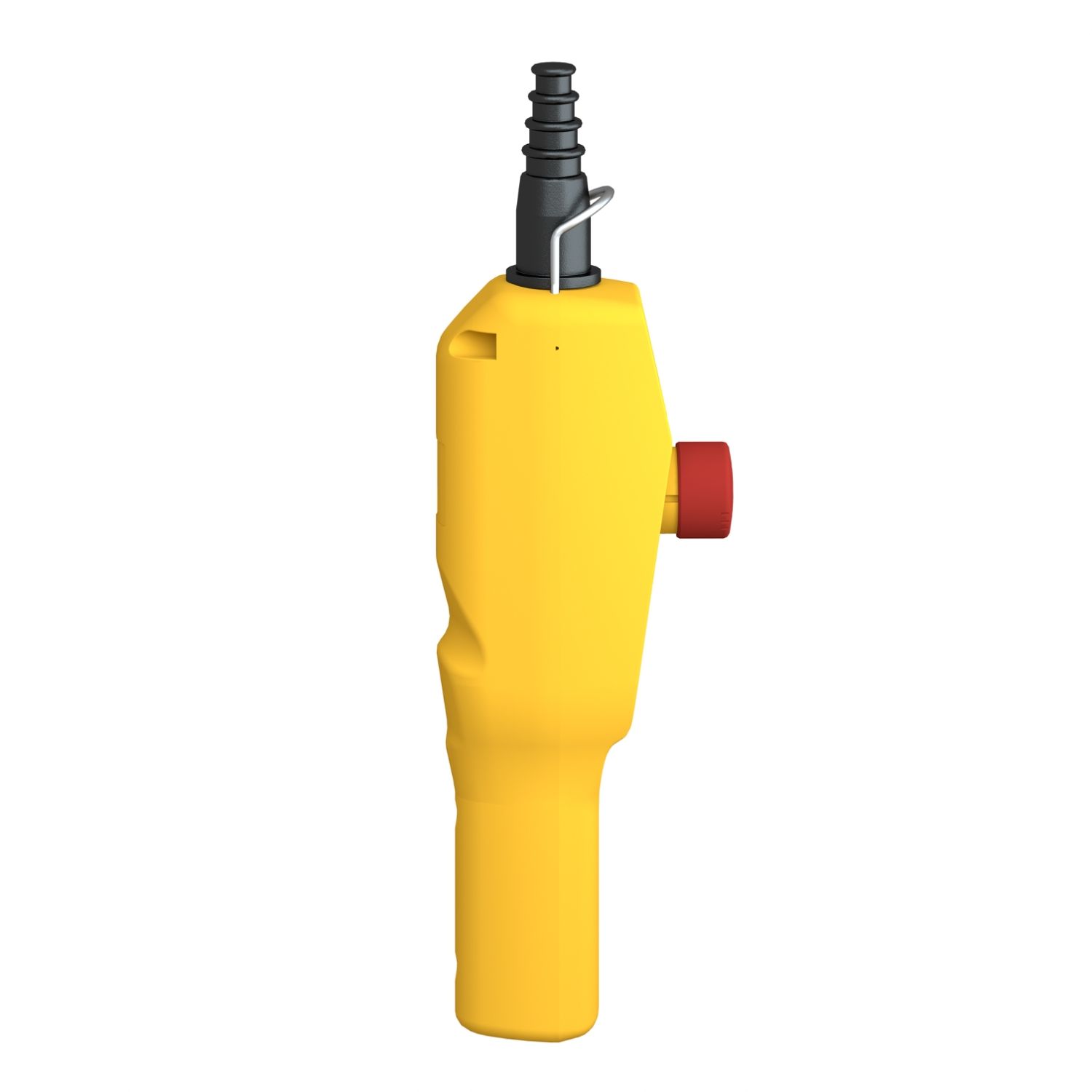

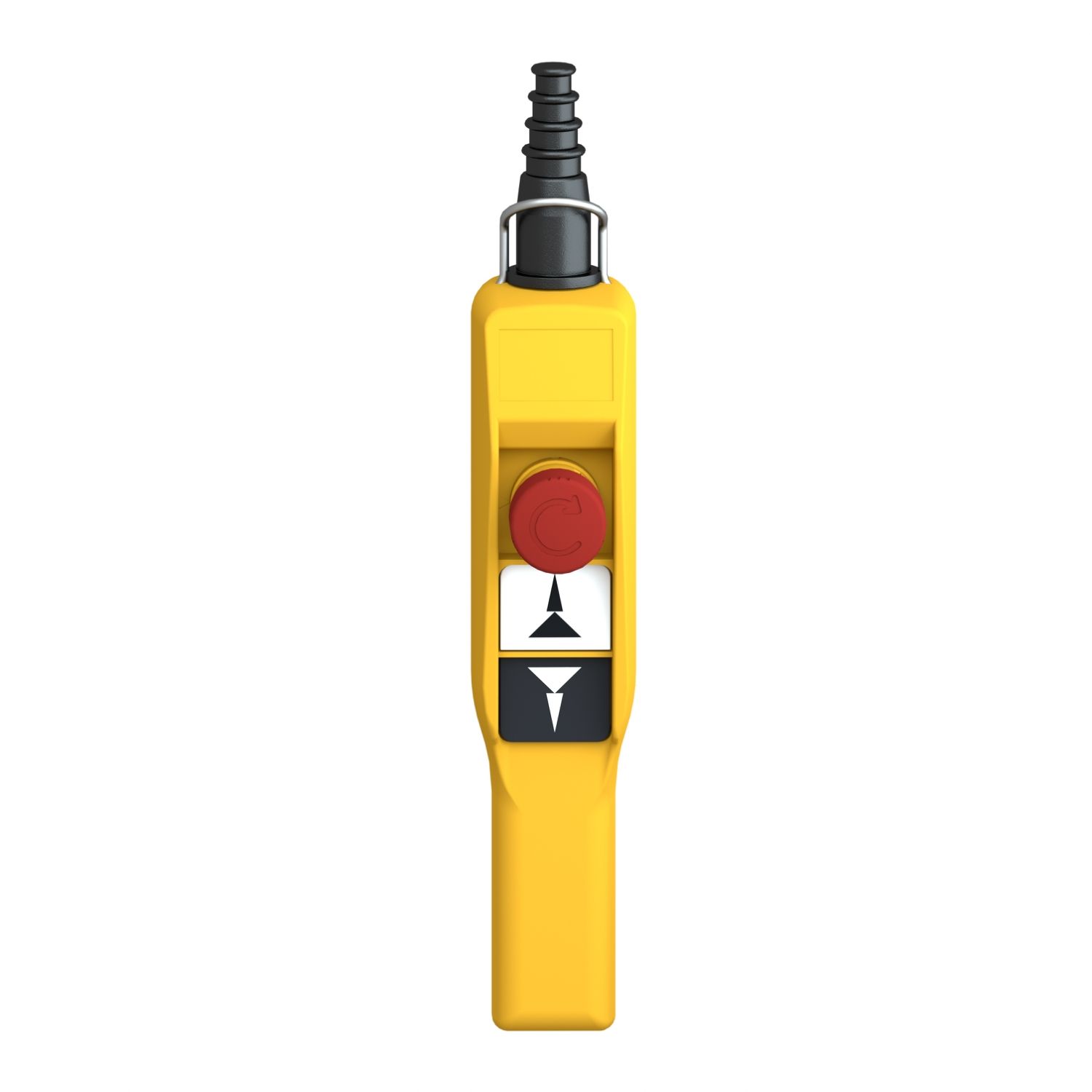

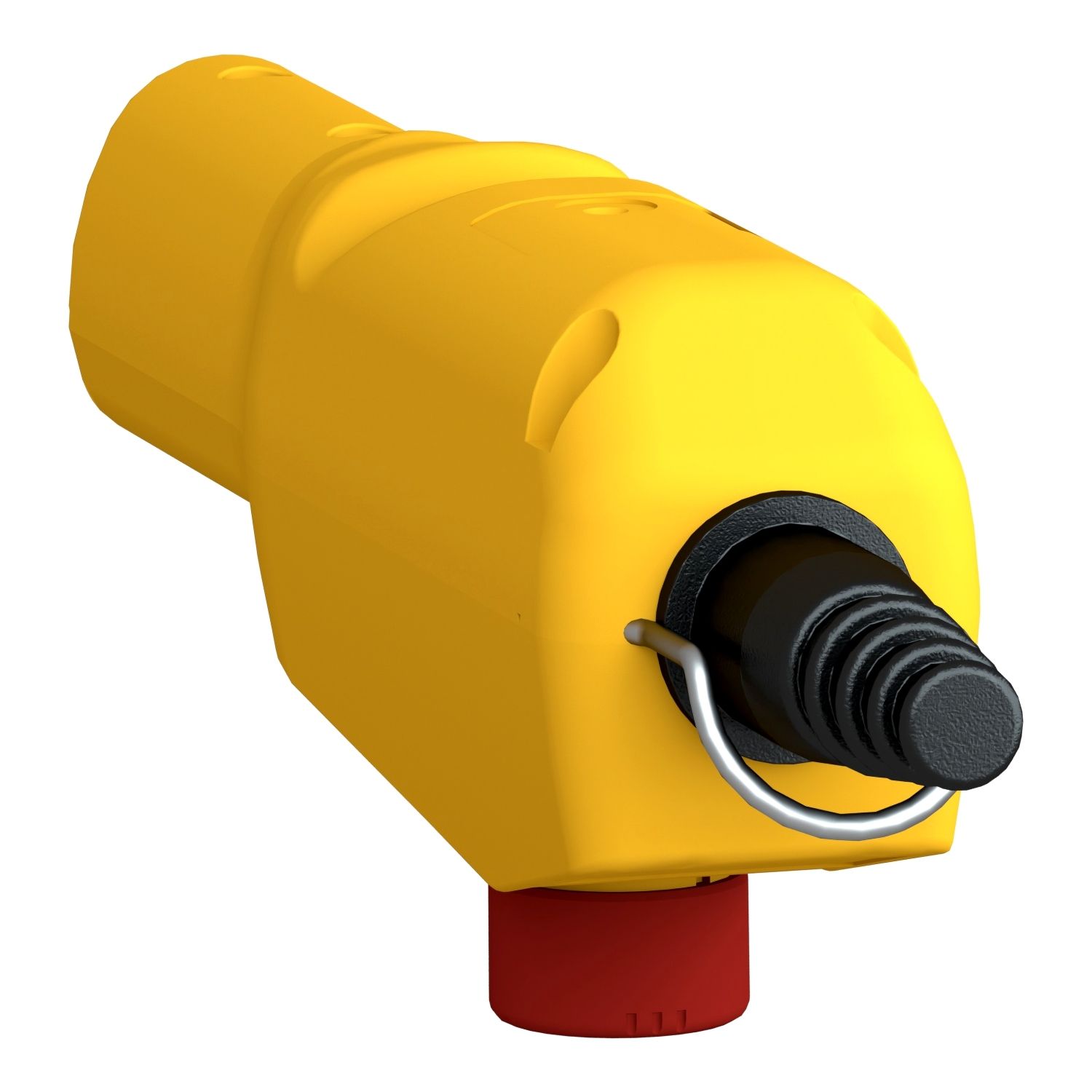

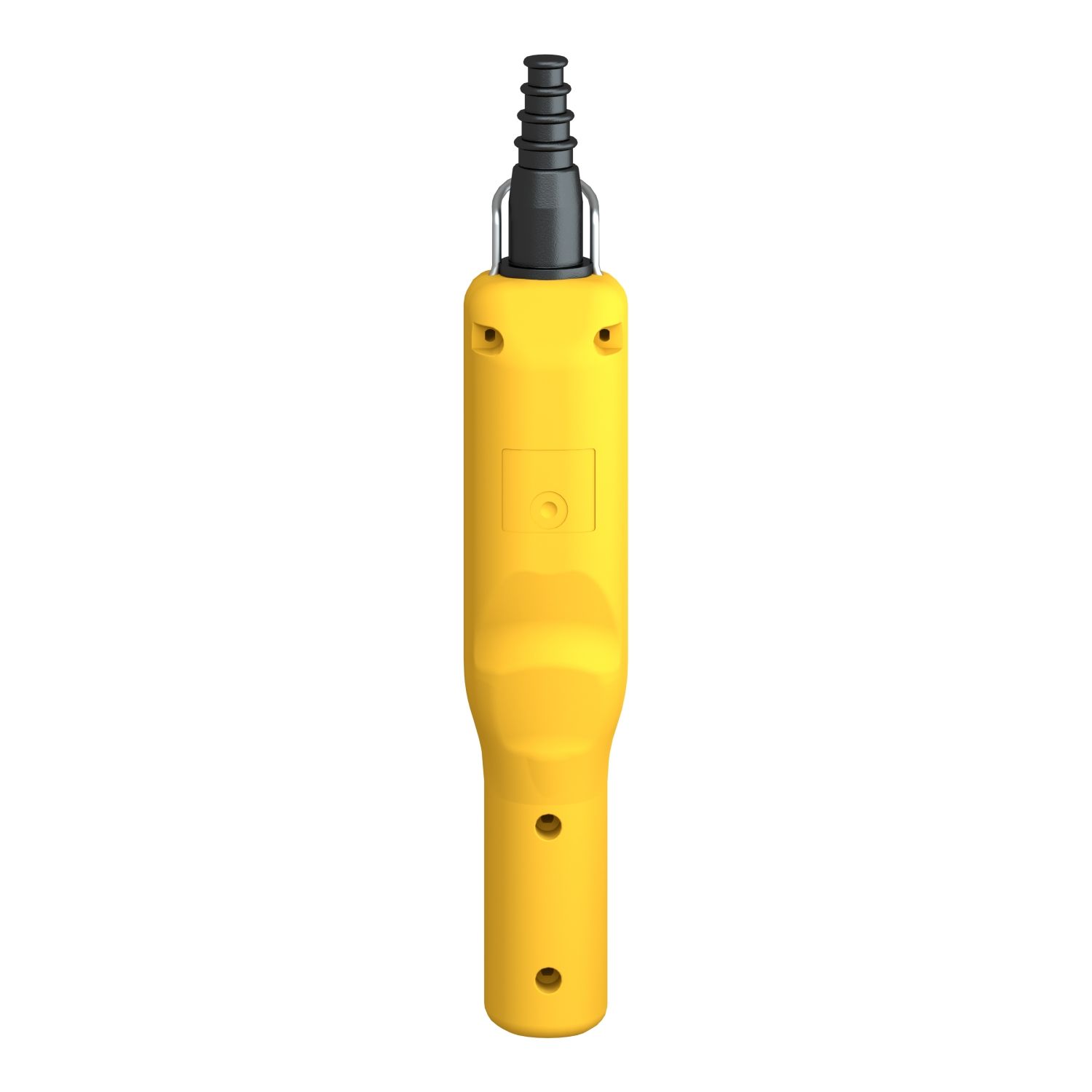

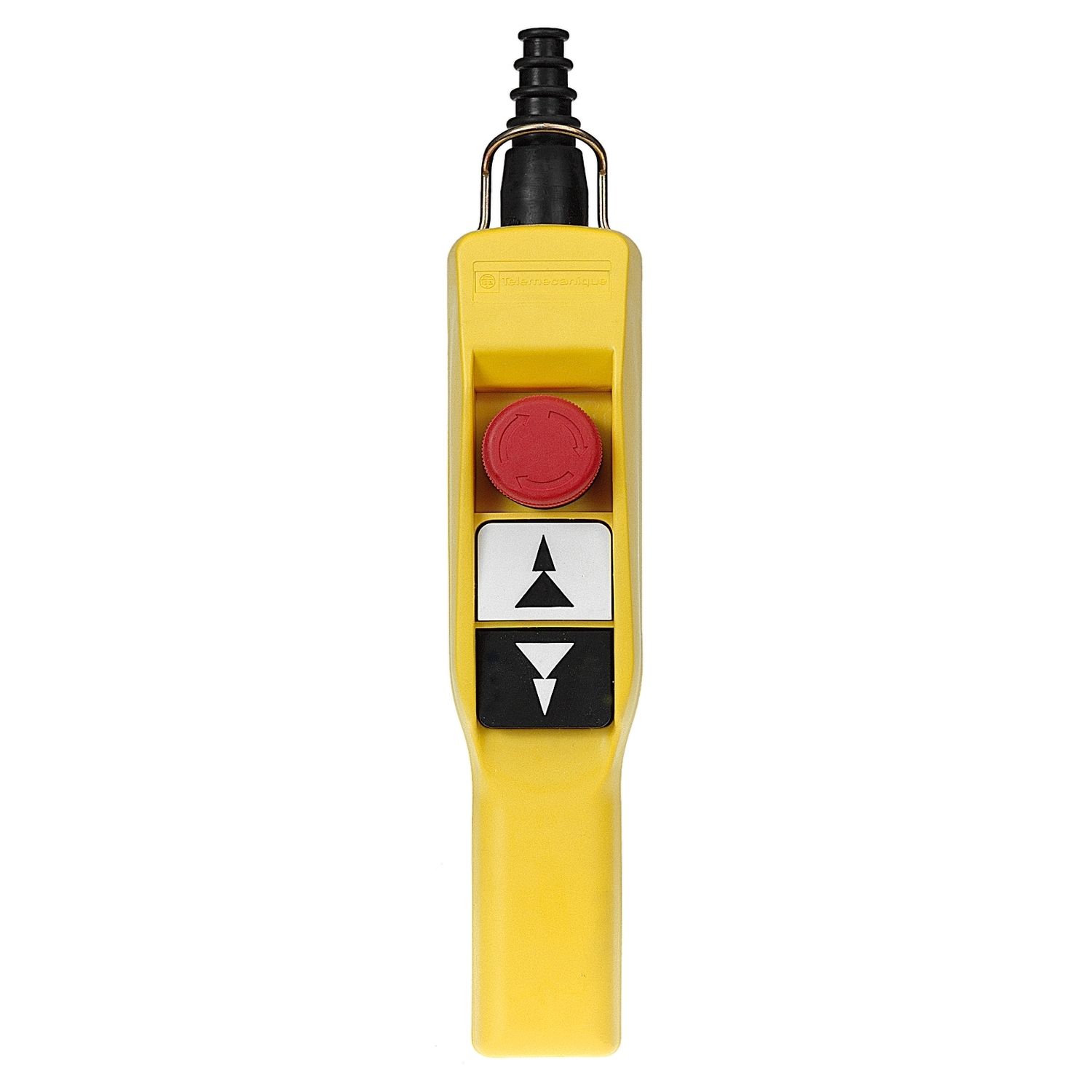

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
SKU:

XACA2073

Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC

Old price: $351.89 INC GST
$274.47 INC GST
Available for Shipping : 08-Dec-2025
Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with 2NO, 1 emergency stop NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Environmental Disclosure
Declaration of conformity

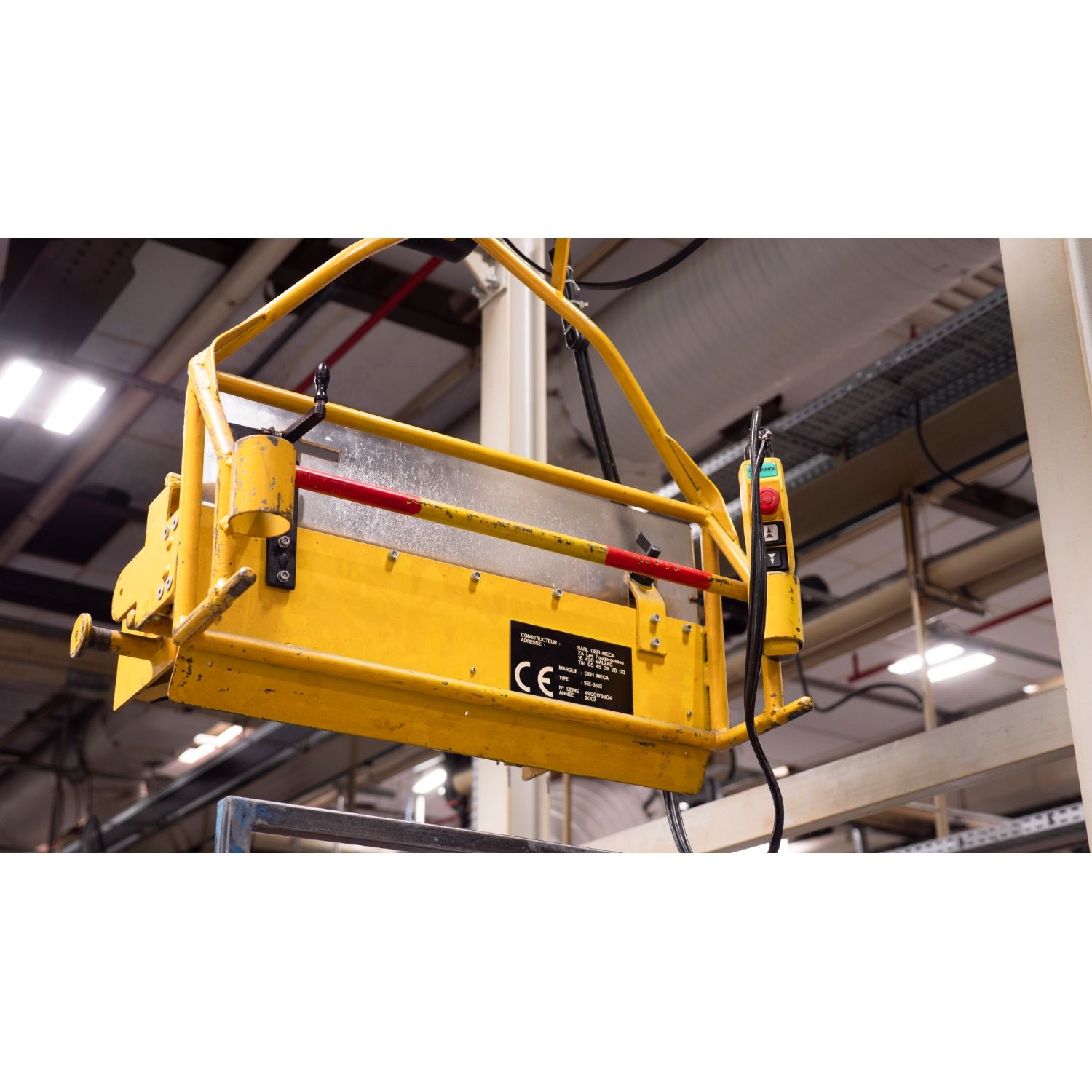

Image of product in real life situation
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XAC, yellow pendant station for hoist motor with pistol grip has 2-speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. It offers movement in 2 speeds (low and high) for each movements. Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XACA pistol grip
Range of product Harmony XAC
Product or component type pendant control station
Complementary
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Electrical circuit type control circuit
Operating force 13-15 N
Mechanical durability 1000000 cycles
Control station colour yellow
Contact operation slow-break, staggered
Ambient air temperature for storage -40-70 °C
Control type intuitive
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
Product compatibility ZB2BE101 + ZB2BE201 for each direction, ZB2BE102 for emergency stop
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Ambient air temperature for operation -25-70 °C
IK degree of protection IK08 conforming to EN 50102
Control station application control of 2-speed hoist motor
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Control button type second push-button 2 NO (2 step) lower, slow-fast, first push-button 2 NO (2 step) raise, slow-fast, stop push-button Ø 30 mm 1 NC latching
Mechanical interlocking with mechanical interlocking
Overvoltage category class II conforming to IEC 61140
Control station composition 2 push-buttons + 1 emergency stop
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.36 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Cable entry rubber sleeve with stepped entry 7-15 mm
Standards EN/IEC 60204-32, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO, (23-24)NO_CL
Terminals description ISO n°2 (11-12)NC
Terminal identifier (13-14)NO, (11-12)NC
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.700 cm
Package 1 Width 11.800 cm
Package 1 Length 34.100 cm
Package 1 Weight 363.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.935 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 58.124 kg
