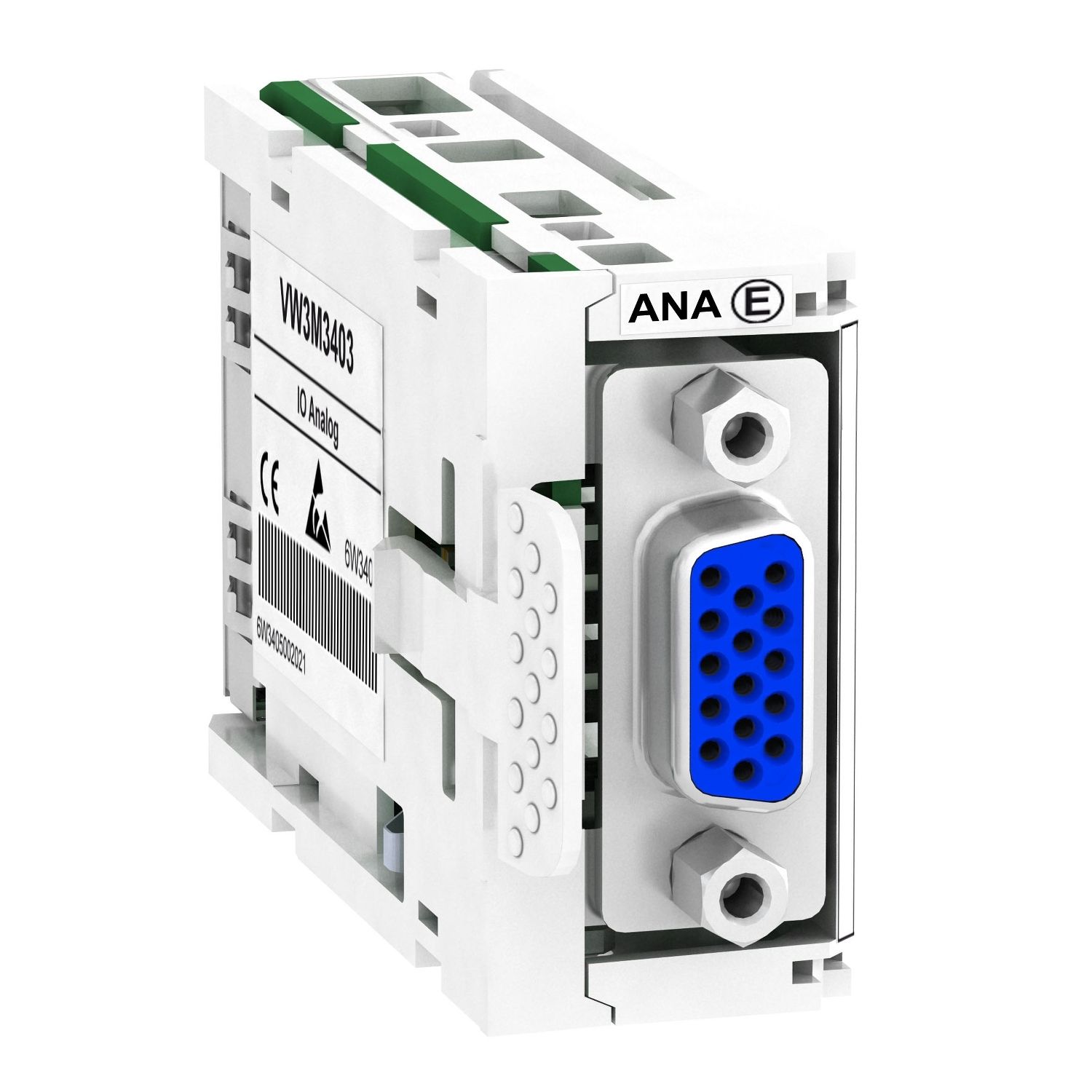

Picture of Encoder interface module, Lexium 32, card for analog input signals
SKU:

VW3M3403

Encoder interface module, Lexium 32, card for analog input signals

$1,112.40
Available for Shipping : 30-Oct-2024
Product Selector
Encoder interface module, Lexium 32, card for analog input signals
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
User guide
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is an encoder interface card. This card is designed for analog input signals. The encoder input interface card is for connecting an additional encoder. The technology type of the added encoder is 1Vpp at 5V, 1 Vpp/Hall 5 at 5V, and Hiperface at 12V. The electrical connection is made with 1 SUB-D 15-pin female connector high definition. It is a connection accessory to Lexium 32M servo drives. It is compatible with Lexium 32M servo drives. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination machine and motor encoder
Accessory / separate part type card with analog output
Product or component type encoder interface module
Accessory / separate part category connection accessory
Encoder type Hiperface, 1 Vpp/Hall, 1 Vpp
Range of product Lexium 32
Complementary
Product compatibility Lexium 32M
[Us] rated supply voltage 5 V for 1 Vpp/Hall encoder, 5 V for 1 Vpp encoder, 12 V for Hiperface encoder
Electrical connection 1 female connector high definition SUB-D 15 pin(s)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 6.0 cm
Package 1 Length 8.4 cm
Package 1 Weight 57.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.585 kg
