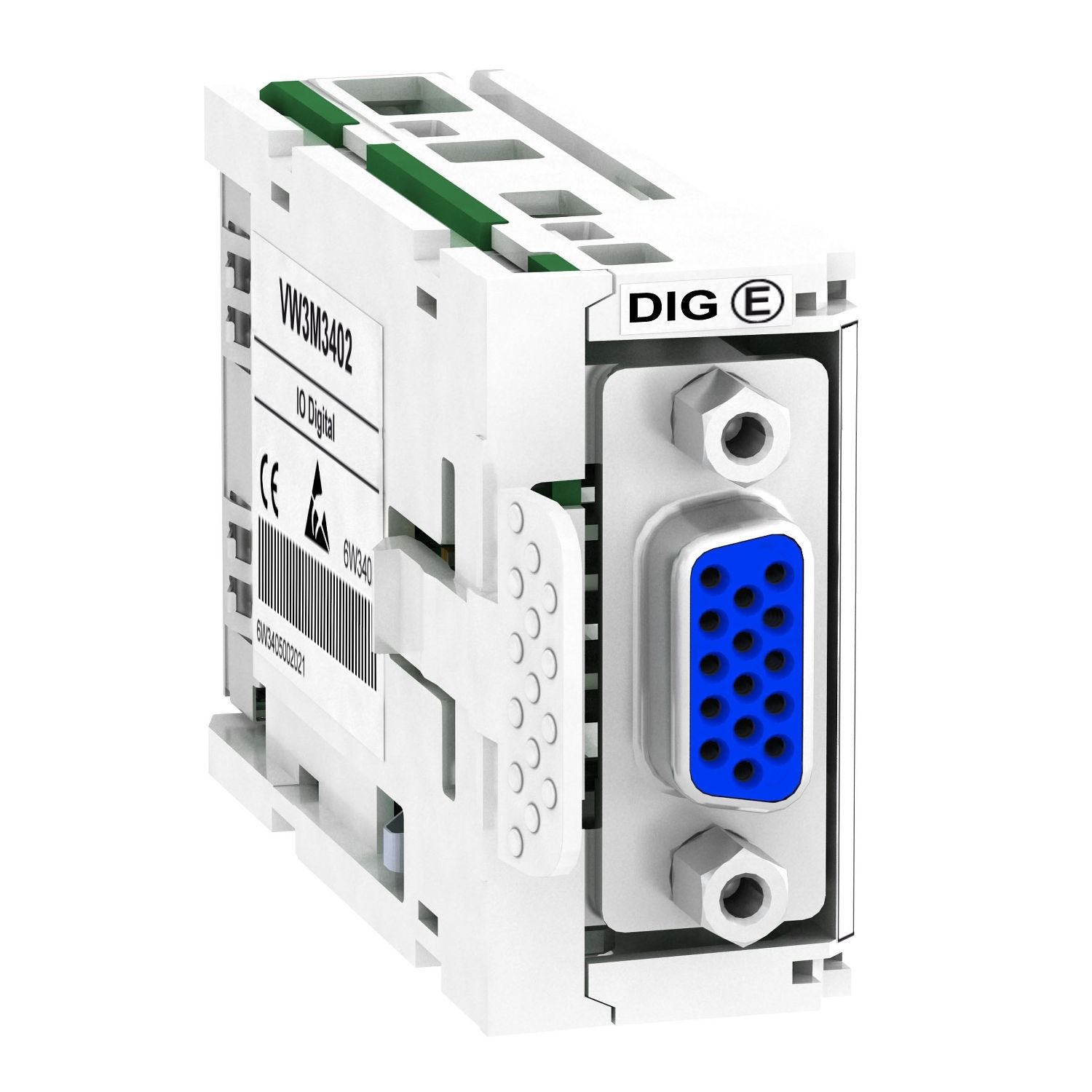

Picture of Encoder interface module, Lexium 32, card for digital input signals
SKU:

VW3M3402

Encoder interface module, Lexium 32, card for digital input signals

$384.60
Available for Shipping : 05-Nov-2024
Product Selector
Encoder interface module, Lexium 32, card for digital input signals
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
User guide
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The interface card provides digital output for machine encoder. It is an interface card with a rated supply voltage of 12V for SSI encoder, 5V for A/B/I encoder, 5V for BISS encoder, 5V for EnDat 2.2 encoder. It is furnished with 15-way D-Sub (DE-15) female high definition connector for electrical connection. This product is compatible with Lexium 32M servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination machine encoder
Accessory / separate part type card with digital output
Product or component type encoder interface module
Accessory / separate part category connection accessory
Encoder type SSI, A/B/I, EnDat 2.2, BISS
Range of product Lexium 32
Complementary
Product compatibility Lexium 32M
[Us] rated supply voltage 5 V for EnDat 2.2 encoder, 5 V for BISS encoder, 5 V for A/B/I encoder, 12 V for SSI encoder
Electrical connection 1 female connector high definition SUB-D 15 pin(s)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 6.800 cm
Package 1 Length 9.200 cm
Package 1 Weight 58.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.571 kg
