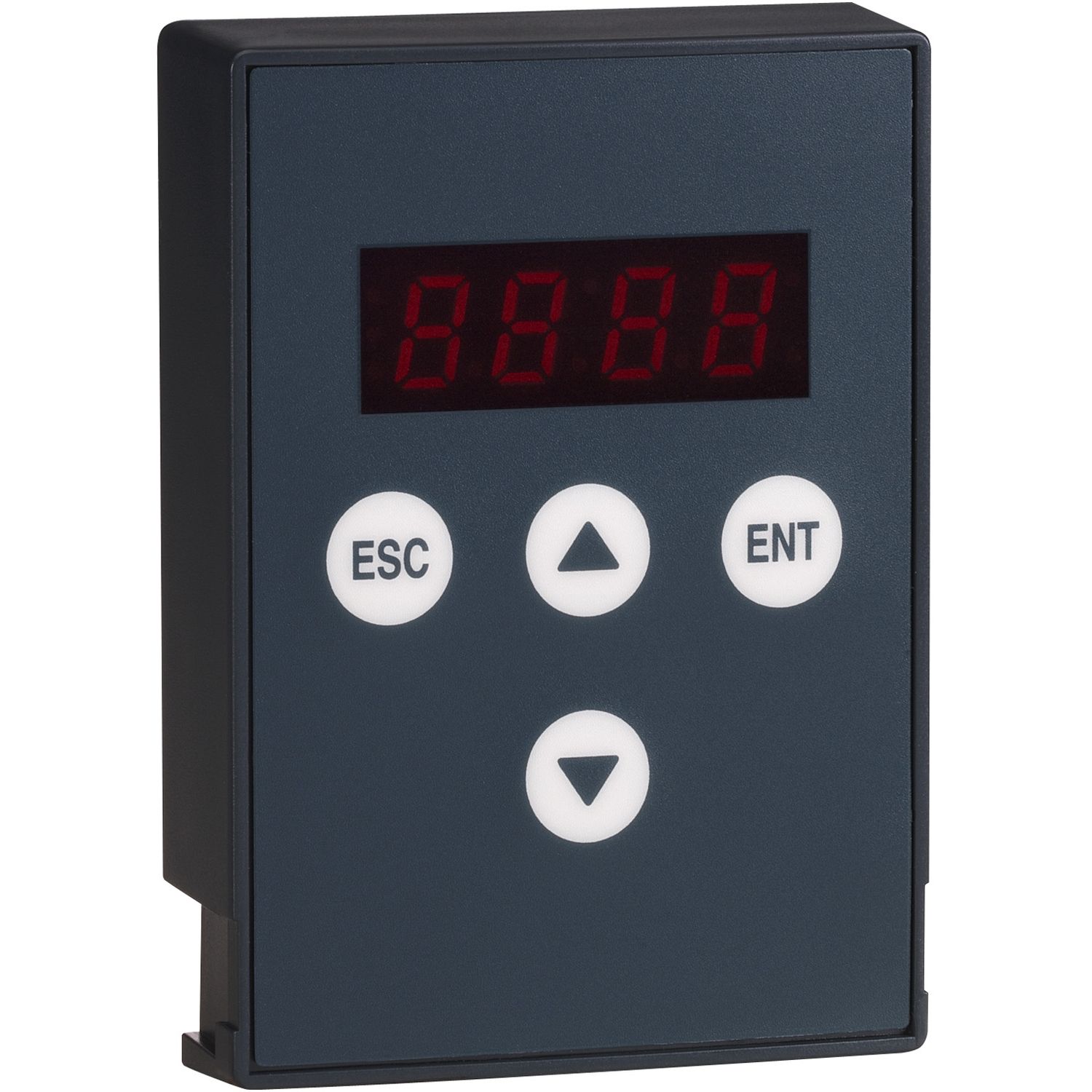

Picture of Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP65
SKU:

VW3G22102

Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP65

$215.20
Available for Shipping : 05-Nov-2024
Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP65
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This terminal is an accessory of the soft start/soft stop Altistart 22 range. It enables the human-machine interface of the Altistart 22 soft start/soft stop unit to be positioned remotely on the door of an enclosure. Its protection index is IP65. It weighs 275g, and its dimensions are 50mm wide, 70mm high, and 15mm deep. It is used to remotely set and configure the soft start/soft stop unit, display the soft start/soft stop unit status, and detect errors remotely. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination soft starter for asynchronous motor
IP degree of protection IP65
Accessory / separate part type remote terminal
Product compatibility ATS22
Accessory dimension 50 x 15 x 70 mm
Accessory / separate part category control accessories
Accessory / separate part designation remote terminal
Range of product Altistart 22
Complementary
Net weight 0.275 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.6 cm
Package 1 Width 16.6 cm
Package 1 Length 23.2 cm
Package 1 Weight 189 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.8 kg
