SKU:

VW3G22101

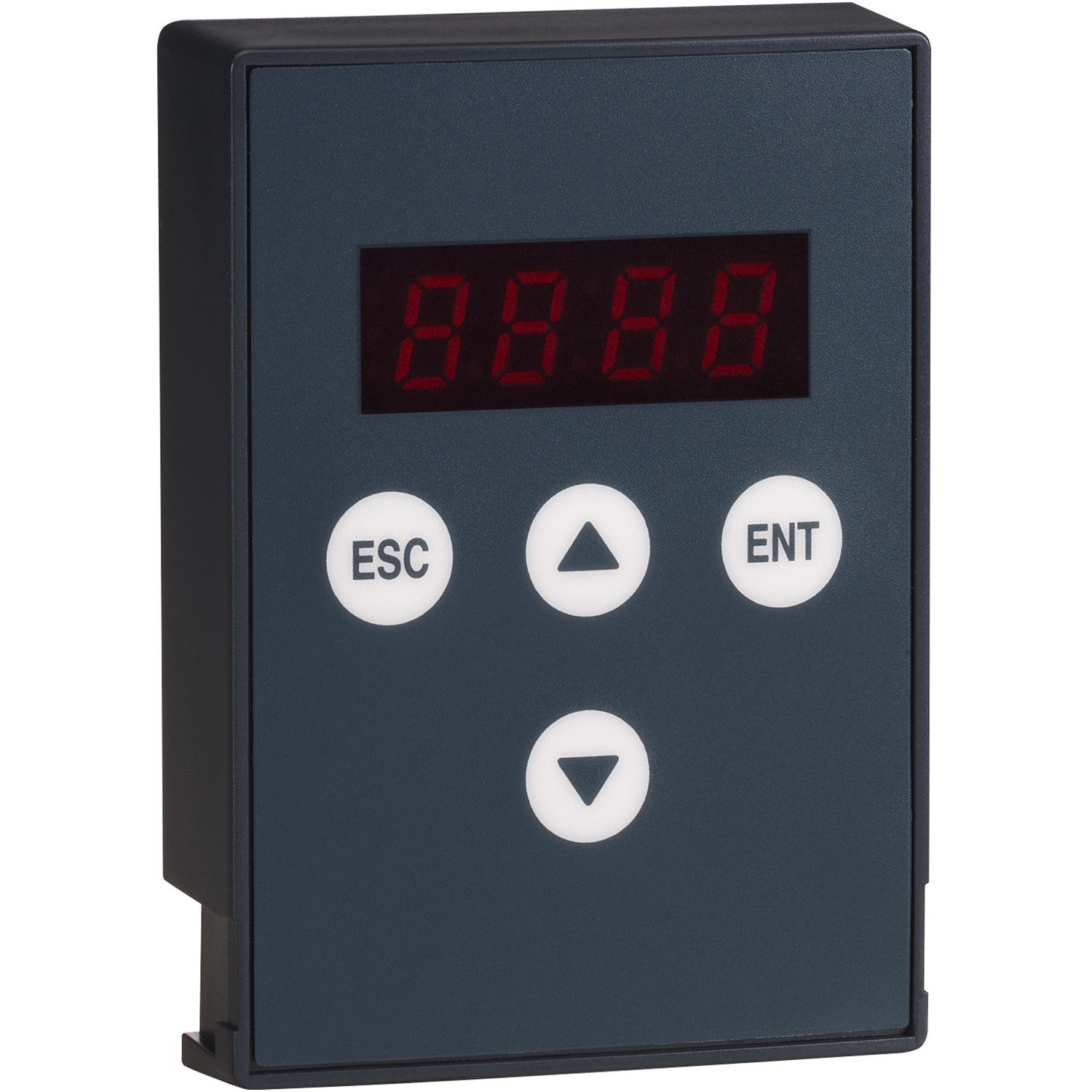

Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP54

$184.45
Available for Shipping : 10-Oct-2024
Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP54
Manufacturer: Schneider Electric
This terminal is an accessory of soft start/soft stop Altistart 22 range. It enables the human machine interface of the Altistart 22 soft start/soft stop unit to be positioned remotely on the door of an enclosure. Its protection index is IP54. It weighs 250g and its dimensions are, 50mm wide, 70mm high, 15mm deep. It is used to set and configure the soft start/soft stop unit remotely and display the soft start/soft stop unit status and detected errors remotely. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination soft starter for asynchronous motor
IP degree of protection IP54
Accessory / separate part type remote terminal
Product compatibility ATS22
Accessory dimension 50 x 15 x 70 mm
Accessory / separate part category control accessories
Accessory / separate part designation remote terminal
Range of product Altistart 22
Complementary
Net weight 0.25 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 6.5 cm
Package 1 Length 8.6 cm
Package 1 Weight 66.0 g
Unit Type of Package 2 2
Number of Units in Package 2 90
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.795 kg
