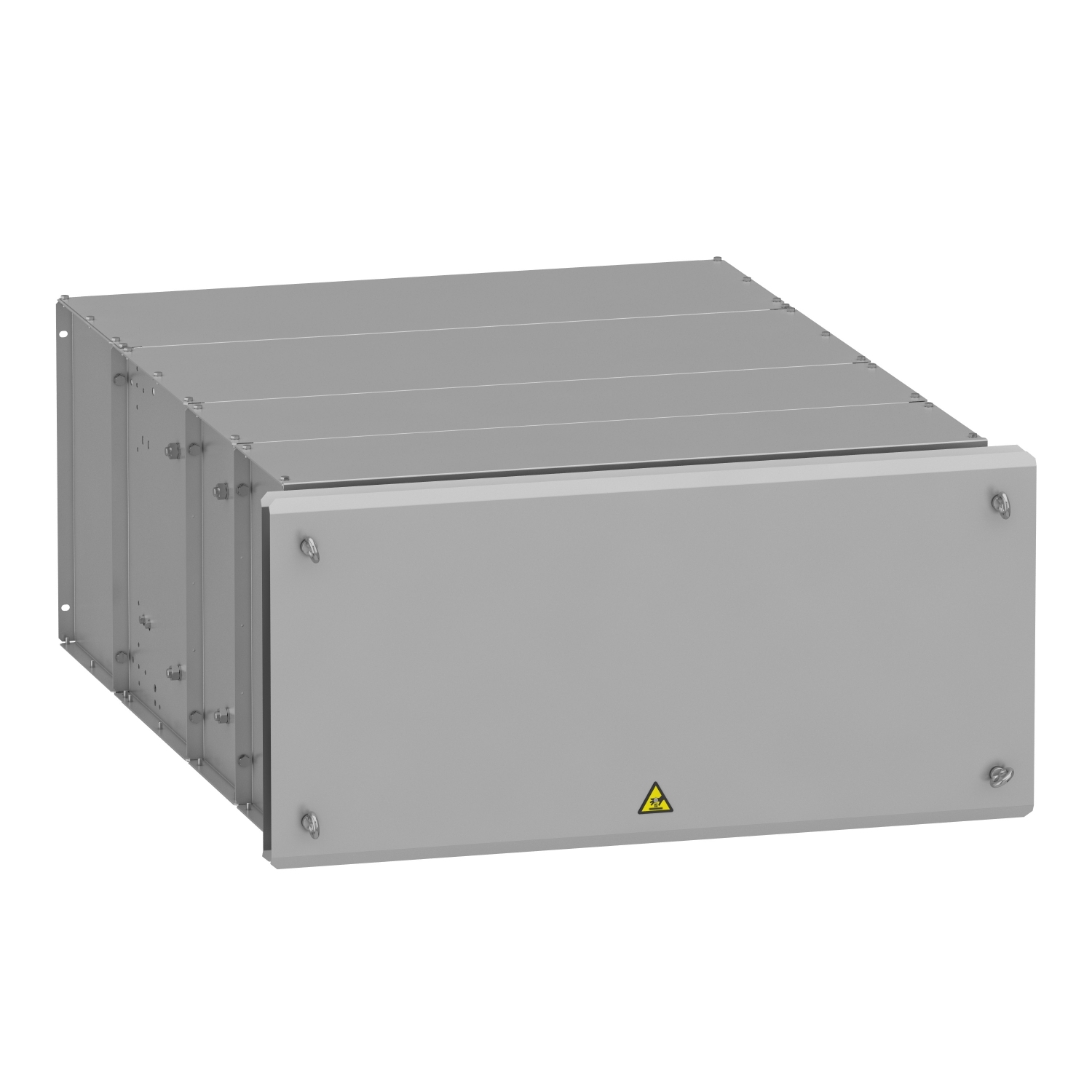

Picture of braking resistor, Altivar, 1.4Ohms, 29kW, IP23
SKU:

VW3A7757

braking resistor, Altivar, 1.4Ohms, 29kW, IP23

$14,665.87
Available for Shipping : 20-Jan-2025
Product Selector
braking resistor, Altivar, 1.4Ohms, 29kW, IP23
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV900
Product or component type braking resistor
[Ue] rated operational voltage 250 V AC, 24 V DC
Ohmic value 1.4 Ohm
Complementary
Average power available 29 kW at 50 °C
Depth 1060 mm
Width 540 mm
Duty cycle severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 315 kW, severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 250 kW, severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 220 kW, severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle , severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle
Product compatibility variable speed drive ATV930 wall mount 310 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 250 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 220 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 75 kW 200...240 V severe cycle, variable speed drive ATV930 wall mount 55 kW 200...240 V severe cycle
Electrical connection M12 bar wire for drive,  terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch
Net weight 121 kg
Protection type thermal protection via drive or temperature control switch at 120 °C
Height 1285 mm
Environment
IP degree of protection IP23
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 128.5 cm
Package 1 Width 54.0 cm
Package 1 Length 106.0 cm
Package 1 Weight 149.0 kg
