SKU:

VW3A7748

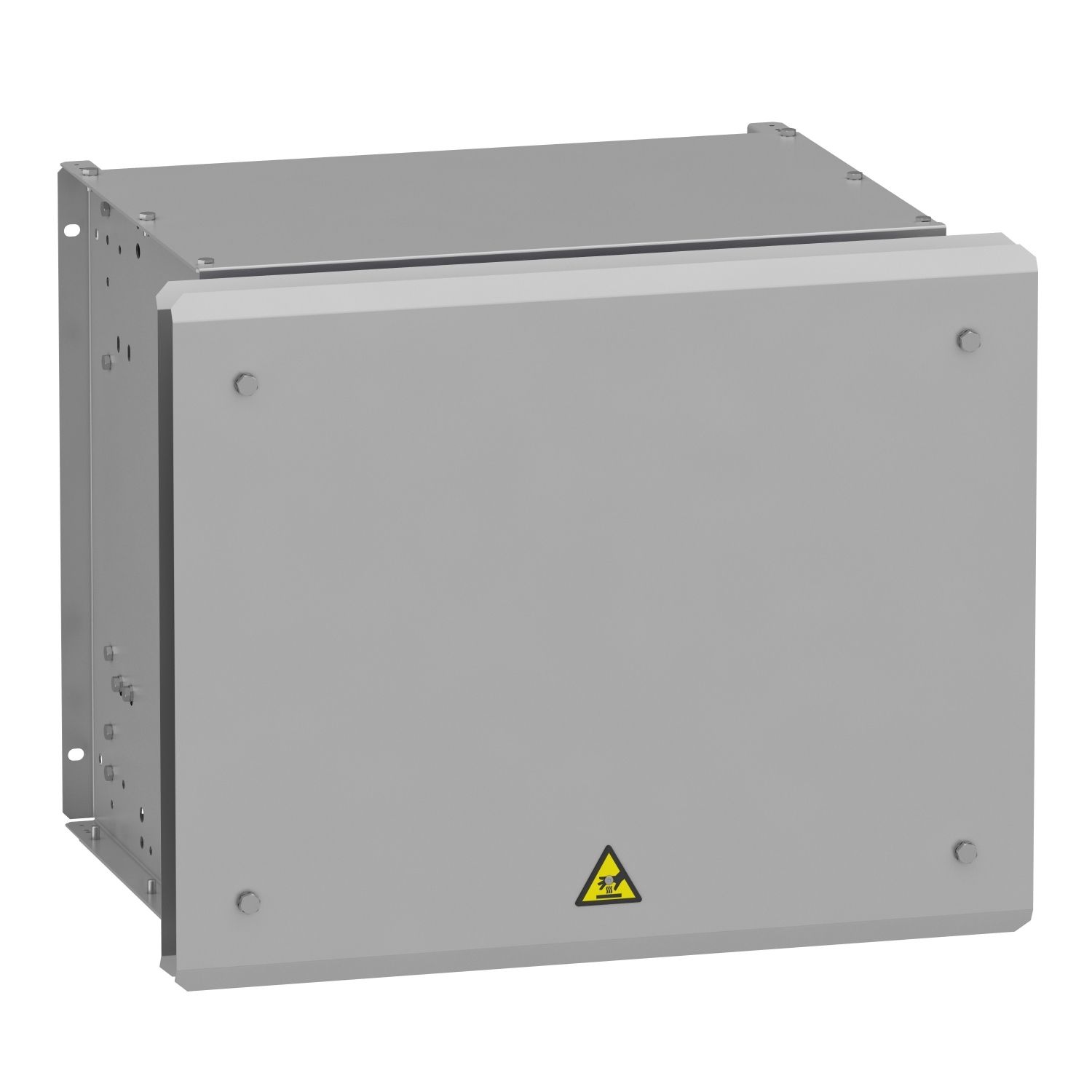

braking resistor, Altivar, 1.4Ohms, 5.1kW, IP23

$4,212.44

Qty:

Available for Shipping : 15-Oct-2024

Product Selector

braking resistor, Altivar, 1.4Ohms, 5.1kW, IP23

Manufacturer: Schneider Electric

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Range compatibility	Altivar Process ATV900
Product or component type	braking resistor
[Ue] rated operational voltage	250 V AC, 24 V DC
Ohmic value	1.4 Ohm
Complementary
Average power available	5.1 kW at 50 °C
Depth	650 mm
Width	540 mm
Duty cycle	medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle
Product compatibility	variable speed drive ATV930 wall mount 250 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 220 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 55 kW 200...240 V medium cycle
Electrical connection	M12 bar wire for drive, terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch
Net weight	29 kg
Protection type	thermal protection via drive or temperature control switch at 120 °C
Height	485 mm
Environment
IP degree of protection	IP23
Ambient air temperature for storage	-25-70 °C
Ambient air temperature for operation	0-50 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	48.500 cm
Package 1 Width	54.000 cm
Package 1 Length	65.000 cm
Package 1 Weight	40.000 kg
