Picture of braking resistor, Altivar, 28Ohms, 0.3kW, IP20
SKU:

VW3A7732

braking resistor, Altivar, 28Ohms, 0.3kW, IP20

$409.91
Available for Shipping : 08-Oct-2024
Product Selector
braking resistor, Altivar, 28Ohms, 0.3kW, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

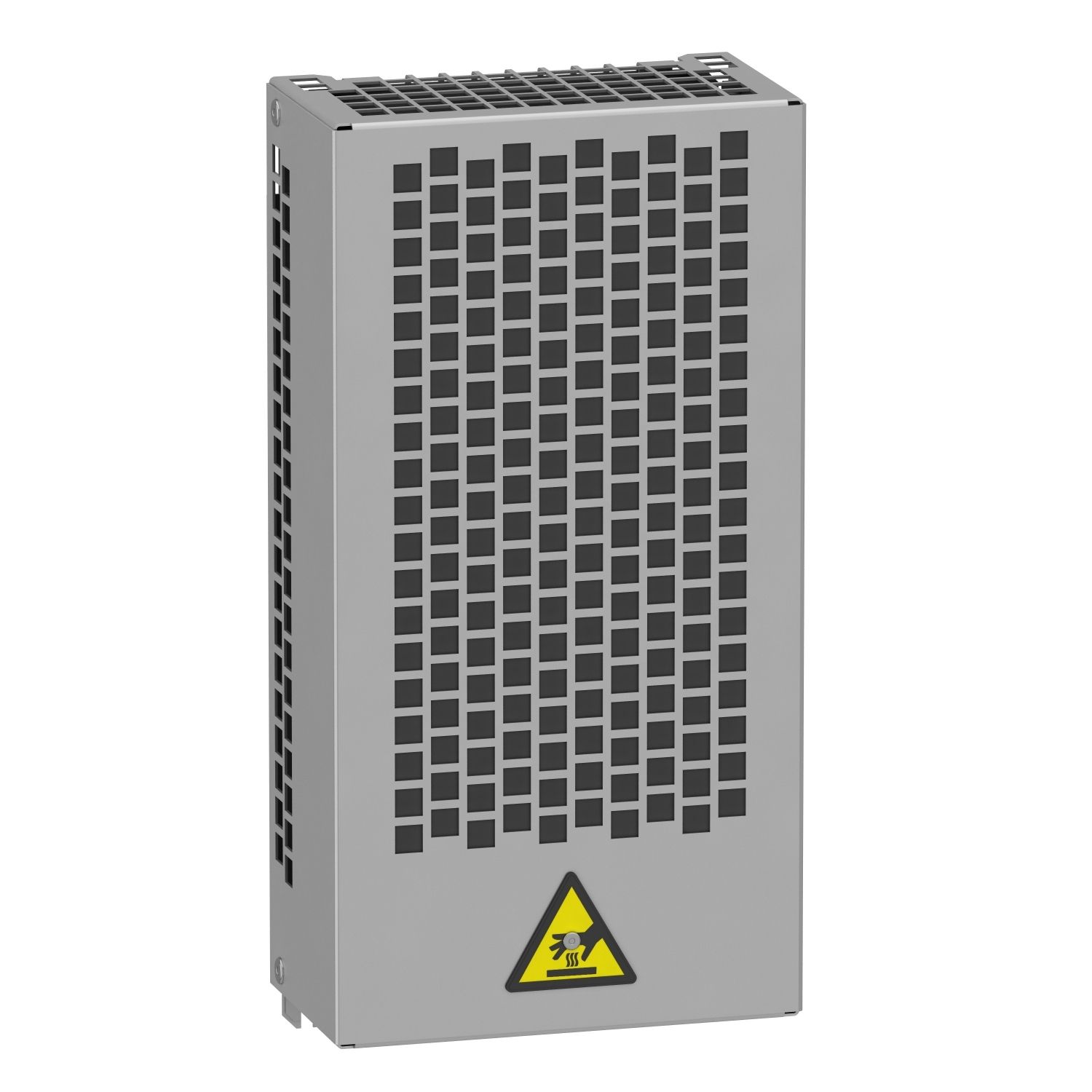

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 3kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Products specifications

Attribute name Attribute value
Main
Range compatibility Easy Altivar 310L, Altivar Machine ATV320, Altivar Process ATV900, Easy Altivar 310, Altivar Machine ATV340
Product or component type braking resistor
Ohmic value 28 Ohm
Complementary
Average power available 0.3 kW at 50 °C
Depth 100 mm
Width 175 mm
Duty cycle medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle , light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle
Product compatibility variable speed drive ATV320 2.2 kW 200...240 V, variable speed drive ATV340 7.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 200...240 V light cycle, variable speed drive ATV310 11 kW, variable speed drive ATV950 wall mount 15 kW 380...480 V light cycle, variable speed drive ATV340 11 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 15 kW 380...480 V light cycle, variable speed drive ATV930 18.5 kW 500...690 V light cycle, variable speed drive ATV930 20 hp 600 V light cycle, variable speed drive ATV320 11 kW 525...600 V, variable speed drive ATV320 11 kW 380...480 V, variable speed drive ATV320 3 kW 200...240 V, variable speed drive ATV320 7.5 kW 380...480 V, variable speed drive ATV930 25 hp 600 V light cycle, variable speed drive ATV930 wall mount 3 kW 200...240 V light cycle, variable speed drive ATV930 15 kW 500...690 V light cycle, variable speed drive ATV320 7.5 kW 525...600 V, variable speed drive ATV930 wall mount 11 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 200...240 V medium cycle, variable speed drive ATV950 wall mount 11 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 200...240 V medium cycle, variable speed drive ATV320 15 kW 525...600 V
Electrical connection terminal, connection capacity: <= 10 mm² / AWG 8 for drive
Net weight 2.7 kg
Protection type thermal protection via drive
Height 345 mm
Environment
IP degree of protection IP20
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.800 cm
Package 1 Width 18.800 cm
Package 1 Length 36.000 cm
Package 1 Weight 3.038 kg
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 63.364 kg
