Picture of braking resistor, Altivar, 100Ohms, 0.1kW, IP20
SKU:

VW3A7730

braking resistor, Altivar, 100Ohms, 0.1kW, IP20

Old price: $292.08 INC GST
$223.44 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
braking resistor, Altivar, 100Ohms, 0.1kW, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

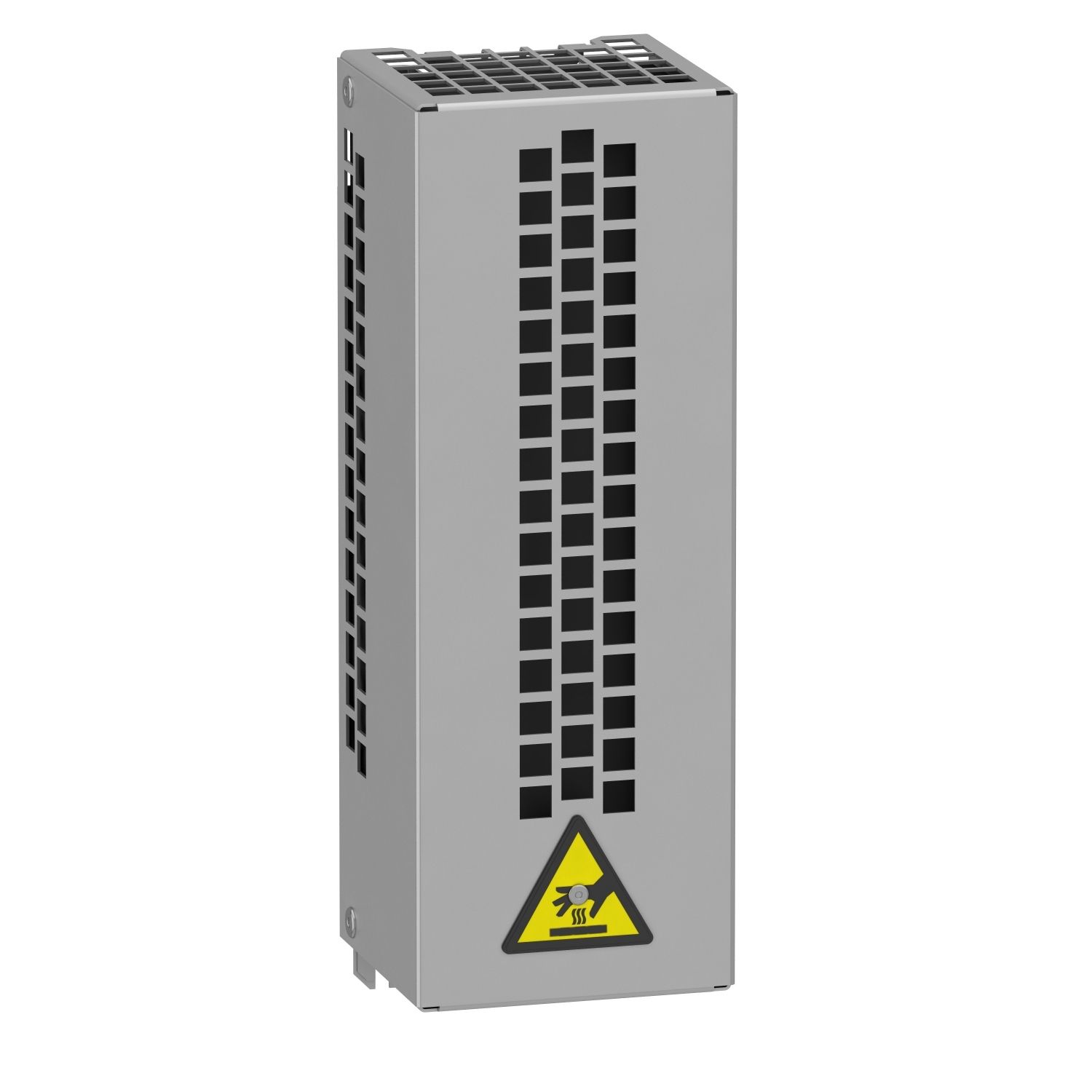

This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.

Products specifications

Attribute name Attribute value
Main
Range compatibility Easy Altivar 310L, Easy Altivar 310, Altivar Machine ATV320, Altivar Machine ATV340, Altivar Process ATV900
Product or component type braking resistor
Ohmic value 100 Ohm
Complementary
Average power available 0.1 kW at 50 °C
Depth 100 mm
Width 105 mm
Duty cycle medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle , light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle
Product compatibility variable speed drive ATV310L 5.5 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 0.75 kW, variable speed drive ATV320 4 kW 525...600 V, variable speed drive ATV320 2.2 kW 525...600 V, variable speed drive ATV320 1.5 kW 525...600 V, variable speed drive ATV320 0.75 kW 525...600 V, variable speed drive ATV930 3 hp 600 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV310 4 kW, variable speed drive ATV310 3 kW, variable speed drive ATV310 2.2 kW, variable speed drive ATV310 1.5 kW, variable speed drive ATV320 3 kW 380...480 V, variable speed drive ATV320 2.2 kW 380...480 V, variable speed drive ATV320 1.5 kW 380...480 V, variable speed drive ATV320 1.1 kW 380...480 V, variable speed drive ATV320 0.75 kW 380...480 V, variable speed drive ATV320 0.55 kW 380...480 V, variable speed drive ATV320 0.37 kW 380...480 V, variable speed drive ATV320 0.37 kW 200...240 V, variable speed drive ATV320 0.18 kW 200...240 V, variable speed drive ATV340 0.75 kW 380...480 V medium cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle
Electrical connection terminal, connection capacity: <= 10 mm² / AWG 8 for drive
Net weight 1.5 kg
Protection type thermal protection via drive
Height 295 mm
Environment
IP degree of protection IP20
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 31.500 cm
Package 1 Length 17.500 cm
Package 1 Weight 1.714 kg
Unit Type of Package 2 2
Number of Units in Package 2 33
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 63.011 kg
