SKU:

VW3A7707

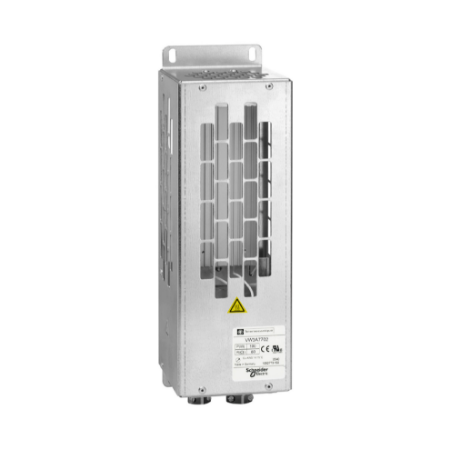

braking resistor, Altivar 61, IP20, 5Ohm, 1000W

$1,264.99

Qty:

Availability: Please contact our sales team on 1300 724 622.

braking resistor, Altivar 61, IP20, 5Ohm, 1000W

Manufacturer: Schneider Electric

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	250 V AC at 1 A, 24 V DC at 0.1 A
Range compatibility	Altivar 61
Product compatibility	ATV71WD75N4, ATV71WD55N4, ATV71WD45N4, ATV71HD90Y, ATV71HD75Y, ATV71HD75N4, ATV71HD55N4, ATV71HD45N4, ATV71HD22M3X, ATV71HD18M3X, ATV61HD90Y, ATV61HD75N4, ATV61HD55N4, ATV61HD45N4, ATV61HD22M3X, ATV61HD18M3X
Range of product	Altivar
Ohmic value	5 Ohm
Complementary
Contact resistance	60 µOhm
Average power available	1.3 kW at 50 °C
Depth	301 mm
Width	240 mm
Electrical connection	terminal, connection capacity: <= 2.5 mm² / AWG 14 for temperature control switch, M6 bar wire for drive
Net weight	11 kg
Protection type	thermal protection via drive or temperature control switch at 120 °C
Height	484 mm
Environment
Ambient air temperature for storage	-25-70 °C
IP degree of protection	IP20
Ambient air temperature for operation	0-50 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	33.200 cm
Package 1 Width	41.200 cm
Package 1 Length	57.200 cm
Package 1 Weight	9.668 kg
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	97.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	75.000 kg
