SKU:

VW3A7205

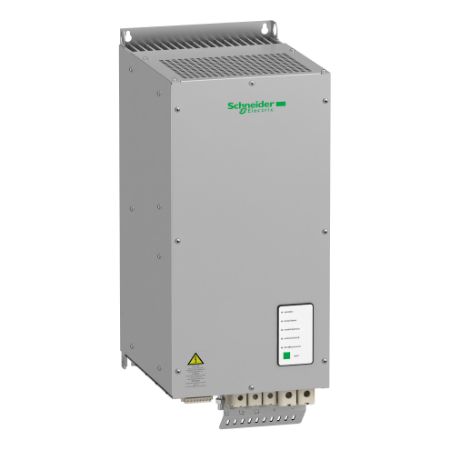

network braking unit - 45 kW - 400 V - for variable speed drive

$17,638.52 INC GST
Availability: Please contact our sales team on 1300 724 622.
network braking unit - 45 kW - 400 V - for variable speed drive
Manufacturer: Telemecanique

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 400 V
Range compatibility Altivar 71
Supply voltage limits 380-415 V
Complementary
Net weight 32 kg
Depth 295 mm
Width 270 mm
Cos phi 1
Overload protection 1.2 x maximum current
Efficiency 97 %
Permanent braking power 26 kW
Height 580 mm
Maximum braking power 45 kW
Associated fuse rating 100 A at 690 V
Environment
IP degree of protection IP20
Operating altitude <= 1000 m without current derating
Ambient air temperature for storage -25-55 °C
