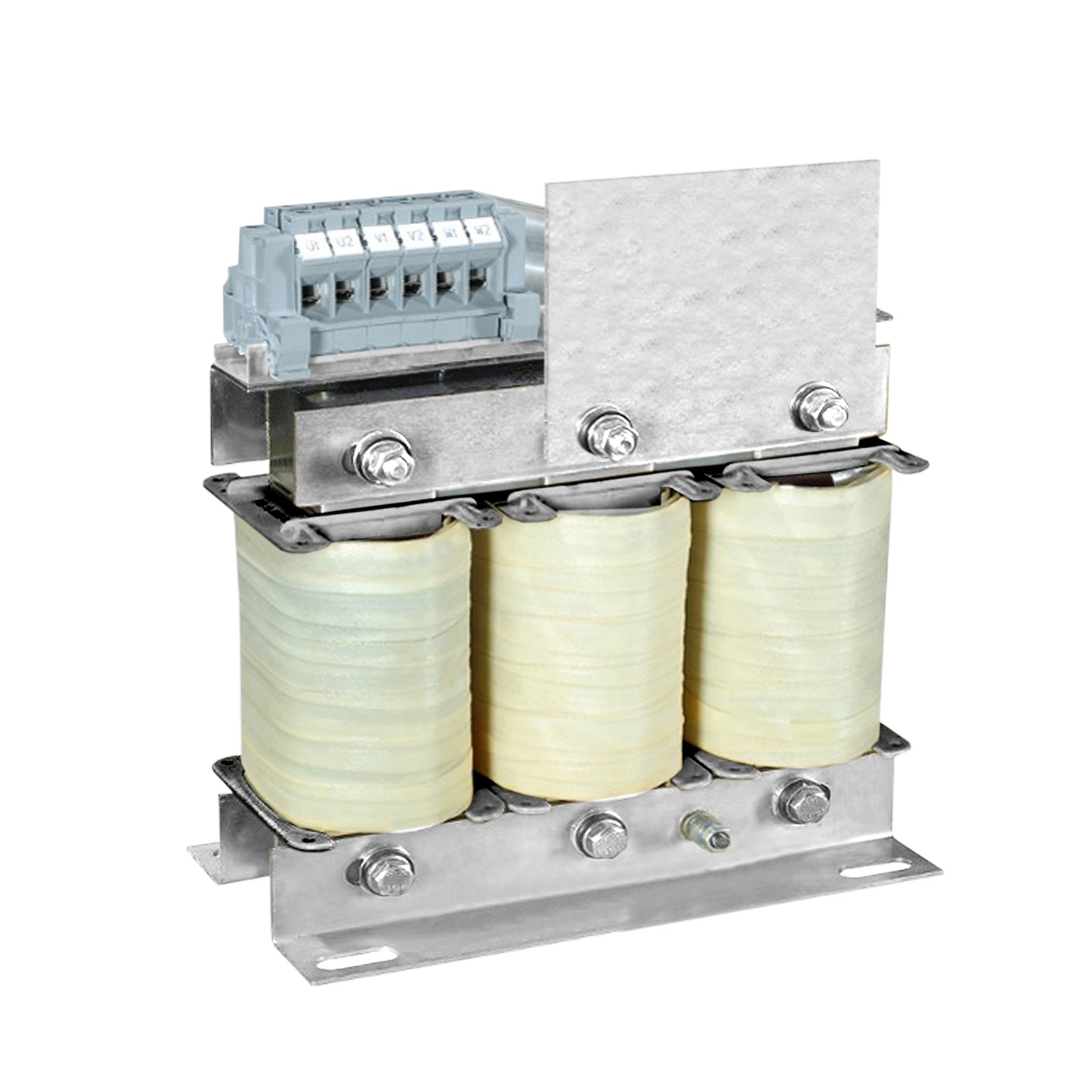

Picture of sinus filter - 600 A - for Altivar variable speed drive
SKU:

VW3A5210

sinus filter - 600 A - for Altivar variable speed drive

$32,725.24
Available for Shipping : 16-Mar-2025
Product Selector
sinus filter - 600 A - for Altivar variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar 71Q, Altivar 61Q, Altivar 61, Altivar Process ATV600, Altivar 71, Altivar Process ATV900
[In] rated current 600 A
Thermal losses 2370 W at 100 Hz
Product specific application output filter
Product compatibility ATV71HC28N4,  ATV61QC40N4, ATV61QC31N4,  ATV61HC40N4, ATV61HC31N4, ATV61HC25N4, ATV71QC25N4, ATV71HC25N4, ATV930 variable speed drive wall mount - 315 kW, 380...480 V, ATV930 variable speed drive wall mount - 250 kW, 380...480 V,  ATV71QC40N4,  ATV71QC31N4,  ATV71HC40N4,  ATV71HC31N4, ATV61QC25N4
Permissible voltage 500 V AC
Product or component type sinus filter
Switching frequency 4...8 kHz
Maximum output frequency 100 Hz
Complementary
Maximum voltage drop at rated load 10 %
Max current 1.5 x nominal current (duration = 60 s)
Electrical connection bare wires diameter: 14 mm
Net weight 260 kg
Environment
IP degree of protection IP00
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
Ambient air temperature for storage -40-65 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -10-40 °C (without current derating), 40-50 °C (with current derating 1.5 % per °C)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 95.0 cm
Package 1 Width 45.0 cm
Package 1 Length 70.0 cm
Package 1 Weight 224.5 kg
